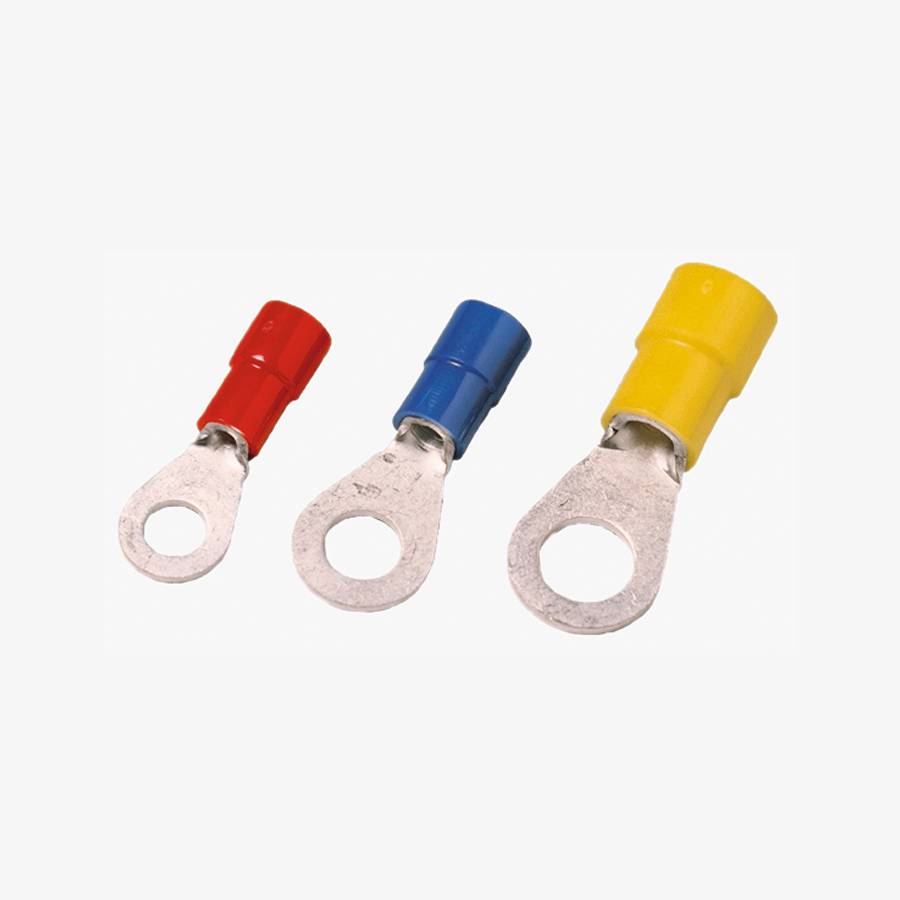

Quetschkabelschuhe Ringform

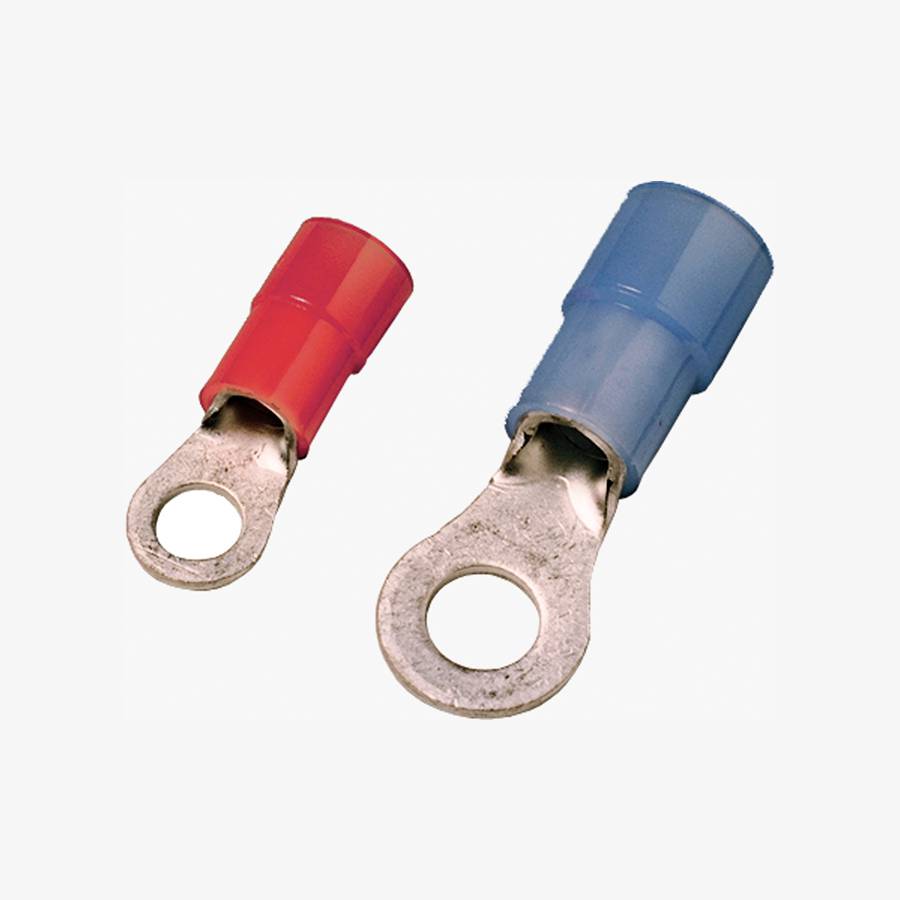

Keine weißen Streifen (Weißbruch) beim Verpressen. Durch die aufgeweitete Isolationshülse (Easy Entry) können auch Kabel mit dickerer Isolation problemlos eingesetzt werden. Die Trichterform der Isolationshülse verhindert, dass die einzelnen Adern des Leiters beim Einstecken an den Rand des Kabelschuhes anstoßen. Die Längsnaht wird durch Hartlötung sicher verschlossen und sorgt für eine elektrisch und mechanisch optimale Verbindung.
Um ein Produkt anzufragen, klicken Sie bitte auf die entsprechende Artikelnummer in der Tabelle.

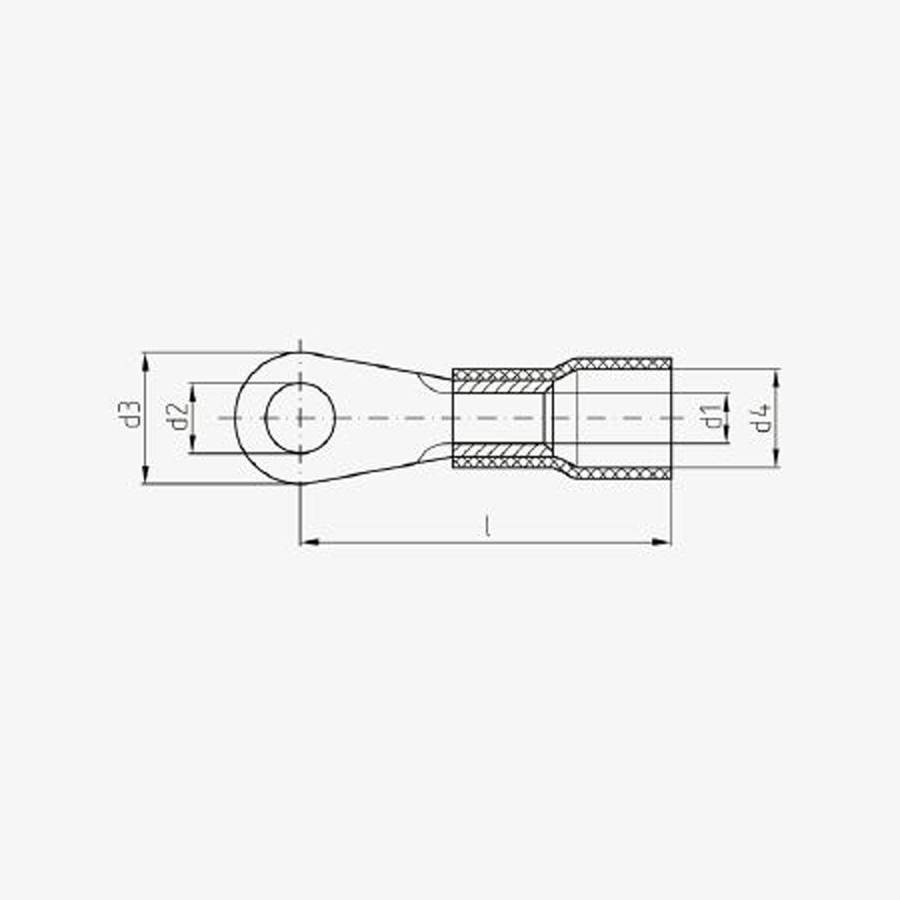

| Querschnitt mm² | Bolzen M | Typ | Art.-Nr. PC | Art.-Nr. PA | Farbe | d1 mm | d4 mm | d2 mm | d3 mm | L mm | VE Stück |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,1 - 0,5 | 2 | LFS A 2 - 0,5* | 22-100 | gelb / yellow | 1.0 | 3.2 | 2.2 | 5.0 | 16.0 | 100 | |
| 0,1 - 0,5 | 3 | LFS A 3 - 0,5* | 22-101 | gelb / yellow | 1.0 | 3.2 | 3.2 | 5.0 | 16.0 | 100 | |
| 0,1 - 0,5 | 4 | LFS A 4 - 0,5* | 22-102 | gelb / yellow | 1.0 | 3.2 | 4.3 | 6.0 | 17.0 | 100 | |
| 0,1 - 0,5 | 5 | LFS A 5 - 0,5* | 22-103 | gelb / yellow | 1.0 | 3.2 | 5.3 | 8.0 | 18.0 | 100 | |
| 0,5 - 1,0 | 2 | LFS A 2 - 1 | 22-111 | rot / red | 1.6 | 4.0 | 2.2 | 6.0 | 17.0 | 100 | |
| 0,5 - 1,0 | 2.5 | LFS A 2,5 - 1 | 22-112 | 22-112-N | rot / red | 1.6 | 4.0 | 2.7 | 6.0 | 17.0 | 100 |
| 0,5 - 1,0 | 3 | LFS A 3 - 1 | 22-113 | 22-113-N | rot / red | 1.6 | 4.0 | 3.2 | 6.0 | 17.0 | 100 |
| 0,5 - 1,0 | 3.5 | LFS A 3,5 - 1 | 22-115 | 22-115-N | rot / red | 1.6 | 4.0 | 3.7 | 6.0 | 17.0 | 100 |
| 0,5 - 1,0 | 4 | LFS A S4 - 1 | 22-118 | rot / red | 1.6 | 4.0 | 4.3 | 7.0 | 17.5 | 100 | |
| 0,5 - 1,0 | 4 | LFS A 4 - 1 | 22-119 | 22-119-N | rot / red | 1.6 | 4.0 | 4.3 | 8.0 | 18.0 | 100 |
| 0,5 - 1,0 | 5 | LFS A S5 - 1 | 22-120 | rot / red | 1.6 | 4.0 | 5.3 | 8.0 | 18.5 | 100 | |
| 0,5 - 1,0 | 5 | LFS A 5 - 1 | 22-121 | 22-121-N | rot / red | 1.6 | 4.0 | 5.3 | 10.0 | 19.0 | 100 |
| 0,5 - 1,0 | 6 | LFS A 6 - 1 | 22-123 | 22-123-N | rot / red | 1.6 | 4.0 | 6.5 | 10.0 | 19.0 | 100 |
| 0,5 - 1,0 | 8 | LFS A 8 - 1 | 22-125 | 22-125-N | rot / red | 1.6 | 4.0 | 8.4 | 14.0 | 23.0 | 100 |
| 0,5 - 1,0 | 10 | LFS A 10 - 1 | 22-126 | 22-126-N | rot / red | 1.6 | 4.0 | 10.5 | 18.0 | 25.0 | 100 |
| 1,5 - 2,5 | 3 | LFS A 3 - 2,5 | 22-130 | 22-130-N | blau / blue | 2.3 | 4.4 | 3.2 | 6.0 | 17.0 | 100 |
| 1,5 - 2,5 | 3.5 | LFS A 3,5 - 2,5 | 22-131 | 22-131-N | blau / blue | 2.3 | 4.4 | 3.7 | 6.0 | 17.0 | 100 |
| 1,5 - 2,5 | 4 | LFS A S4 - 2,5 | 22-133 | blau / blue | 2.3 | 4.4 | 4.3 | 6.8 | 17.6 | 100 | |
| 1,5 - 2,5 | 4 | LFS A 4 - 2,5 | 22-134 | 22-134-N | blau / blue | 2.3 | 4.4 | 4.3 | 8.0 | 18.0 | 100 |
| 1,5 - 2,5 | 5 | LFS A S5 - 2,5 | 22-135 | blau / blue | 2.3 | 4.4 | 5.3 | 8.0 | 19.5 | 100 | |
| 1,5 - 2,5 | 5 | LFS A 5 - 2,5 | 22-136 | 22-136-N | blau / blue | 2.3 | 4.4 | 5.3 | 10.0 | 20.0 | 100 |
| 1,5 - 2,5 | 6 | LFS A S6 - 2,5 | 22-137 | blau / blue | 2.3 | 4.4 | 6.5 | 10.0 | 20.0 | 100 | |
| 1,5 - 2,5 | 6 | LFS A 6 - 2,5 | 22-138 | 22-138-N | blau / blue | 2.3 | 4.4 | 6.5 | 11.0 | 22.0 | 100 |
| 1,5 - 2,5 | 8 | LFS A 8 - 2,5 | 22-139 | 22-139-N | blau / blue | 2.3 | 4.4 | 8.4 | 14.0 | 23.0 | 100 |
| 1,5 - 2,5 | 10 | LFS A 10 - 2,5 | 22-140 | 22-140-N | blau / blue | 2.3 | 4.4 | 10.5 | 18.0 | 25.6 | 100 |
| 1,5 - 2,5 | 12 | LFS A 12 - 2,5 | 22-141 | 22-141-N | blau / blue | 2.3 | 4.4 | 13.0 | 18.0 | 26.0 | 100 |
| 4,0 - 6,0 | 4 | LFS A 4 - 6 | 22-150 | 22-150-N | gelb / yellow | 3.6 | 6.4 | 4.3 | 8.0 | 21.0 | 100 |
| 4,0 - 6,0 | 5 | LFS A 5 - 6 | 22-151 | 22-151-N | gelb / yellow | 3.6 | 6.4 | 5.3 | 10.0 | 22.0 | 100 |
| 4,0 - 6,0 | 6 | LFS A 6 - 6 | 22-152 | 22-152-N | gelb / yellow | 3.6 | 6.4 | 6.5 | 11.0 | 23.0 | 100 |
| 4,0 - 6,0 | 8 | LFS A 8 - 6 | 22-153 | 22-153-N | gelb / yellow | 3.6 | 6.4 | 8.4 | 14.0 | 26.0 | 100 |
| 4,0 - 6,0 | 10 | LFS A 10 - 6 | 22-154 | 22-154-N | gelb / yellow | 3.6 | 6.4 | 10.5 | 18.0 | 28.0 | 100 |
| 4,0 - 6,0 | 12 | LFS A 12 - 6 | 22-155 | 22-155-N | gelb / yellow | 3.6 | 6.4 | 13.0 | 18.0 | 28.0 | 100 |
| 10.0 | 4 | LFS A 4 - 10 | 22-160 | rot / red | 4.5 | 8.0 | 4.3 | 10.0 | 24.0 | 50 | |
| 10.0 | 5 | LFS A 5 - 10 | 22-161 | rot / red | 4.5 | 8.0 | 5.3 | 10.0 | 24.5 | 50 | |
| 10.0 | 6 | LFS A 6 - 10 | 22-162 | rot / red | 4.5 | 8.0 | 6.5 | 11.0 | 25.5 | 50 | |
| 10.0 | 8 | LFS A 8 - 10 | 22-163 | rot / red | 4.5 | 8.0 | 8.4 | 14.0 | 28.5 | 50 | |
| 10.0 | 10 | LFS A 10 - 10 | 22-164 | rot / red | 4.5 | 8.0 | 10.5 | 18.0 | 29.5 | 50 | |
| 10.0 | 12 | LFS A 12 - 10 | 22-165 | rot / red | 4.5 | 8.0 | 13.0 | 22.0 | 31.0 | 50 | |
| 16.0 | 5 | LFS A 5 - 16 | 22-170 | blau / blue | 5.8 | 8.0 | 5.3 | 11.0 | 31.5 | 50 | |
| 16.0 | 6 | LFS A 6 - 16 | 22-171 | blau / blue | 5.8 | 8.0 | 6.5 | 11.0 | 31.5 | 50 | |
| 16.0 | 8 | LFS A 8 - 16 | 22-172 | blau / blue | 5.8 | 8.0 | 8.4 | 14.0 | 33.5 | 50 | |
| 16.0 | 10 | LFS A 10 - 16 | 22-173 | blau / blue | 5.8 | 8.0 | 10.5 | 18.0 | 35.5 | 50 | |
| 16.0 | 12 | LFS A 12 - 16 | 22-174 | blau / blue | 5.8 | 8.0 | 13.0 | 22.0 | 36.0 | 50 | |
| 25.0 | 5 | LFS A 5 - 25 | 22-180 | gelb / yellow | 7.5 | 13.0 | 5.3 | 12.0 | 38.0 | 50 | |
| 25.0 | 6 | LFS A 6 - 25 | 22-181 | gelb / yellow | 7.5 | 13.0 | 6.5 | 12.0 | 38.0 | 50 | |
| 25.0 | 8 | LFS A 8 - 25 | 22-182 | gelb / yellow | 7.5 | 13.0 | 8.4 | 16.0 | 38.0 | 50 | |
| 25.0 | 10 | LFS A 10 - 25 | 22-183 | gelb / yellow | 7.5 | 13.0 | 10.5 | 18.0 | 39.0 | 50 | |
| 25.0 | 12 | LFS A 12 - 25 | 22-184 | gelb / yellow | 7.5 | 13.0 | 13.0 | 22.0 | 44.0 | 50 | |
| 35.0 | 6 | LFS A 6 - 35 | 22-190 | rot / red | 9.0 | 14.5 | 6.5 | 15.0 | 41.0 | 50 | |
| 35.0 | 8 | LFS A 8 - 35 | 22-191 | rot / red | 9.0 | 14.5 | 8.4 | 16.0 | 41.0 | 50 | |
| 35.0 | 10 | LFS A 10 - 35 | 22-192 | rot / red | 9.0 | 14.5 | 10.5 | 18.0 | 42.0 | 50 | |
| 35.0 | 12 | LFS A 12 - 35 | 22-193 | rot / red | 9.0 | 14.5 | 13.0 | 22.0 | 46.0 | 50 | |
| 50.0 | 6 | LFS A 6 - 50 | 22-200 | blau / blue | 11.0 | 16.5 | 6.5 | 18.0 | 47.5 | 50 | |
| 50.0 | 8 | LFS A 8 - 50 | 22-201 | blau / blue | 11.0 | 16.5 | 8.4 | 18.0 | 47.5 | 50 | |
| 50.0 | 10 | LFS A 10 - 50 | 22-202 | blau / blue | 11.0 | 16.5 | 10.5 | 18.0 | 47.5 | 50 | |
| 50.0 | 12 | LFS A 12 - 50 | 22-203 | blau / blue | 11.0 | 16.5 | 13.0 | 22.0 | 49.5 | 50 | |
| 50.0 | 16 | LFS A 16 - 50 | 22-204 | blau / blue | 11.0 | 16.5 | 17.0 | 22.0 | 52.0 | 50 | |
| 70.0 | 6 | LFS A 6 - 70 | 22-214 | gelb / yellow | 13.0 | 18.7 | 6.5 | 22.0 | 51.0 | 50 | |
| 70.0 | 8 | LFS A 8 - 70 | 22-210 | gelb / yellow | 13.0 | 18.7 | 8.4 | 22.0 | 51.0 | 50 | |
| 70.0 | 10 | LFS A 10 - 70 | 22-211 | gelb / yellow | 13.0 | 18.7 | 10.5 | 22.0 | 51.0 | 50 | |
| 70.0 | 12 | LFS A 12 - 70 | 22-212 | gelb / yellow | 13.0 | 18.7 | 13.0 | 22.0 | 51.0 | 50 | |
| 70.0 | 16 | LFS A 16 - 70 | 22-213 | gelb / yellow | 13.0 | 18.7 | 17.0 | 28.0 | 55.0 | 50 | |
| 95.0 | 8 | LFS A 8 - 95 | 22-223 | rot / red | 15.0 | 21.7 | 8.4 | 24.0 | 57.5 | 50 | |
| 95.0 | 10 | LFS A 10 - 95 | 22-220 | rot / red | 15.0 | 21.7 | 10.5 | 24.0 | 57.5 | 50 | |
| 95.0 | 12 | LFS A 12 - 95 | 22-221 | rot / red | 15.0 | 21.7 | 13.0 | 24.0 | 57.5 | 50 | |
| 95.0 | 16 | LFS A 16 - 95 | 22-222 | rot / red | 15.0 | 21.7 | 17.0 | 28.0 | 59.5 | 50 | |
| 120.0 | 8 | LFS A 8 - 120 | 22-233 | blau / blue | 16.5 | 24.2 | 8.4 | 24.0 | 62.0 | 25 | |
| 120.0 | 10 | LFS A 10 - 120 | 22-230 | blau / blue | 16.5 | 24.2 | 10.5 | 24.0 | 62.0 | 25 | |
| 120.0 | 12 | LFS A 12 - 120 | 22-231 | blau / blue | 16.5 | 24.2 | 13.0 | 24.0 | 62.0 | 25 | |
| 120.0 | 16 | LFS A 16 - 120 | 22-232 | blau / blue | 16.5 | 24.2 | 17.0 | 28.0 | 66.0 | 25 |
