Durchführungstüllen

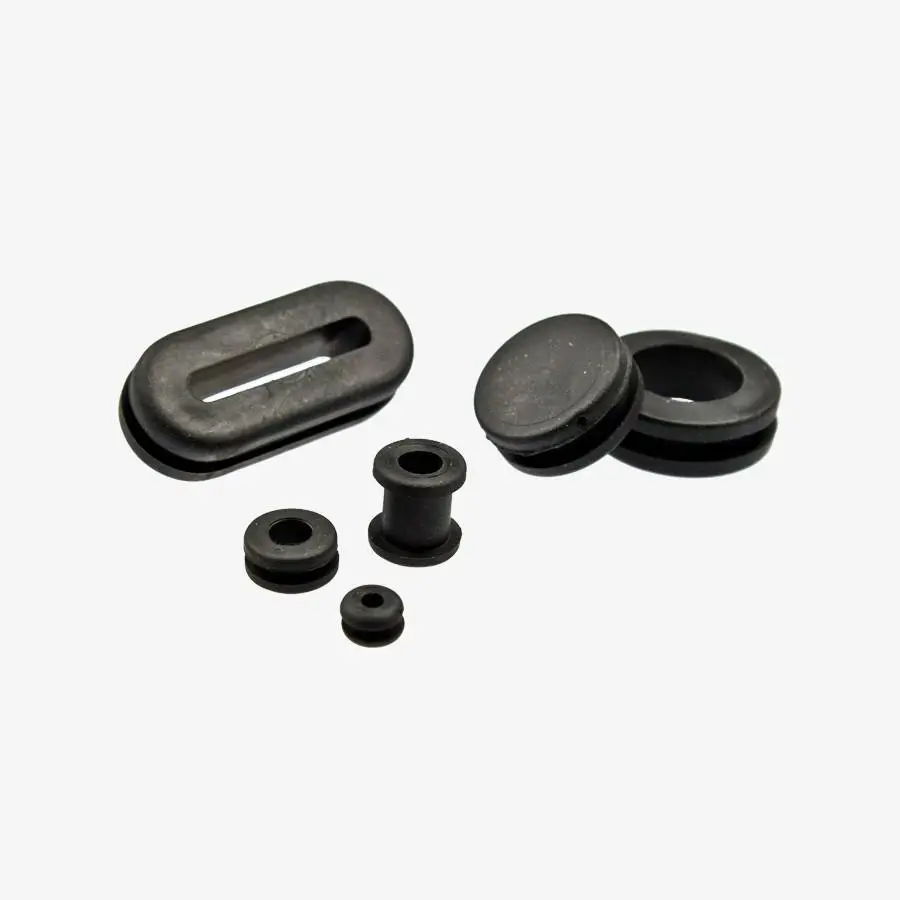

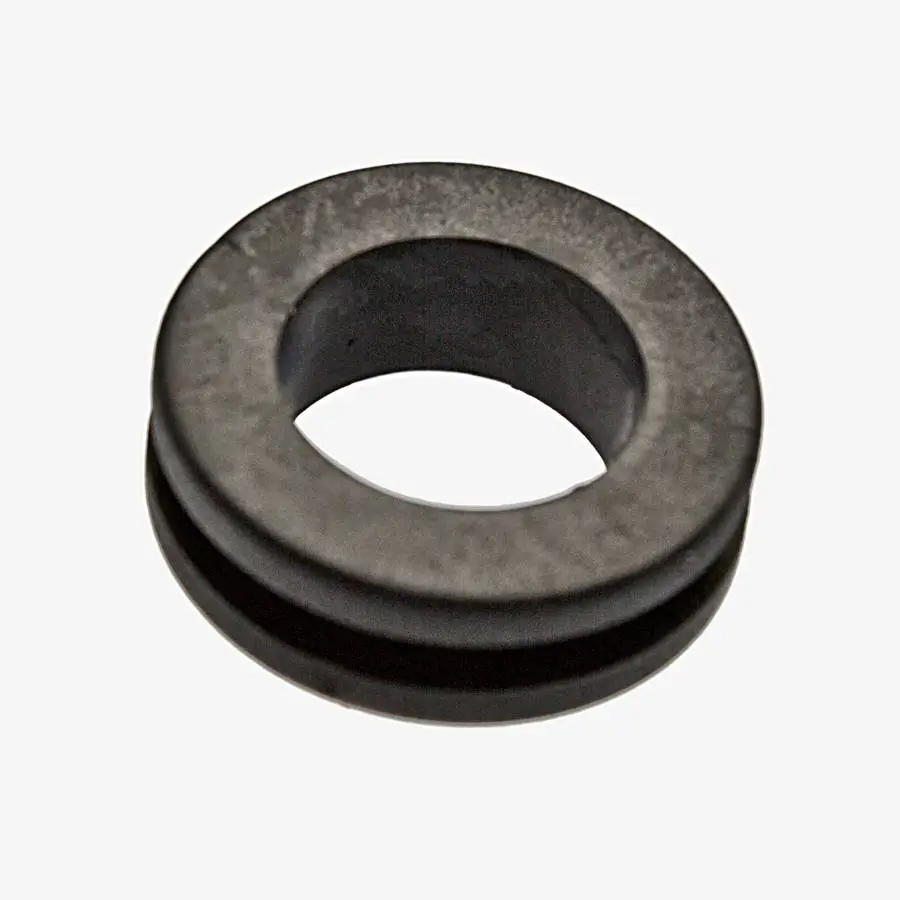

Durchführungstüllen DK-PVC
Kabeldurchführungen dienen zum Schutz von Kabeln oder Rohren vor scharfen Kanten in Gehäusen oder Platten.
Formteile aus Weich-PVC werden im Spritzgussverfahren hergestellt. Sie haben deshalb eine einwandfreie Oberfläche und sind dimensionsgenau. Weich-PVC ist beständig gegen Wasser, Ozon, Wetter, verdünnte Säuren, Laugen und Salze. Es hat eine sehr gute Alterungsbeständigkeit.
Um ein Produkt anzufragen, klicken Sie bitte auf die entsprechende Artikelnummer in der Tabelle.
• Farbe: weiß und hellgrau (RAL 7035) auf Anfrage lieferbar!
Die richtige Größe ist nicht dabei? Bitte sprechen Sie uns an, gerne finden wir eine Lösung für Sie.
| Typ | Art.-Nr. | ØA mm | ØB mm | ØC mm | D mm | F mm | VE Stück |
|---|---|---|---|---|---|---|---|
| DK-PVC 2/5/8-1 | 54-001 | 2.0 | 5.0 | 8.0 | 1.0 | 1.5 | 100 |
| DK-PVC 2/5/8-1,5 | 54-002 | 2.0 | 5.0 | 8.0 | 1.5 | 1.5 | 100 |
| DK-PVC 2/5/8-2 | 54-003 | 2.0 | 5.0 | 8.0 | 2.0 | 1.5 | 100 |
| DK-PVC 3/5/8-1 | 54-004 | 3.0 | 5.0 | 8.0 | 1.0 | 1.5 | 100 |
| DK-PVC 3/5/8-1,5 | 54-005 | 3.0 | 5.0 | 8.0 | 1.5 | 1.5 | 100 |
| DK-PVC 3/5/8-2 | 54-006 | 3.0 | 5.0 | 8.0 | 2.0 | 1.5 | 100 |
| DK-PVC 4/6/11-4 | 54-110 | 4.0 | 6.0 | 11.0 | 4.0 | 2.0 | 100 |
| DK-PVC 4/8/11-1 | 54-007 | 4.0 | 8.0 | 11.0 | 1.0 | 2.0 | 100 |
| DK-PVC 4/8/11-1,5 | 54-008 | 4.0 | 8.0 | 11.0 | 1.5 | 2.0 | 100 |
| DK-PVC 4/8/11-2 | 54-009 | 4.0 | 8.0 | 11.0 | 2.0 | 2.0 | 100 |
| DK-PVC 4,8/8/12-1,5 | 54-123 | 4.8 | 8.0 | 12.0 | 1.5 | 2.0 | 100 |
| DK-PVC 5/7/11-3 | 54-111 | 5.0 | 7.0 | 11.0 | 3.0 | 2.0 | 100 |
| DK-PVC 5/8/11-1 | 54-010 | 5.0 | 8.0 | 11.0 | 1.0 | 2.0 | 100 |
| DK-PVC 5/8/11-1,5 | 54-011 | 5.0 | 8.0 | 11.0 | 1.5 | 2.0 | 100 |
| DK-PVC 5/8/11-2 | 54-012 | 5.0 | 8.0 | 11.0 | 2.0 | 2.0 | 100 |
| DK-PVC 5,5/8/12-1,5 | 54-013 | 5.5 | 8.0 | 12.0 | 1.5 | 2.0 | 100 |
| DK-PVC 5,5/9/12-1 | 54-014 | 5.5 | 9.0 | 12.0 | 1.0 | 2.0 | 100 |
| DK-PVC 5,5/9/12-1,5 | 54-015 | 5.5 | 9.0 | 12.0 | 1.5 | 2.0 | 100 |
| DK-PVC 5,5/9/12-2 | 54-016 | 5.5 | 9.0 | 12.0 | 2.0 | 2.0 | 100 |
| DK-PVC 5,5/9/12-3 | 54-017 | 5.5 | 9.0 | 12.0 | 3.0 | 2.0 | 100 |
| DK-PVC 6/8/12-1,5 | 54-069 | 6.0 | 8.0 | 12.0 | 1.5 | 2.0 | 100 |
| DK-PVC 6/9/12-1 | 54-018 | 6.0 | 9.0 | 12.0 | 1.0 | 2.0 | 100 |
| DK-PVC 6/9/12-1,5 | 54-019 | 6.0 | 9.0 | 12.0 | 1.5 | 2.0 | 100 |
| DK-PVC 6/9/12-2 | 54-020 | 6.0 | 9.0 | 12.0 | 2.0 | 2.0 | 100 |
| DK-PVC 6/9/12-3 | 54-021 | 6.0 | 9.0 | 12.0 | 3.0 | 2.0 | 100 |
| DK-PVC 6/9/12-4 | 54-190 | 6.0 | 9.0 | 12.0 | 4.0 | 2.0 | 100 |
| DK-PVC 6/9/12-5 | 54-191 | 6.0 | 9.0 | 12.0 | 5.0 | 2.0 | 100 |
| DK-PVC 6/9/12-6 | 54-192 | 6.0 | 9.0 | 12.0 | 6.0 | 2.0 | 100 |
| DK-PVC 6/9/12-7 | 54-193 | 6.0 | 9.0 | 12.0 | 7.0 | 2.0 | 100 |
| DK-PVC 6/9/12-8 | 54-194 | 6.0 | 9.0 | 12.0 | 8.0 | 2.0 | 100 |
| DK-PVC 6/9/12-9 | 54-195 | 6.0 | 9.0 | 12.0 | 9.0 | 2.0 | 100 |
| DK-PVC 6/12/18-2 | 54-087 | 6.0 | 12.0 | 18.0 | 2.0 | 2.5 | 100 |
| DK-PVC 6/13/18-7 | 54-070 | 6.0 | 13.0 | 18.0 | 7.0 | 2.5 | 100 |
| DK-PVC 6/14/18-1 | 54-071 | 6.0 | 14.0 | 18.0 | 1.0 | 2.5 | 100 |
| DK-PVC 7/10/14-1 | 54-090 | 7.0 | 10.0 | 14.0 | 1.0 | 2.5 | 100 |
| DK-PVC 7/10/14-1,5 | 54-091 | 7.0 | 10.0 | 14.0 | 1.5 | 2.5 | 100 |
| DK-PVC 7/10/14-2 | 54-092 | 7.0 | 10.0 | 14.0 | 2.0 | 2.5 | 100 |
| DK-PVC 7/10/14-3 | 54-093 | 7.0 | 10.0 | 14.0 | 3.0 | 2.5 | 100 |
| DK-PVC 7/12/16-1 | 54-088 | 7.0 | 12.0 | 16.0 | 1.0 | 2.5 | 100 |
| DK-PVC 7/14/18-1 | 54-022 | 7.0 | 14.0 | 18.0 | 1.0 | 2.5 | 100 |
| DK-PVC 7/14/18-2 | 54-023 | 7.0 | 14.0 | 18.0 | 2.0 | 2.5 | 100 |
| DK-PVC 7/14/18-3 | 54-024 | 7.0 | 14.0 | 18.0 | 3.0 | 2.5 | 100 |
| DK-PVC 8/10/14-1 | 54-094 | 8.0 | 10.0 | 14.0 | 1.0 | 2.5 | 100 |
| DK-PVC 8/10/14-1,5 | 54-095 | 8.0 | 10.0 | 14.0 | 1.5 | 2.5 | 100 |
| DK-PVC 8/10/14-2 | 54-096 | 8.0 | 10.0 | 14.0 | 2.0 | 2.5 | 100 |
| DK-PVC 8/10/14-3 | 54-097 | 8.0 | 10.0 | 14.0 | 3.0 | 2.5 | 100 |
| DK-PVC 8/12/16-1 | 54-098 | 8.0 | 12.0 | 16.0 | 1.0 | 2.5 | 100 |
| DK-PVC 8/12/16-1,5 | 54-099 | 8.0 | 12.0 | 16.0 | 1.5 | 2.5 | 100 |
| DK-PVC 8/12/16-2 | 54-100 | 8.0 | 12.0 | 16.0 | 2.0 | 2.5 | 100 |
| DK-PVC 8/12/16-3 | 54-101 | 8.0 | 12.0 | 16.0 | 3.0 | 2.5 | 100 |
| DK-PVC 8/14/18-1 | 54-025 | 8.0 | 14.0 | 18.0 | 1.0 | 2.5 | 100 |
| DK-PVC 8/14/18-2 | 54-026 | 8.0 | 14.0 | 18.0 | 2.0 | 2.5 | 100 |
| DK-PVC 8/14/18-3 | 54-027 | 8.0 | 14.0 | 18.0 | 3.0 | 2.5 | 100 |
| DK-PVC 9/12/16-1 | 54-102 | 9.0 | 12.0 | 16.0 | 1.0 | 2.5 | 100 |
| DK-PVC 9/12/16-1,5 | 54-103 | 9.0 | 12.0 | 16.0 | 1.5 | 2.5 | 100 |
| DK-PVC 9/12/16-2 | 54-104 | 9.0 | 12.0 | 16.0 | 2.0 | 2.5 | 100 |
| DK-PVC 9/12/16-3 | 54-105 | 9.0 | 12.0 | 16.0 | 3.0 | 2.5 | 100 |
| DK-PVC 9/14/18-1 | 54-028 | 9.0 | 14.0 | 18.0 | 1.0 | 2.5 | 100 |
| DK-PVC 9/14/18-2 | 54-029 | 9.0 | 14.0 | 18.0 | 2.0 | 2.5 | 100 |
| DK-PVC 9/14/18-3 | 54-030 | 9.0 | 14.0 | 18.0 | 3.0 | 2.5 | 100 |
| DK-PVC 10/12/16-1 | 54-106 | 10.0 | 12.0 | 16.0 | 1.0 | 2.5 | 100 |
| DK-PVC 10/12/16-1,5 | 54-107 | 10.0 | 12.0 | 16.0 | 1.5 | 2.5 | 100 |
| DK-PVC 10/12/16-2 | 54-108 | 10.0 | 12.0 | 16.0 | 2.0 | 2.5 | 100 |
| DK-PVC 10/12/16-3 | 54-109 | 10.0 | 12.0 | 16.0 | 3.0 | 2.5 | 100 |
| DK-PVC 10/18/22-1 | 54-031 | 10.0 | 18.0 | 22.0 | 1.0 | 2.5 | 100 |
| DK-PVC 10/18/22-2 | 54-032 | 10.0 | 18.0 | 22.0 | 2.0 | 2.5 | 100 |
| DK-PVC 10/18/22-3 | 54-033 | 10.0 | 18.0 | 22.0 | 3.0 | 2.5 | 100 |
| DK-PVC 10/18/22-4 | 54-034 | 10.0 | 18.0 | 22.0 | 4.0 | 2.5 | 100 |
| DK-PVC 11/18/22-1 | 54-035 | 11.0 | 18.0 | 22.0 | 1.0 | 2.5 | 100 |
| DK-PVC 11/18/22-2 | 54-036 | 11.0 | 18.0 | 22.0 | 2.0 | 2.5 | 100 |
| DK-PVC 11/18/22-3 | 54-037 | 11.0 | 18.0 | 22.0 | 3.0 | 2.5 | 100 |
| DK-PVC 11/18/22-4 | 54-038 | 11.0 | 18.0 | 22.0 | 4.0 | 2.5 | 100 |
| DK-PVC 12/18/22-1 | 54-039 | 12.0 | 18.0 | 22.0 | 1.0 | 2.5 | 100 |
| DK-PVC 12/18/22-2 | 54-040 | 12.0 | 18.0 | 22.0 | 2.0 | 2.5 | 100 |
| DK-PVC 12/18/22-3 | 54-041 | 12.0 | 18.0 | 22.0 | 3.0 | 2.5 | 100 |
| DK-PVC 12/18/22-4 | 54-042 | 12.0 | 18.0 | 22.0 | 4.0 | 2.5 | 100 |
| DK-PVC 14/22/27-1 | 54-043 | 14.0 | 22.0 | 27.0 | 1.0 | 3.0 | 100 |
| DK-PVC 14/22/27-1,5 | 54-072 | 14.0 | 22.0 | 27.0 | 1.5 | 3.0 | 100 |
| DK-PVC 14/22/27-2 | 54-044 | 14.0 | 22.0 | 27.0 | 2.0 | 3.0 | 100 |
| DK-PVC 14/22/27-3 | 54-045 | 14.0 | 22.0 | 27.0 | 3.0 | 3.0 | 100 |
| DK-PVC 14/22/27-4 | 54-046 | 14.0 | 22.0 | 27.0 | 4.0 | 3.0 | 100 |
| DK-PVC 16/22/27-1 | 54-047 | 16.0 | 22.0 | 27.0 | 1.0 | 3.0 | 100 |
| DK-PVC 16/22/27-1,5 | 54-073 | 16.0 | 22.0 | 27.0 | 1.5 | 3.0 | 100 |
| DK-PVC 16/22/27-2 | 54-048 | 16.0 | 22.0 | 27.0 | 2.0 | 3.0 | 100 |
| DK-PVC 16/22/27-3 | 54-049 | 16.0 | 22.0 | 27.0 | 3.0 | 3.0 | 100 |
| DK-PVC 16/22/27-4 | 54-050 | 16.0 | 22.0 | 27.0 | 4.0 | 3.0 | 100 |
| DK-PVC 18/22/27-1 | 54-051 | 18.0 | 22.0 | 27.0 | 1.0 | 3.0 | 100 |
| DK-PVC 18/22/27-1,5 | 54-074 | 18.0 | 22.0 | 27.0 | 1.5 | 3.0 | 100 |
| DK-PVC 18/22/27-2 | 54-052 | 18.0 | 22.0 | 27.0 | 2.0 | 3.0 | 100 |
| DK-PVC 18/22/27-3 | 54-053 | 18.0 | 22.0 | 27.0 | 3.0 | 3.0 | 100 |
| DK-PVC 18/22/27-4 | 54-054 | 18.0 | 22.0 | 27.0 | 4.0 | 3.0 | 100 |
| DK-PVC 32/42-2 | 54-463 | 32.0 | 42.0 | 2.0 | 4.0 | 50 |
