non-insulated terminals and connectors

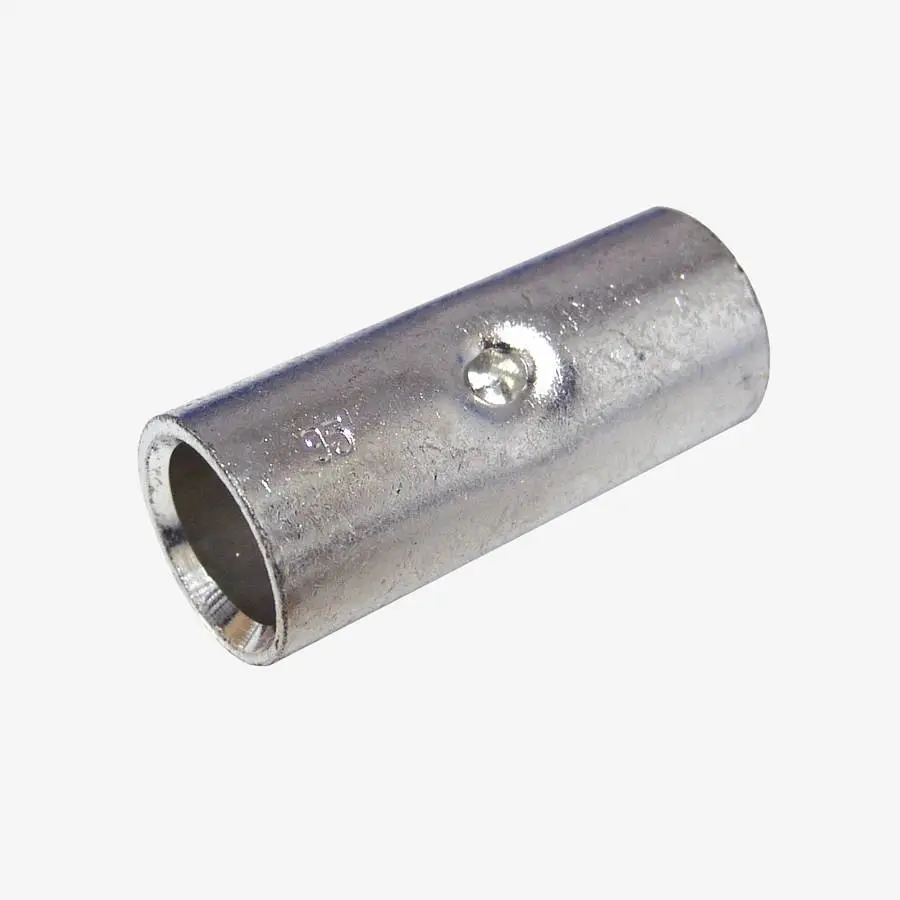

Butt-connectors
For stranded and fine stranded conductors.
To request a product, please click on the corresponding item number in the table.
* not according to DIN
We also offer butt connectors made of pure nickel up to a temperature of 500°C.

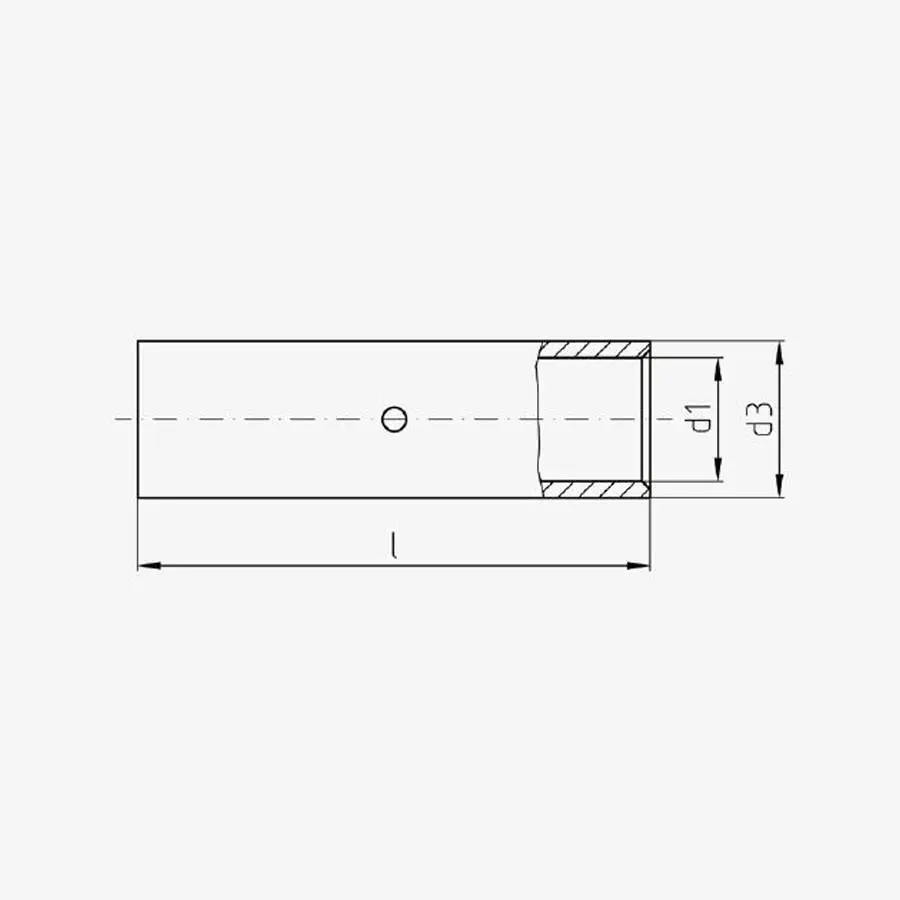

| Cross-section mm² | Type | Part no. | l mm | d1 mm | d3 mm | Weight kg / 100 pcs. | PU pcs. |
|---|---|---|---|---|---|---|---|
| 0,1 - 0,5 | SV 0,5* | 24-300 | 12.0 | 1.2 | 2.0 | 0.02 | 100 |
| 0,5 - 1,0 | SV 1,5 | 24-301 | 14.5 | 1.6 | 3.2 | 0.09 | 100 |
| 1,5 - 2,5 | SV 2,5 | 24-302 | 14.5 | 2.3 | 3.9 | 0.11 | 100 |
| 4,0 - 6,0 | SV 6 | 24-303 | 14.5 | 3.6 | 5.6 | 0.24 | 100 |
| 10.0 | SV 10 | 24-304 | 20.0 | 4.5 | 6.7 | 0.35 | 100 |
| 16.0 | SV 16 | 24-305 | 23.0 | 5.8 | 8.2 | 0.55 | 100 |
| 25.0 | SV 25 | 24-306 | 25.0 | 7.5 | 10.5 | 1.09 | 100 |
| 35.0 | SV 35 | 24-307 | 28.0 | 9.0 | 12.2 | 1.53 | 100 |
| 50.0 | SV 50 | 24-308 | 38.0 | 11.0 | 14.6 | 2.50 | 100 |
| 70.0 | SV 70 | 24-309 | 40.0 | 13.0 | 17.0 | 3.50 | 50 |
| 95.0 | SV 95 | 24-310 | 42.0 | 15.0 | 20.0 | 5.90 | 50 |
| 120.0 | SV 120 | 24-311 | 46.0 | 16.5 | 22.5 | 8.70 | 25 |
| 150.0 | SV 150 | 24-312 | 54.0 | 19.0 | 25.4 | 11.20 | 25 |
