non-insulated terminals and connectors
Pin terminals
For stranded and fine stranded conductors, crimping area soldered.
To request a product, please click on the corresponding item number in the table.
* not according DIN
K= short / HL= half-length

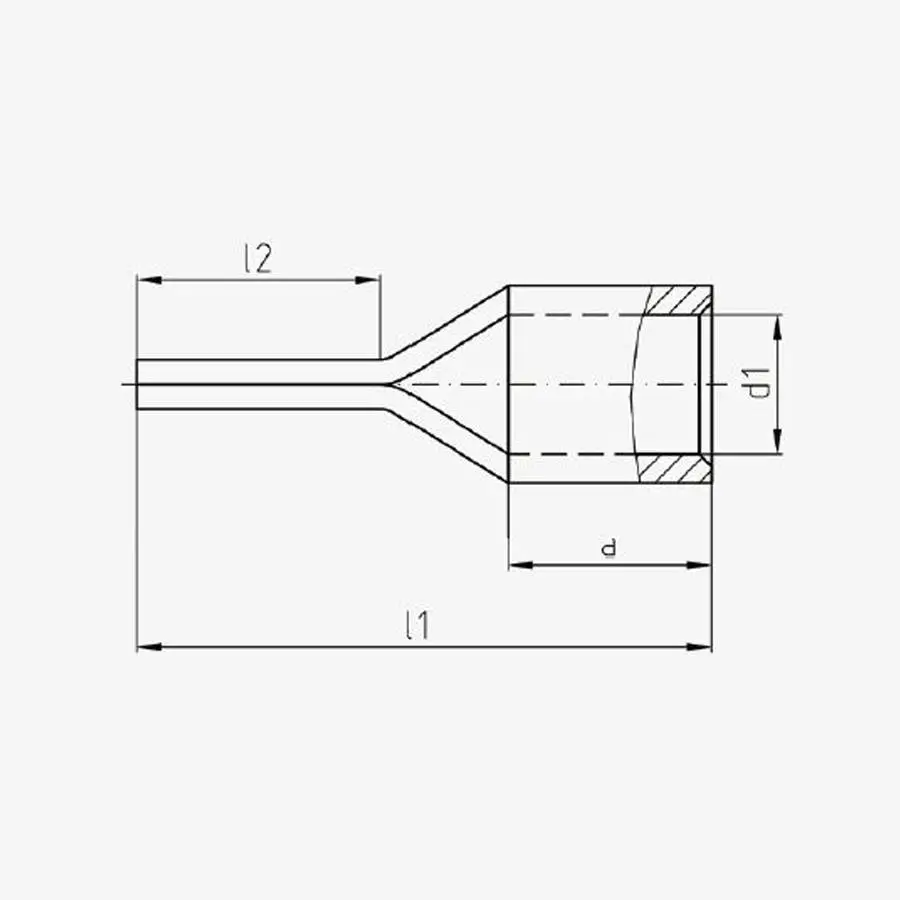

| Cross-section mm² | Type | Part no. | d1 mm | l1 mm | l2 mm | Pin-Ø mm | ØA mm | Weight kg / 100 pcs. | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|
| 0,1 - 0,5 | SK 0,5* | 24-100 | 1.2 | 18.0 | 10.0 | 1.9 | 5.0 | 0.05 | 100 |
| 0,5 - 1,0 | SK 1,0 | 24-101 | 1.6 | 18.0 | 10.0 | 1.9 | 5.0 | 0.06 | 100 |
| 0,5 - 1,0 | SK 1,0 / HL* | 24-102 | 1.6 | 15.0 | 8.0 | 1.9 | 5.0 | 0.06 | 100 |
| 0,5 - 1,0 | SK 1,0 / K* | 24-103 | 1.6 | 12.0 | 5.0 | 1.9 | 5.0 | 0.05 | 100 |
| 1,5 - 2,5 | SK 2,5 | 24-104 | 2.3 | 18.0 | 10.0 | 1.9 | 5.0 | 0.07 | 100 |
| 4,0 - 6,0 | SK 6,0 | 24-107 | 3.6 | 19.0 | 11.0 | 2.7 | 6.0 | 0.16 | 50 |
| 10.0 | SK 10 | 24-108 | 4.5 | 22.0 | 11.0 | 2,3 x 4,3 | 8.0 | 0.26 | 100 |
| 16.0 | SK 16 | 24-109 | 5.8 | 26.5 | 15.0 | 2,5 x 5,5 | 10.0 | 0.44 | 100 |
| 25.0 | SK 25* | 24-110 | 7.0 | 34.0 | 15.0 | 2,5 x 6,9 | 14.0 | 0.66 | 50 |
| 35.0 | SK 35* | 24-111 | 8.2 | 40.0 | 20.0 | 3,2 x 8,0 | 16.0 | 1.17 | 50 |
| 50.0 | SK 50* | 24-112 | 9.5 | 45.0 | 21.0 | 3,7 x 9,5 | 19.0 | 1.85 | 50 |
| 70.0 | SK 70* | 24-113 | 11.2 | 55.0 | 24.0 | 4,0 x 11,0 | 24.0 | 2.93 | 50 |
| 95.0 | SK 95* | 24-114 | 13.5 | 55.5 | 22.0 | 5,1 x 12,5 | 24.0 | 4.30 | 25 |
