non-insulated terminals and connectors

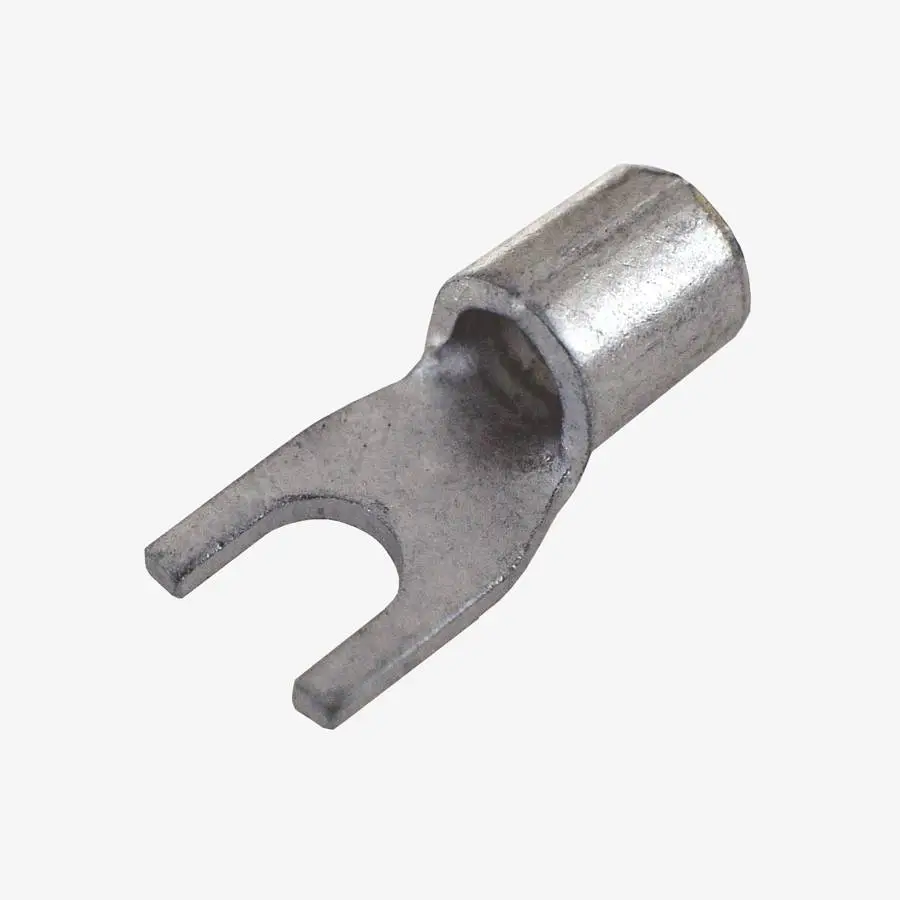

Solderless terminals fork type
For stranded and fine stranded conductors, crimping area soldered.
To request a product, please click on the corresponding item number in the table.
s= narrow

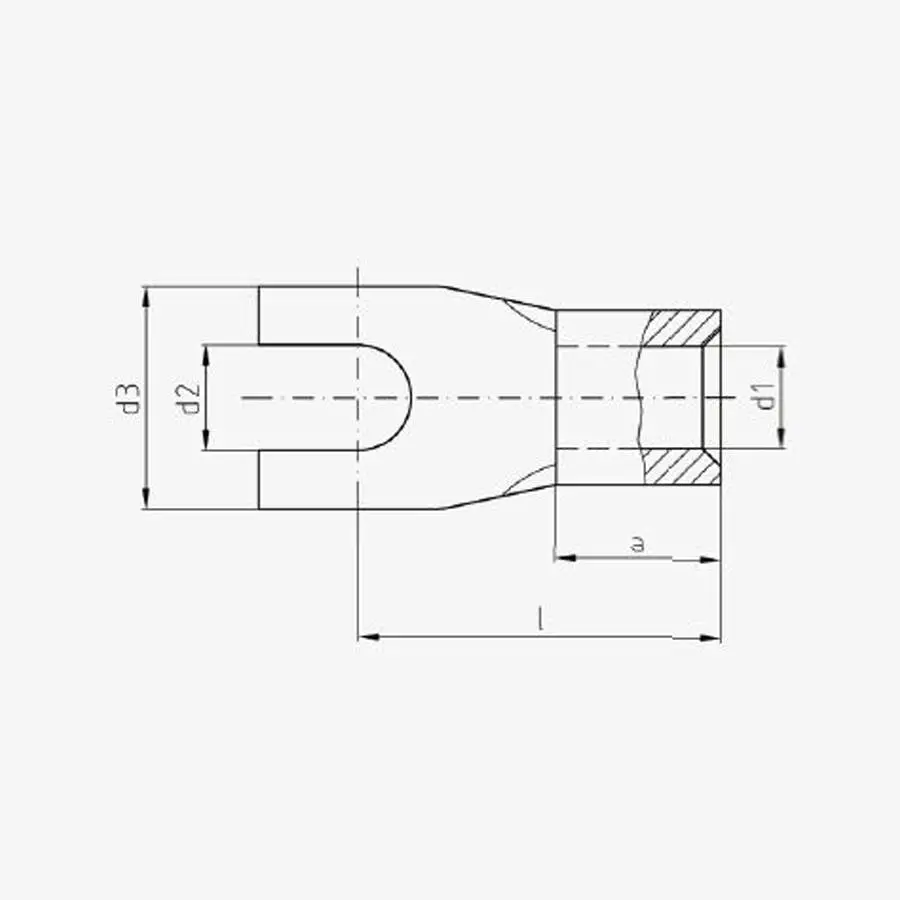

| Cross-section mm² | Bolt M | Type | Part no. | d1 mm | d2 mm | d3 mm | l mm | ØA mm | Weight kg / 100 pcs. | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 - 1,0 | 3 | LF C 3 - 1 | 20-613 | 1.6 | 3.2 | 6.0 | 10.8 | 5.0 | 0.06 | 100 |
| 0,5 - 1,0 | 3 | LF C S3 - 1 | 20-614 | 1.6 | 3.2 | 6.5 | 8.0 | 5.0 | 0.05 | 100 |
| 0,5 - 1,0 | 3.5 | LF C 3,5 - 1 | 20-615 | 1.6 | 3.7 | 6.0 | 10.8 | 5.0 | 0.05 | 100 |
| 0,5 - 1,0 | 4 | LF C S4 - 1 | 20-618 | 1.6 | 4.3 | 7.0 | 11.8 | 5.0 | 0.06 | 100 |
| 0,5 - 1,0 | 4 | LF C 4 - 1 | 20-619 | 1.6 | 4.3 | 8.0 | 11.8 | 5.0 | 0.07 | 100 |
| 0,5 - 1,0 | 5 | LF C 5 - 1 | 20-621 | 1.6 | 5.3 | 10.0 | 12.8 | 5.0 | 0.09 | 100 |
| 0,5 - 1,0 | 6 | LF C 6 - 1 | 20-622 | 1.6 | 6.5 | 110 | 14.8 | 5.0 | 0.08 | 100 |
| 1,5 - 2,5 | 3 | LF C 3 - 2,5 | 20-630 | 2.3 | 3.2 | 6.0 | 10.8 | 5.0 | 0.07 | 100 |
| 1,5 - 2,5 | 3.5 | LF C 3,5 - 2,5 | 20-632 | 2.3 | 3.7 | 6.0 | 10.8 | 5.0 | 0.07 | 100 |
| 1,5 - 2,5 | 4 | LF C S4 - 2,5 | 20-633 | 2.3 | 4.3 | 6.8 | 11.0 | 5.0 | 0.06 | 100 |
| 1,5 - 2,5 | 4 | LF C 4 - 2,5 | 20-634 | 2.3 | 4.3 | 8.0 | 11.8 | 5.0 | 0.08 | 100 |
| 1,5 - 2,5 | 5 | LF C 5 - 2,5 | 20-636 | 2.3 | 5.3 | 10.0 | 13.8 | 5.0 | 0.09 | 100 |
| 1,5 - 2,5 | 6 | LF C 6 - 2,5 | 20-638 | 2.3 | 6.5 | 11.0 | 15.8 | 5.0 | 0.11 | 100 |
| 4,0 - 6,0 | 4 | LF C 4 - 6 | 20-650 | 3.6 | 4.3 | 8.0 | 14.0 | 6.2 | 0.14 | 50 |
| 4,0 - 6,0 | 5 | LF C 5 - 6 | 20-651 | 3.6 | 5.3 | 10.0 | 15.0 | 6.2 | 0.16 | 50 |
| 4,0 - 6,0 | 6 | LF C 6 - 6 | 20-652 | 3.6 | 6.5 | 11.0 | 16.0 | 6.2 | 0.17 | 50 |
| 4,0 - 6,0 | 8 | LF C 8 - 6 | 20-653 | 3.6 | 8.4 | 14.0 | 19.0 | 6.2 | 0.22 | 50 |
| 10.0 | 5 | LF C 5 - 10 | 20-661 | 4.5 | 5.3 | 10.5 | 17.0 | 8.3 | 0.29 | 50 |
| 10.0 | 6 | LF C 6 - 10 | 20-662 | 4.5 | 6.5 | 10.5 | 17.0 | 8.3 | 0.34 | 50 |
| 16.0 | 6 | LF C 6 - 16 | 20-671 | 5.8 | 6.5 | 11.0 | 20.0 | 10.0 | 0.43 | 25 |
| 16.0 | 8 | LF C 8 - 16 | 20-672 | 5.8 | 8.4 | 11.0 | 20.0 | 10.0 | 0.50 | 25 |
