Membrane grommets
Membrane grommets DGC-TPE
Cross-cutted membrane grommets for easy cable installation, also for pre-assembled cables.
TPE is a thermoplastic elastomer with excellent properties. TPE is similar to rubber. Compared to soft PVC, TPE should be used wherever a better cold and heat resistance as well as a greater flexibility and elasticity are required.
To request a product, please click on the corresponding item number in the table.
A different cross cut length in the membrane is needed?
Customer-specific solutions can also be quickly and cost-effectively realised for small quantities. Please do not hesitate to contact us!

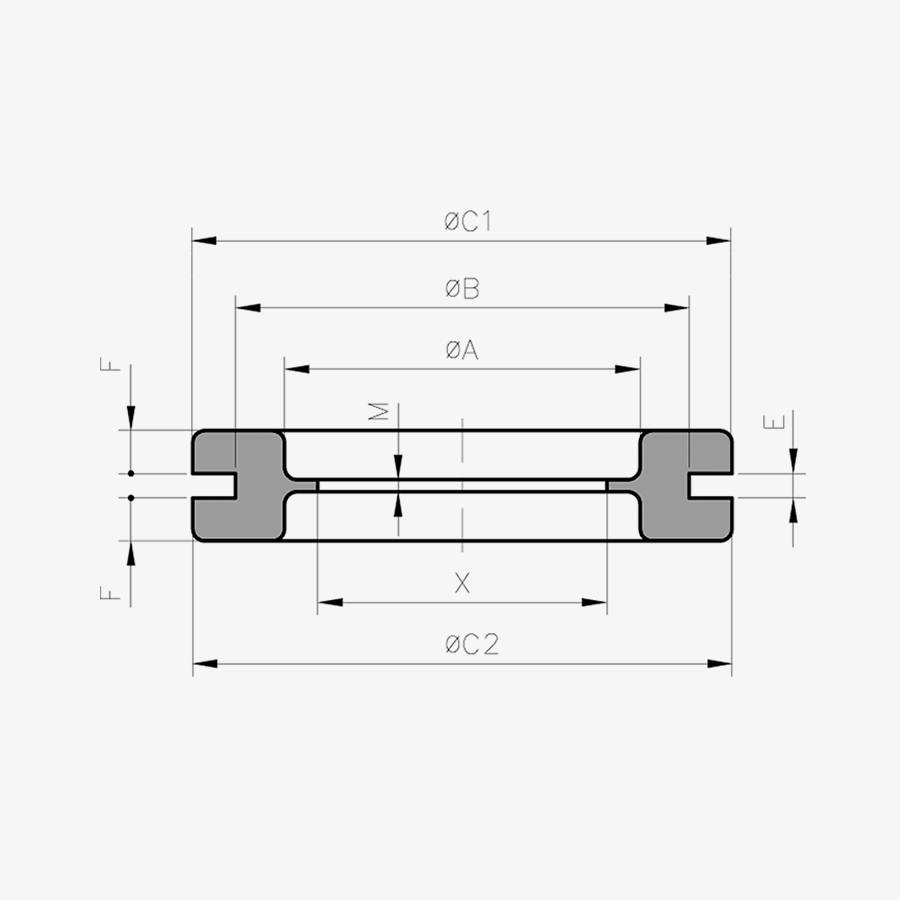

| Type | Part no. black | Part no. l.gray | ØA mm | ØB mm | ØC1 mm | ØC2 mm | F1 mm | F2 mm | E mm | M mm | X mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DGC-TPE PG9-4 | 51-101-04 | 51-111-04 | 9.0 | 15.0 | 20.0 | 18.0 | 2.5 | 2.5 | 2.0 | 1.0 | 4.0 | 100 |
| DGC-TPE PG9-6 | 51-101-06 | 51-111-06 | 9.0 | 15.0 | 20.0 | 18.0 | 2.5 | 2.5 | 2.0 | 1.0 | 6.0 | 100 |
| DGC-TPE PG9-8 | 51-101-08 | 51-111-08 | 9.0 | 15.0 | 20.0 | 18.0 | 2.5 | 2.5 | 2.0 | 1.0 | 8.0 | 100 |
| DGC-TPE PG11-4 | 51-102-04 | 51-112-04 | 11.0 | 18.0 | 22.5 | 21.5 | 2.5 | 2.5 | 2.0 | 1.0 | 4.0 | 100 |
| DGC-TPE PG11-6 | 51-102-06 | 51-112-06 | 11.0 | 18.0 | 22.5 | 21.5 | 2.5 | 2.5 | 2.0 | 1.0 | 6.0 | 100 |
| DGC-TPE PG11-8 | 51-102-08 | 51-112-08 | 11.0 | 18.0 | 22.5 | 21.5 | 2.5 | 2.5 | 2.0 | 1.0 | 8.0 | 100 |
| DGC-TPE PG11-10 | 51-102-10 | 51-112-10 | 11.0 | 18.0 | 22.5 | 21.5 | 2.5 | 2.5 | 2.0 | 1.0 | 10.0 | 100 |
| DGC-TPE PG13,5-4 | 51-103-04 | 51-113-04 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 4.0 | 100 |
| DGC-TPE PG13,5-6 | 51-103-06 | 51-113-06 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 6.0 | 100 |
| DGC-TPE PG13,5-8 | 51-103-08 | 51-113-08 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 8.0 | 100 |
| DGC-TPE PG13,5-10 | 51-103-10 | 51-113-10 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 10.0 | 100 |
| DGC-TPE PG13,5-12 | 51-103-12 | 51-113-12 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 12.0 | 100 |
| DGC-TPE PG16-4 | 51-104-04 | 51-114-04 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 2.0 | 1.0 | 4.0 | 100 |
| DGC-TPE PG16-6 | 51-104-06 | 51-114-06 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 2.0 | 1.0 | 6.0 | 100 |
| DGC-TPE PG16-8 | 51-104-08 | 51-114-08 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 2.0 | 1.0 | 8.0 | 100 |
| DGC-TPE PG16-10 | 51-104-10 | 51-114-10 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 2.0 | 1.0 | 10.0 | 100 |
| DGC-TPE PG16-12 | 51-104-12 | 51-114-12 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 2.0 | 1.0 | 12.0 | 100 |
| DGC-TPE PG16-14 | 51-104-14 | 51-114-14 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 2.0 | 1.0 | 14.0 | 100 |
| DGC-TPE PG21-4 | 51-106-04 | 51-115-04 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 4.0 | 100 |
| DGC-TPE PG21-6 | 51-106-06 | 51-115-06 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 6.0 | 100 |
| DGC-TPE PG21-8 | 51-106-08 | 51-115-08 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 8.0 | 100 |
| DGC-TPE PG21-10 | 51-106-10 | 51-115-10 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 10.0 | 100 |
| DGC-TPE PG21-12 | 51-106-12 | 51-115-12 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 12.0 | 100 |
| DGC-TPE PG21-14 | 51-106-14 | 51-115-14 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 14.0 | 100 |
| DGC-TPE PG21-17 | 51-106-17 | 51-115-17 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 17.0 | 100 |
| DGC-TPE PG21/E1-4 | 51-107-04 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 4.0 | 100 | |
| DGC-TPE PG21/E1-6 | 51-107-06 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 6.0 | 100 | |
| DGC-TPE PG21/E1-8 | 51-107-08 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 8.0 | 100 | |
| DGC-TPE PG21/E1-10 | 51-107-10 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 10.0 | 100 | |
| DGC-TPE PG21/E1-12 | 51-107-12 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 12.0 | 100 | |
| DGC-TPE PG21/E1-14 | 51-107-14 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 14.0 | 100 | |
| DGC-TPE PG21/E1-17 | 51-107-17 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 17.0 | 100 | |
| DGC-TPE PG29-4 | 51-108-04 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 4.0 | 50 | |
| DGC-TPE PG29-6 | 51-108-06 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 6.0 | 50 | |
| DGC-TPE PG29-8 | 51-108-08 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 8.0 | 50 | |
| DGC-TPE PG29-10 | 51-108-10 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 10.0 | 50 | |
| DGC-TPE PG29-12 | 51-108-12 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 12.0 | 50 | |
| DGC-TPE PG29-14 | 51-108-14 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 14.0 | 50 | |
| DGC-TPE PG29-17 | 51-108-17 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 17.0 | 50 | |
| DGC-TPE PG29-25 | 51-108-25 | 29.0 | 37.0 | 43.5 | 43.5 | 3.7 | 3.7 | 2.2 | 1.3 | 25.0 | 50 | |
| DGC-TPE PG36-4 | 51-109-04 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 4.0 | 50 | |
| DGC-TPE PG36-6 | 51-109-06 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 6.0 | 50 | |
| DGC-TPE PG36-8 | 51-109-08 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 8.0 | 50 | |
| DGC-TPE PG36-10 | 51-109-10 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 10.0 | 50 | |
| DGC-TPE PG36-12 | 51-109-12 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 12.0 | 50 | |
| DGC-TPE PG36-14 | 51-109-14 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 14.0 | 50 | |
| DGC-TPE PG36-17 | 51-109-17 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 17.0 | 50 | |
| DGC-TPE PG36-25 | 51-109-25 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 25.0 | 50 | |
| DGC-TPE PG36-32 | 51-109-32 | 35.5 | 47.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 32.0 | 50 | |
| DGC-TPE PG48-4 | 51-110-04 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 4.0 | 50 | |
| DGC-TPE PG48-6 | 51-110-06 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 6.0 | 50 | |
| DGC-TPE PG48-8 | 51-110-08 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 8.0 | 50 | |
| DGC-TPE PG48-10 | 51-110-10 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 10.0 | 50 | |
| DGC-TPE PG48-12 | 51-110-12 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 12.0 | 50 | |
| DGC-TPE PG48-14 | 51-110-14 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 14.0 | 50 | |
| DGC-TPE PG48-17 | 51-110-17 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 17.0 | 50 | |
| DGC-TPE PG48-25 | 51-110-25 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 25.0 | 50 | |
| DGC-TPE PG48-32 | 51-110-32 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 32.0 | 50 | |
| DGC-TPE PG48-42 | 51-110-42 | 47.0 | 59.0 | 67.0 | 67.0 | 4.0 | 4.0 | 2.7 | 1.5 | 42.0 | 50 | |
| DGC-TPE M20-4 | 51-120-04 | 51-130-04 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 4.0 | 100 |
| DGC-TPE M20-6 | 51-120-06 | 51-130-06 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 6.0 | 100 |
| DGC-TPE M20-8 | 51-120-08 | 51-130-08 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 8.0 | 100 |
| DGC-TPE M20-10 | 51-120-10 | 51-130-10 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 10.0 | 100 |
| DGC-TPE M20-12 | 51-120-12 | 51-130-12 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 12.0 | 100 |
| DGC-TPE M25-4 | 51-121-04 | 51-131-04 | 21.0 | 25.0 | 34.5 | 31.5 | 3.0 | 3.0 | 2.0 | 1.0 | 4.0 | 100 |
| DGC-TPE M25-6 | 51-121-06 | 51-131-06 | 21.0 | 25.0 | 34.5 | 31.5 | 3.0 | 3.0 | 2.0 | 1.0 | 6.0 | 100 |
| DGC-TPE M25-8 | 51-121-08 | 51-131-08 | 21.0 | 25.0 | 34.5 | 31.5 | 3.0 | 3.0 | 2.0 | 1.0 | 8.0 | 100 |
| DGC-TPE M25-10 | 51-121-10 | 51-131-10 | 21.0 | 25.0 | 34.5 | 31.5 | 3.0 | 3.0 | 2.0 | 1.0 | 10.0 | 100 |
| DGC-TPE M25-12 | 51-121-12 | 51-131-12 | 21.0 | 25.0 | 34.5 | 31.5 | 3.0 | 3.0 | 2.0 | 1.0 | 12.0 | 100 |
| DGC-TPE M25-14 | 51-121-14 | 51-131-14 | 21.0 | 25.0 | 34.5 | 31.5 | 3.0 | 3.0 | 2.0 | 1.0 | 14.0 | 100 |
| DGC-TPE M25-17 | 51-121-17 | 51-131-17 | 21.0 | 25.0 | 34.5 | 31.5 | 3.0 | 3.0 | 2.0 | 1.0 | 17.0 | 100 |
| DGC-TPE M32-4 | 51-122-04 | 51-132-04 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 4.0 | 100 |
| DGC-TPE M32-6 | 51-122-06 | 51-132-06 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 6.0 | 100 |
| DGC-TPE M32-8 | 51-122-08 | 51-132-08 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 8.0 | 100 |
| DGC-TPE M32-10 | 51-122-10 | 51-132-10 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 10.0 | 100 |
| DGC-TPE M32-12 | 51-122-12 | 51-132-12 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 12.0 | 100 |
| DGC-TPE M32-14 | 51-122-14 | 51-132-14 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 14.0 | 100 |
| DGC-TPE M32-17 | 51-122-17 | 51-132-17 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 17.0 | 100 |
| DGC-TPE M32-25 | 51-122-25 | 51-132-25 | 29.0 | 32.0 | 43.5 | 39.0 | 3.7 | 3.7 | 2.2 | 1.3 | 25.0 | 100 |
