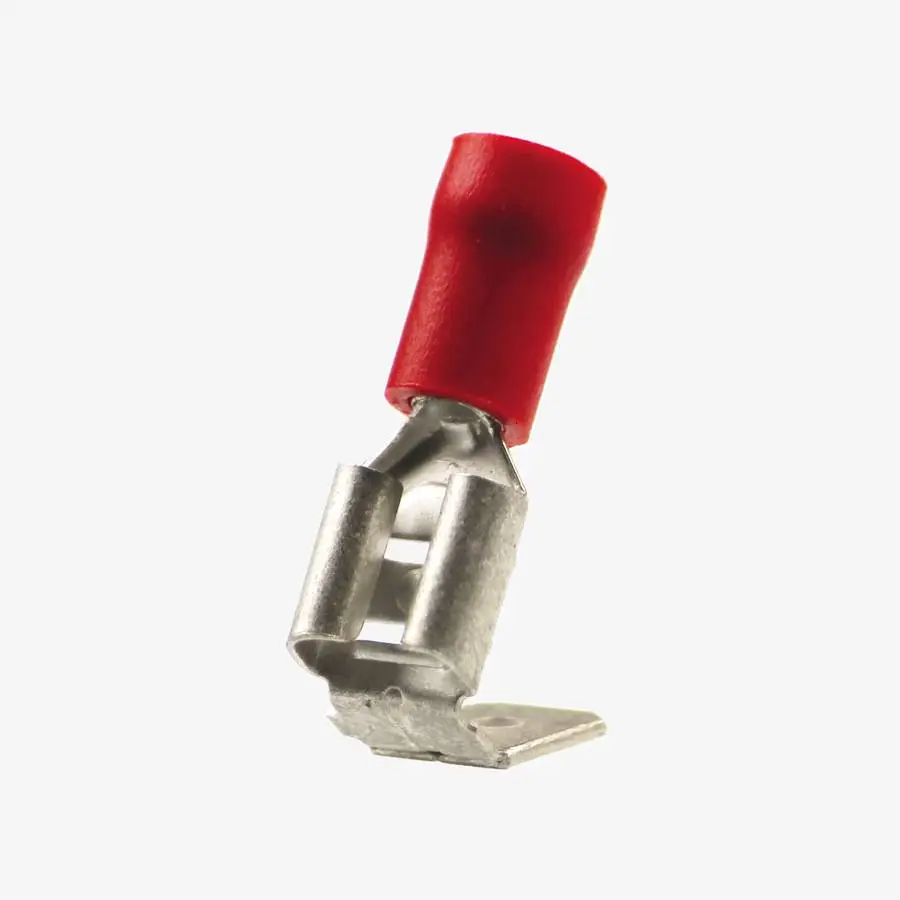

Insulated receptacles

Insulated female disconnects piggyback

Insulated receptacles for fine-stranded conductors, with metallic insulation support. Polycarbonate (PC) insulation on request.

Substance:

Brass (CuZn)

Surface:

tin-plated

Isolation:

PVC

Heat resistance:

max. 70 °C

To request a product, please click on the corresponding item number in the table.

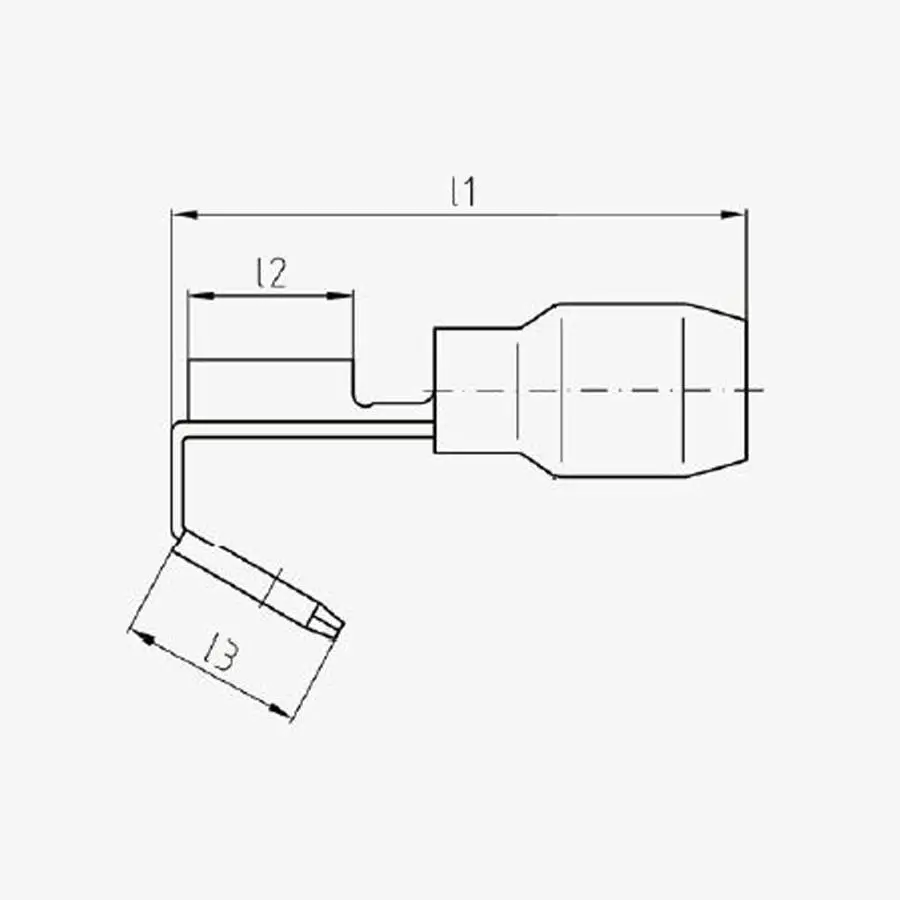

Cross-section mm²	Tab sizes width x thickness	Type	Part no.	Color	l1 mm	l2 mm	l3 mm	PU pcs.

0,5 - 1,0	6,3 x 0,8	FHSA 6308-10	35-206	rot / red	21.2	7.8	7.8	100
1,5 - 2,5	6,3 x 0,8	FHSA 6308-25	35-207	blau / blue	21.2	7.8	7.8	100
4,0 - 6,0	6,3 x 0,8	FHSA 6308-60	35-208	gelb / yellow	25.4	8.0	8.0	100

Crimping system pliers WZ 200
