Insulated receptacles

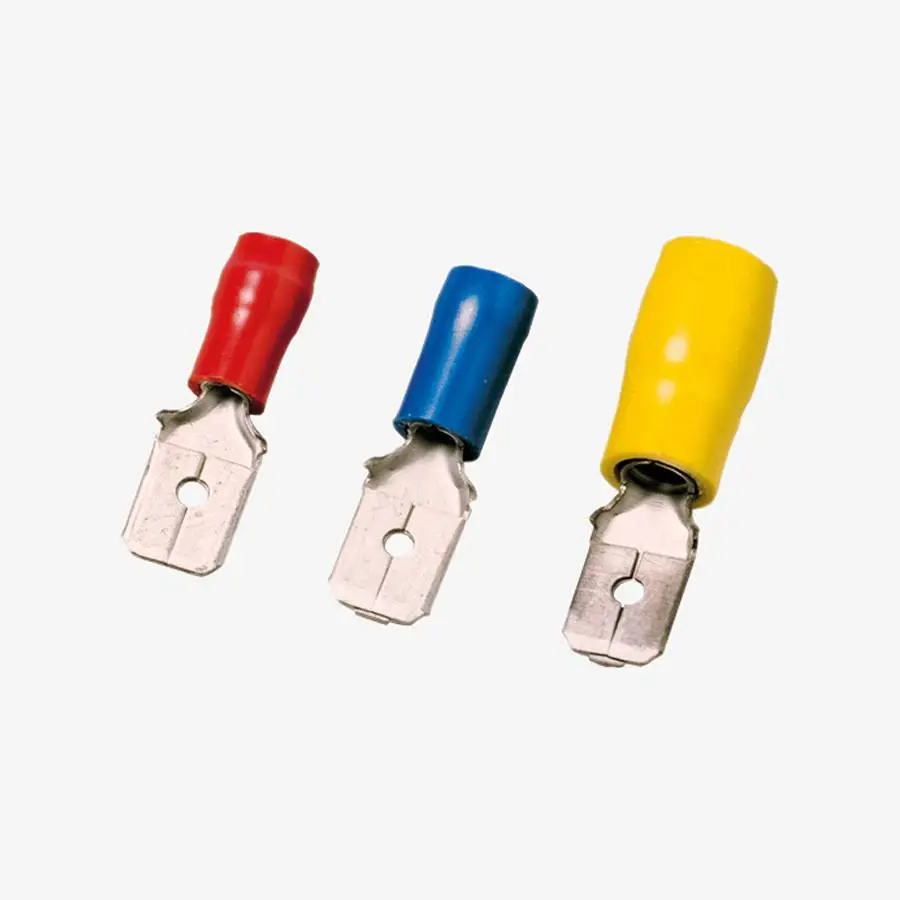

Insulated male disconnects
With expanded insulation (Easy-Entry) made of PVC and PC.
To request a product, please click on the corresponding item number in the table.

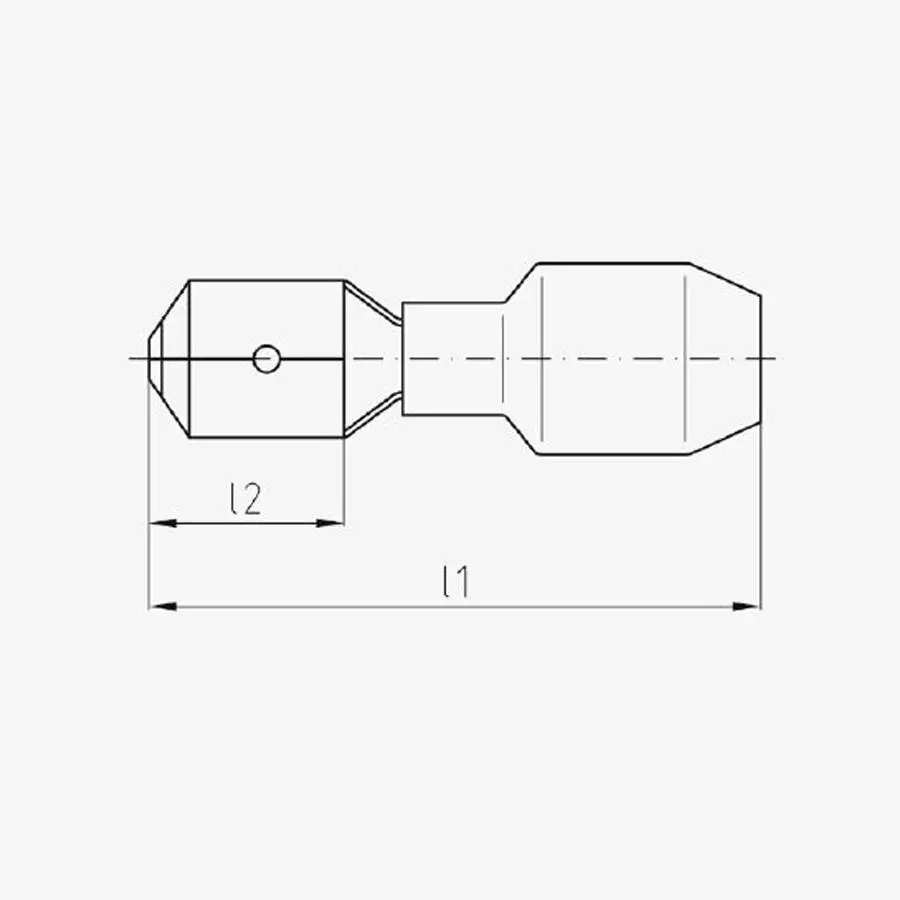

| Cross-section mm² | Tab sizes width x thickness | Type | Part no. PVC | Part no. PC | Color | l1 mm | l2 mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|
| 0,5 - 1,0 | 2,8 x 0,5 | FSS 2805-10 | 35-100 | rot / red | 22.2 | 7.3 | 100 | |
| 0,5 - 1,0 | 2,8 x 0,8 | FSS 2808-10 | 35-102 | 35-402 | rot / red | 22.2 | 7.3 | 100 |
| 0,5 - 1,0 | 4,8 x 0,5 | FSS 4805-10 | 35-109 | rot / red | 22.2 | 7.3 | 100 | |
| 0,5 - 1,0 | 4,8 x 0,8 | FSS 4808-10 | 35-101 | 35-401 | rot / red | 19.8 | 7.3 | 100 |
| 0,5 - 1,0 | 6,3 x 0,8 | FSS 6308-10 | 35-105 | 35-405 | rot / red | 21.5 | 8.0 | 100 |
| 1,5 - 2,5 | 2,8 x 0,5 | FSS 2805-25 | 35-110 | blau / blue | 23.0 | 8.0 | 100 | |
| 1,5 - 2,5 | 2,8 x 0,8 | FSS 2808-25 | 35-113 | blau / blue | 23.0 | 8.0 | 100 | |
| 1,5 - 2,5 | 4,8 x 0,5 | FSS 4805-25 | 35-103 | blau / blue | 23.0 | 8.0 | 100 | |
| 1,5 - 2,5 | 4,8 x 0,8 | FSS 4808-25 | 35-104 | 35-404 | blau / blue | 23.0 | 8.0 | 100 |
| 1,5 - 2,5 | 6,3 x 0,8 | FSS 6308-25 | 35-106 | 35-406 | blau / blue | 21.3 | 8.0 | 100 |
| 4,0 - 6,0 | 4,8 x 0,8 | FSS 4808-60 | 35-108 | gelb / yellow | 24.5 | 7.7 | 100 | |
| 4,0 - 6,0 | 6,3 x 0,8 | FSS 6308-60 | 35-107 | 35-407 | gelb / yellow | 24.0 | 8.0 | 100 |
