Cable Marker Clip-on

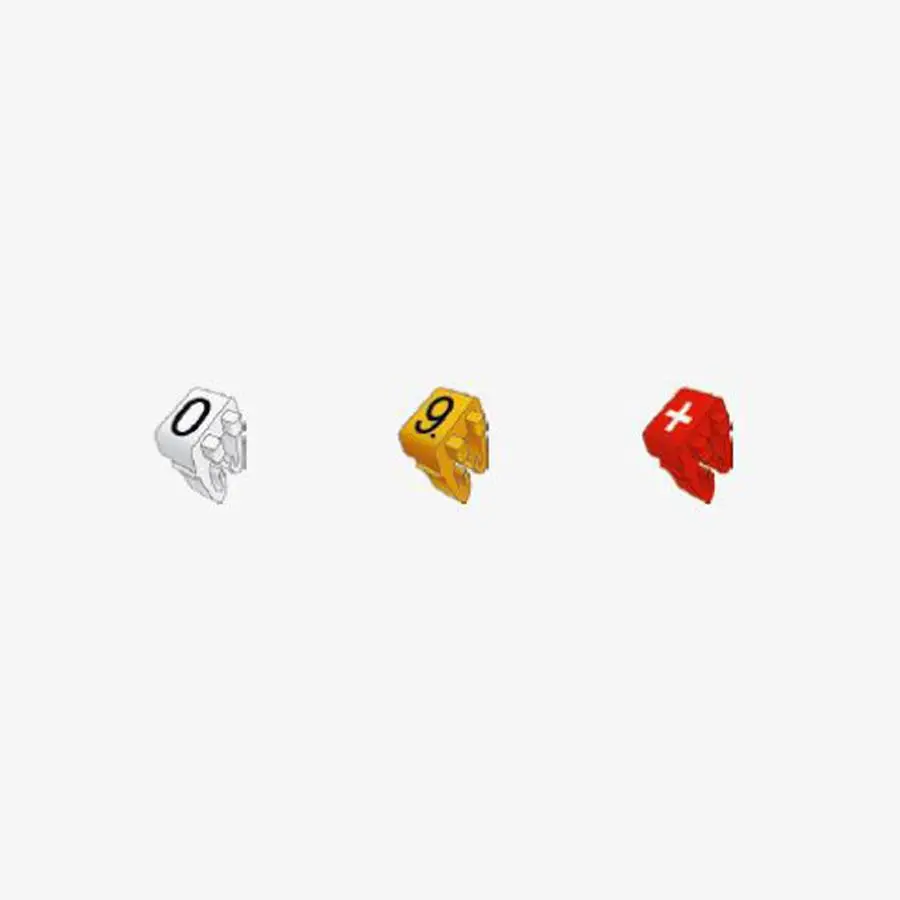

Cable marker clips T-Grip: Numbers

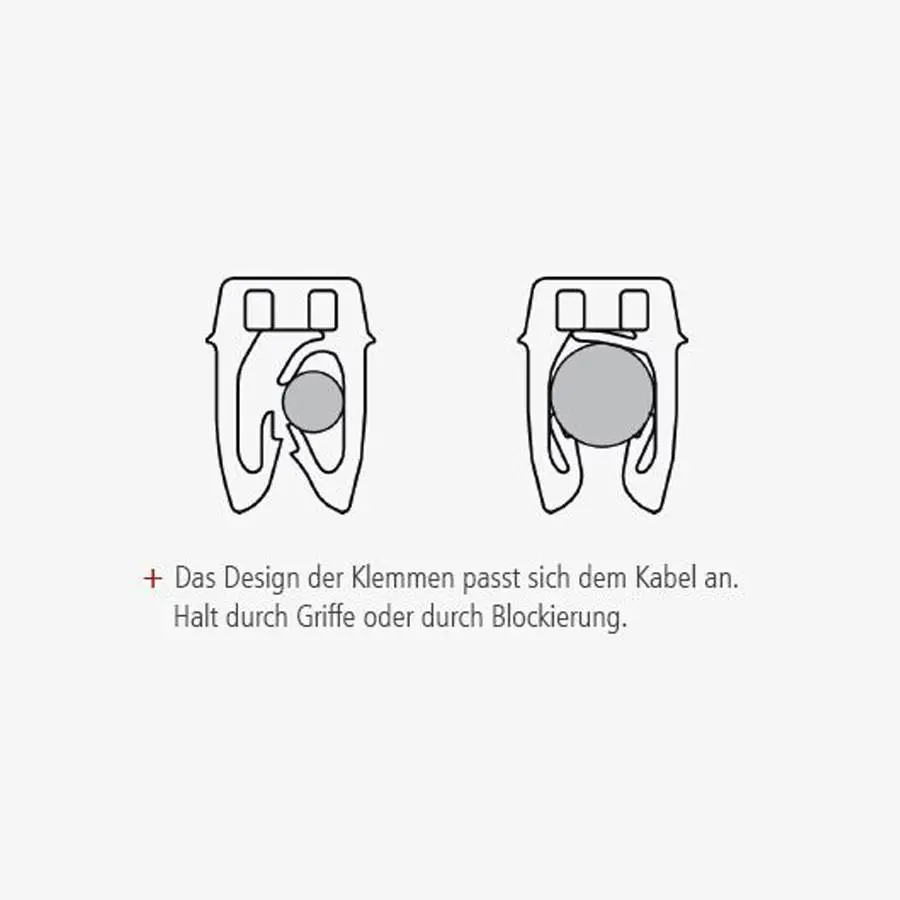

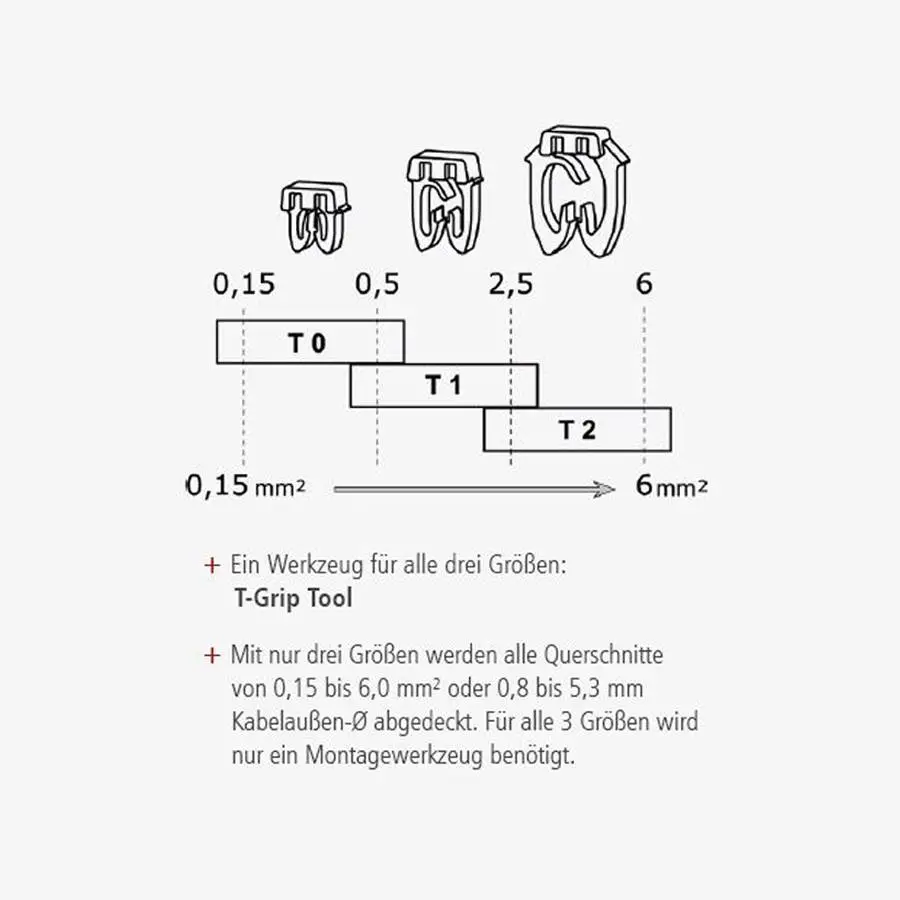

The design of the T-Grip clips makes it possible to cover cross-sections from 0.15 to 6.0 mm² or 0.8 to 5.3 mm cable outer diameter with just three sizes.

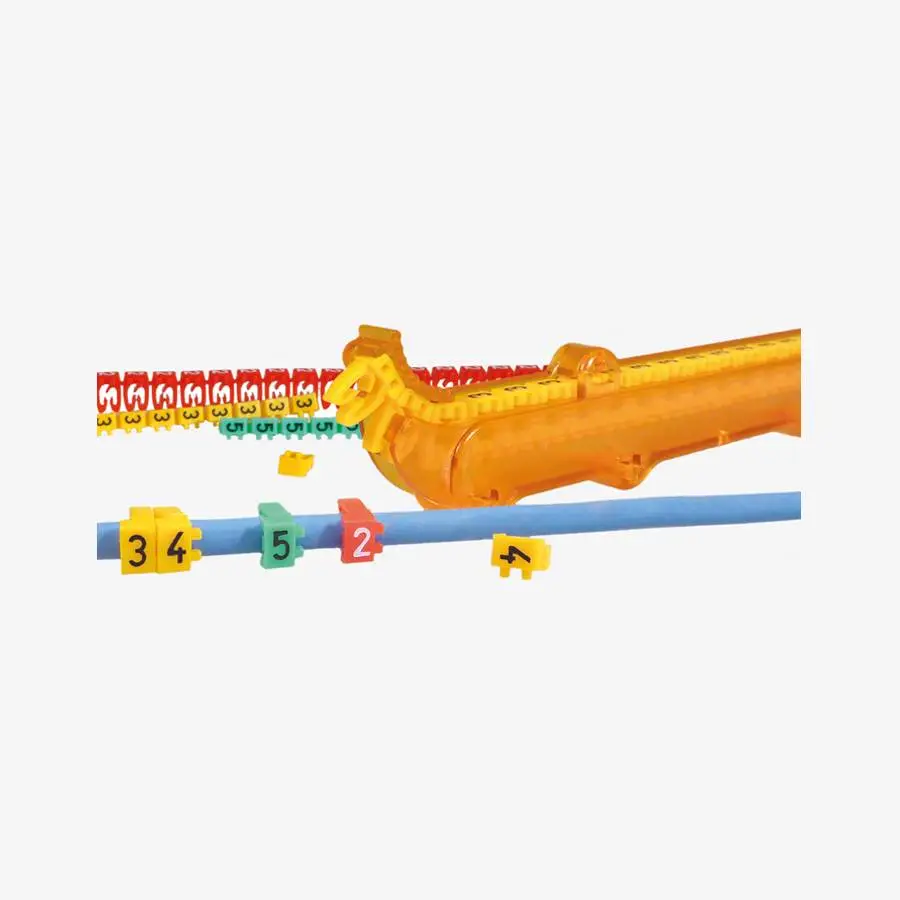

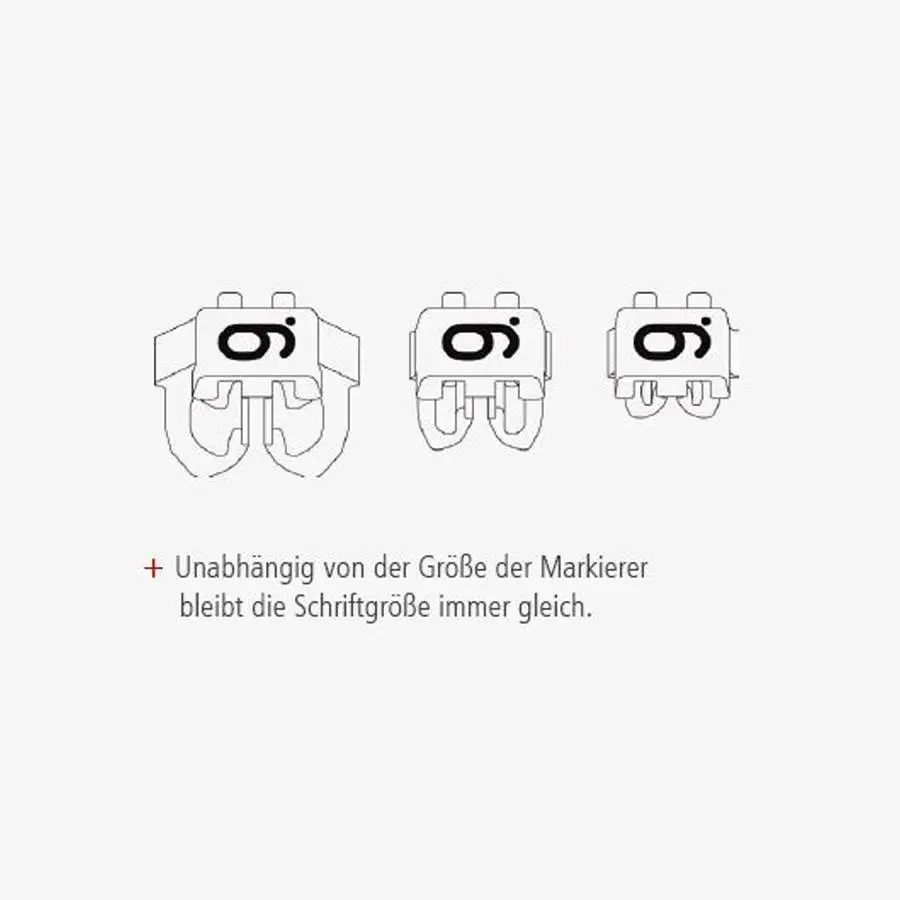

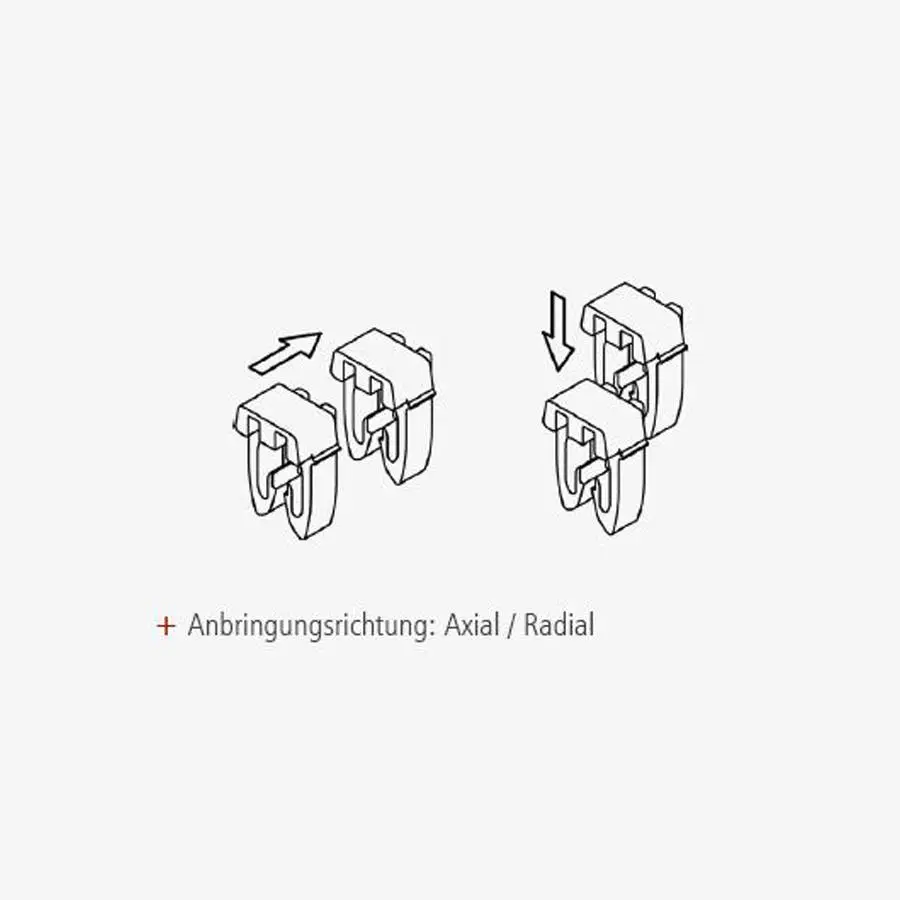

Only one assembly tool is required for all 3 sizes. The font size is the same for all sizes. The nipples and notches on the T-Grip clips enable an installation from the side (axial) or from above (radial).
To request a product, please click on the corresponding item number in the table.
Example 1: Part no.: 67-092-5 = Type: T-2 - green markers - imprint "5"
Example 2: Part no.: 67-080-6 = Type: T-0 - white markers - imprint "6"

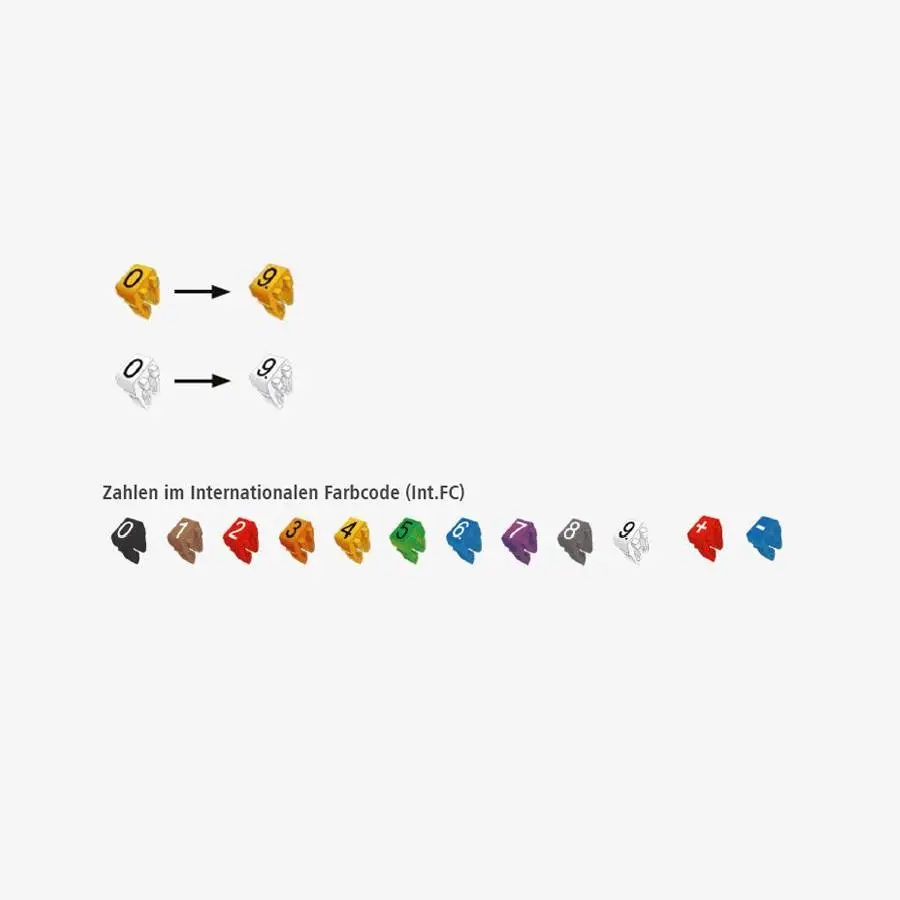

| for cable-Ø mm | Cross-section mm² | Type | Part no. white rings | Part no. yellow rings | Part no. numbers int. FC | PU pcs. |
|---|---|---|---|---|---|---|
| 0,8 - 2,2 | 0,15 - 0,5 | T - 0 | 67-080-x | 67-085-x | 67-090-x | 1000 |
| 2,2 - 3,8 | 0,5 - 2,5 | T - 1 | 67-081-x | 67-086-x | 67-091-x | 1000 |
| 3,8 - 5,3 | 2,5 - 6,0 | T - 2 | 67-082-x | 67-087-x | 67-092-x | 800 |
