Marking rings PVC
Marking rings PT-V+ pre-cutted in boxes

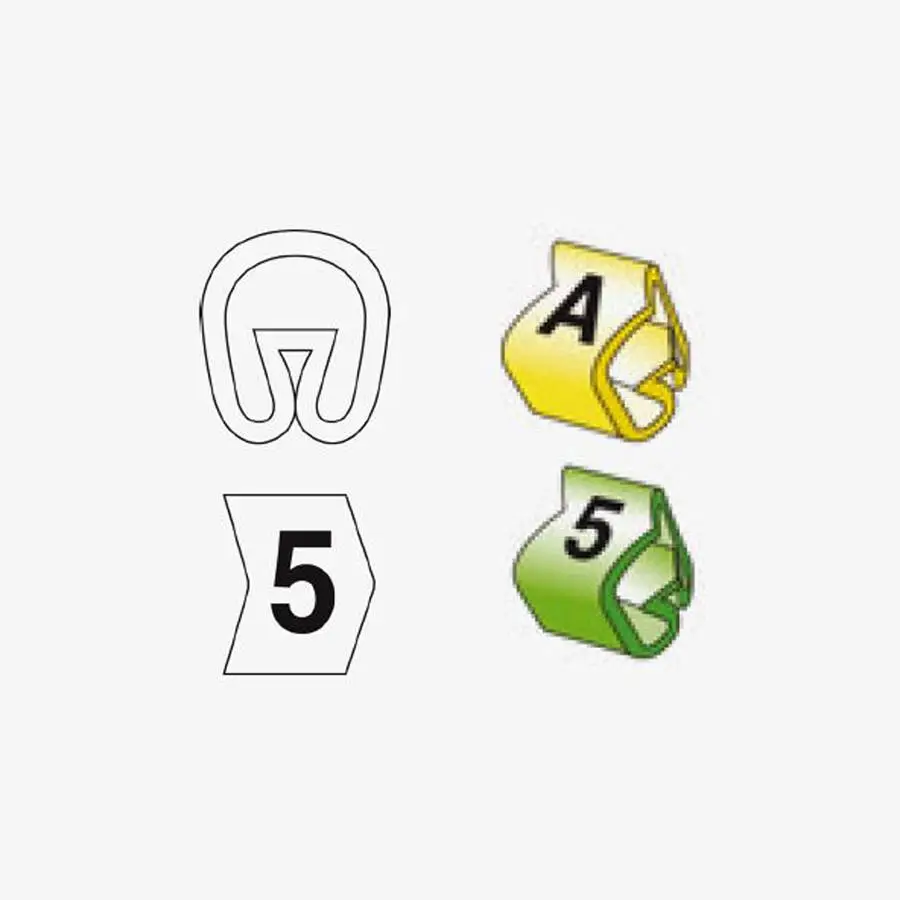

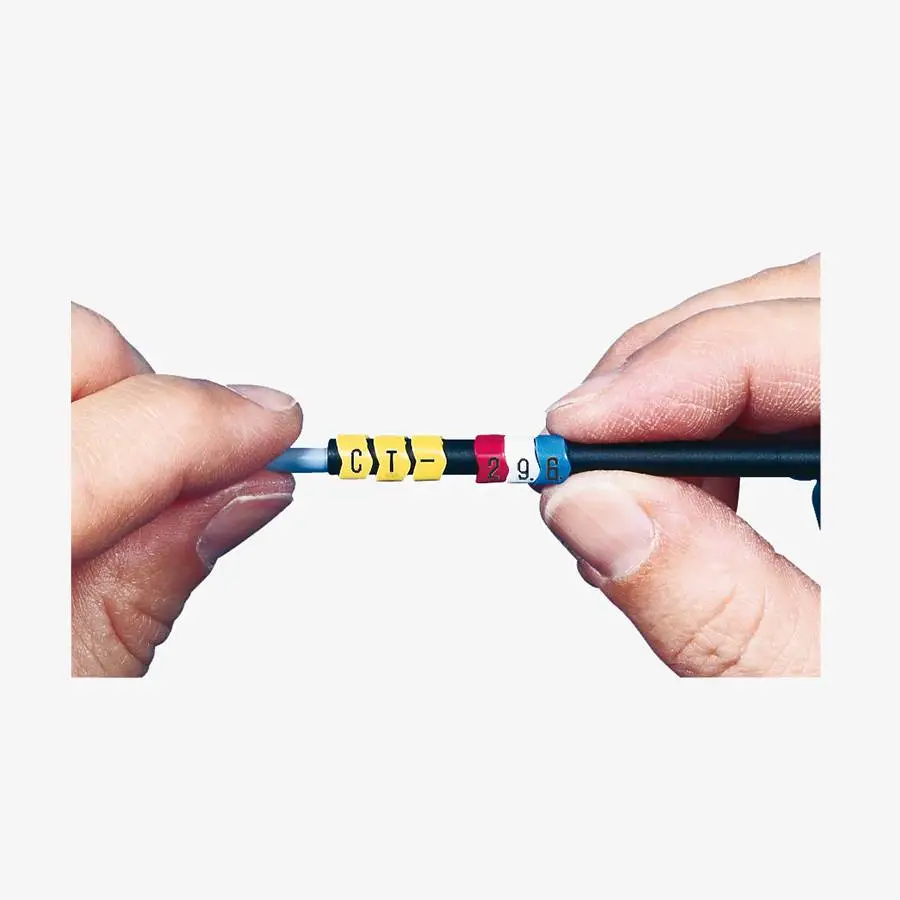

The omega shape gives the marking rings good self-holding properties and adapts very well to the cables. The V-shape allows the rings to be pushed together very easily.

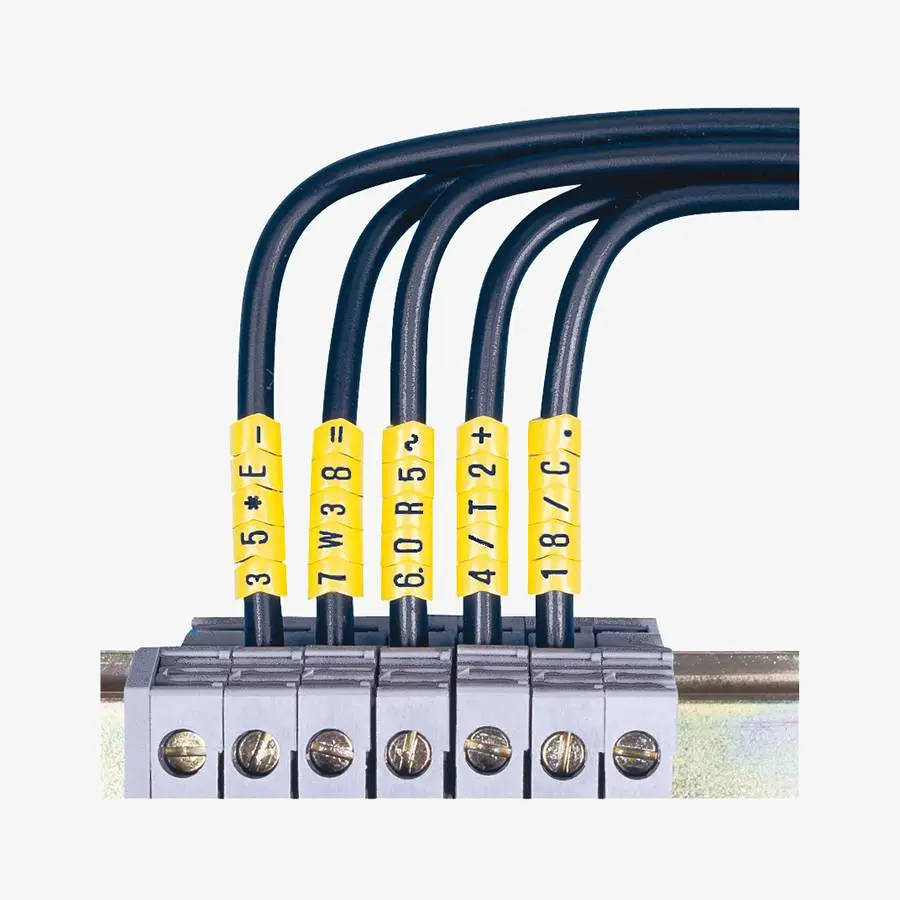

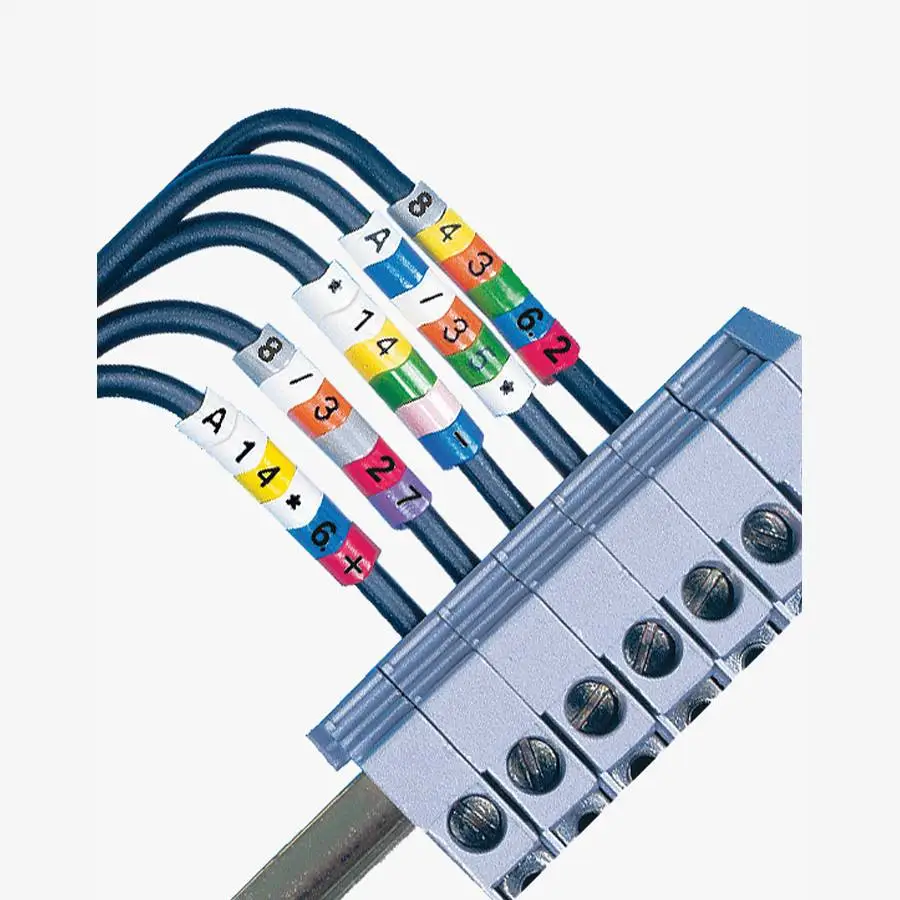

The optional mounting sticks make the assembly and installation easier. The marking rings adapt perfectly to the cables and offer a reliable and durable solution. However, it is important that the rings to be attached to the cables before the actual installation. This ensures that the rings do not fall off after cabling, which is a clear advantage.

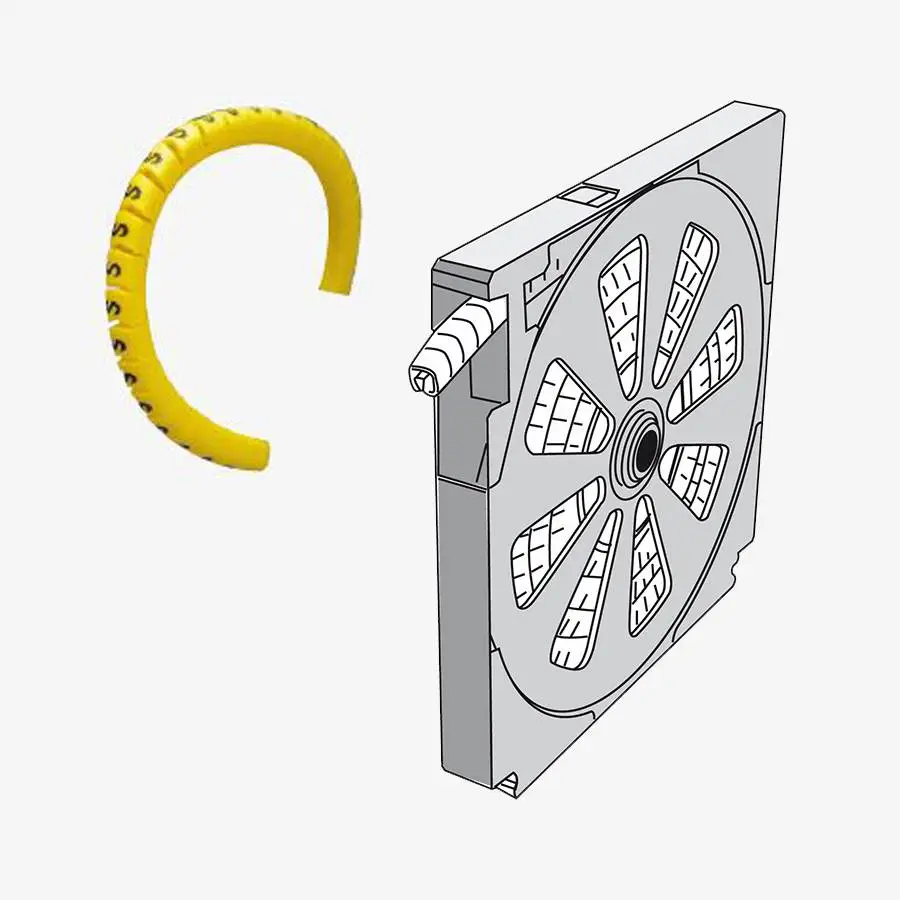

The precise marking ensures efficient organization and identification of the cables. An optional cassette rack ensures order at the workplace or on the construction site.
To request a product, please click on the corresponding item number in the table.

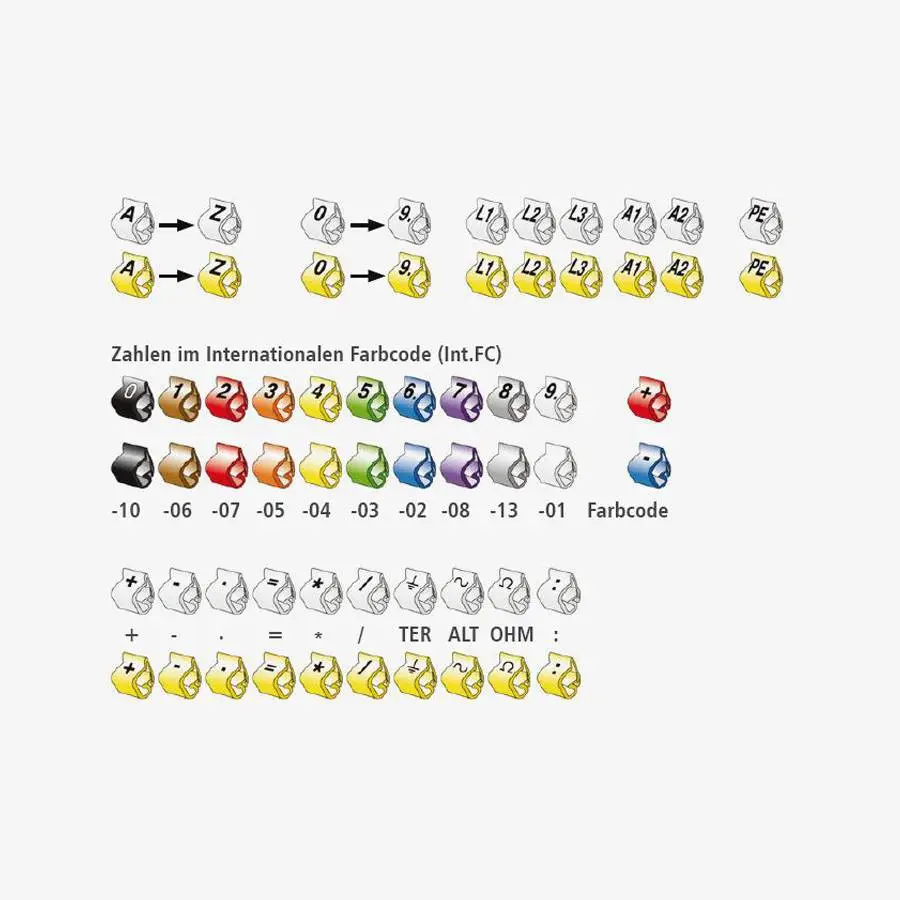

example 1: Art. no.: 66-476-5 = Type: PT-V+ 45 - white rings with black imprint "5"
example 2: Art. No.: 66-467-02 = Type: PT-V+ 90 - blue rings without imprint
| for cable-Ø mm | Cross-section mm² | Type | Part no. white rings | Part no. yellow rings | Part no. numbers int. FC | Part no. without print | PU pcs. |
|---|---|---|---|---|---|---|---|
| 1,0 - 3,0 | 0,2 - 1,5 | PT-V+ 30 | 66-475-x | 66-470-x | 66-460-x | 66-465-xx | 500 |
| 2,2 - 5,0 | 1,0 - 6,0 | PT-V+ 45 | 66-476-x | 66-471-x | 66-461-x | 66-466-xx | 500 |
| 4,0 - 9,0 | 4,0 - 16,0 | PT-V+ 90 | 66-477-x | 66-472-x | 66-462-x | 66-467-xx | 250 |
| 7,0 - 16,0 | 16,0 - 70,0 | PT-V+ 150* | 66-478-x | 66-473-x | 66-463-x | 66-468-xx | 100 |
| 12,0 - 25,0 | 50,0 - 185,0 | PT-V+ 240* | 66-479-x | 66-474-x | 66-464-x | 66-469-xx | 100 |
