Edge protection profile DX

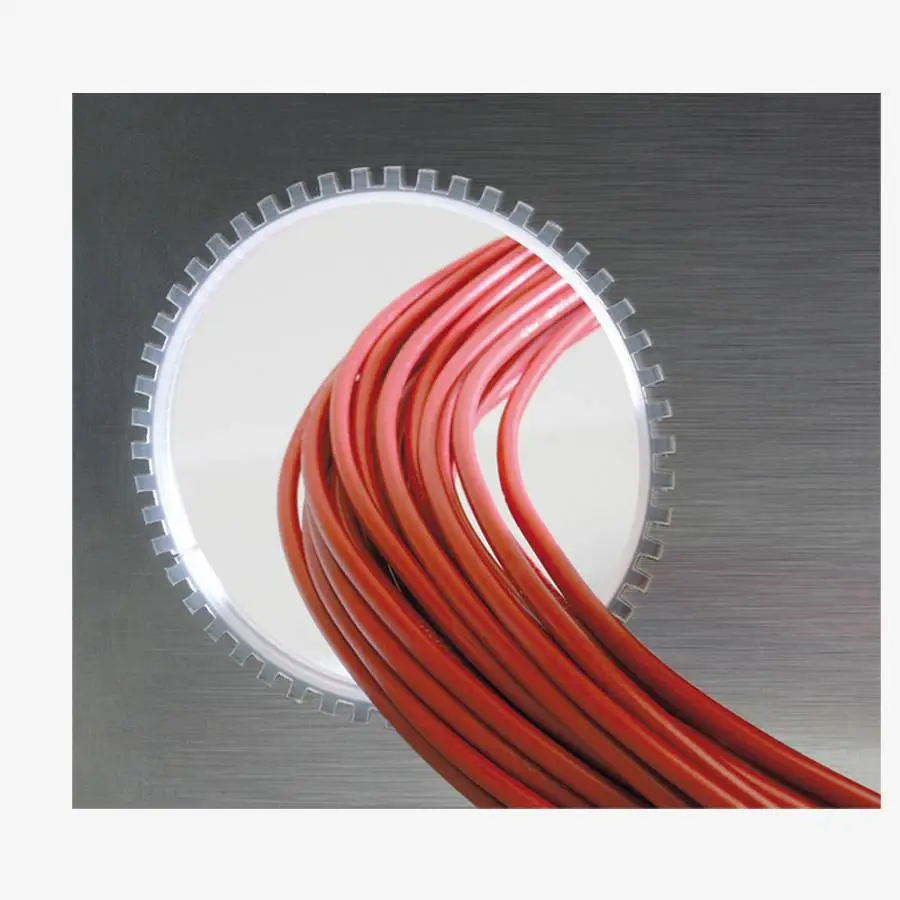

The DX edge protection profiles are used to protect inner edges on sheet metal enclosures. They can also be used as edge protection on larger sheet metal parts. The material is very flexible and easy to process. The smooth "P" version is primarily suitable for larger radii, the serrated "Z" version for tight radii.
To request a product, please click on the corresponding item number in the table.

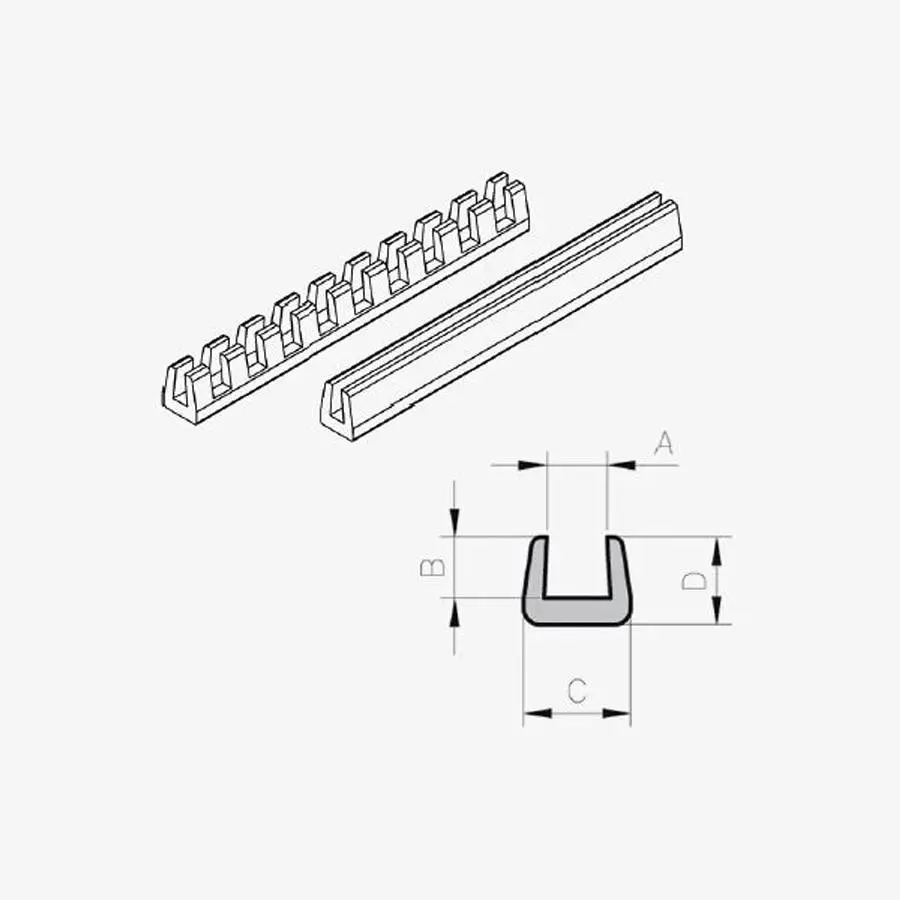

Type Z = with serrated edge | Type P = with closed edge
| Type | Part no. natural | Part no. white / UL94-V2 | wall thickness mm | ØA mm | ØB mm | ØC mm | D mm | PU meter |
|---|---|---|---|---|---|---|---|---|
| DX 1 Z | 55-401 | 55-431 | 0,8 - 1,0 | 1.0 | 2.0 | 3.0 | 3.2 | 35 |
| DX 1,5 Z | 55-402 | 55-432 | 1,1 - 1,5 | 1.5 | 2.0 | 3.5 | 3.2 | 30 |
| DX 2 Z | 55-403 | 55-433 | 1,6 - 2,0 | 2.0 | 3.0 | 4.3 | 4.3 | 25 |
| DX 3 Z | 55-404 | 55-434 | 2,1 - 3,0 | 3.0 | 3.0 | 5.3 | 4.3 | 20 |
| DX 4 Z | 55-405 | 55-435 | 3,1 - 4,0 | 4.0 | 3.5 | 6.9 | 5.3 | 15 |
| DX 1 P | 55-421 | 55-441 | 0,8 - 1,0 | 1.0 | 2.0 | 3.0 | 3.2 | 35 |
| DX 1,5 P | 55-422 | 55-442 | 1,1 - 1,5 | 1.5 | 2.0 | 3.5 | 3.2 | 30 |
| DX 2 P | 55-423 | 55-443 | 1,6 - 2,0 | 2.0 | 3.0 | 4.3 | 4.3 | 25 |
| DX 3 P | 55-424 | 55-444 | 2,1 - 3,0 | 3.0 | 3.0 | 5.3 | 4.3 | 20 |
| DX 4 P | 55-425 | 55-445 | 3,1 - 4,0 | 4.0 | 3.5 | 6.9 | 5.3 | 15 |
