Sleeved Grommets
Sleeved Grommets KT-PVC

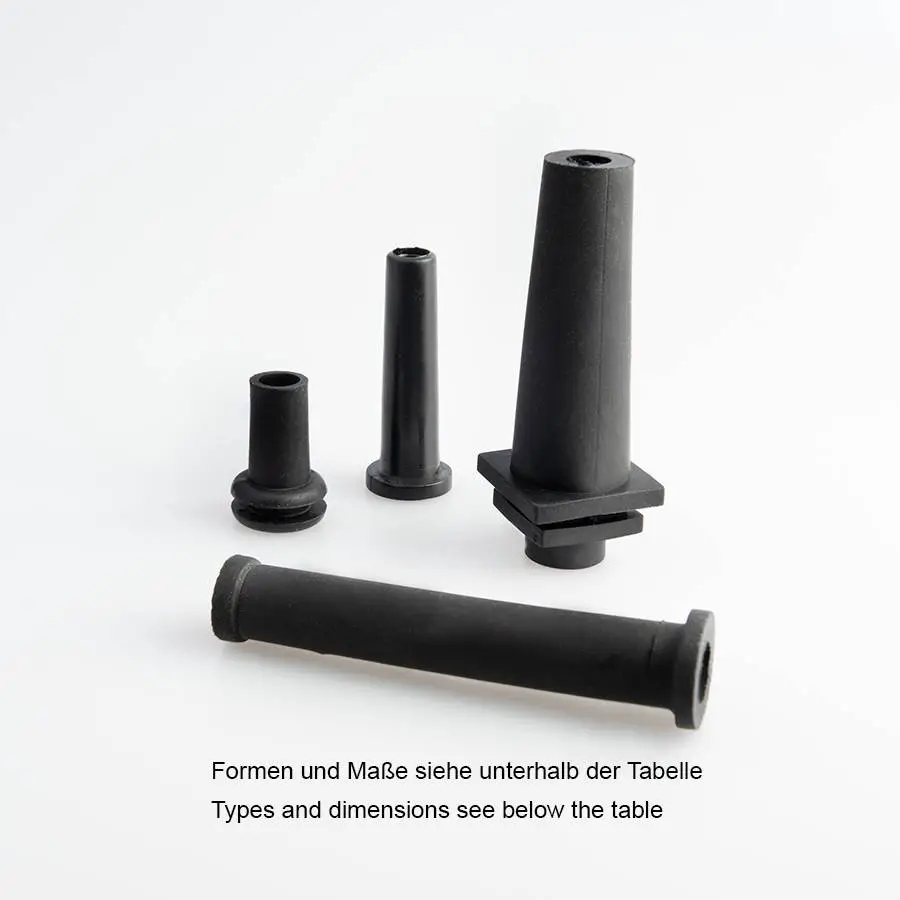

Grommet sleeves provide additional support and kink protection for cables or wires.
Molded parts made of soft PVC are manufactured using the injection molding process. Threfore they have a flawless surface and are dimensionally accurate. Soft PVC is resistant to water, ozone, weather, diluted acids, alkalis and salts. It has a very good resistance to ageing.
To request a product, please click on the corresponding item number in the table.
strain relief clamp MB 900
for type KT-PVC 542, 582, 583 and 908
| Type | Part no. | Form | A1 mm | A2 mm | ØB mm | ØC mm | D mm | l mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|

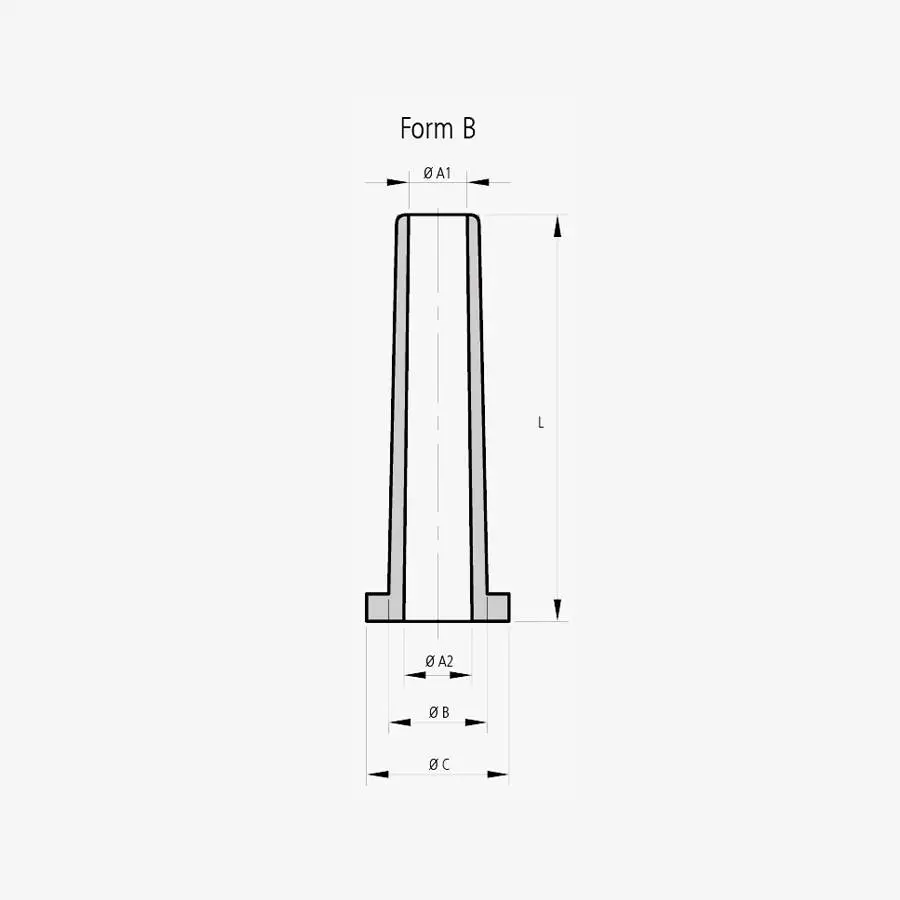

| KT-PVC 1462 | 56-114 | B | 3.0 | 5.5 | 9.0 | 13.0 | 37.0 | 100 | |
| KT-PVC 583 | 56-106 | B | 5.3 | 5.5 | 9.0 | 13.0 | 46.0 | 100 | |
| KT-PVC 600 | 56-109 | B | 5.3 | 5.5 | 9.0 | 13.0 | 37.0 | 100 | |
| KT-PVC 1466 | 56-118 | B | 5.3 | 6.2 | 9.0 | 13.0 | 37.0 | 100 | |
| KT-PVC 1584 | 56-119 | B | 6.0 | 12.0 | 15.0 | 20.0 | 58.0 | 100 | |
| KT-PVC 1459 | 56-116 | B | 6.4 | 7.3 | 13.0 | 18.0 | 60.0 | 100 | |
| KT-PVC 553 | 56-103 | B | 7.5 | 7.5 | 10.0 | 11.0 | 46.0 | 100 | |
| KT-PVC 552 | 56-102 | B | 8.0 | 12.0 | 15.0 | 20.0 | 58.0 | 100 | |
| KT-PVC 581 | 56-104 | B | 8.0 | 8.0 | 12.0 | 16.0 | 89.0 | 100 | |
| KT-PVC 598 | 56-107 | B | 8.0 | 8.0 | 12.0 | 16.0 | 85.0 | 100 | |

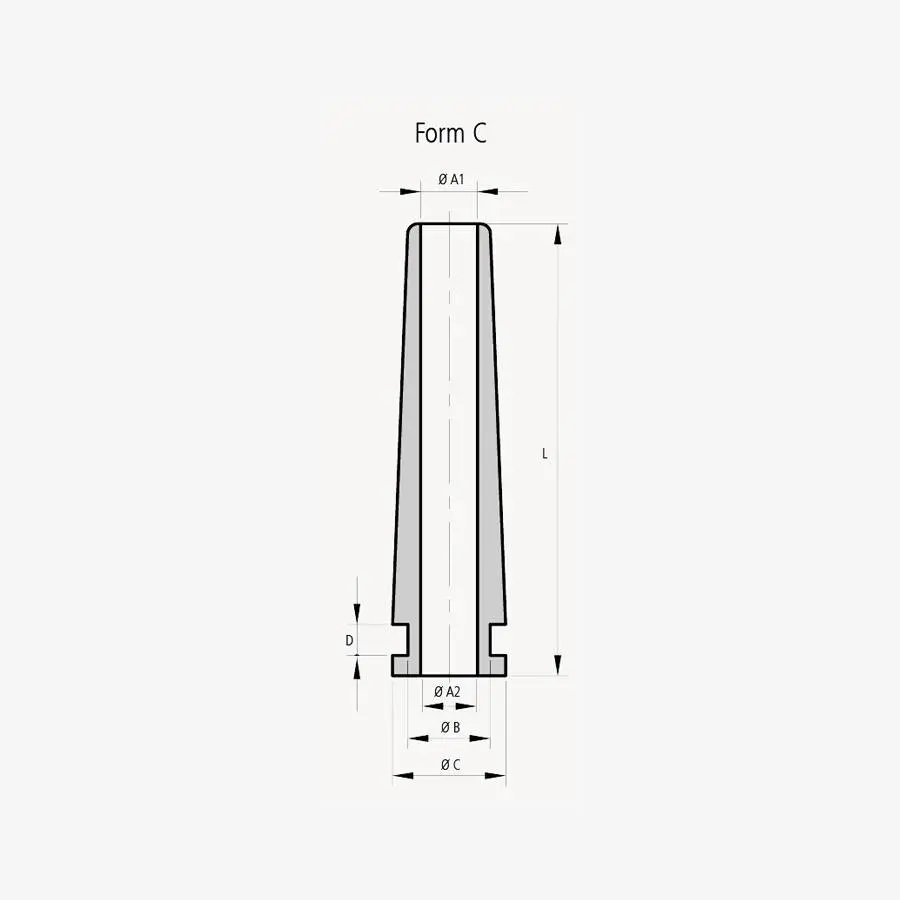

| KT-PVC 1374 | 56-112 | C | 2.5 | 5.0 | 8.0 | 11.0 | 2.0 | 29.0 | 100 |
| KT-PVC 1392 | 56-113 | C | 4.0 | 4.0 | 8.6 | 12.0 | 2.0 | 25.0 | 100 |
| KT-PVC 1017 | 56-910 | C | 4.3 | 4.3 | 8.0 | 11.0 | 1.5 | 12.0 | 100 |
| KT-PVC 1431 | 56-902 | C | 5.0 | 8.0 | 11.0 | 15.0 | 3.0 | 12.0 | 100 |
| KT-PVC 582 | 56-105 | C | 5.5 | 5.6 | 8.0 | 11.0 | 3.0 | 53.0 | 100 |
| KT-PVC 599 | 56-108 | C | 5.5 | 5.5 | 8.0 | 11.0 | 3.0 | 44.0 | 100 |
| KT-PVC 1372 | 56-111 | C | 5.7 | 9.0 | 12.0 | 19.0 | 2.5 | 55.0 | 50 |
| KT-PVC 542 | 56-101 | C | 5.8 | 7.2 | 12.0 | 18.0 | 2.0 | 43.5 | 100 |
| KT-PVC 908 | 56-110 | C | 8.0 | 8.0 | 12.0 | 18.0 | 2.0 | 43.5 | 100 |
| MB 900 | 56-144 | 100 |
