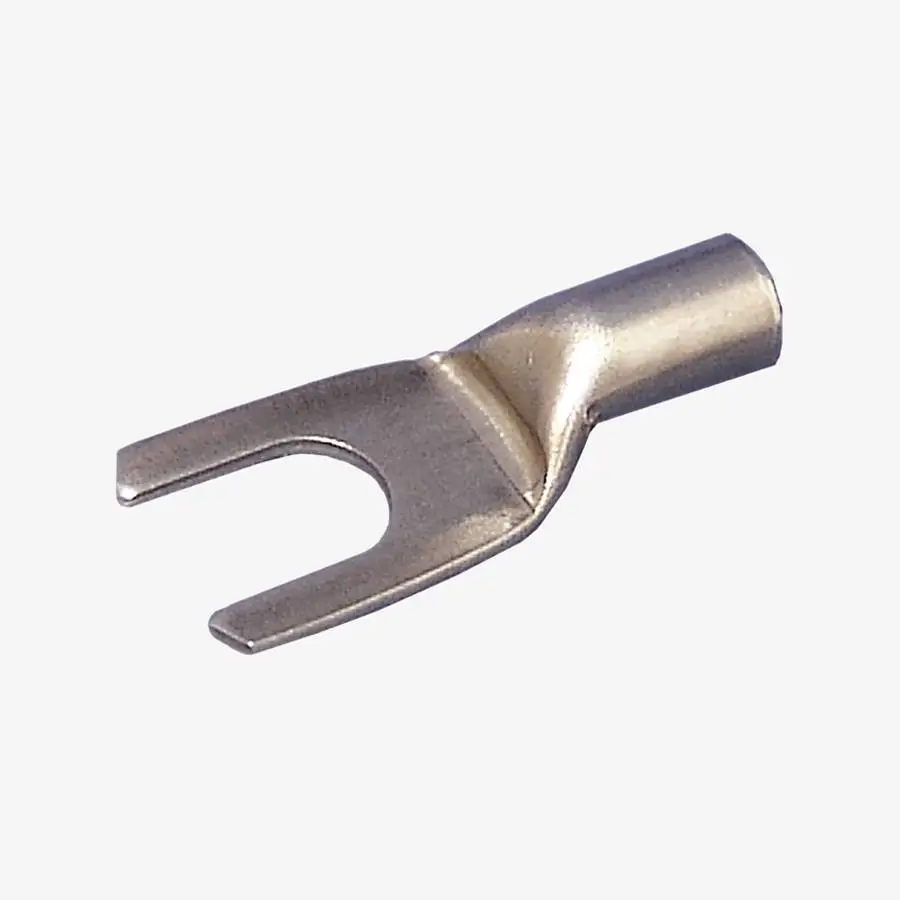

Nickel cable lugs fork type
The nickel cable connectors have excellent electrical conductivity, corrosion and oxidation resistance as well as a very high temperature resistance.
To request a product, please click on the corresponding item number in the table.

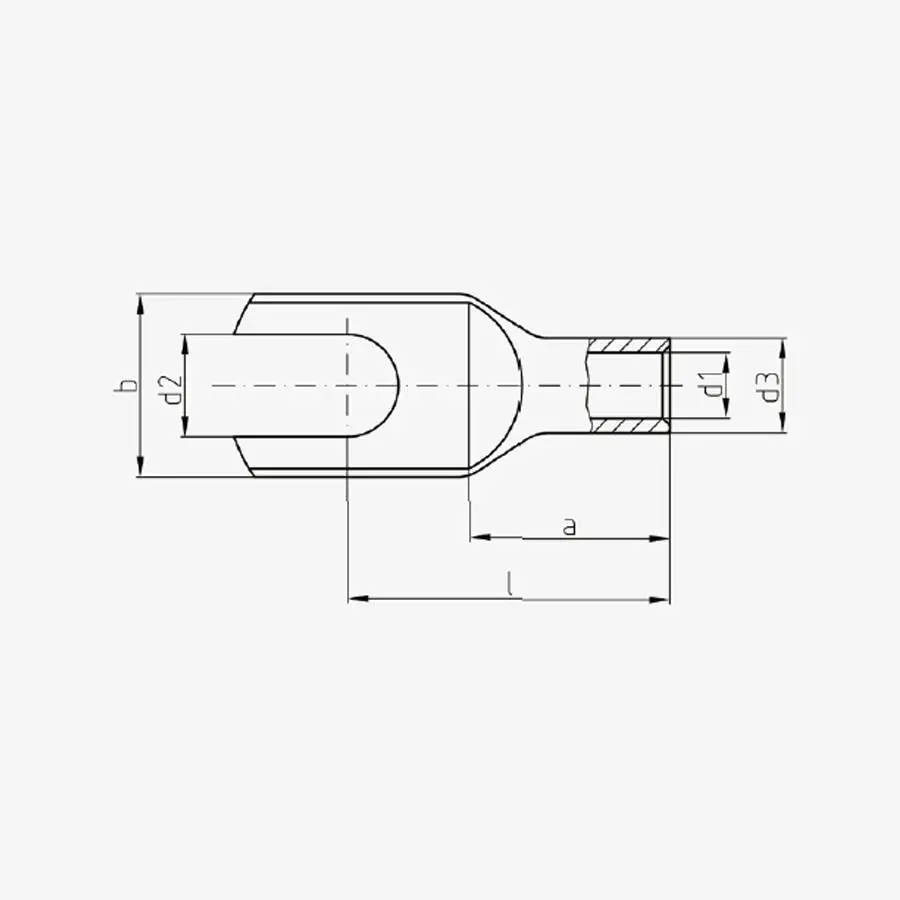

| Cross-section mm² | Bolt M | Type | Part no. | d1 mm | d3 mm | d2 mm | ØB mm | l mm | ØA mm | Weight kg / 100 pcs. | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 - 1,0 | 4 | KRC N 4 - 1 | 28-550 | 1.6 | 3.2 | 4.3 | 6.5 | 13.5 | 6.0 | 0.08 | 100 |
| 0,5 - 1,0 | 5 | KRC N 5 - 1 | 28-551 | 1.6 | 3.2 | 5.3 | 7.5 | 14.5 | 6.0 | 0.07 | 100 |
| 1,5 - 2,5 | 4 | KRC N 4 - 2,5 | 28-560 | 2.3 | 3.9 | 4.3 | 7.0 | 14.0 | 6.0 | 0.10 | 100 |
| 1,5 - 2,5 | 5 | KRC N 5 - 2,5 | 28-561 | 2.3 | 3.9 | 5.3 | 8.5 | 15.5 | 6.0 | 0.11 | 100 |
| 1,5 - 2,5 | 6 | KRC N 6 - 2,5 | 28-562 | 2.3 | 3.9 | 6.4 | 9.5 | 17.0 | 6.0 | 0.12 | 100 |
| 4,0 - 6,0 | 4 | KRC N 4 - 6 | 28-570 | 3.6 | 5.6 | 4.3 | 9.4 | 18.0 | 8.0 | 0.23 | 100 |
| 4,0 - 6,0 | 5 | KRC N 5 - 6 | 28-571 | 3.6 | 5.6 | 5.3 | 10.0 | 18.5 | 8.0 | 0.24 | 100 |
| 4,0 - 6,0 | 6 | KRC N 6 - 6 | 28-572 | 3.6 | 5.6 | 6.4 | 10.5 | 19.5 | 8.0 | 0.24 | 100 |
| 4,0 - 6,0 | 8 | KRC N 8 - 6 | 28-573 | 3.6 | 5.6 | 8.4 | 13.0 | 21.5 | 8.0 | 0.30 | 100 |
| 10.0 | 5 | KRC N 5 - 10 | 28-580 | 4.5 | 6.5 | 5.3 | 10.8 | 20.5 | 10.0 | 0.34 | 100 |
| 10.0 | 6 | KRC N 6 - 10 | 28-581 | 4.5 | 6.5 | 6.4 | 11.5 | 22.5 | 10.0 | 0.37 | 100 |
| 10.0 | 8 | KRC N 8 - 10 | 28-582 | 4.5 | 6.5 | 8.4 | 13.3 | 25.0 | 10.0 | 0.41 | 100 |
| 16.0 | 5 | KRC N 5 - 16 | 28-590 | 5.5 | 7.5 | 5.3 | 12.8 | 22.5 | 11.0 | 0.44 | 100 |
| 16.0 | 6 | KRC N 6 - 16 | 28-591 | 5.5 | 7.5 | 6.4 | 13.6 | 24.5 | 11.0 | 0.48 | 100 |
| 16.0 | 8 | KRC N 8 - 16 | 28-592 | 5.5 | 7.5 | 8.4 | 15.7 | 26.5 | 11.0 | 0.53 | 100 |
