Rubber sleeves + rubber hoses

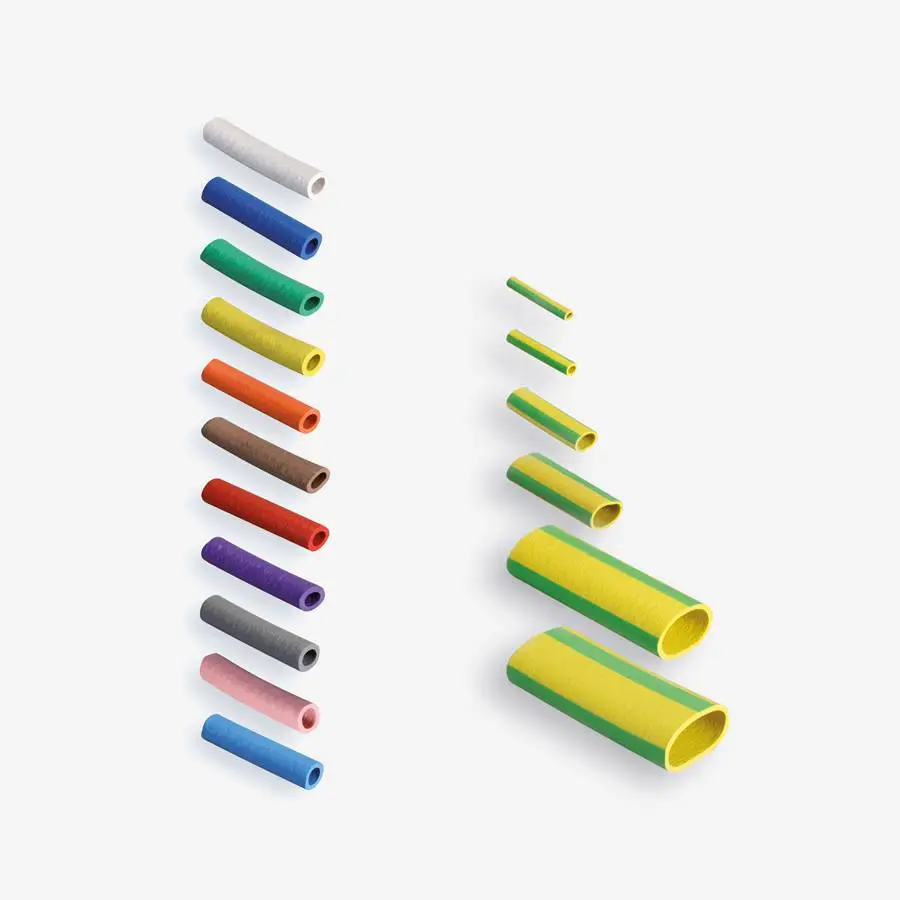

Rubber sleeves GTF - colored
Rubber sleeves are used to bundle and insulate a cable. They allow cables to be identified, either by coloring or by additional labeling on the sleeve.
Rubber sleeves protect the cable from dirt, corrosion and abrasion and act as kink protection.
GTF 1K and 2K particularly thick-walled for kink protection

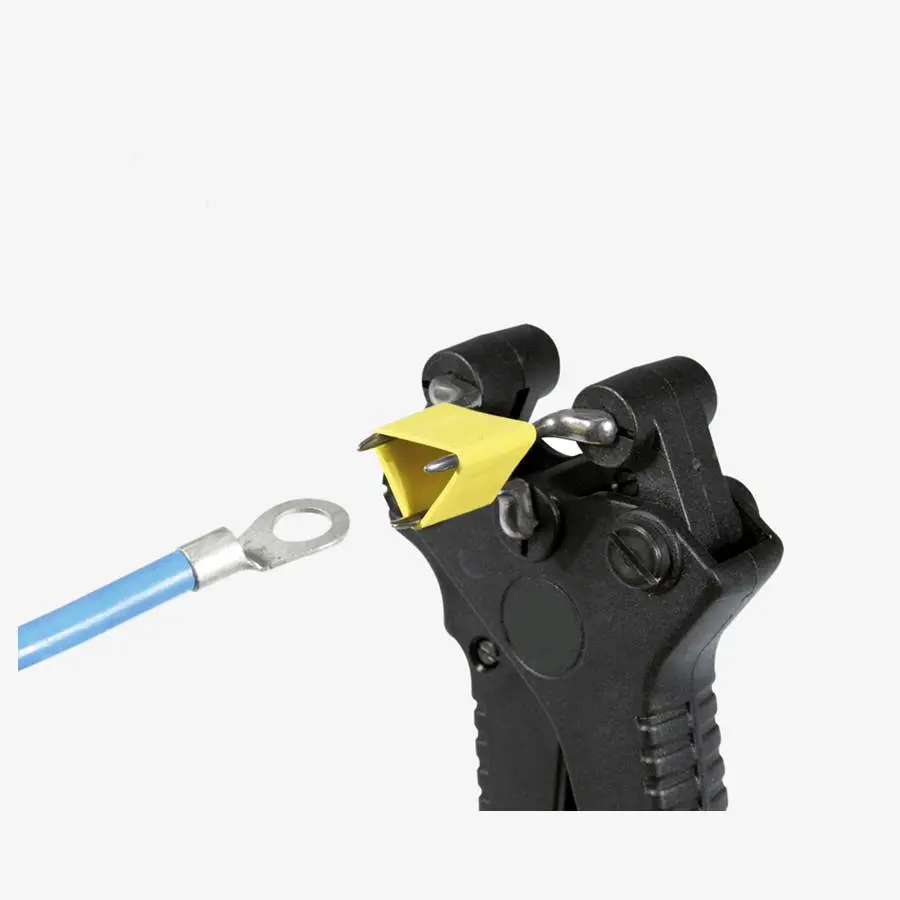

The sleeves are particularly easy to fit using a sleeves expender tool. They are slipped onto the sticks, widened (see picture on the left) and placed on the cable.
Up to size GTF 4, the grommets are coated with lubricant.
Example: 60-254-07 = GTF 2 in red, PU: 1000 pieces
To request a product, please click on the corresponding item number in the table.

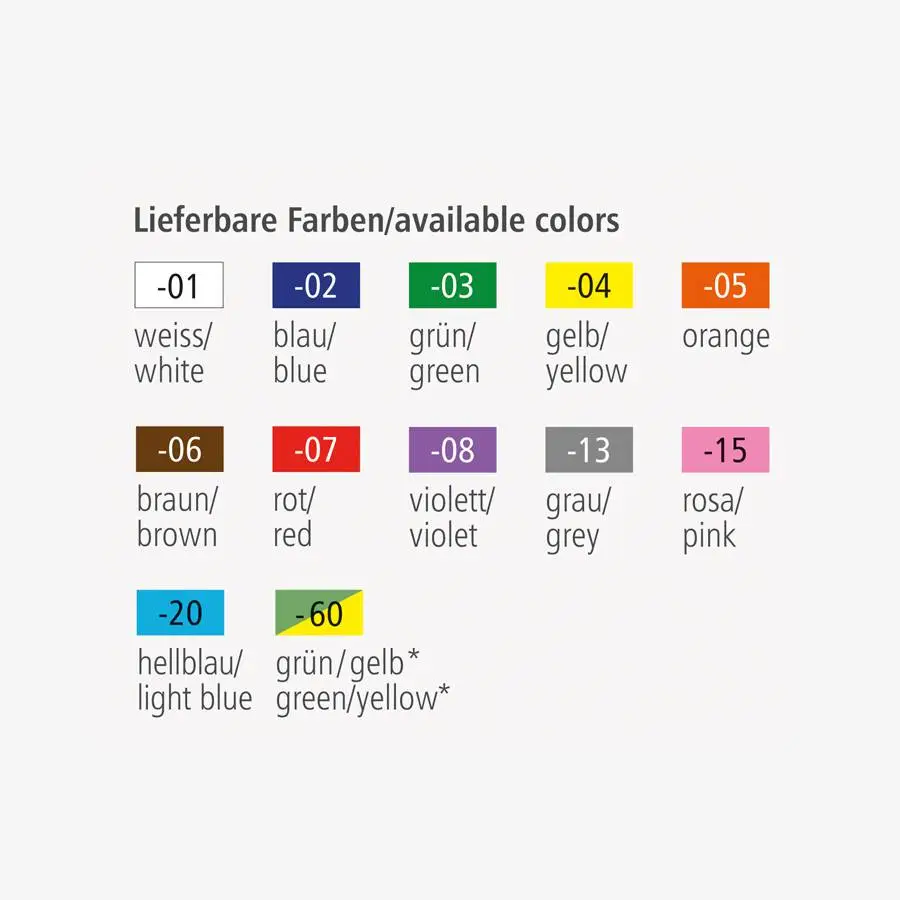

replace -xx with the above colour code! (e.g. -02 = blue)
only the sizes marked with * are available in the color green-yellow!
| for cable-Ø mm | Type | Part no. | Lenght in mm | Wall thickness mm | Inner-Ø mm | PU pcs. |
|---|---|---|---|---|---|---|
| 1,25 - 2,00 | GTF 0* | 60-351-xx | 20.0 | 0.5 | 1.25 | 100 |
| 1,25 - 2,00 | GTF 0 | 60-251-xx | 20.0 | 0.5 | 1.25 | 1000 |
| 1,75 - 3,50 | GTF 1* | 60-352-xx | 20.0 | 0.5 | 1.75 | 100 |
| 1,75 - 3,50 | GTF 1 | 60-252-xx | 20.0 | 0.5 | 1.75 | 1000 |
| 2,50 - 4,50 | GTF 1A* | 60-353-xx | 20.0 | 0.6 | 2.50 | 100 |
| 2,50 - 4,50 | GTF 1A | 60-253-xx | 20.0 | 0.6 | 2.50 | 1000 |
| 2,50 - 5,50 | GTF 1K | 60-361-xx | 25.0 | 0.9 | 2.50 | 100 |
| 2,50 - 5,50 | GTF 1K | 60-261-xx | 25.0 | 0.9 | 2.50 | 1000 |
| 3,00 - 6,00 | GTF 2* | 60-354-xx | 25.0 | 0.6 | 3.00 | 100 |
| 3,00 - 6,00 | GTF 2 | 60-254-xx | 25.0 | 0.6 | 3.00 | 1000 |
| 4,00 - 8,00 | GTF 2K | 60-362-xx | 30.0 | 1.2 | 4.00 | 100 |
| 4,00 - 8,00 | GTF 2K | 60-262-xx | 30.0 | 1.2 | 4.00 | 1000 |
| 5,00 - 9,00 | GTF 3* | 60-355-xx | 25.0 | 0.7 | 5.00 | 100 |
| 5,00 - 9,00 | GTF 3 | 60-255-xx | 25.0 | 0.7 | 5.00 | 1000 |
| 7,50 - 12,00 | GTF 4* | 60-356-xx | 30.0 | 0.8 | 7.50 | 100 |
| 7,50 - 12,00 | GTF 4 | 60-256-xx | 30.0 | 0.8 | 7.50 | 1000 |
| 10,00 - 15,00 | GTF 5* | 60-357-xx | 35.0 | 1.2 | 10.00 | 100 |
| 10,0 0 - 15,00 | GTF 5 | 60-257-xx | 35.0 | 1.2 | 10.00 | 500 |
| 12,00 - 20,00 | GTF 8* | 60-358-xx | 50.0 | 1.4 | 12.00 | 100 |
| 12,00 - 20,00 | GTF 8 | 60-258-xx | 50.0 | 1.4 | 12.00 | 500 |
| 14,00 - 23,00 | GTF 9* | 60-359-xx | 50.0 | 1.5 | 14.00 | 100 |
| 14,00 - 23,00 | GTF 9 | 60-259-xx | 50.0 | 1.5 | 14.00 | 500 |
| 17,00 - 28,00 | GTF 10* | 60-360-xx | 50.0 | 1.5 | 17.00 | 100 |
| 17,00 - 28,00 | GTF 10 | 60-260-xx | 50.0 | 1.5 | 17.00 | 500 |
