Silicone rubber sleeves + hoses

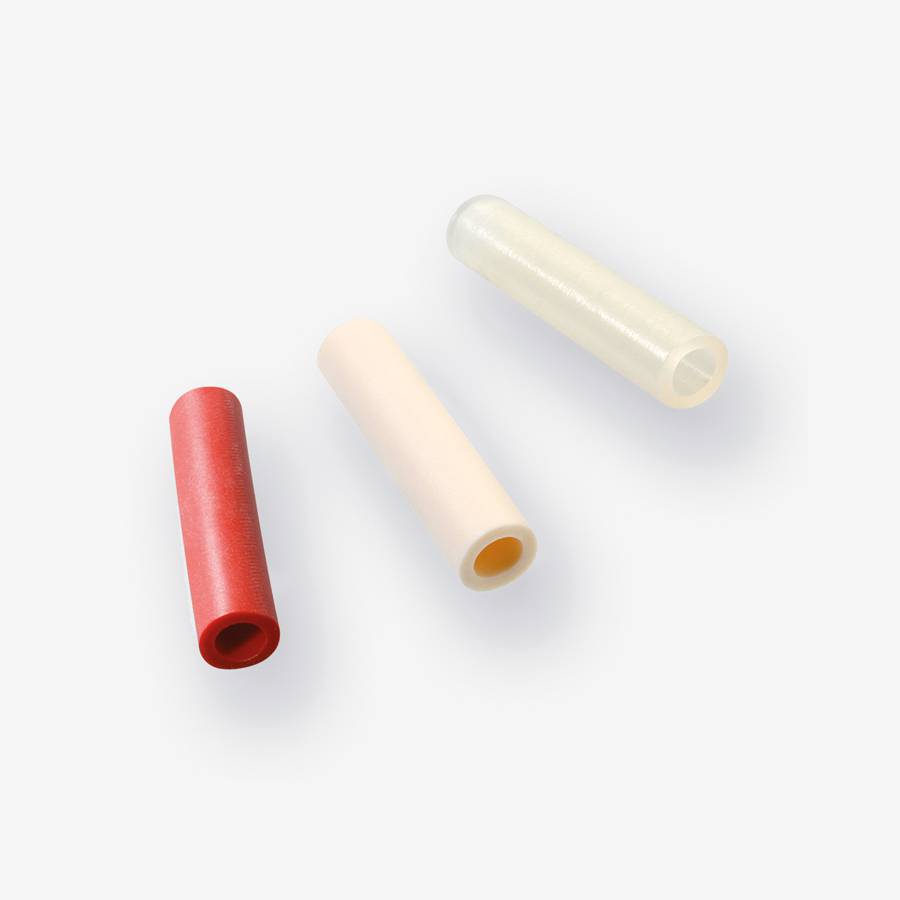

Silicone sleeves STF - colored + transparent
Silicone sleeves are used to bundle and insulate a cable. They allow cables to be identified, either by coloring or by additional labeling on the sleeve.
Silicone sleeves protect the cable from dirt, corrosion and abrasion and act as kink protection.

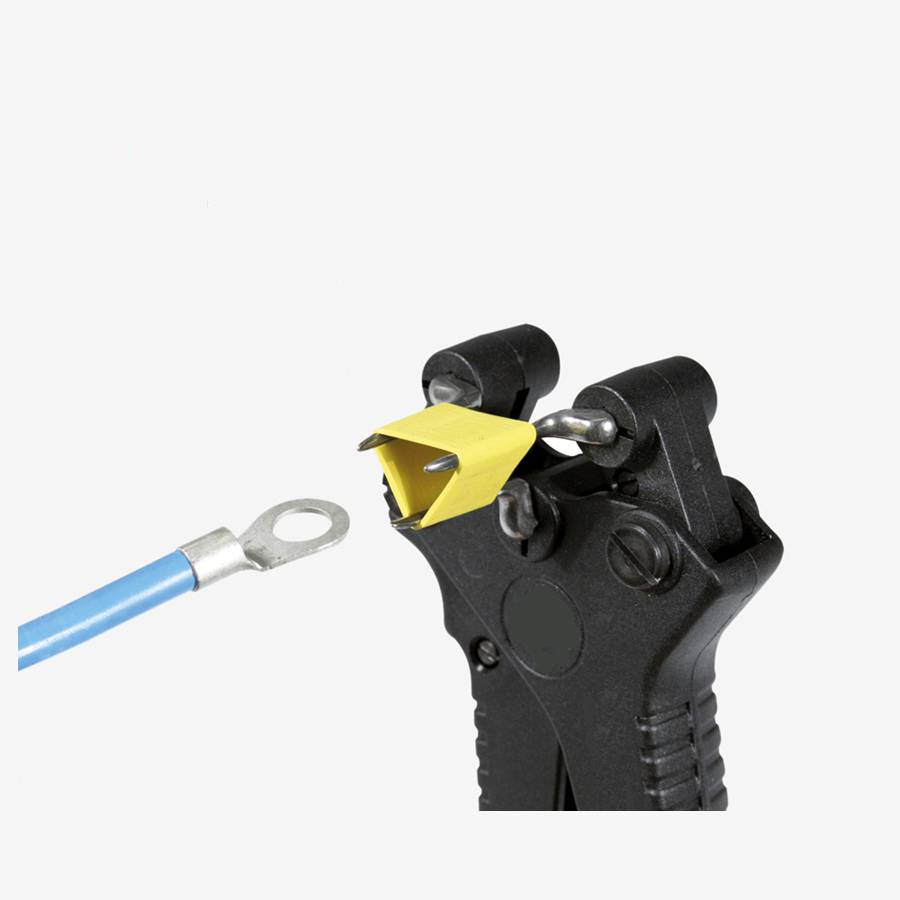

The sleeves are particularly easy to fit using a sleeves expender tool. They are slipped onto the sticks, widened (see picture on the left) and placed on the cable.
ST 1K and 2K particularly thick-walled for kink protection
Up to size STF 4, the grommets are coated with lubricant.
To request a product, please click on the corresponding item number in the table.

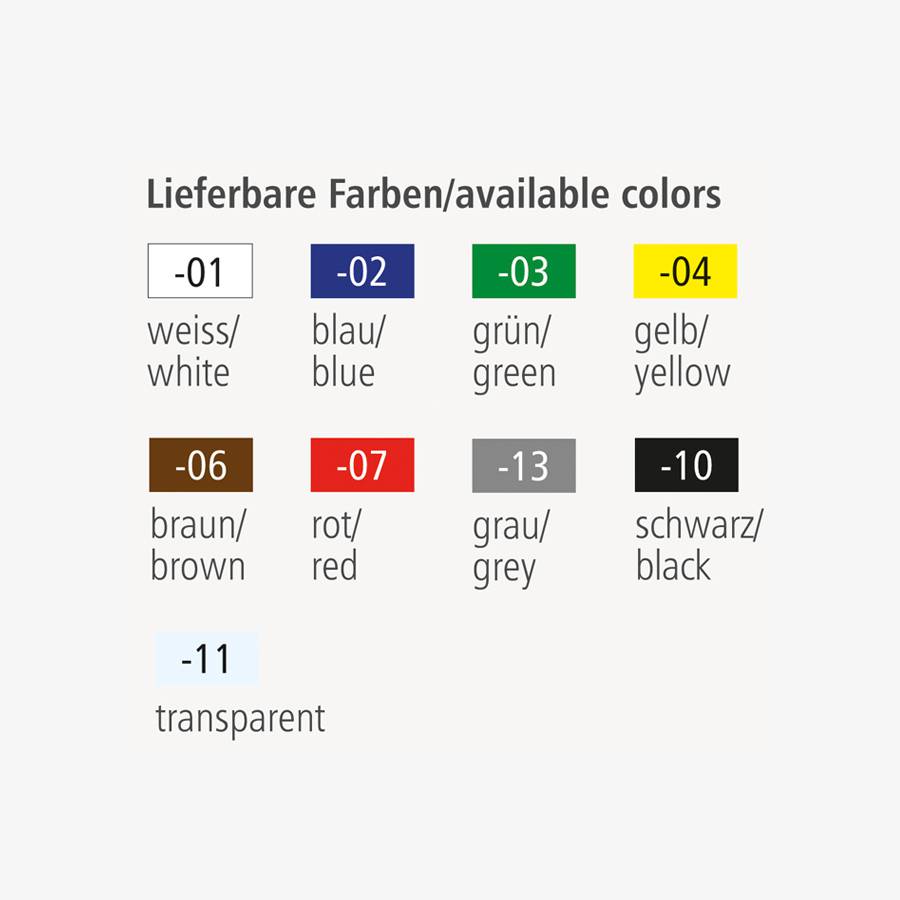

replace -xx with the above colour code! (e.g. -02 = blue)
Example: 60-654-11=STF 2 in transparent
| for cable-Ø mm | Type | Part no. | Lenght in mm | Wall thickness mm | Inner-Ø mm | PU pcs. |
|---|---|---|---|---|---|---|
| 1,3 - 1,8 | STF 0 | 60-651-xx | 20.0 | 0.5 | 1.25 | 100 |
| 1,9 - 2,5 | STF 1 | 60-652-xx | 20.0 | 0.5 | 1.75 | 100 |
| 2,4 - 3,0 | STF 1a | 60-653-xx | 20.0 | 0.6 | 2.40 | 100 |
| 2,5 - 4,0 | STF 1K | 60-661-xx | 25.0 | 0.9 | 2.50 | 100 |
| 3,0 - 4,0 | STF 2 | 60-654-xx | 25.0 | 0.6 | 3.00 | 100 |
| 4,0 - 6,0 | STF 2K | 60-662-xx | 30.0 | 1.2 | 4.00 | 100 |
| 5,0 - 7,0 | STF 3 | 60-655-xx | 25.0 | 0.7 | 5.00 | 100 |
| 7,5 - 9,0 | STF 4 | 60-656-xx | 30.0 | 0.8 | 7.50 | 100 |
| 10,0 - 13,0 | STF 5 | 60-657-xx | 35.0 | 1.0 | 10.00 | 100 |
| 13,0 - 16,0 | STF 8 | 60-658-xx | 50.0 | 1.2 | 12.00 | 100 |
| 15,0 - 19,0 | STF 9 | 60-659-xx | 50.0 | 1.3 | 14.00 | 100 |
| 18,0 - 25,0 | STF 10 | 60-660-xx | 50.0 | 1.3 | 17.00 | 100 |
