insulated terminals and connectors

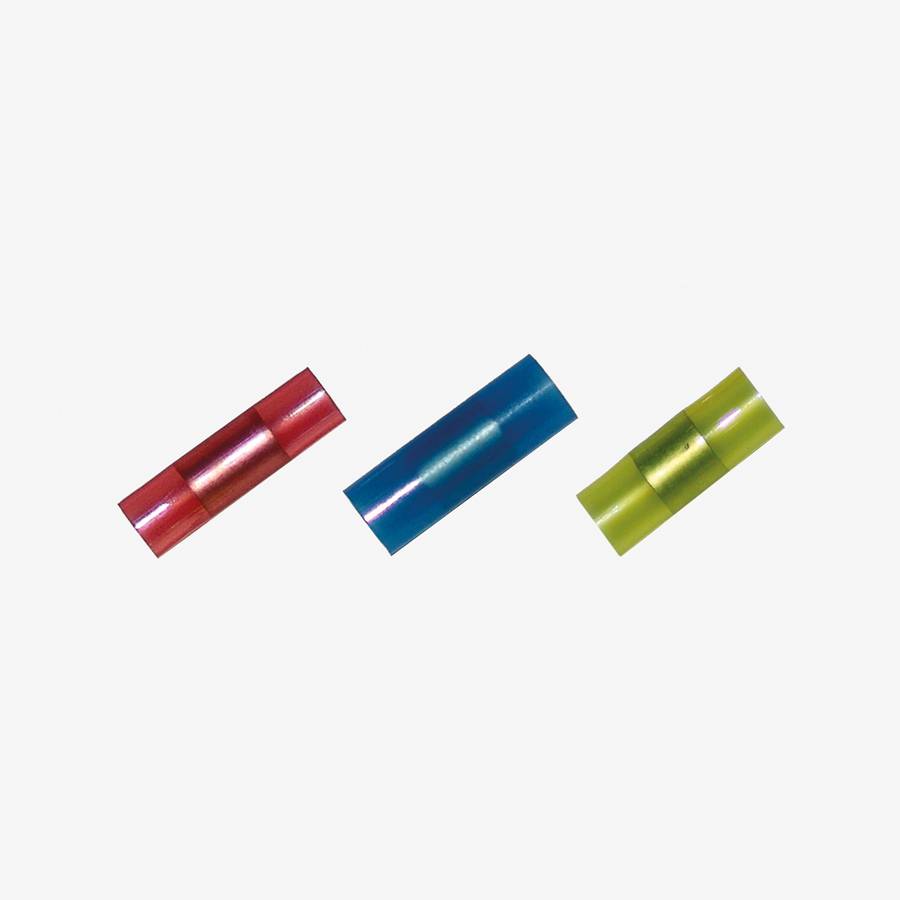

Insulated parallel connectors

For fine-stranded cables.

Substance:

E-Cu

Surface:

tin-plated

Isolation:

Polyamide (PA)

Heat resistance:

max. 105 °C

To request a product, please click on the corresponding item number in the table.

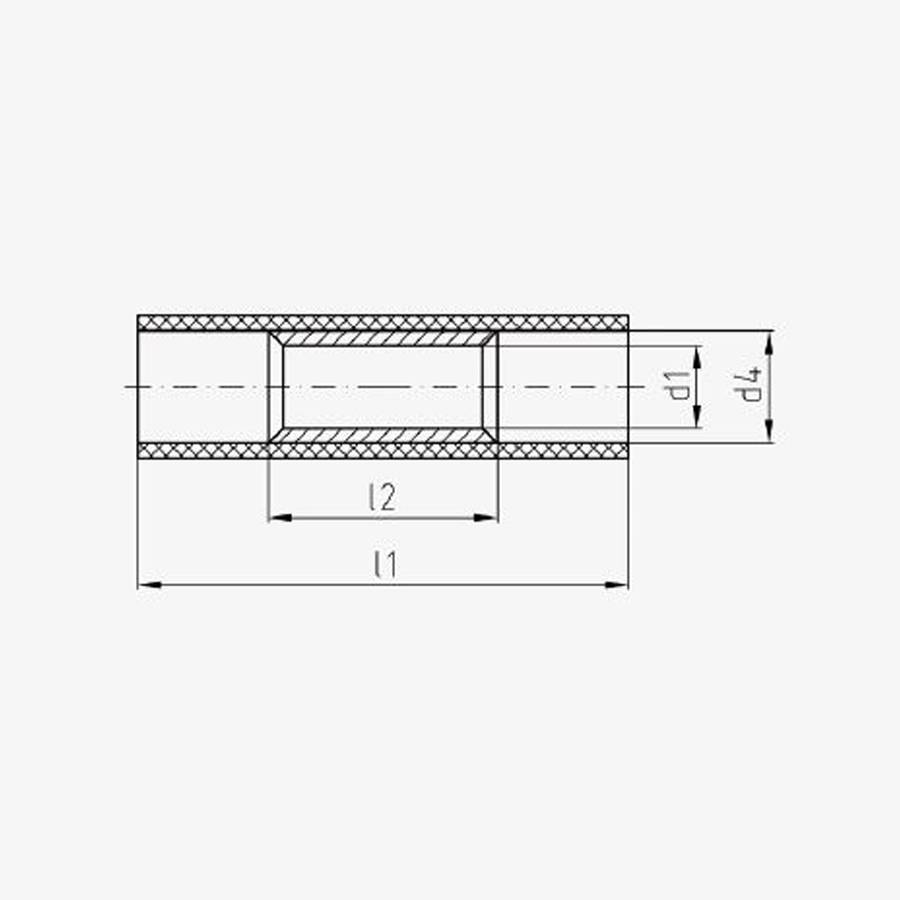

Cross-section mm²	Type	Part no.	Color	d1 mm	d4 mm	l1 mm	l2 mm	PU pcs.

0,1 - 0,5	PVS 0,5	26-200	gelb / yellow	1.2	2.0	5.0	12.0	100
0,5 - 1,0	PVS 1	26-201	rot / red	1.7	3.2	7.0	17.0	100
1,5 - 2,5	PVS 2,5	26-203	blau / blue	2.3	4.0	7.0	17.0	100
4,0 - 6,0	PVS 6	26-204	gelb / yellow	3.6	5.4	7.0	21.2	100

Crimping pliers WZ 36
