Non-insulated receptacles

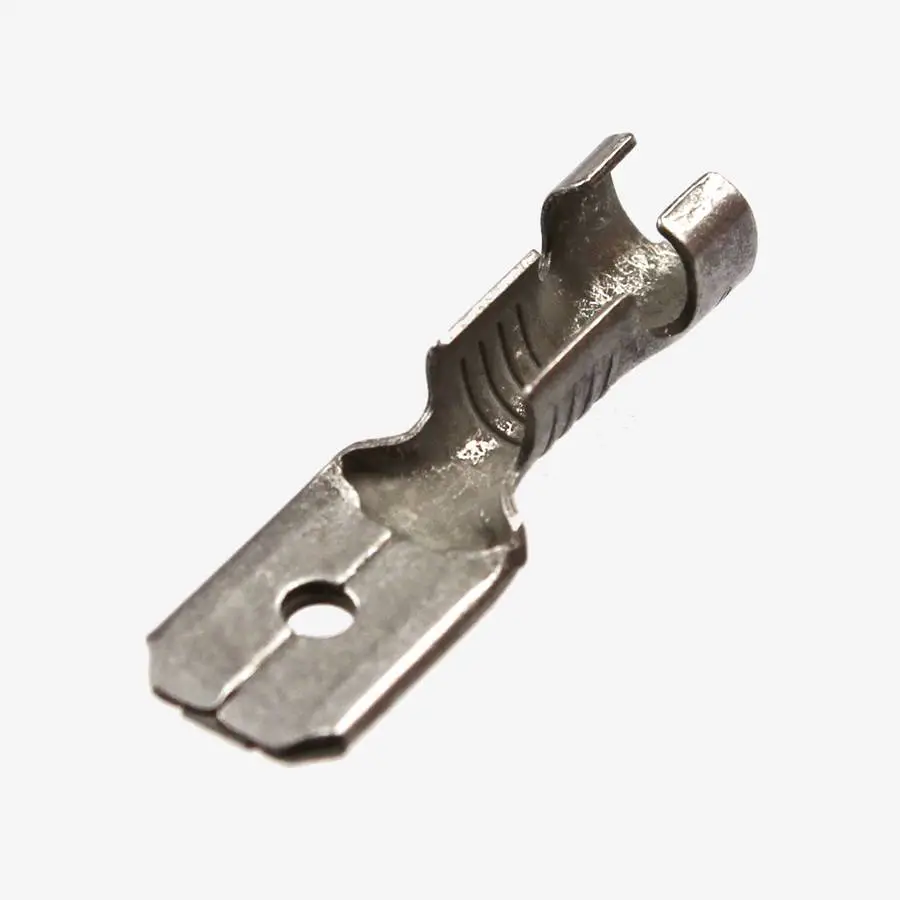

Male disconnects
To request a product, please click on the corresponding item number in the table.

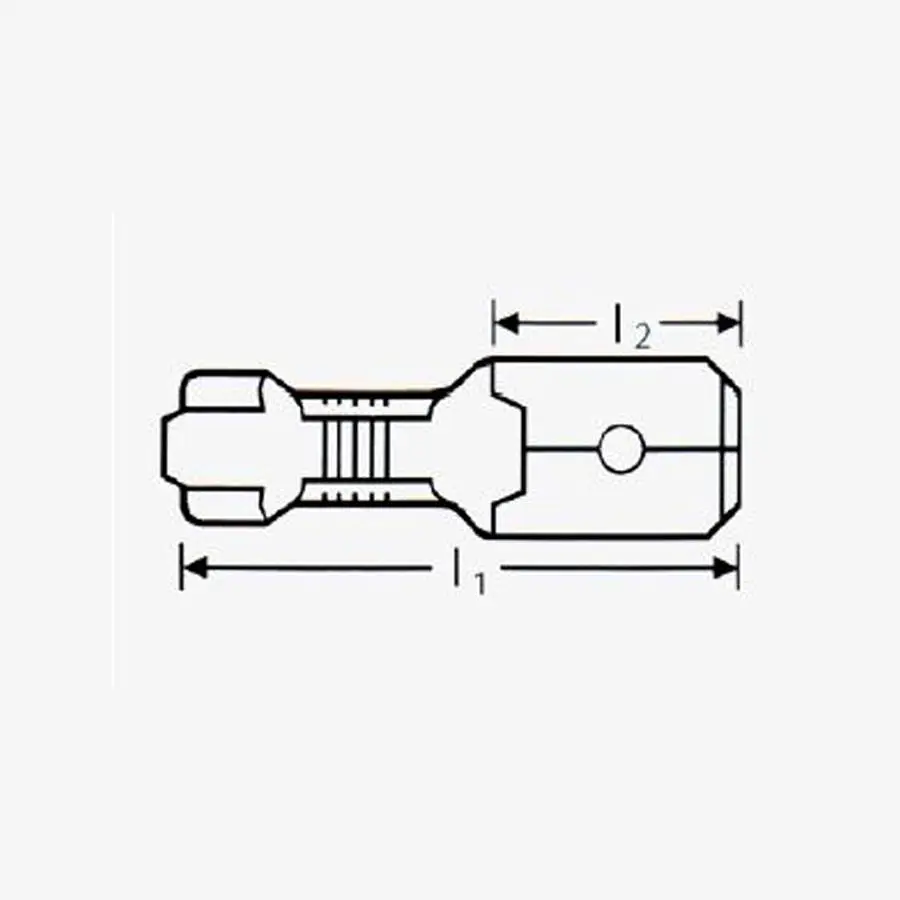

| Cross-section mm² | Tab sizes width x thickness | Type | Part no. brass tin-plated | Part no. bare brass | l1 mm | l2 mm | Weight kg / 100 pcs. | PU pcs. |
|---|---|---|---|---|---|---|---|---|
| 0,5 - 1,0 | 2,8 x 0,8 | FS 2808-10 | 34-102 | 34-442 | 12.6 | 5.5 | 0.04 | 100 |
| 0,5 - 1,0 | 4,8 x 0,8 | FS 4808-10 | 34-443 | 27.5 | 15.0 | 0.05 | 100 | |
| 0,5 - 1,0 | 6,3 x 0,8 | FS 6308-10 | 34-104 | 34-444 | 20.0 | 8.8 | 0.06 | 100 |
| 1,5 - 2,5 | 4,8 x 0,8 | FS 4808-25 | 34-105 | 34-445 | 17.0 | 7.2 | 0.05 | 100 |
| 1,5 - 2,5 | 6,3 x 0,8 | FS 6308-25 | 34-106 | 34-446 | 20.0 | 8.8 | 0.07 | 100 |
| 4,0 - 6,0 | 6,3 x 0,8 | FS 6308-60 | 34-107 | 34-447 | 20.0 | 8.8 | 0.08 | 100 |
