Cable Entry Plates
Cable entry plates
These cable entry plates have been specially developed for the use of unassembled cables without connectors as well as for pipes and pneumatic or hydraulic hoses. The space-saving design facilitates the quick and efficient routing of cables in control cabinets, control panels or machines and rationalises the installation process. The cable entry plates enable the insertion and sealing of a large number of cables having even different diameters in the tightest spaces.

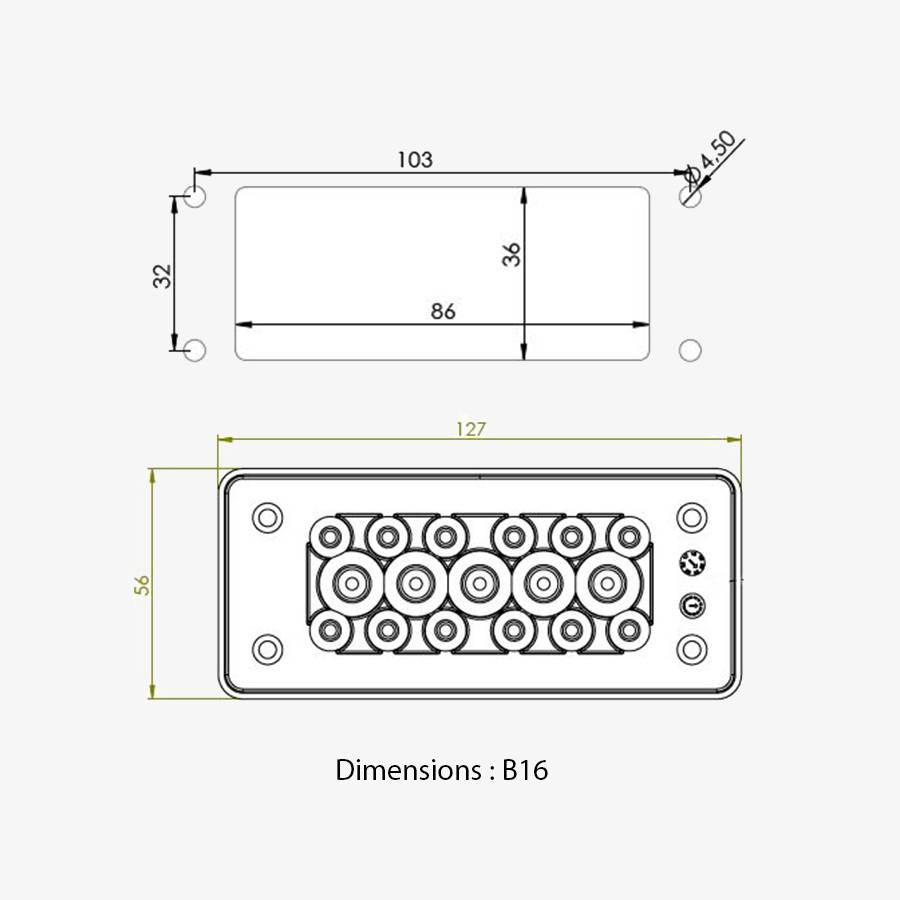

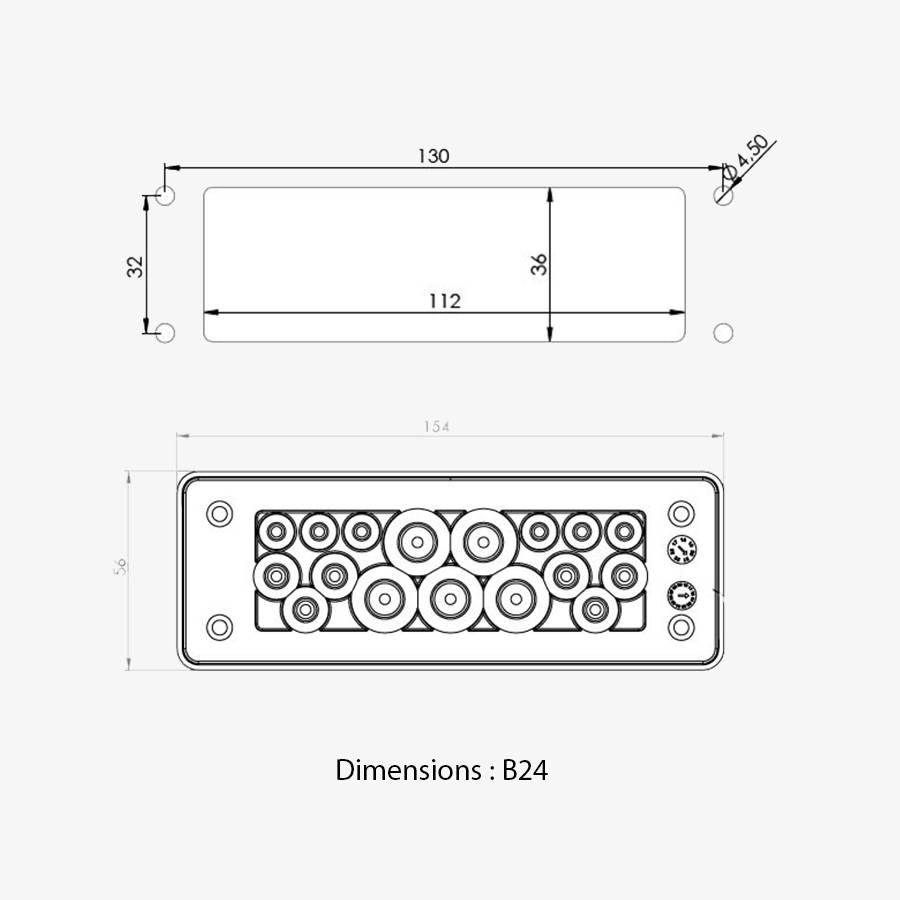

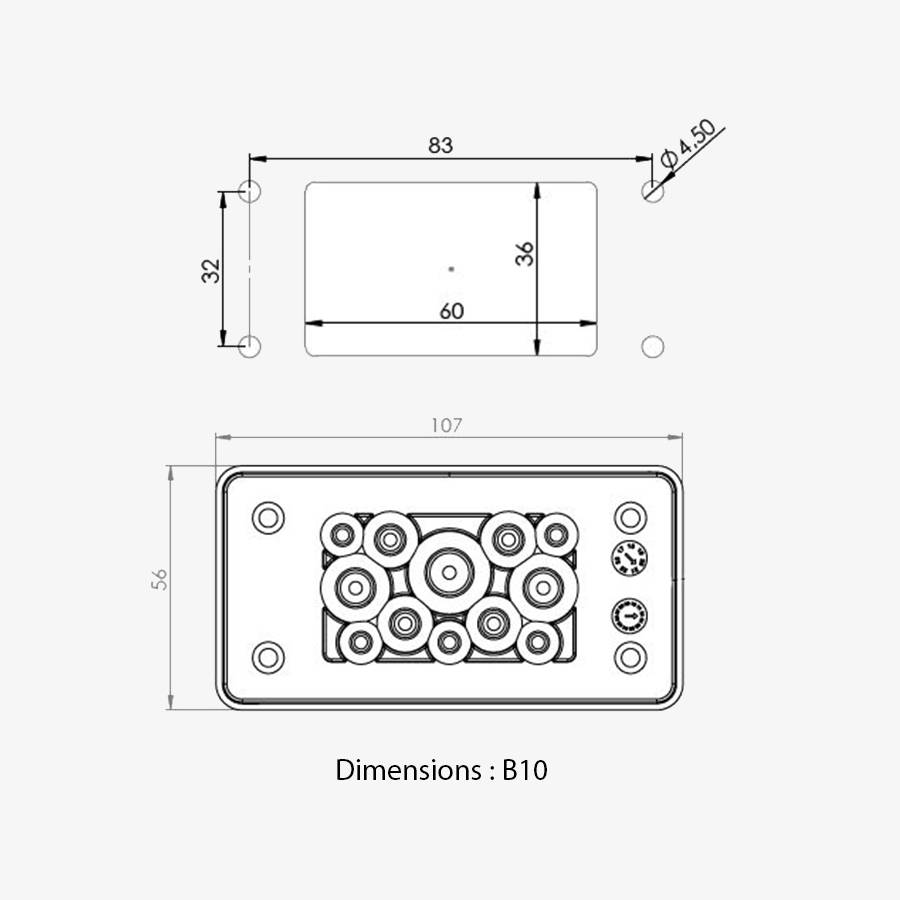

The Flange sizes of B24, B16 and B10 fit into the standardised cut-outs for 10-, 16- and 24-pole heavy-duty connectors.

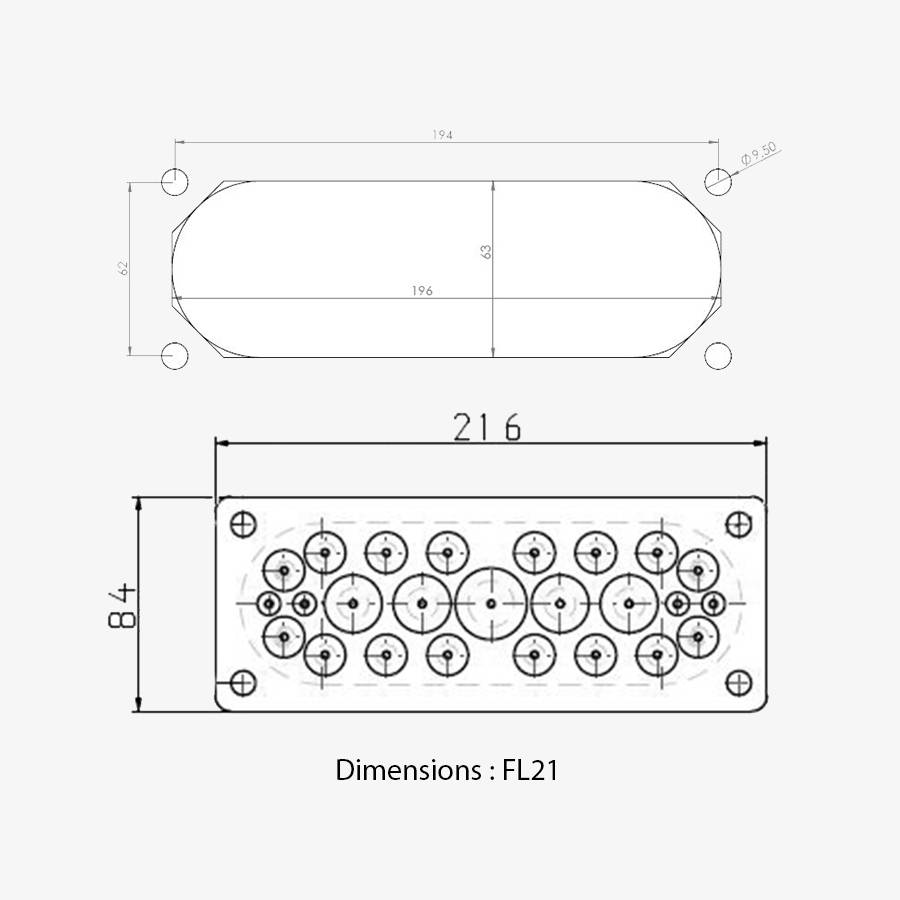

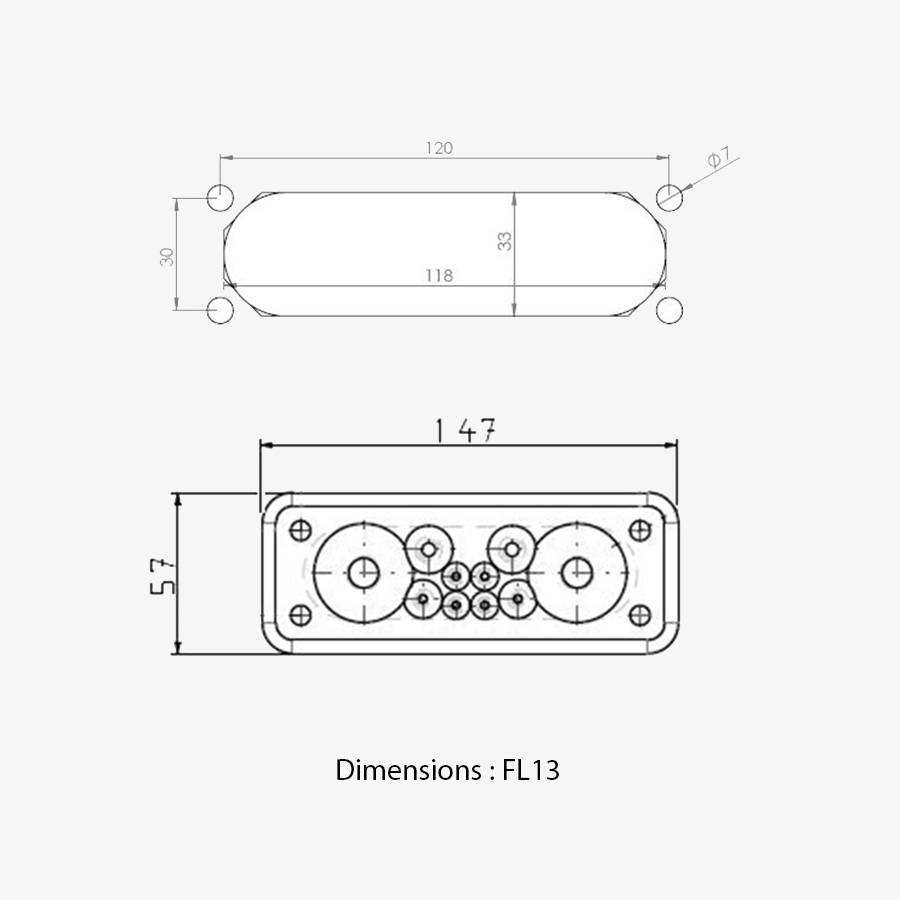

The Flange sizes of FL21 and FL13 are widely used, especially in northern Europe.
To request a product, please click on the corresponding item number in the table.
Detailed product images can be found under the table below.
| Type | Part no. gray | Part no. black | IP-Class | Cut-out | Total QTY of cables | QTY | Cable-Ø mm | QTY | Cable-Ø mm | QTY | Cable-Ø mm | QTY | Cable-Ø mm | QTY | Cable-Ø mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MH10 F12-1 | 50-130 | 50-131 | IP 66 | B 10 | 12 | 5x | 3-7 | 4x | 5-10 | 2x | 7-13 | 1x | 9-16 | ||
| MH16 F17-1 | 50-120 | 50-121 | IP 66 | B 16 | 17 | 12x | 3-7 | 5x | 7-13 | ||||||
| MH24 F17-2 | 50-110 | 50-111 | IP 66 | B 24 | 17 | 6x | 3-7 | 6x | 5-10 | 5x | 9-16 | ||||
| MH24 F17-3 | 50-112 | 50-113 | IP 66 | B 24 | 17 | 4x | 3-7 | 12x | 7-12 | 1x | 10-20 | ||||
| MH24 F19-1 | 50-116 | 50-117 | IP 66 | B 24 | 19 | 5x | 1,5-3 | 10x | 3,2-6,5 | 4x | 16-22 | ||||
| MH24 F20-1 | 50-118 | 50-119 | IP 66 | B 24 | 20 | 6x | 1,5-3 | 14x | 7,2-12 | ||||||
| MH24 F22-1 | 50-140 | 50-141 | IP 66 | B 24 | 22 | 15x | 3-7 | 4x | 4,5-10 | 3x | 15-20 | ||||
| MH24 F23-1 | 50-142 | 50-143 | IP 66 | B 24 | 23 | 4x | 1,5-3 | 4x | 3,2-6,3 | 10x | 4-7,5 | 1x | 5,5-10,5 | 3x | 12-16,2 |
| MH24 F23-2 | 50-144 | 50-145 | IP 66 | B 24 | 23 | 4x | 1,5-3 | 6x | 3,2-6,3 | 2x | 4-7,5 | 1x | 5,5-10,5 | 10x | 8-12,5 |
| MH24 F27-1 | 50-156 | 50-157 | IP 66 | B 24 | 27 | 12x | 3-7 | 10x | 4,5-10 | 5x | 7-13 | ||||
| MH24 F30-1 | 50-114 | 50-115 | IP 66 | B 24 | 30 | 30x | 3-8 | ||||||||
| MH24 F30-2 | 50-146 | 50-147 | IP 66 | B 24 | 30 | 8x | 1,5-3 | 8x | 3,2-5,5 | 6x | 4-7,5 | 6x | 5-8,5 | 2x | 9,5-14,5 |
| MH24 F30-3 | 50-148 | 50-149 | IP 66 | B 24 | 30 | 6x | 1,5-3 | 4x | 3,2-6,3 | 14x | 4-7,5 | 4x | 5,5-10,5 | 2x | 8-12,5 |
| MH24 F31-1 | 50-150 | 50-151 | IP 66 | B 24 | 31 | 20x | 3,2-6,5 | 8x | 5-10,2 | 3x | 7,5-12 | ||||
| MH24 F42-1 | 50-152 | 50-153 | IP 66 | B 24 | 42 | 42x | 3,2-6,5 | ||||||||
| MH24 F125-1 | 50-154 | 50-155 | IP 66 | B 24 | 125 | 123x | 1,5-3 | 2x | 2,5-5 | ||||||
| MH 10 | 50-100 | IP 55 | B 24 | 10 | 6x | bis 8 | 2x | bis 18 | 2x | bis 30 | |||||
| MH 25 | 50-101 | IP 55 | B 24 | 25 | 3x | 3-6 | 9x | 3-7 | 8x | 6-9 | 4x | 6-12 | 1x | 10-20 | |
| MH 27 | 50-102 | IP 55 | B 24 | 27 | 26 | 3-6 | 1x | 10-20 | |||||||
| MB 4/10 | 50-001 | IP 55 | FL 13 | 10 | 6x | 4-9 | 4x | 10-25 | |||||||
| MB 5/11 | 50-002 | IP 66/67 | FL 13 | 11 | 4x | 5-7 | 3x | 7-10 | 2x | 10-14 | 2x | 15-30 | |||
| MC3/7 | 50-031 | IP 66/67 | FL 21 | 7 | 4x | 8-16 | 2x | 24-54 | 1x | 30-60 | |||||
| MC25/27 | 50-035 | IP 66/67 | FL 21 | 27 | 4x | 5-7 | 4x | 8-12 | 13x | 10-14 | 4x | 14-20 | 2x | 20-26 | |
| MC35/37 | 50-041 | IP 66/67 | FL 21 | 37 | 4x | 6-10 | 14x | 8-12 | 16x | 10-14 | 2x | 12-18 | 1x | 17-32 | |
| MC3 | 50-096 | 50-097 | IP 65 | FL 21 | 7 | 4x | 8-12 | 2x | 24-54 | 1x | 30-60 | ||||
| MC25 | 50-089 | 50-090 | IP 65 | FL 21 | 25 | 4x | 5-7 | 4x | 8-12 | 12x | 10-14 | 4x | 14-20 | 1x | 20-26 |
| MC35 | 50-095 | 50-094 | IP 65 | FL 21 | 35 | 2x | 6-10 | 14x | 8-12 | 16x | 10-14 | 2x | 12-18 | 1x | 20-26 |
| RMC 3 | 50-103 | 50-104 | IP 65 | FL 21 | 7 | 4x | 7-Oct | 3x | Dec-57 | ||||||
| RMC 17 | 50-098 | 50-099 | IP 65 | FL 21 | 17 | 4x | 5-7 | 2x | 10-12 | 2x | 12-15 | 9x | 10-30 | ||
| MC 10 | 50-010 | IP 54 | FL 21 | 10 | 2x | 7-12 | 8x | 10-30 | |||||||
| LMC 14 | 50-011 | IP 54 | FL 21 | 14 | 5x | 10-14 | 4x | 14-18 | 3x | 14-22 | 2x | 22-54 | |||
| LMC 25 | 50-012 | IP 54 | FL 21 | 25 | 2x | 3,5-11 | 5x | 10-14 | 12x | 14-18 | 5x | 14-22 | 1x | 14-35 | |
| LMC 51 | 50-013 | IP 54 | FL 21 | 51 | 50x | 7-13 | 1x | 15-25 | |||||||
| LMC 35 | 50-020 | IP 44 | FL 21 | 35 | 2x | 6-10 | 14x | 7-12 | 16x | 10-14 | 2x | 12-18 | 1x | 15-32 | |
| MPP | 50-199 | 50-198 |
MH10 F12-1
MH16 F17-1
MH24 F17-2
MH24 F17-3
MH24 F19-1
MH24 F20-1
MH24 F22-1
MH24 F23-1
MH24 F23-2
MH24 F27-1
MH24 F30-1
MH24 F30-2
MH24 F30-3
MH24 F31-1
MH24 F42-1
MH24 F125-1
MH 10
MH 25
MH 27
MB 4/10
MB 5/11
MC3/7
MC25/27
MC35/37
MC3
MC25
MC35
RMC 3
RMC_17
MC 10
LMC 14
LMC 25
LMC 51
