Membrane grommets

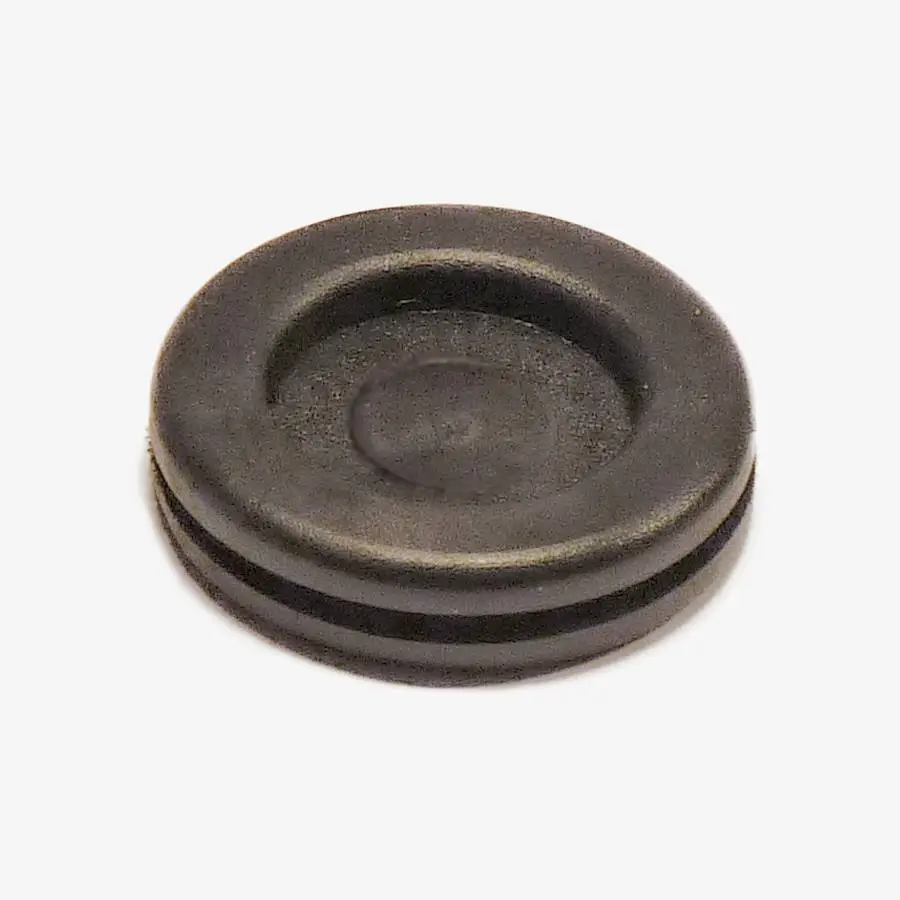

Membrane grommets DG-PVC
These membrane grommets can be used as blanking plugs or cable grommets.
Molded parts made of soft PVC are manufactured by injection molding. They therefore have a flawless surface and are dimensionally accurate. Plasticized PVC is resistant to water, ozone, weather, diluted acids, alkalis and salts. It has very good ageing resistance.
To request a product, please click on the corresponding item number in the table.
| Type | Part no. black | Part no. l.gray | Part no. white | ØA mm | ØB mm | ØC1 mm | ØC2 mm | F1 mm | F2 mm | E mm | M mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DG-PVC PG9 | 55-110 | 55-510 | 55-111 | 9.0 | 15.0 | 20.0 | 18.0 | 2.5 | 2.5 | 2.0 | 1.0 | 100 |
| DG-PVC PG11 | 55120 | 55-520 | 55-122 | 11.0 | 18.0 | 22.5 | 21.5 | 2.5 | 2.5 | 2.0 | 1.0 | 100 |
| DG-PVC PG13,5 | 55-130 | 55-530 | 55-132 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 100 |
| DG-PVC PG16 | 55-140 | 55-540 | 55-141 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 2.0 | 1.0 | 100 |
| DG-PVC PG16/E3 | 55-143 | 16.0 | 22.0 | 27.5 | 26.0 | 2.7 | 2.7 | 3.0 | 2.0 | 100 | ||
| DG-PVC PG21 | 55-150 | 55-550 | 55-152 | 21.0 | 28.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 100 |
| DG-PVC PG21/E1 | 55-158 | 21.0 | 28.0 | 34.5 | 34.5 | 4.0 | 3.0 | 1.0 | 1.2 | 100 | ||
| DG-PVC PG29 | 55-160 | 29.0 | 36.5 | 43.0 | 43.0 | 3.7 | 3.7 | 2.2 | 1.5 | 50 | ||
| DG-PVC PG36 | 55-170 | 35.0 | 46.0 | 52.5 | 52.5 | 3.8 | 3.8 | 2.5 | 1.3 | 50 | ||
| DG-PVC PG48 | 55-180 | 46.5 | 59.0 | 66.2 | 66.2 | 4.0 | 4.0 | 2.5 | 1.6 | 50 | ||
| DG-PVC M20 | 55-133 | 55-533 | 13.5 | 20.0 | 24.0 | 24.0 | 2.5 | 2.5 | 2.0 | 1.0 | 100 | |
| DG-PVC M25 | 55-153 | 55-553 | 21.0 | 25.0 | 34.5 | 34.5 | 3.0 | 3.0 | 2.0 | 1.0 | 100 | |
| DG-PVC M32 | 55-163 | 55-563 | 29.0 | 32.0 | 43.0 | 43.0 | 3.5 | 3.5 | 2.2 | 1.5 | 100 |
gelocht
with hole
with hole
kreuzgeschlitzt
cross-cutted
cross-cutted
gestanzt mit 2-Löchern
with 2 holes
with 2 holes
gestanzt mit Langloch
for flat cables
for flat cables
