Membrane grommets

Membrane grommets DGP-TPE

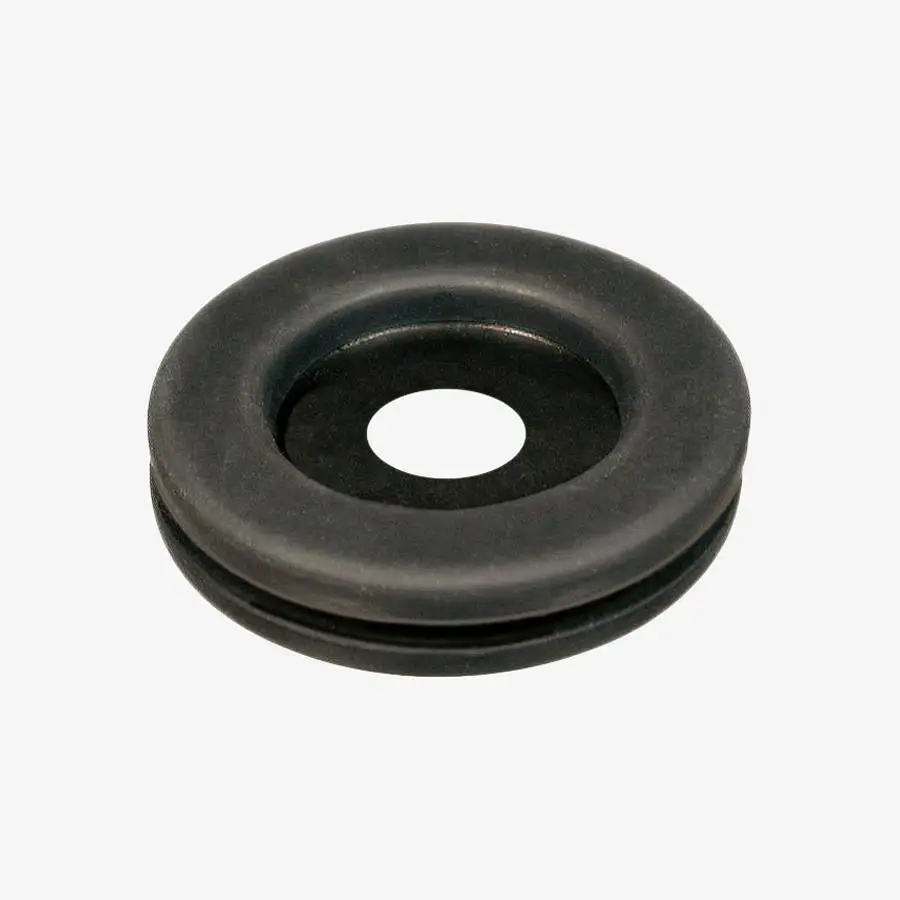

Perforated membrane grommets for easy cable installation.

TPE is a thermoplastic elastomer with excellent properties. TPE is similar to rubber. Compared to soft PVC, TPE should be used wherever a better cold and heat resistance as well as a greater flexibility and elasticity are required.

Material:

TPE (PP/EPDM), halogen-free

Color:

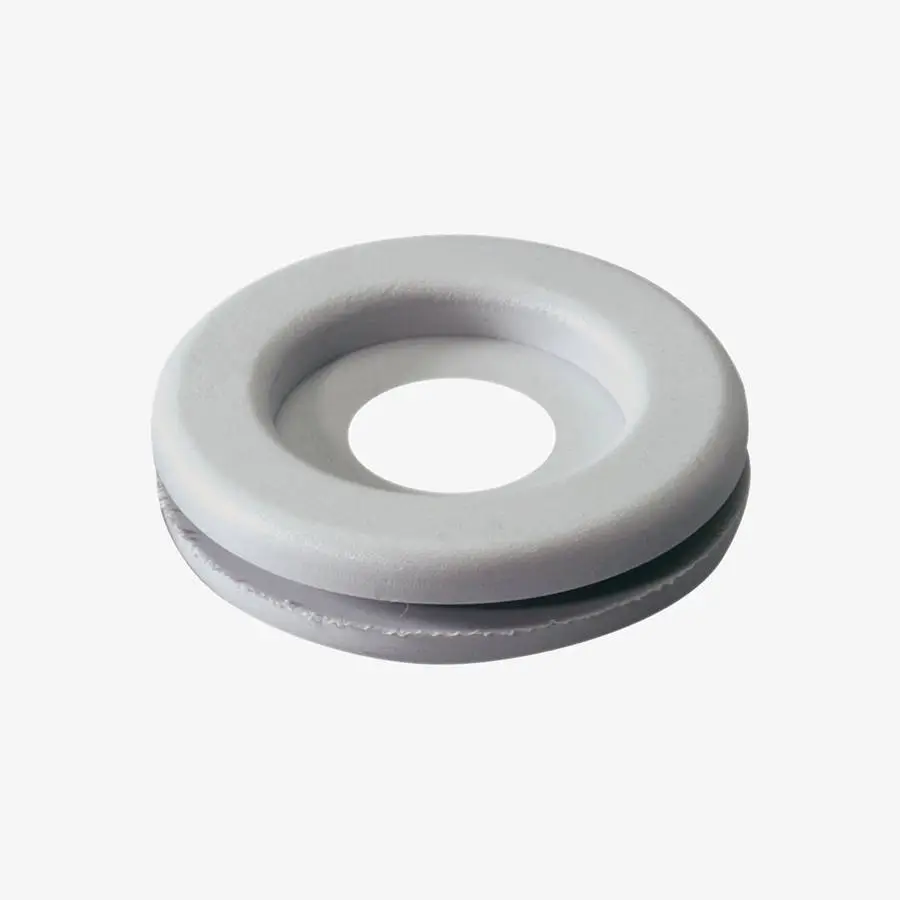

black, light gray

Heat resistance:

-50 up to +125°C

Flame resistance:

according to UL94-HB

Print current page

To request a product, please click on the corresponding item number in the table.

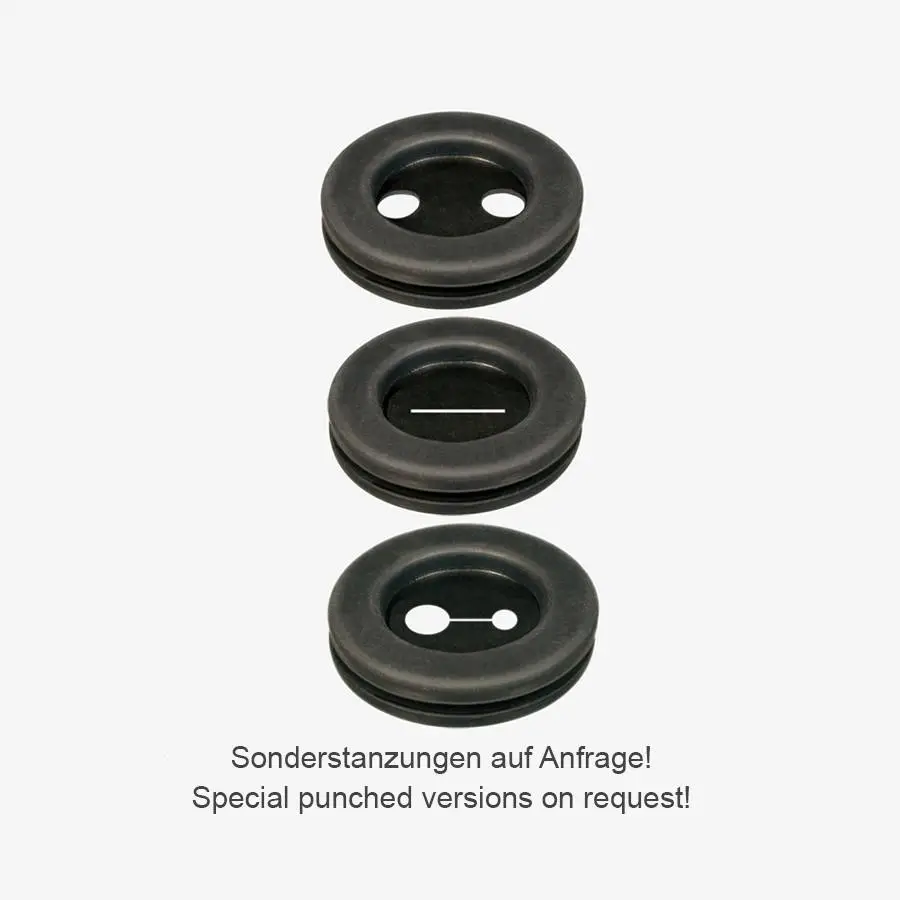

A different hole size in the membrane is needed?

Customer-specific solutions can also be quickly and cost-effectively realised for small quantities. Please do not hesitate to contact us!

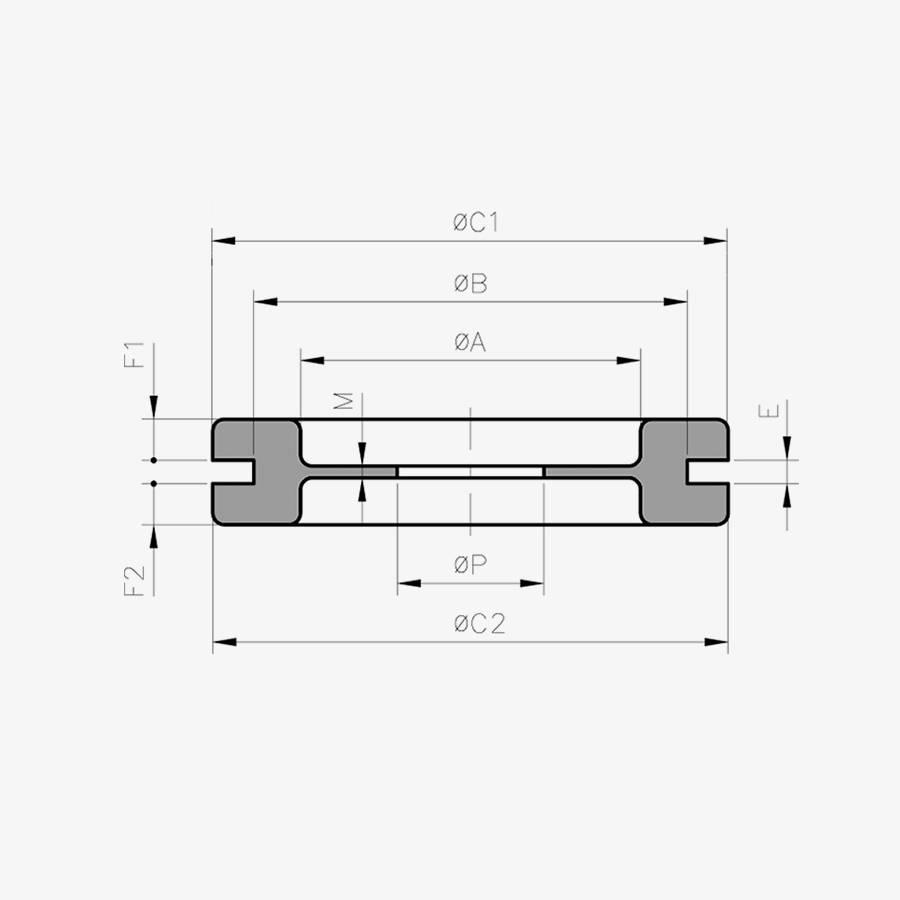

Type	Part no. black	Part no. l.gray	ØA mm	ØB mm	ØC1 mm	ØC2 mm	F1 mm	F2 mm	E mm	M mm	P mm	PU pcs.

DGP-TPE PG9-3	51-140-03	51-150-03	9.0	15.0	20.0	18.0	2.5	2.5	2.0	1.0	3.0	100
DGP-TPE PG9-4	51-140-04	51-150-04	9.0	15.0	20.0	18.0	2.5	2.5	2.0	1.0	4.0	100
DGP-TPE PG9-5	51-140-05	51-150-05	9.0	15.0	20.0	18.0	2.5	2.5	2.0	1.0	5.0	100
DGP-TPE PG9-6	51-140-06	51-150-06	9.0	15.0	20.0	18.0	2.5	2.5	2.0	1.0	6.0	100
DGP-TPE PG9-8	51-140-08	51-150-08	9.0	15.0	20.0	18.0	2.5	2.5	2.0	1.0	8.0	100
DGP-TPE PG11-3	51-141-03	51-151-03	11.0	18.0	22.5	21.5	2.5	2.5	2.0	1.0	3.0	100
DGP-TPE PG11-4	51-141-04	51-151-04	11.0	18.0	22.5	21.5	2.5	2.5	2.0	1.0	4.0	100
DGP-TPE PG11-5	51-141-05	51-151-05	11.0	18.0	22.5	21.5	2.5	2.5	2.0	1.0	5.0	100
DGP-TPE PG11-6	51-141-06	51-151-06	11.0	18.0	22.5	21.5	2.5	2.5	2.0	1.0	6.0	100
DGP-TPE PG11-7	51-141-07	51-151-07	11.0	18.0	22.5	21.5	2.5	2.5	2.0	1.0	7.0	100
DGP-TPE PG11-8	51-141-08	51-151-08	11.0	18.0	22.5	21.5	2.5	2.5	2.0	1.0	8.0	100
DGP-TPE PG11-10	51-141-10	51-151-10	11.0	18.0	22.5	21.5	2.5	2.5	2.0	1.0	10.0	100
DGP-TPE PG13,5-3	51-142-03	51-152-03	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	3.0	100
DGP-TPE PG13,5-4	51-142-04	51-152-04	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	4.0	100
DGP-TPE PG13,5-5	51-142-05	51-152-05	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	5.0	100
DGP-TPE PG13,5-6	51-142-06	51-152-06	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	6.0	100
DGP-TPE PG13,5-8	51-142-08	51-152-08	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	8.0	100
DGP-TPE PG13,5-10	51-142-10	51-152-10	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	10.0	100
DGP-TPE PG13,5-12	51-142-12	51-152-12	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	12.0	100
DGP-TPE PG16-3	51-143-03	51-153-03	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	3.0	100
DGP-TPE PG16-4	51-143-04	51-153-04	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	4.0	100
DGP-TPE PG16-5	51-143-05	51-153-05	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	5.0	100
DGP-TPE PG16-6	51-143-06	51-153-06	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	6.0	100
DGP-TPE PG16-8	51-143-08	51-153-08	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	8.0	100
DGP-TPE PG16-10	51-143-10	51-153-10	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	10.0	100
DGP-TPE PG16-12	51-143-12	51-153-12	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	12.0	100
DGP-TPE PG16-14	51-143-14	51-153-14	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	14.0	100
DGP-TPE PG16-16	51-143-16	51-153-16	16.0	22.0	27.5	26.0	2.7	2.7	2.0	1.0	16.0	100
DGP-TPE PG21-3	51-145-03	51-154-03	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	3.0	100
DGP-TPE PG21-4	51-145-04	51-154-04	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	4.0	100
DGP-TPE PG21-5	51-145-05	51-154-05	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	5.0	100
DGP-TPE PG21-6	51-145-06	51-154-06	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	6.0	100
DGP-TPE PG21-8	51-145-08	51-154-08	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	8.0	100
DGP-TPE PG21-10	51-145-10	51-154-10	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	10.0	100
DGP-TPE PG21-12	51-145-12	51-154-12	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	12.0	100
DGP-TPE PG21-14	51-145-14	51-154-14	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	14.0	100
DGP-TPE PG21-16	51-145-16	51-154-16	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	16.0	100
DGP-TPE PG21-18	51-145-18	51-154-18	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	18.0	100
DGP-TPE PG21-20	51-145-20	51-154-20	21.0	28.0	34.5	34.5	3.0	3.0	2.0	1.0	20.0	100
DGP-TPE PG21/E1-3	51-146-03		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	3.0	100
DGP-TPE PG21/E1-4	51-146-04		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	4.0	100
DGP-TPE PG21/E1-5	51-146-05		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	5.0	100
DGP-TPE PG21/E1-6	51-146-06		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	6.0	100
DGP-TPE PG21/E1-8	51-146-08		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	8.0	100
DGP-TPE PG21/E1-10	51-146-10		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	10.0	100
DGP-TPE PG21/E1-12	51-146-12		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	12.0	100
DGP-TPE PG21/E1-14	51-146-14		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	14.0	100
DGP-TPE PG21/E1-16	51-146-16		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	16.0	100
DGP-TPE PG21/E1-18	51-146-18		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	18.0	100
DGP-TPE PG21/E1-20	51-146-20		21.0	28.0	34.5	34.5	4.0	3.0	1.0	1.2	20.0	100
DGP-TPE PG29-3	51-147-03		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	3.0	50
DGP-TPE PG29-4	51-147-04		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	4.0	50
DGP-TPE PG29-5	51-147-05		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	5.0	50
DGP-TPE PG29-6	51-147-06		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	6.0	50
DGP-TPE PG29-8	51-147-08		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	8.0	50
DGP-TPE PG29-10	51-147-10		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	10.0	50
DGP-TPE PG29-12	51-147-12		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	12.0	50
DGP-TPE PG29-14	51-147-14		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	14.0	50
DGP-TPE PG29-16	51-147-16		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	16.0	50
DGP-TPE PG29-18	51-147-18		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	18.0	50
DGP-TPE PG29-20	51-147-20		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	20.0	50
DGP-TPE PG29-22	51-147-22		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	22.0	50
DGP-TPE PG29-25	51-147-25		29.0	37.0	43.5	43.5	3.7	3.7	2.2	1.3	25.0	50
DGP-TPE PG36-3	51-148-03		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	3.0	50
DGP-TPE PG36-4	51-148-04		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	4.0	50
DGP-TPE PG36-5	51-148-05		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	5.0	50
DGP-TPE PG36-6	51-148-06		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	6.0	50
DGP-TPE PG36-8	51-148-08		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	8.0	50
DGP-TPE PG36-10	51-148-10		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	10.0	50
DGP-TPE PG36-12	51-148-12		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	12.0	50
DGP-TPE PG36-14	51-148-14		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	14.0	50
DGP-TPE PG36-16	51-148-16		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	16.0	50
DGP-TPE PG36-18	51-148-18		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	18.0	50
DGP-TPE PG36-20	51-148-20		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	20.0	50
DGP-TPE PG36-22	51-148-22		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	22.0	50
DGP-TPE PG36-25	51-148-25		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	25.0	50
DGP-TPE PG36-30	51-148-30		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	30.0	50
DGP-TPE PG36-32	51-148-32		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	32.0	50
DGP-TPE PG36-35	51-148-35		35.5	47.0	52.5	52.5	3.8	3.8	2.5	1.3	35.0	50
DGP-TPE PG48-3	51-149-03		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	3.0	50
DGP-TPE PG48-4	51-149-04		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	4.0	50
DGP-TPE PG48-5	51-149-05		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	5.0	50
DGP-TPE PG48-6	51-149-06		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	6.0	50
DGP-TPE PG48-8	51-149-08		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	8.0	50
DGP-TPE PG48-10	51-149-10		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	10.0	50
DGP-TPE PG48-12	51-149-12		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	12.0	50
DGP-TPE PG48-14	51-149-14		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	14.0	50
DGP-TPE PG48-16	51-149-16		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	16.0	50
DGP-TPE PG48-18	51-149-18		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	18.0	50
DGP-TPE PG48-20	51-149-20		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	20.0	50
DGP-TPE PG48-22	51-149-22		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	22.0	50
DGP-TPE PG48-25	51-149-25		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	25.0	50
DGP-TPE PG48-30	51-149-30		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	30.0	50
DGP-TPE PG48-32	51-149-32		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	32.0	50
DGP-TPE PG48-35	51-149-35		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	35.0	50
DGP-TPE PG48-42	51-149-42		47.0	59.0	67.0	67.0	4.0	4.0	2.7	1.5	42.0	50
DGP-TPE M20-3	51-160-03	51-165-03	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	3.0	100
DGP-TPE M20-4	51-160-04	51-165-04	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	4.0	100
DGP-TPE M20-5	51-160-05	51-165-05	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	5.0	100
DGP-TPE M20-6	51-160-06	51-165-06	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	6.0	100
DGP-TPE M20-8	51-160-08	51-165-08	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	8.0	100
DGP-TPE M20-10	51-160-10	51-165-10	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	10.0	100
DGP-TPE M20-12	51-160-12	51-165-12	13.5	20.0	24.0	24.0	2.5	2.5	2.0	1.0	12.0	100
DGP-TPE M25-3	51-161-03	51-166-03	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	3.0	100
DGP-TPE M25-4	51-161-04	51-166-04	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	4.0	100
DGP-TPE M25-5	51-161-05	51-166-05	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	5.0	100
DGP-TPE M25-6	51-161-06	51-166-06	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	6.0	100
DGP-TPE M25-8	51-161-08	51-166-08	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	8.0	100
DGP-TPE M25-10	51-161-10	51-166-10	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	10.0	100
DGP-TPE M25-12	51-161-12	51-166-12	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	12.0	100
DGP-TPE M25-14	51-161-14	51-166-14	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	14.0	100
DGP-TPE M25-16	51-161-16	51-166-16	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	16.0	100
DGP-TPE M25-18	51-161-18	51-166-18	21.0	25.0	34.5	31.5	3.0	3.0	2.0	1.0	18.0	100
DGP-TPE M32-3	51-162-03	51-167-03	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	3.0	100
DGP-TPE M32-4	51-162-04	51-167-04	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	4.0	100
DGP-TPE M32-5	51-162-05	51-167-05	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	5.0	100
DGP-TPE M32-6	51-162-06	51-167-06	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	6.0	100
DGP-TPE M32-8	51-162-08	51-167-08	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	8.0	100
DGP-TPE M32-10	51-162-10	51-167-10	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	10.0	100
DGP-TPE M32-12	51-162-12	51-167-12	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	12.0	100
DGP-TPE M32-14	51-162-14	51-167-14	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	14.0	100
DGP-TPE M32-16	51-162-16	51-167-16	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	16.0	100
DGP-TPE M32-18	51-162-18	51-167-18	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	18.0	100
DGP-TPE M32-20	51-162-20	51-167-20	29.0	32.0	43.5	39.0	3.7	3.7	2.2	1.3	20.0	100
