Crimping pliers with exchangeable dies
Crimping dies for WZ 200
Crimping dies and locators for the WZ 200 crimping system pliers.
To request a product, please click on the corresponding item number in the table.
many other crimping dies for Solar-, Harting-, Molex-, Telegärtner-, BNC-, Westernconnectors and many more on request
| Type | Part no. | Capacity in mm² | Crimp | Terminals | PU pcs. |
|---|---|---|---|---|---|
| WZE200-001 | 88-401 | 0,1 - 2,5 | B-Crimp | unisolierte Steckverbinder / uninsulated disconnectors | 1 |
| WZE200-002 | 88-402 | 0,5 - 6,0 | B-Crimp | unisolierte Steckverbinder / uninsulated disconnectors | 1 |
| WZE200-039 | 88-439 | 4,0 - 6,0 | B-Crimp | Krallenkabelschuhe / Claw cable lugs | 1 |
| WZE200-010 | 88-410 | 1,25 - 2,5 | B-Crimp | Winkelflachsteckhülsen / Flag type disconnectors Typ A | 1 |
| WZE200-011 | 88-411 | 0,5 - 1,0 | B-Crimp | Winkelflachsteckhülsen / Flag type disconnectors Typ A | 1 |
| WZE200-041 | 88-441 | 2,5 - 6,0 | B-Crimp | Solar-Steckverbinder MC4 (Multi-Contact) | |
| WZE200-003 | 88-403 | 0,5 - 6,0 | oval | isolierte Verbinder / insulated connectors | 1 |
| WZE200-004 | 88-404 | 10,0 - 16,0 | dorn / mandrel | isolierte Verbinder / insulated connectors | 1 |
| WZE200-038 | 88-438 | 0,5 - 6,0 | oval | Schrumpfschlauchverbinder / Heat shrink connectors | 1 |
| WZE200-005 | 88-405 | 0,25 - 6,0 | trapez | Aderendhülsen / Wire ferrules | 1 |
| WZE200-006 | 88-406 | 10,0 - 25,0 | WM | Aderendhülsen / Wire ferrules | 1 |
| WZE200-007 | 88-407 | 35,0 - 50,0 | WM | Aderendhülsen / Wire ferrules | 1 |
| WZE200-037 | 88-437 | 2x 6,0 - 16,0 | WM | TWIN Aderendhülsen / Wire ferrules | 1 |
| WZE200-008 | 88-408 | 0,5 - 10,0 | dorn / mandrel | unisolierte Verbinder / uninsulated connectors | 1 |
| WZE200-009 | 88-409 | 16,0 - 25,0 | dorn / mandrel | unisolierte Verbinder / uninsulated connectors | 1 |
| WZE200-013 | 88-413 | 1,5 - 10,0 | sechskant / hexagonal | unisolierte Verbinder / uninsulated connectors | 1 |
| WZP-01 | 88-932 | - | - | Locator for 88-401 | 1 |
| WZP-02 | 88-933 | - | - | Locator for 88-402 | 1 |
| WZP-03 | 88-931 | Locator for 88-441 | 1 |

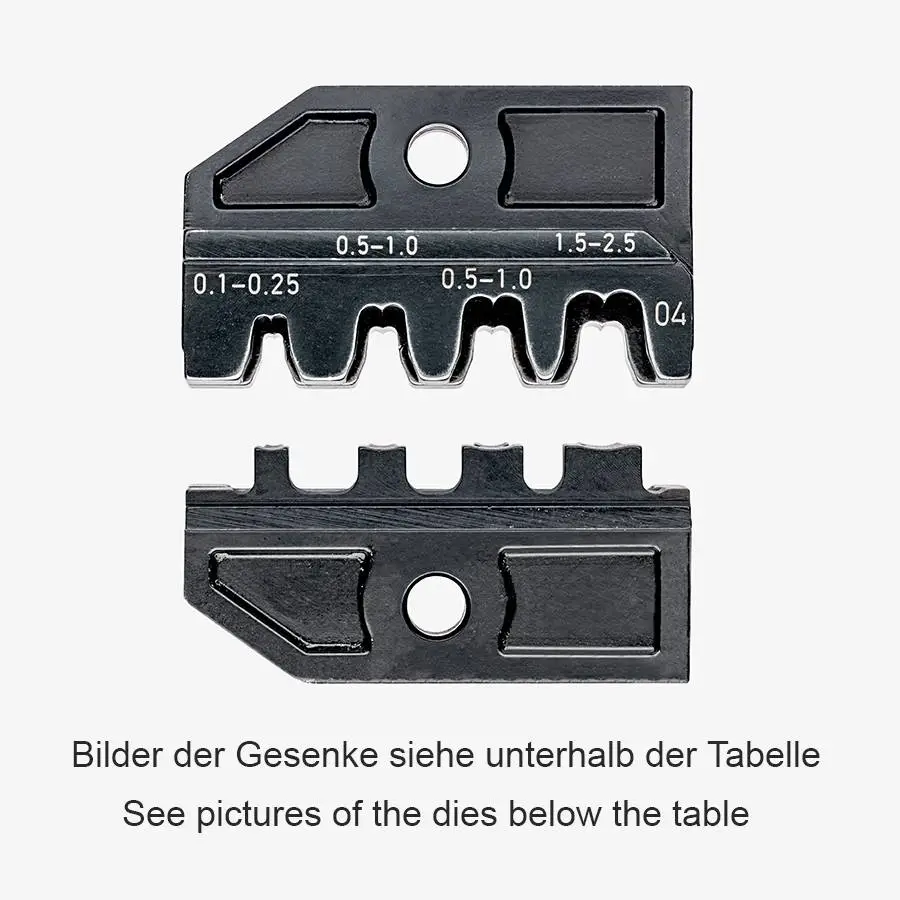

Art. 88-401
Type: WZE200-001
Type: WZE200-001
Art. 88-401
Type: WZE200-002
Type: WZE200-002
Art. 88-403
Type: WZE200-003
Type: WZE200-003
Art. 88-404
Type: WZE200-004
Type: WZE200-004
Art. 88-405
Type: WZE200-005
Type: WZE200-005
Art. 88-406
Type: WZE200-006
Type: WZE200-006
Art. 88-407
Type: WZE200-007
Type: WZE200-007
Art. 88-408
Type: WZE200-008
Type: WZE200-008
Art. 88-409
Type: WZE200-009
Type: WZE200-009
Art. 88-410
Type: WZE200-010
Type: WZE200-010
Art. 88-411
Type: WZE200-011
Type: WZE200-011
Art. 88-413
Type: WZE200-013
Type: WZE200-013
Art. 88-437
Type: WZE200-037
Type: WZE200-037
Art. 88-438
Type: WZE200-038
Type: WZE200-038
Art. 88-441
Type: WZE200-041
Type: WZE200-041
Art. 88-931
Type: WZP-03
Type: WZP-03
Art. 88-932
Type: WZP-01
Type: WZP-01
Art. 88-933
Type: WZP-02
Type: WZP-02
