Electric Crimper EC 65 + PC 65
Crimp dies for EC/PC 65 ferrules
For insulated and uninsulated ferrules.
More than 40 standard dies for all common cable connectors and the corresponding protective covers.
To request a product, please click on the corresponding item number in the table.
Can't find the right crimp dies? On request, we offer special dies and positioning aids for your contacts.
The crimp dies for EC65 and PC65 are identical. Only different protective covers are required!
| Type | Part no. | Capacity in mm² | Crimp- width mm | Crimp | Protective- cover EC65 | Part no. EC 65 | Protective- cover PC65 | Part no. PC 65 |
|---|---|---|---|---|---|---|---|---|
| EC E0160 | 88-711 | 0,14 - 6,0 | 12,0 | trapez | EC PC05 | 88-735 | PC SC05 | 88-772-05 |
| EC E0560SQ | 88-760 | 0,5 - 6,0 | 18,0 | quad. / square | EC PC05 | 88-735 | PC SC05 | 88-772-05 |
| EC E1025 | 88-712 | 10,0 - 25,0 | 14,5 | WM | EC PC06.1 | 88-738 | PC SC06.1 | 88-772-61 |
| EC E1025L | 88-763 | 10,0 - 25,0 | 18,0 | WM | EC PC06.1 | 88-738 | PC SC06.1 | 88-772-61 |
| EC E3550 | 88-715 | 35,0 - 50,0 | 18,0 | WM | EC PC01 | 88-731 | PC SC01 | 88-772-01 |
| EC E4099 TWIN | 88-714 | 2x 4,0 - 10,0 | 12,0 | trapez | EC PC07 | 88-737 | PC SC07 | 88-772-07 |
| EC E4099 TWIN18 | 88-714-18 | 2x 4,0 - 10,0 | 18,0 | quad. / square | EC PC07 | 88-737 | PC SC07 | 88-772-07 |

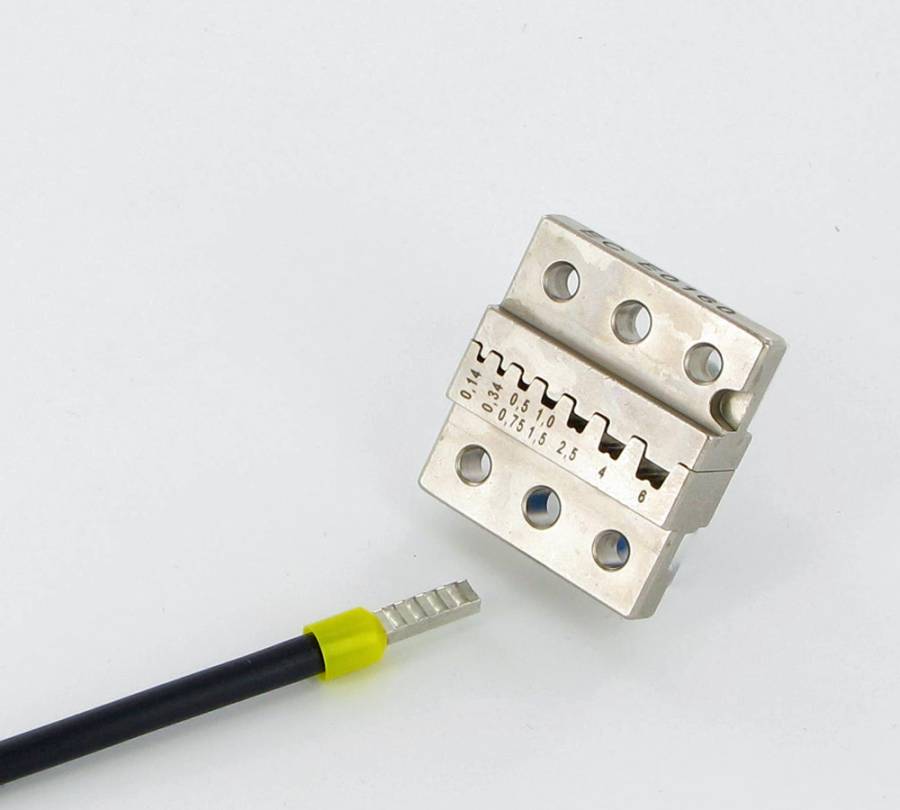

Type: EC E0160
Art.: 88-711
Art.: 88-711
Type: EC E1025
Art.: 88-712
Art.: 88-712
Type: EC E3550
Art.: 88-715
Art.: 88-715

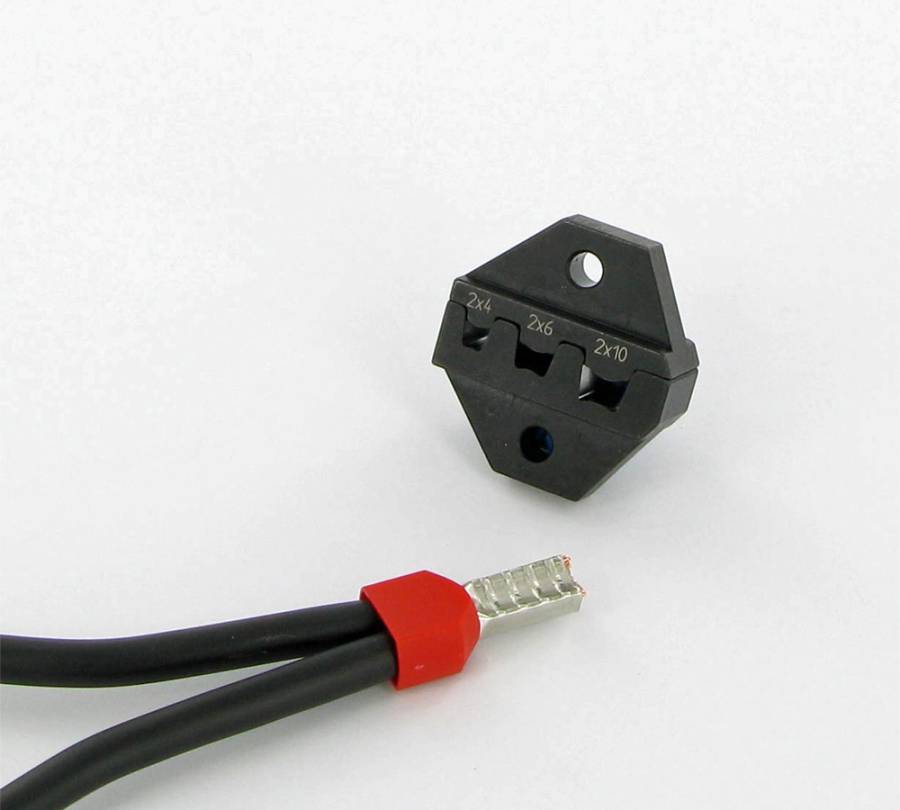

Type: EC E4099TWIN
Art.: 88-714
Art.: 88-714
