Electric Crimper EC 65 + PC 65
crimp dies for EC/PC 65 insulated connectors
For insulated cable lugs and connectors.
More than 40 standard dies for all common cable connectors and the corresponding protective covers.
To request a product, please click on the corresponding item number in the table.
Can't find the right crimp dies? On request, we offer special dies and positioning aids for your contacts.
The crimp dies for EC65 and PC65 are identical. Only different protective covers are required!
| Type | Part no. | Capacity in mm² | Note | Protective- cover EC65 | Part no. EC 65 | Protective- cover PC65 | Part no. PC 65 |
|---|---|---|---|---|---|---|---|
| EC I0115 | 88-719 | 0,1 - 1,5 | symmetrical | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I0560 | 88-720 | 0,5 - 6,0 | symmetrical | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I0560AS | 88-721 | 0,5 - 6,0 | asymmetrical | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I0560ASL | 88-721-L | 0,5 - 6,0 | asymmetrical - Left-side cable entry | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I0560J | 88-723 | 0,5 - 6,0 | asymmetrical - narrow | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I0560TC | 88-724 | 0,5 - 6,0 | TE | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I0320N | 88-764 | 0,3 - 2,0 | NICHIFU | EC PC06.1 | 88-738 | PC SC06.1 | 88-772-61 |
| EC I0160CE | 88-766 | 0,5 - 6,0 | Close-end connectors CE | EC PC4.1 | 88-734-1 | PC SC4.1 | 88-772-41 |
| EC I1425UF | 88-722 | 0,14 - 2,5 | TE "Ultra Fast" | EC PC4.1 | 88-734-1 | PC SC4.1 | 88-772-41 |
| EC I2560UF | 88-762 | 2,5 - 6.0 | TE "Ultra Fast" | EC PC 4.2 | 88-734-2 | PC SC 4.2 | 88-772-42 |
| EC I1525F | 88-718 | 1,5 - 2,5 | full insulated flag terminals | EC PC06.1 | 88-738 | PC SC06.1 | 88-772-61 |
| EC I1525FUF | 88-767 | 1,5 - 2,5 | full insulated flag terminals TE "Ultra Fast" | EC PC06.1 | 88-738 | PC SC06.1 | 88-772-61 |
| EC I0555AMP | 88-774 | 0,5 - 5,5 | AMP | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I0555JST | 88-775 | 0,5 - 5,5 | JST | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC I100 | 88-768 | 10.0 | oval crimp | EC PC4.1 | 88-734-1 | PC SC4.1 | 88-772-41 |
| EC I160Q | 88-769 | 16.0 | mandrel crimp | EC PC08 | 88-739 | PC SC08 | 88-772-08 |
Type: EC I0115
Art.: 88-719
Art.: 88-719
Type: EC I0560
Art.: 88-720
Art.: 88-720
Type: EC I0560AS
Art.: 88-721
Art.: 88-721

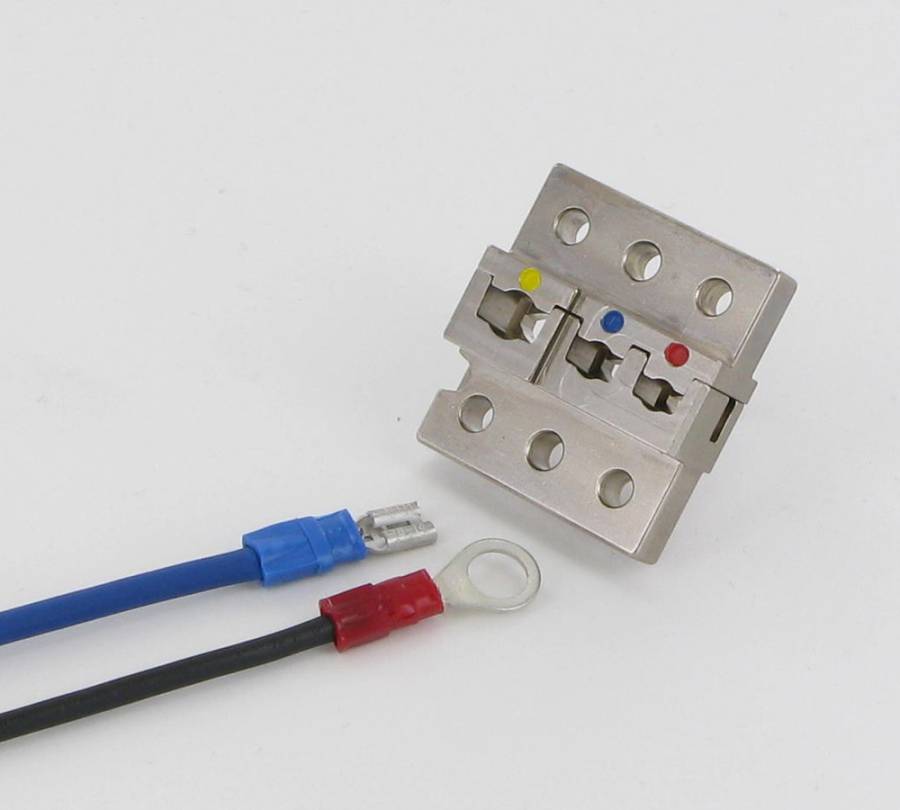

Type: EC I0560ASL
Art.: 88-721-L
Art.: 88-721-L

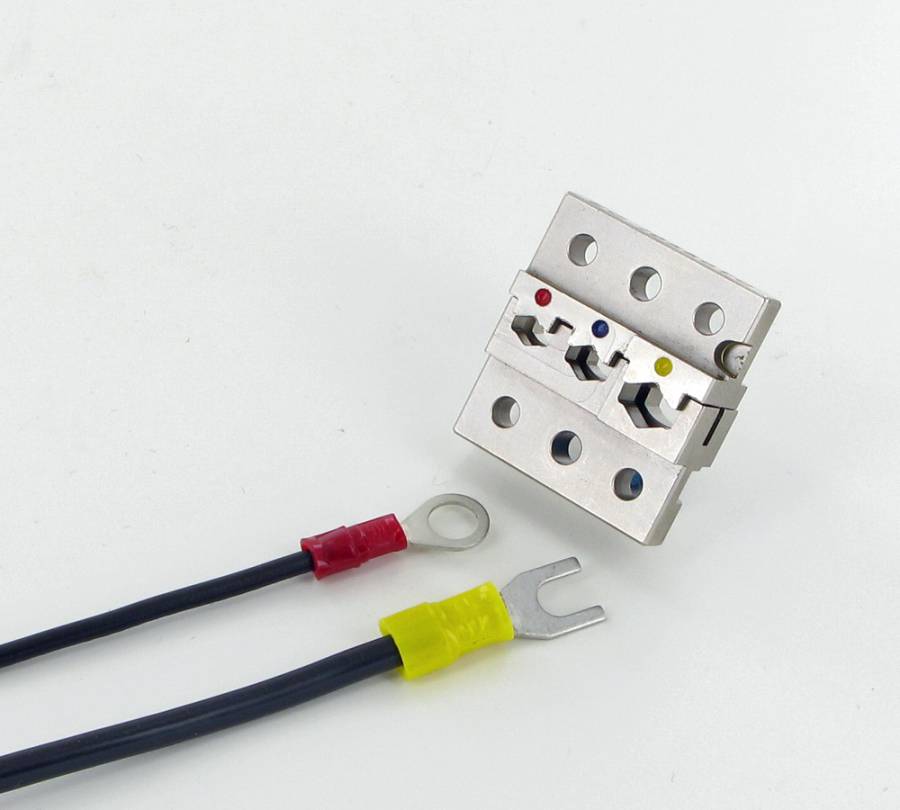

Type: EC I0560TC
Art.: 88-724
Art.: 88-724

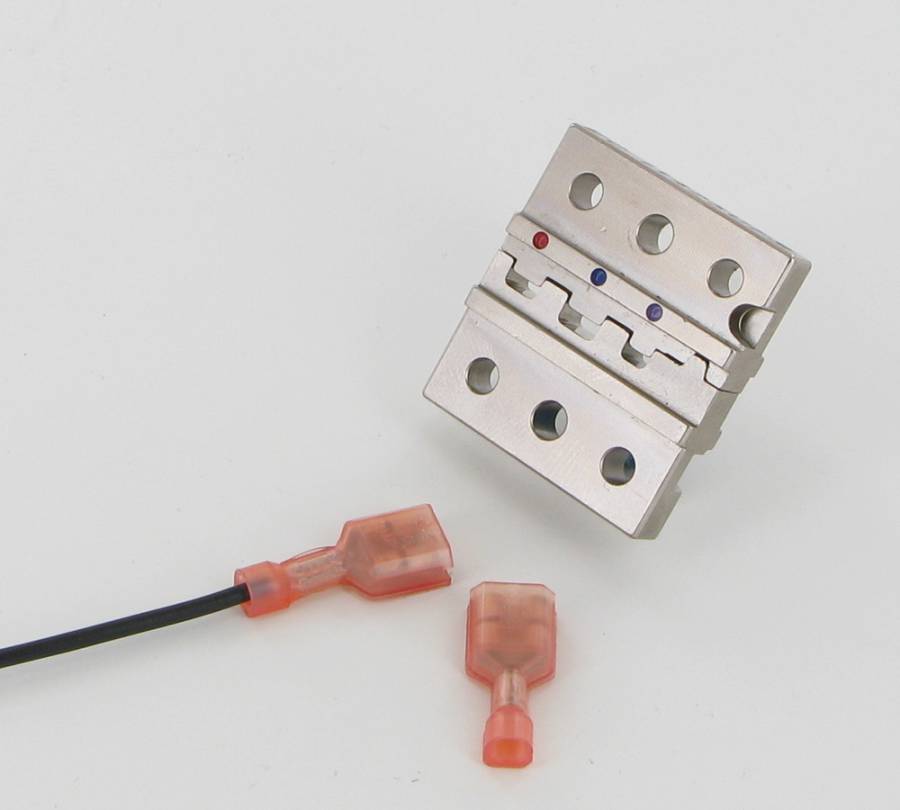

Type: EC I1425UF
Art.: 88-722
Art.: 88-722
Type: EC I1525F
Art.: 88-718
Art.: 88-718

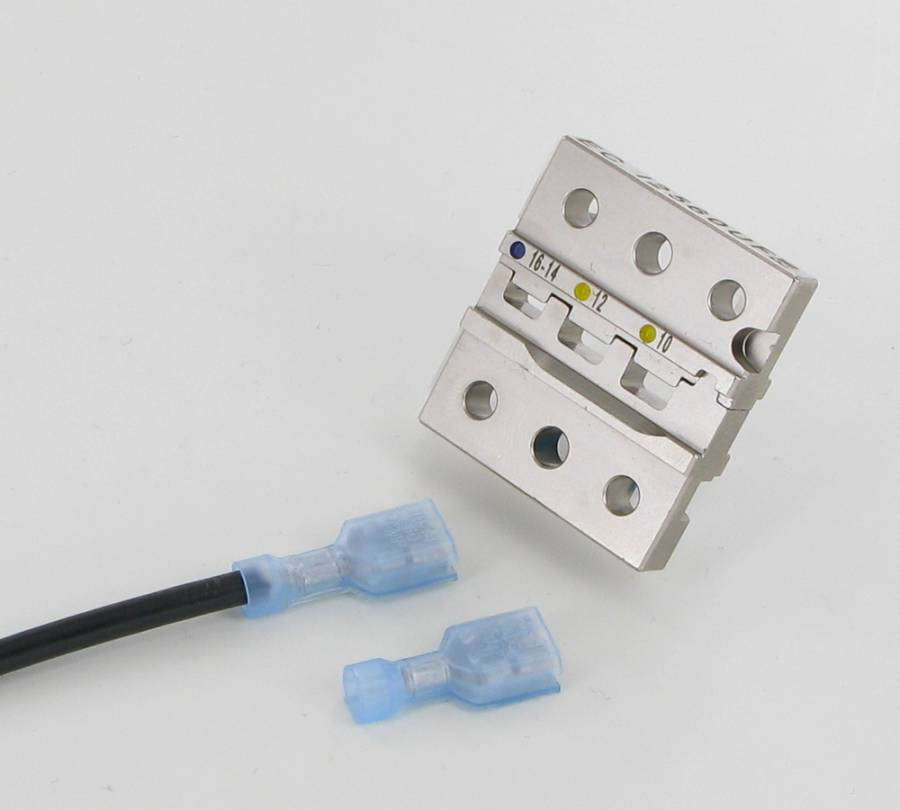

Type: EC I2560UF
Art.: 88-762
Art.: 88-762
