Electric Crimper EC 65 + PC 65
Crimp dies for EC/PC 65 turned contacts
For turned contacts.
More than 40 standard dies for all common cable connectors and the corresponding protective covers.
To request a product, please click on the corresponding item number in the table.
Can't find the right crimp dies? On request, we offer special dies and positioning aids for your contacts.
The crimp dies for EC65 and PC65 are identical. Only different protective covers are required!
| Type | Part no. | Capacity in mm² | Crimp- width mm | Crimp | Protective- cover EC65 | Part no. EC 65 | Protective- cover PC65 | Part no. PC 65 |
|---|---|---|---|---|---|---|---|---|
| EC D0140 | 88-703 | 0,14 - 4,0 | 4.0 | quad. / square | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC D0160HAN | 88-703-H | 0,14 - 4,0 | - | hexagon for HAN C / D / E | EC PC06 | 88-736 | PC SC06 | 88-772-06 |
| EC D6099 | 88-704 | 6,0 - 10,0 | 5.0 | quad. / square | EC PC4.1 | 88-734-1 | PC SC4.1 | 88-772-41 |

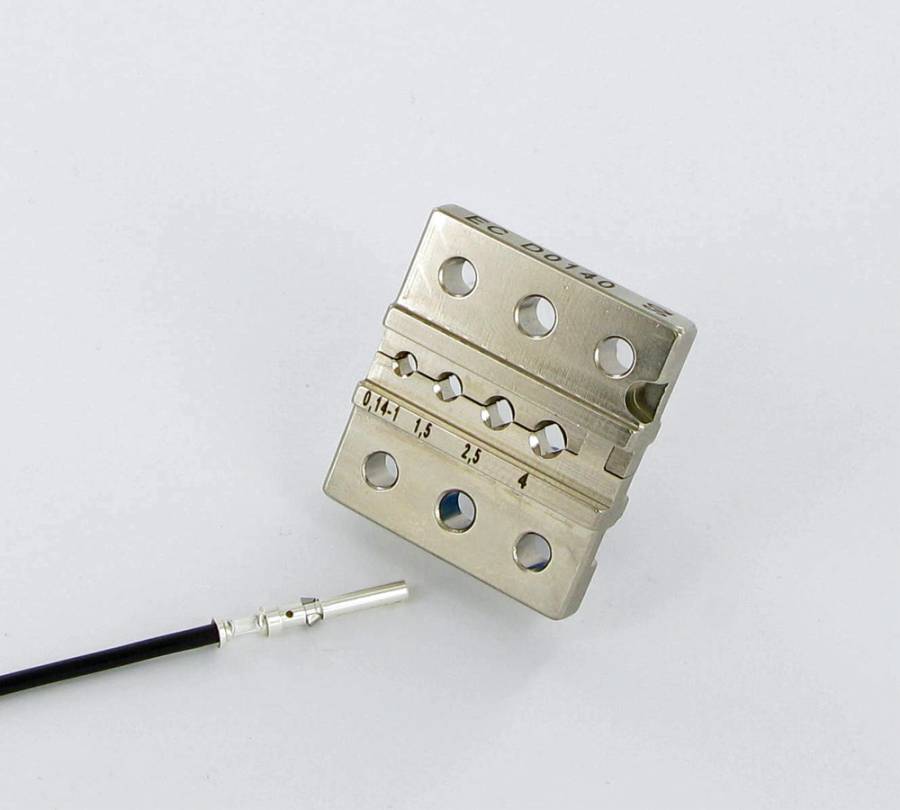

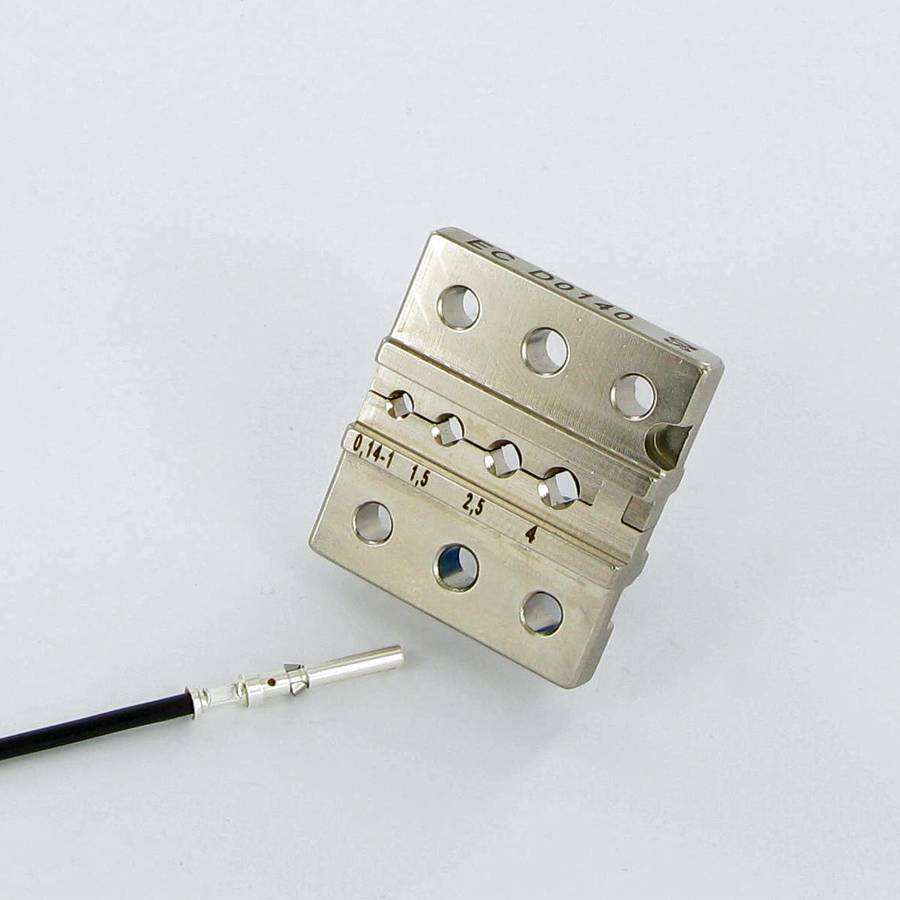

Type: EC D0140
Art.: 88-703
Art.: 88-703

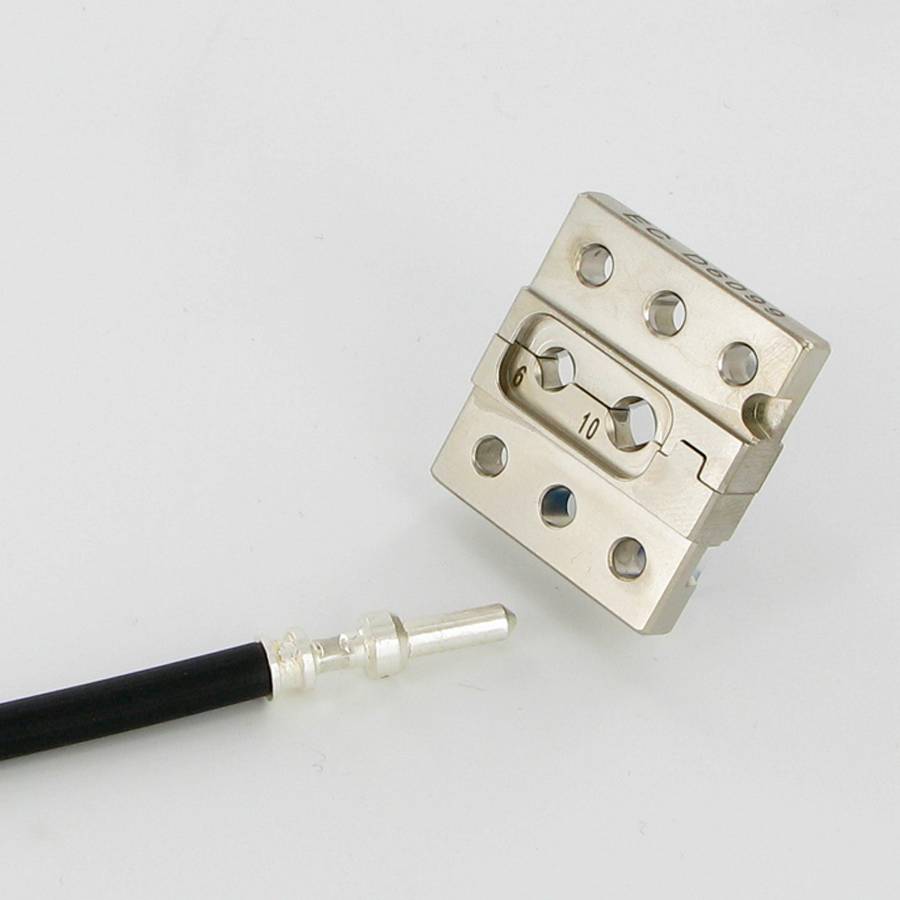

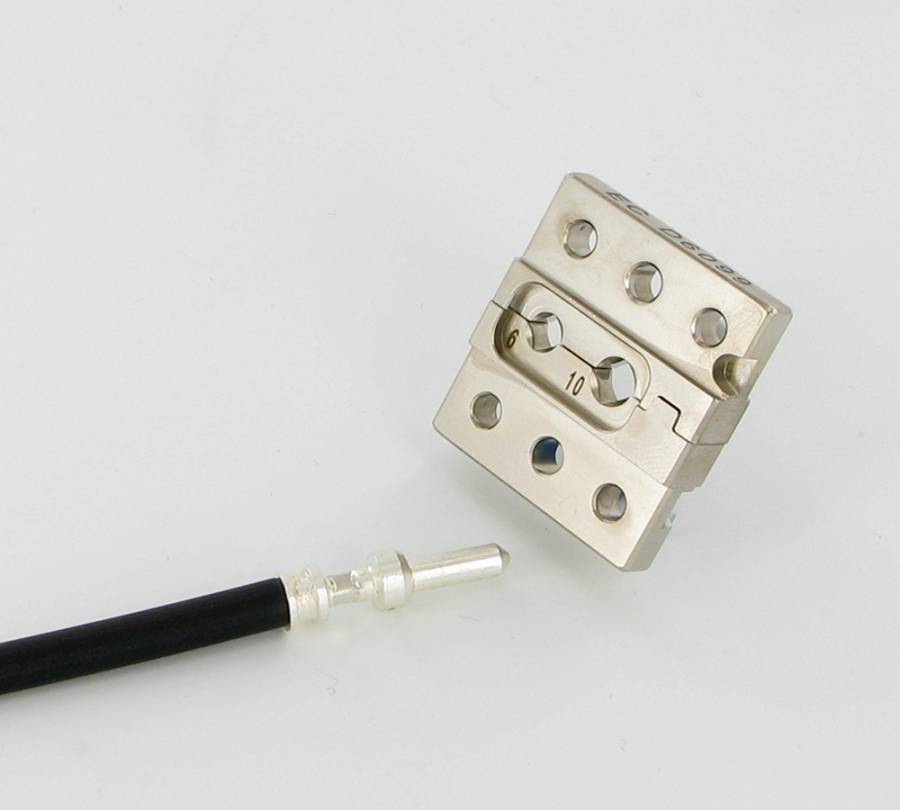

Type: EC D6099
Art.: 88-704
Art.: 88-704
