insulated terminals and connectors

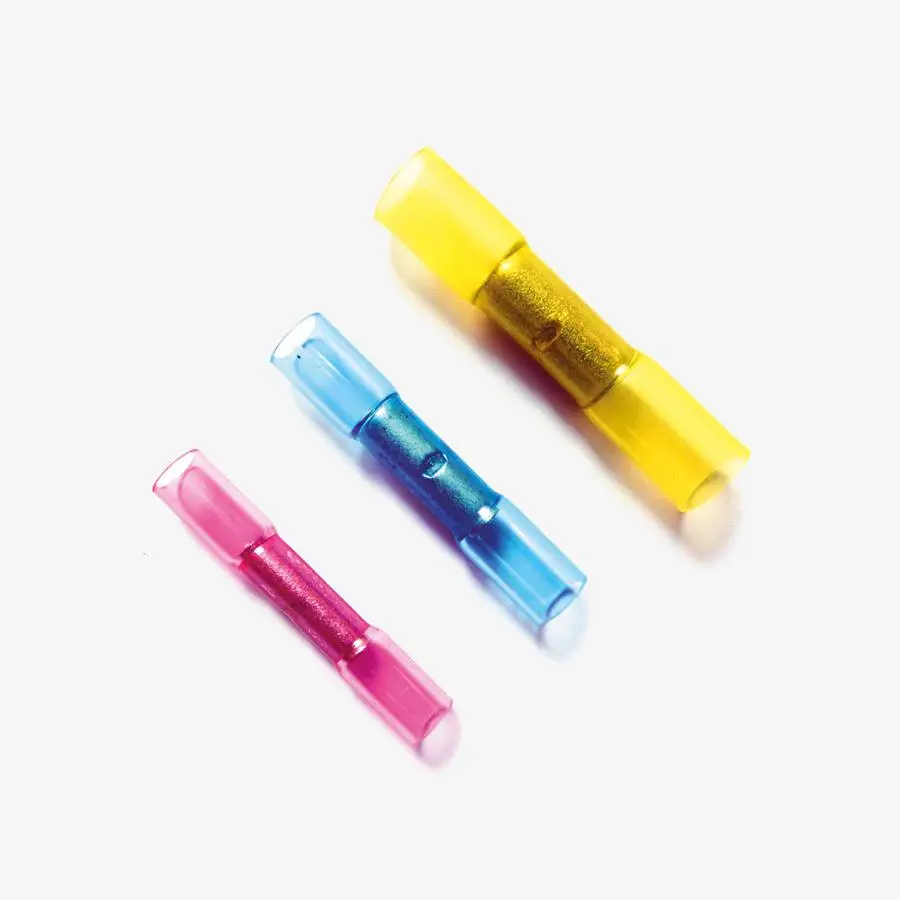

Butt-connectors with shrinking tube insulation
Insulation made of heat-shrinkable tubing with inner adhesive. 100% waterproof. Shrinking temperature: 100 °C. The shrink tubing also serves as a strain relief.
Male and female disconnects as well as ring and fork terminals are also available on request.
To request a product, please click on the corresponding item number in the table.

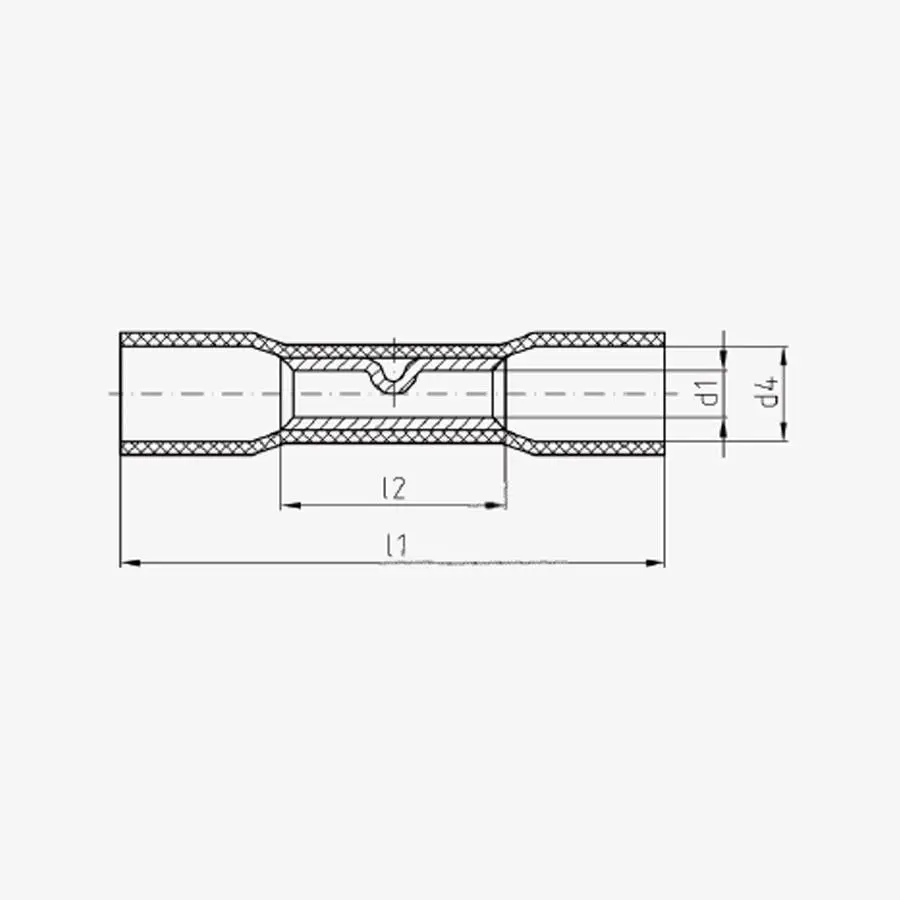

| Cross-section mm² | Type | Part no. | Color | d1 mm | d4 mm | l1 mm | l2 mm | Weight kg / 100 pcs. | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|
| 0,1 - 0,5 | SVSW 0,5 | 27-300 | gelb / yellow | 1.2 | 3.1 | 24.5 | 11.5 | 0.04 | 100 |
| 0,5 - 1,0 | SVSW 1 | 27-301 | rot / red | 1.7 | 4.4 | 36.0 | 15.0 | 0.09 | 100 |
| 1,5 - 2,5 | SVSW 2,5 | 27-302 | blau / blue | 2.3 | 5.2 | 36.0 | 15.0 | 0.11 | 100 |
| 4,0 - 6,0 | SVSW 6 | 27-303 | gelb / yellow | 3.6 | 6.5 | 41.0 | 15.0 | 0.18 | 100 |
