non-insulated terminals and connectors

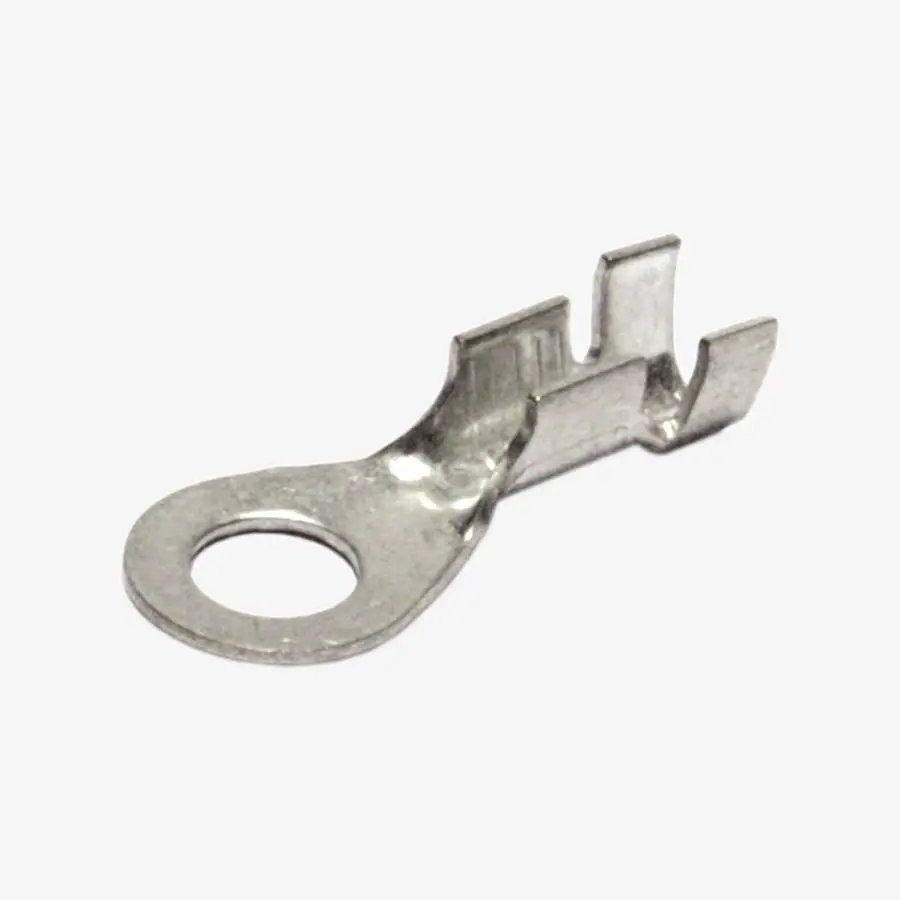

Claw cable lugs
For simultaneous crimping of conductor and insulation, which results in better strain relief.
To request a product, please click on the corresponding item number in the table.
Claw cable lugs in fork form on request!
| Cross-section mm² | Bolt M | Type | Part no. brass tin-plated | Part no. bare brass | l1 mm | d2 mm | PU pcs. |
|---|---|---|---|---|---|---|---|
| 0,5 - 1,0 | 3 | LK A 3 - 1 | 32-401 | 32-501 | 18.3 | 8.0 | 100 |
| 0,5 - 1,0 | 4 | LK A 4 - 1 | 32-402 | 32-502 | 18.3 | 8.0 | 100 |
| 0,5 - 1,0 | 5 | LK A 5 - 1 | 32-403 | 32-503 | 17.5 | 9.5 | 100 |
| 0,5 - 1,0 | 6 | LK A 6 - 1 | 32-404 | 32-504 | 22.0 | 12.0 | 100 |
| 0,5 - 1,0 | 8 | LK A 8 - 1 | 32-405 | 21.0 | 14.0 | 100 | |
| 1,5 - 2,5 | 3 | LK A 3 - 2,5 | 32-410 | 32-510 | 18.3 | 8.0 | 100 |
| 1,5 - 2,5 | 4 | LK A 4 - 2,5 | 32-411 | 32-511 | 18.3 | 8.0 | 100 |
| 1,5 - 2,5 | 5 | LK A 5 - 2,5 | 32-412 | 32-512 | 17.5 | 9.5 | 100 |
| 1,5 - 2,5 | 6 | LK A 6 - 2,5 | 32-413 | 32-513 | 22.0 | 12.0 | 100 |
| 1,5 - 2,5 | 8 | LK A 8 - 2,5 | 32-514 | 21.0 | 14.0 | 100 | |
| 4,0 - 6,0 | 4 | LK A 4 - 6 | 32-420 | 32-520 | 21.3 | 8.0 | 100 |
| 4,0 - 6,0 | 5 | LK A 5 - 6 | 32-421 | 32-521 | 20.5 | 9.5 | 100 |
| 4,0 - 6,0 | 6 | LK A 6 - 6 | 32-422 | 32-522 | 25.0 | 12.0 | 100 |
| 4,0 - 6,0 | 8 | LK A 8 - 6 | 32-423 | 32-523 | 24.0 | 14.0 | 100 |
