Splitting Multigates
Cables are often supplied with connectors that cannot be removed and re-attached. The splitting multigates are a solution that allows the cables to be installed with the connectors and furthermore the cables can be changed as often as wanted. They provide an ideal solution for cables with pre-assembled connectors. It allows a quick installation with few tools. The very robust design also offers a good strain relief and is suitable for indoor and outdoor use.
To request a product, please click on the corresponding item number in the table.

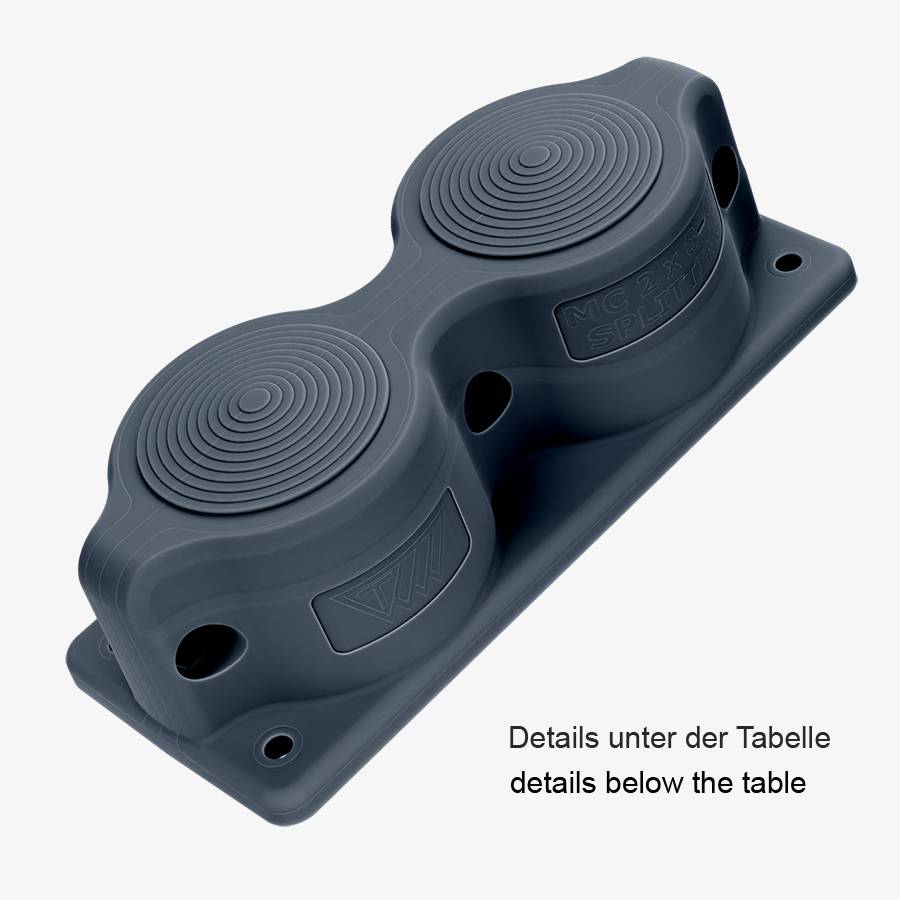

Detailed product images can be found below the table.
| Type | Part no. | IP-Class | Flange opening | Total QTY of cables | QTY | Cable-Ø mm | QTY | Cable-Ø mm | QTY | Cable-Ø mm | QTY | Cable-Ø mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MC 1x 8-67 | 50-200 | IP 55 | 1 | 1x | 8-67 | |||||||
| MC 1/9 | 50-212 | IP 55 | 9 | 2x | 8-11 | 2x | 10-13 | 5x | bis 14* | |||
| MC 2x 8-67 | 50-201 | IP 55 | FL 21 | 2 | 2x | 8-67 | ||||||
| MC 2/10 | 50-210 | IP 55 | FL 21 | 10 | 1x | 8-67 | 2x | 2-11 | 2x | 10-13 | 5x | bis 14* |
| MC 2/18 | 50-211 | IP 55 | FL 21 | 18 | 4x | 8-11 | 4x | 10-13 | 10x | bis 14* | ||
| SCG 1x 3-35 | 50-202 | IP 55 | 1 | 1x | 3-35 | |||||||
| SCG 2x 3-35 | 50-203 | IP 55 | 2 | 2x | 3-35 |
50-200 - MC 1x8-67

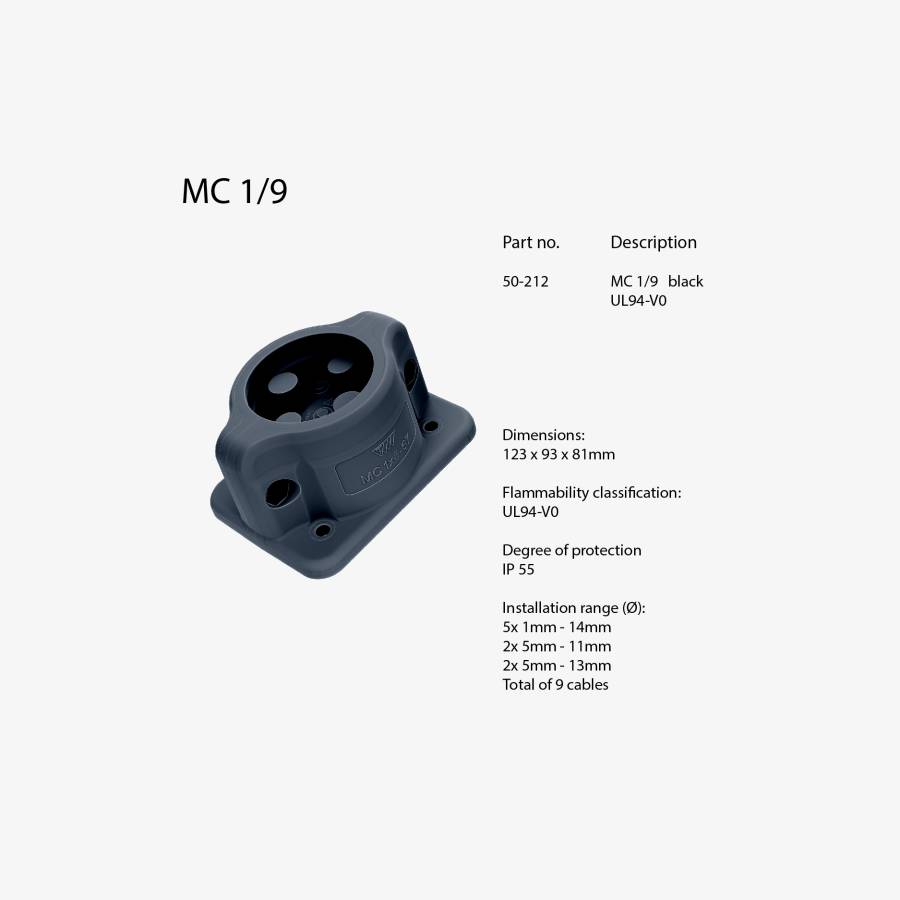

50-212 - MC 1/9

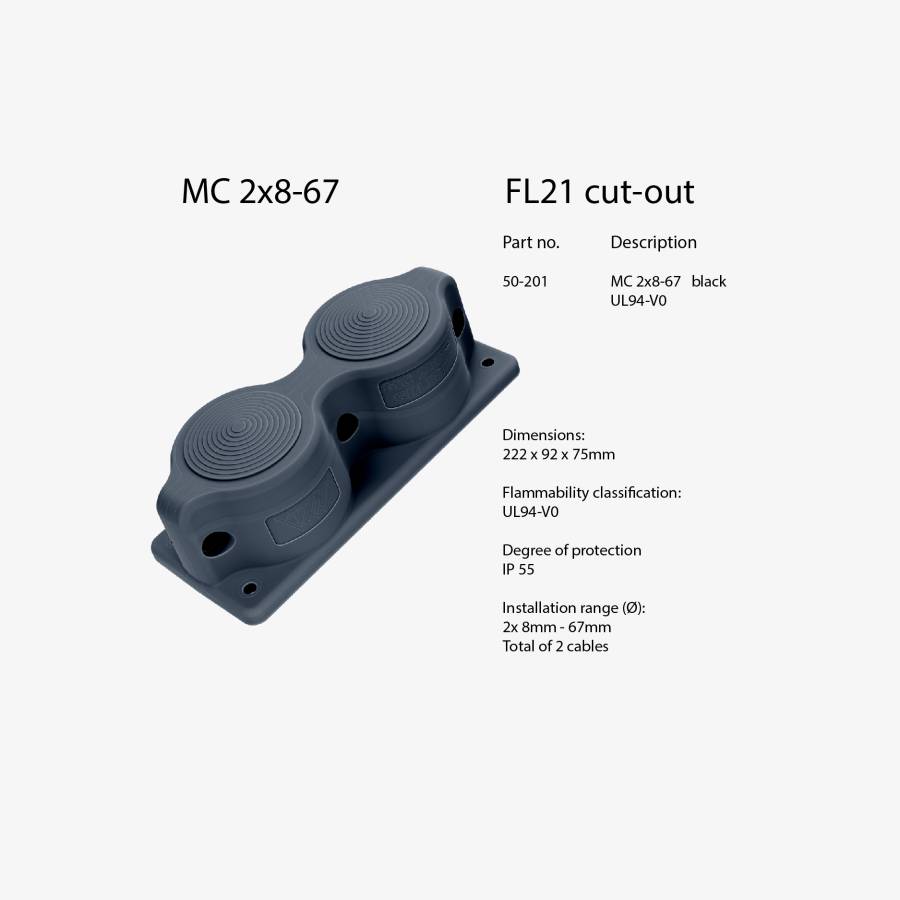

50-201 - MC 2x8-67

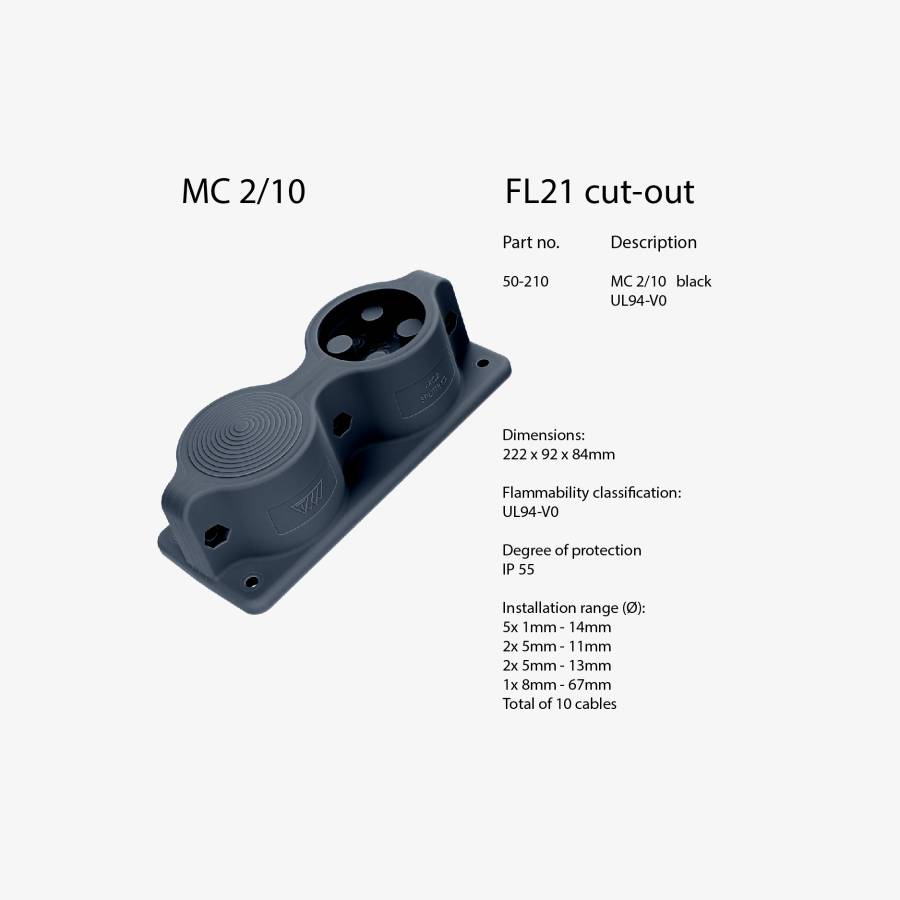

50-210 - MC 2/10

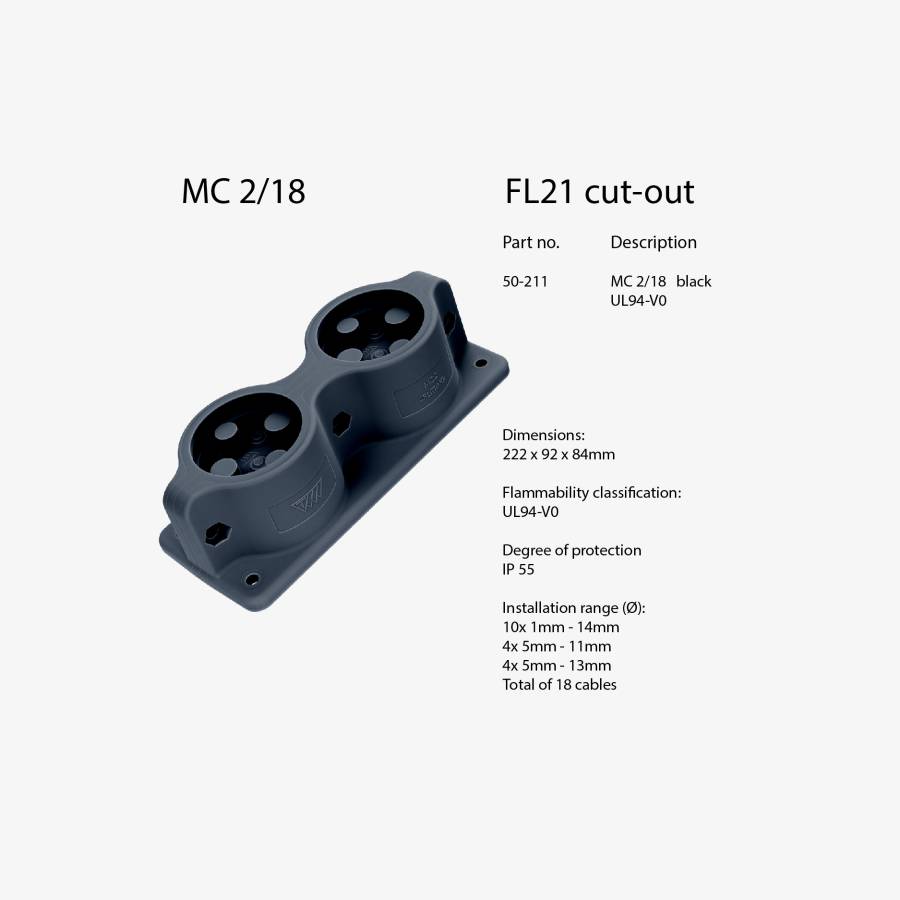

50-211 - MC 2/18

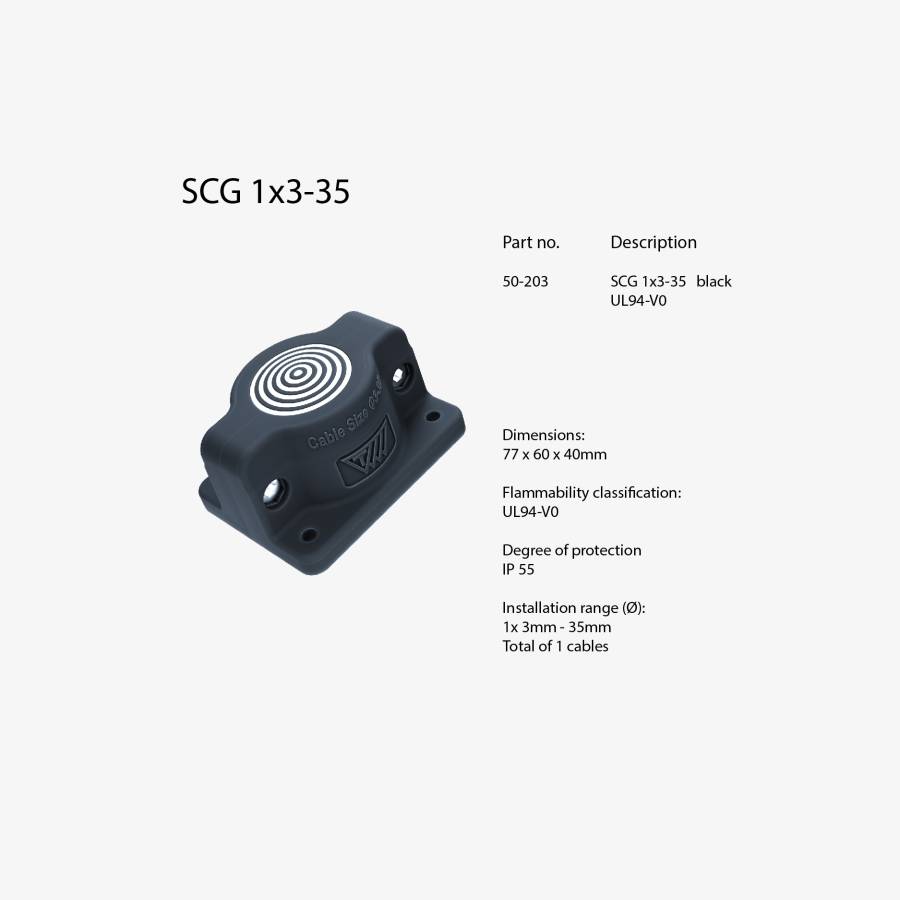

50-203 - SCG 1x3-35

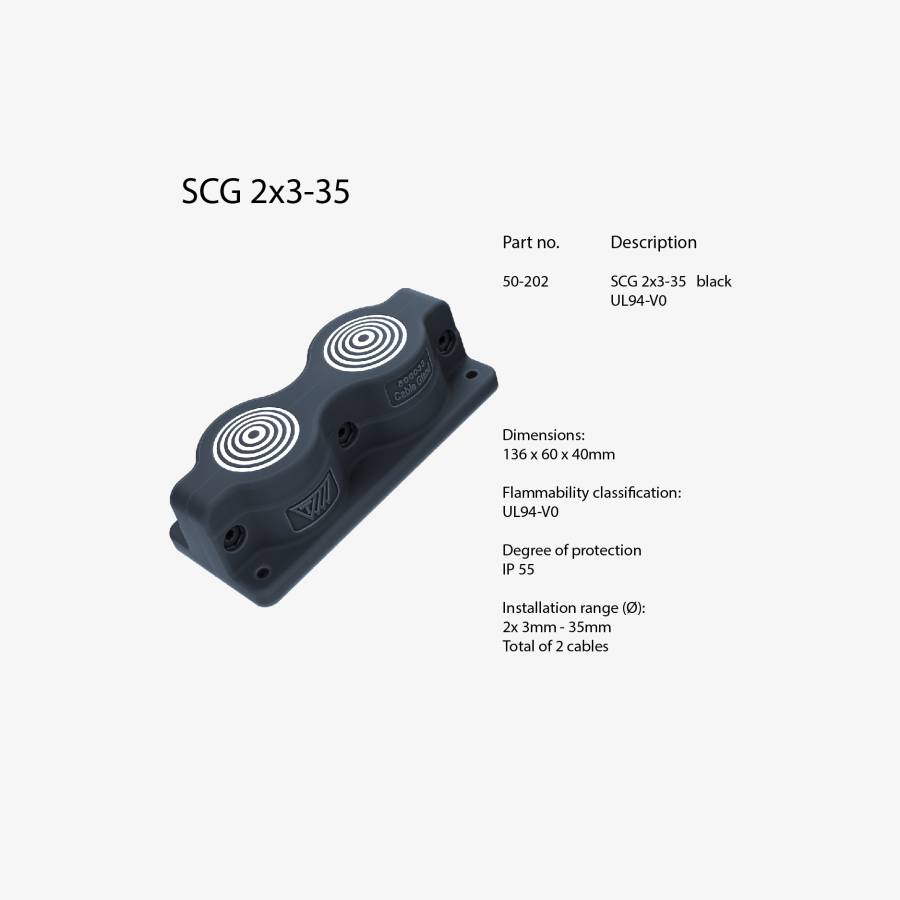

50-202 - SCG 2x3-35
