Cable glands EMV

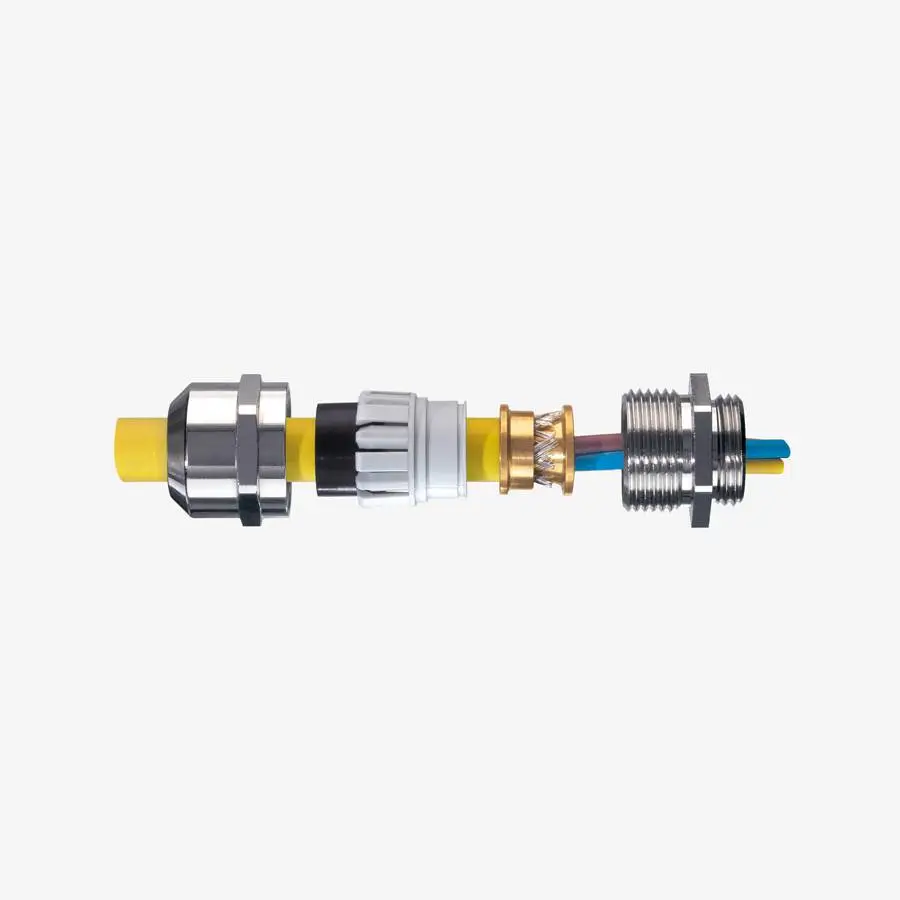

With constant, more efficient and complex technologies, the susceptibility of electrical components to electromagnetic interferences is also increasing. Therefore the EMC cable glands are equipped with an earthing cone to ensure effective 360° shielding and durable impermeability in accordance with IP68 / 69.
To request a product, please click on the corresponding item number in the table.
further versions and accessories available on request

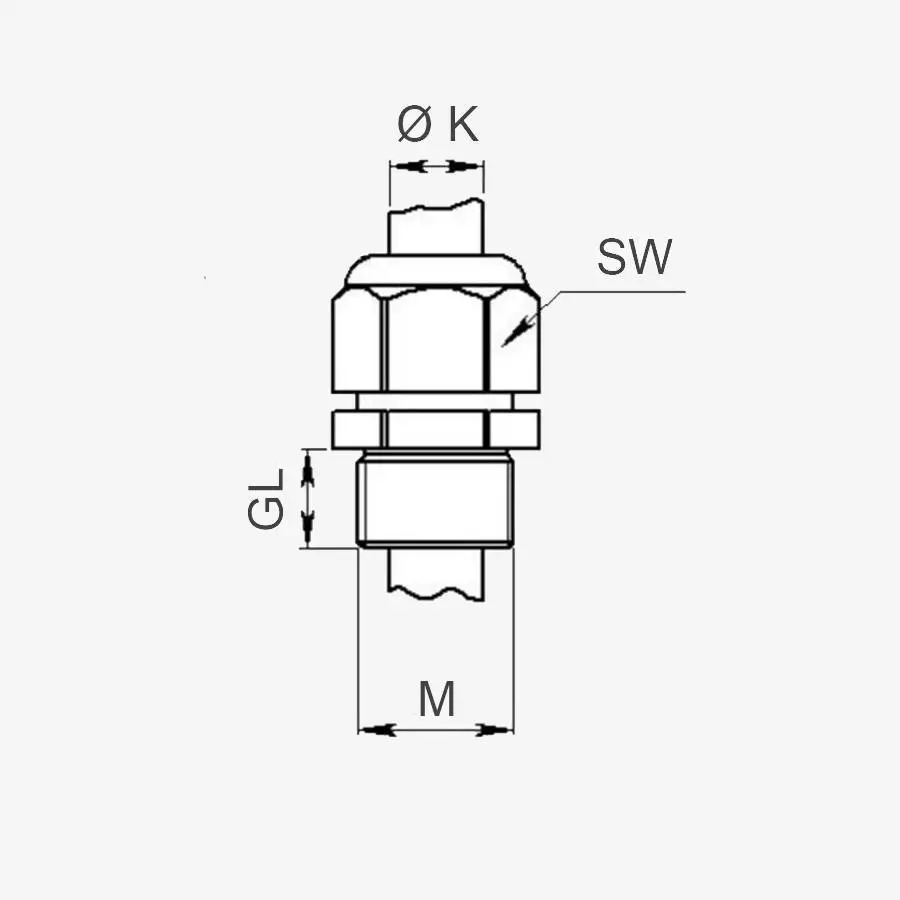

| Type | Part no. | Clamping range-Ø mm | Cable Ø below shield max | Thread length mm | Width across flats mm | PU pcs. |
|---|---|---|---|---|---|---|
| EMV M12x1,5 | 78-201 | 3,0 - 7,0 | 5.0 | 5.0 | 16.0 | 50 |
| EMV M16x1,5 | 78-202 | 4,5 - 10,0 | 7.5 | 5.0 | 20.0 | 50 |
| EMV M20x1,5 | 78-203 | 6,0 - 13,0 | 9.5 | 6.0 | 24.0 | 50 |
| EMV M25x1,5 | 78-204 | 9,0 - 17,0 | 16.0 | 7.0 | 29.0 | 50 |
| EMV M32x1,5 | 78-205 | 13,0 - 21,0 | 20.0 | 8.0 | 36.0 | 25 |
| EMV M40x1,5 | 78-206 | 16,0 - 28,0 | 26.0 | 8.0 | 46.0 | 10 |
| EMV M50x1,5 | 78-207 | 21,0 - 35,0 | 33.0 | 9.0 | 55.0 | 10 |
| EMV M63x1,5 | 78-208 | 34,0 - 48,0 | 45.0 | 10.0 | 68.0 | 10 |
| EMV M75x1,5 | 78-209 | 48,0 - 62,0 | 58.0 | 12.0 | 82.0 | 1 |
