Protective and end caps
End caps REC-RQE

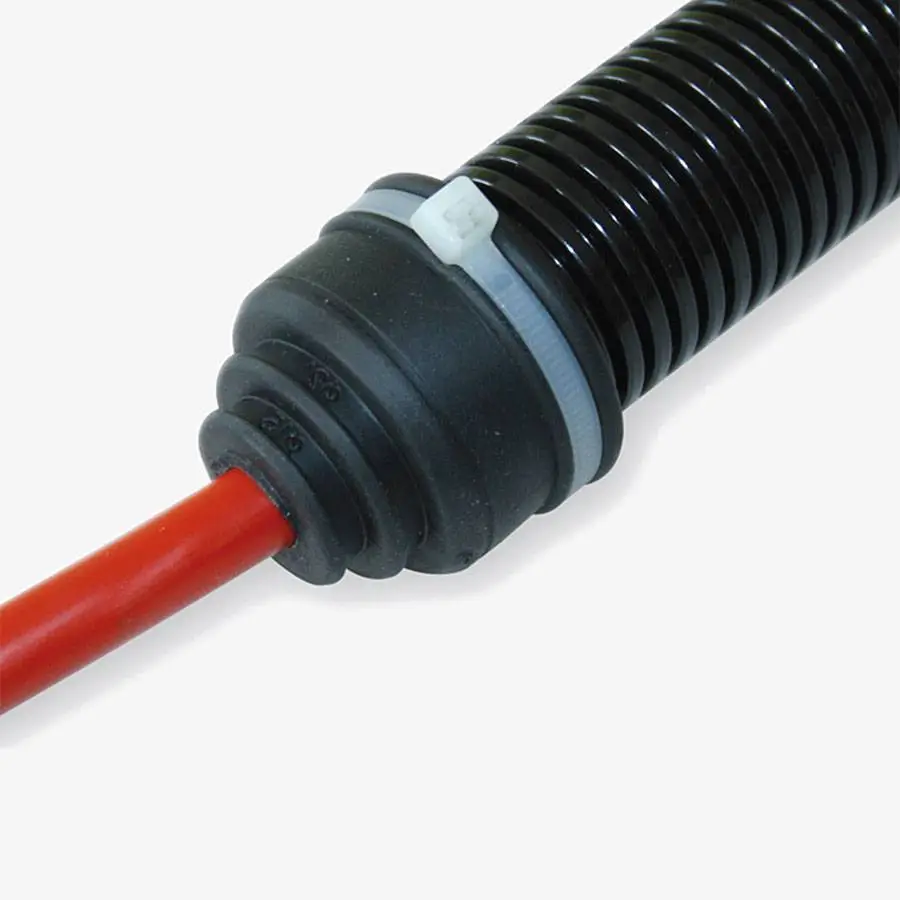

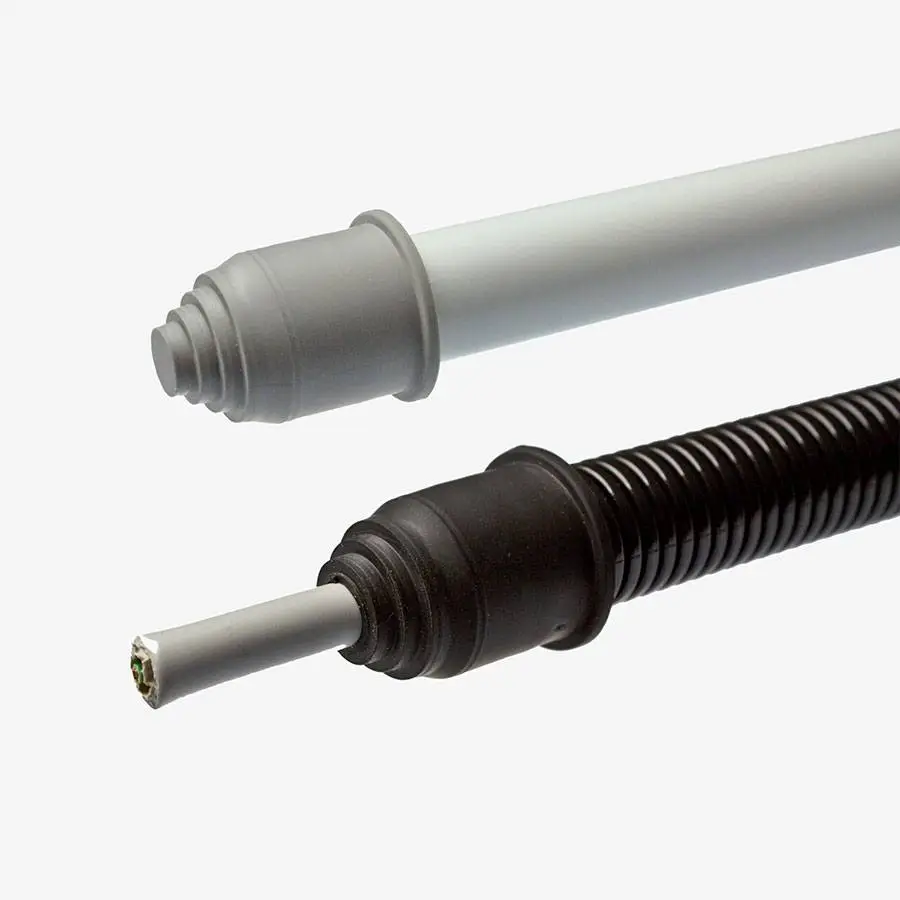

The RQE and REC sealing plugs are used as end caps or transition grommets from hose or pipe to cable. The rational hose or conduit end cap is fitted by simply pushing it on. The caps can be cut to size to fit cables of different thicknesses.
To request a product, please click on the corresponding item number in the table.

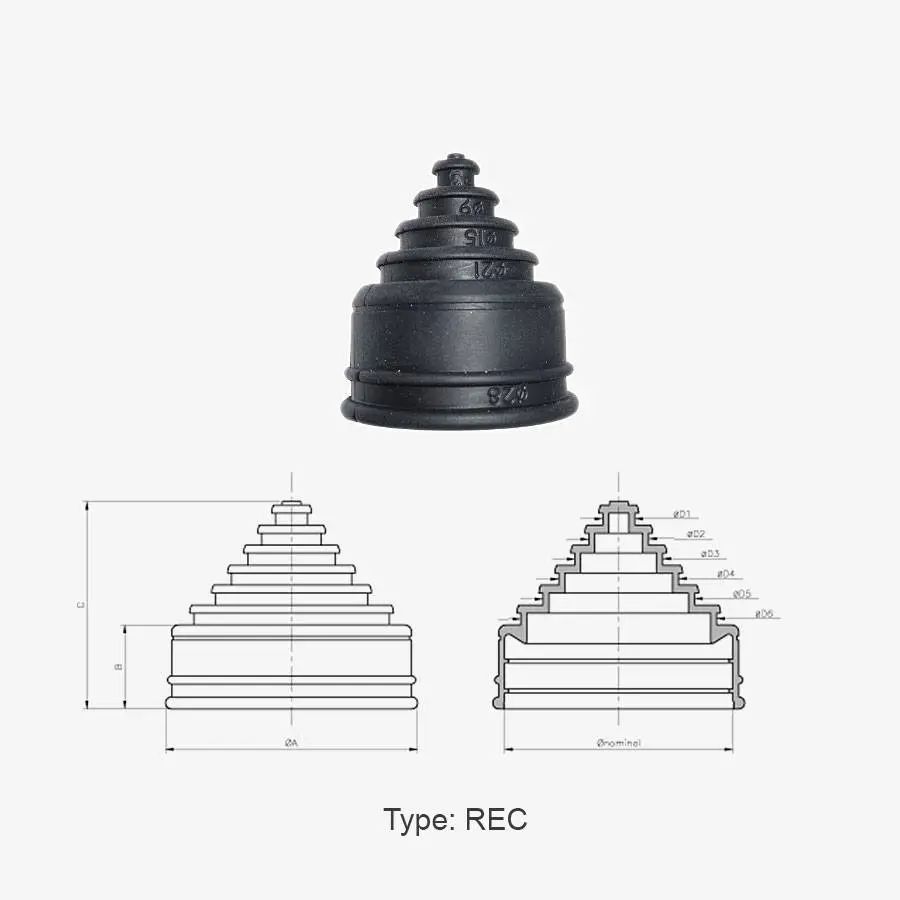

REC - The inner Ø is flexible up to -1.5 mm thanks to the internal lamellae.
RQE-1 - The inner Ø is flexible up to -2.5mm due to the internal lamellas.
| Type | Part no. black | Part no. gray | Inner-Ø D mm | d1 mm | d2 mm | d3 mm | d4 mm | d5 mm | d6 mm | H mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| REC 13 | 57-800 | 13.0 | 3.0 | 7.0 | - | - | - | - | 27.0 | 10 | |
| REC 16 | 57-801 | 16.0 | 3.0 | 7.0 | 11.0 | - | - | - | 33.6 | 10 | |
| REC 21 | 57-802 | 21.0 | 3.0 | 7.0 | 11.0 | 15.0 | - | - | 39.3 | 10 | |
| REC 28 | 57-803 | 28.0 | 3.0 | 9.0 | 15.0 | 21.0 | - | - | 40.8 | 10 | |
| REC 34 | 57-804 | 34.0 | 3.0 | 10.0 | 17.0 | 25.0 | - | - | 42.3 | 10 | |
| REC 42 | 57-805 | 42.0 | 5.0 | 12.0 | 19.0 | 26.0 | 34.0 | - | 47.0 | 10 | |
| REC 54 | 57-806 | 54.0 | 5.0 | 12.0 | 19.0 | 27.0 | 35.0 | 46.0 | 51.9 | 10 | |
| RQE-1 10,0 | 57-810 | 57-820 | 10.0 | 4.0 | 6.0 | 8.0 | 29.0 | 50 | |||
| RQE-1 13,0 | 57-811 | 57-821 | 13.0 | 7.0 | 10.0 | 29.0 | 50 | ||||
| RQE-1 15,8 | 57-812 | 57-822 | 15.8 | 7.0 | 10.5 | 13.0 | 36.0 | 50 | |||
| RQE-1 18,5 | 57-813 | 57-823 | 18.5 | 7.5 | 11.0 | 15.5 | 37.5 | 50 | |||
| RQE-1 21,2 | 57-814 | 57-824 | 21.2 | 10.5 | 14.0 | 18.0 | 37.0 | 50 | |||
| RQE-1 28,5 | 57-815 | 57-825 | 28.5 | 9.0 | 14.0 | 19.0 | 24.0 | 40.0 | 25 | ||
| RQE-1 34,5 | 57-816 | 57-826 | 34.5 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 44.0 | 25 | |
| RQE-1 42,5 | 57-817 | 57-827 | 42.5 | 13.5 | 19.5 | 25.5 | 31.5 | 37.5 | 46.0 | 25 | |
| RQE-1 54,5 | 57-818 | 57-828 | 54.5 | 13.5 | 20.0 | 26.5 | 28.5 | 40.0 | 47.0 | 53.0 | 10 |
