Sealing grommets
Sealing grommets DNG

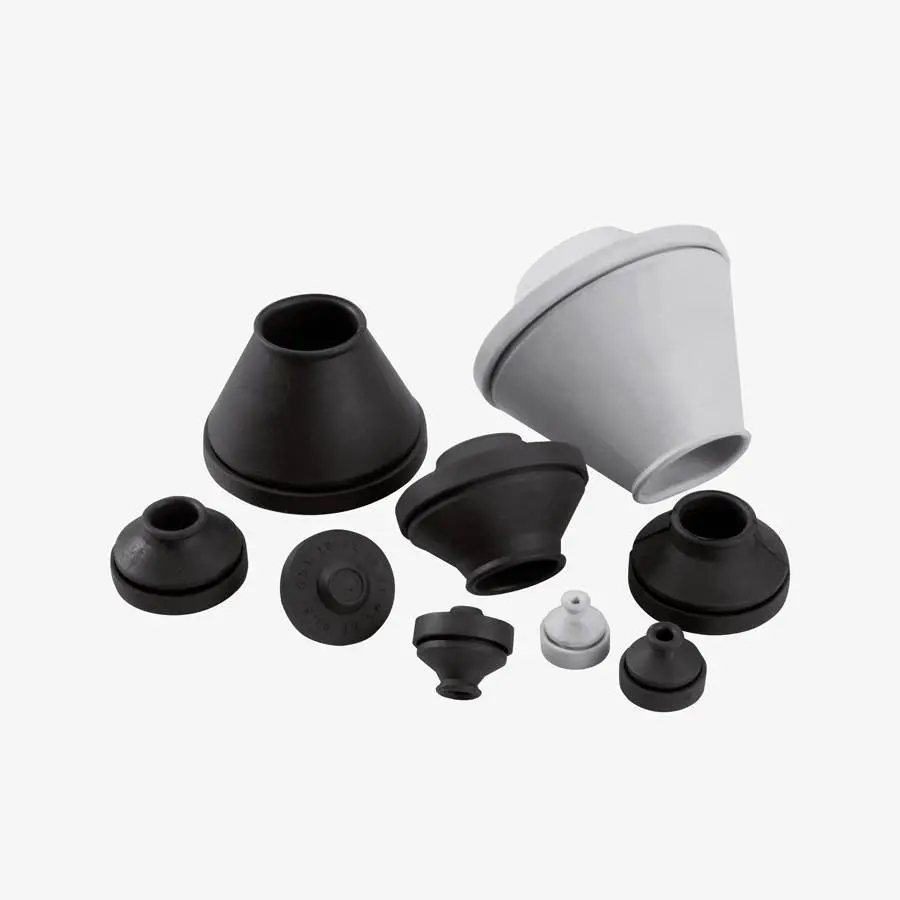

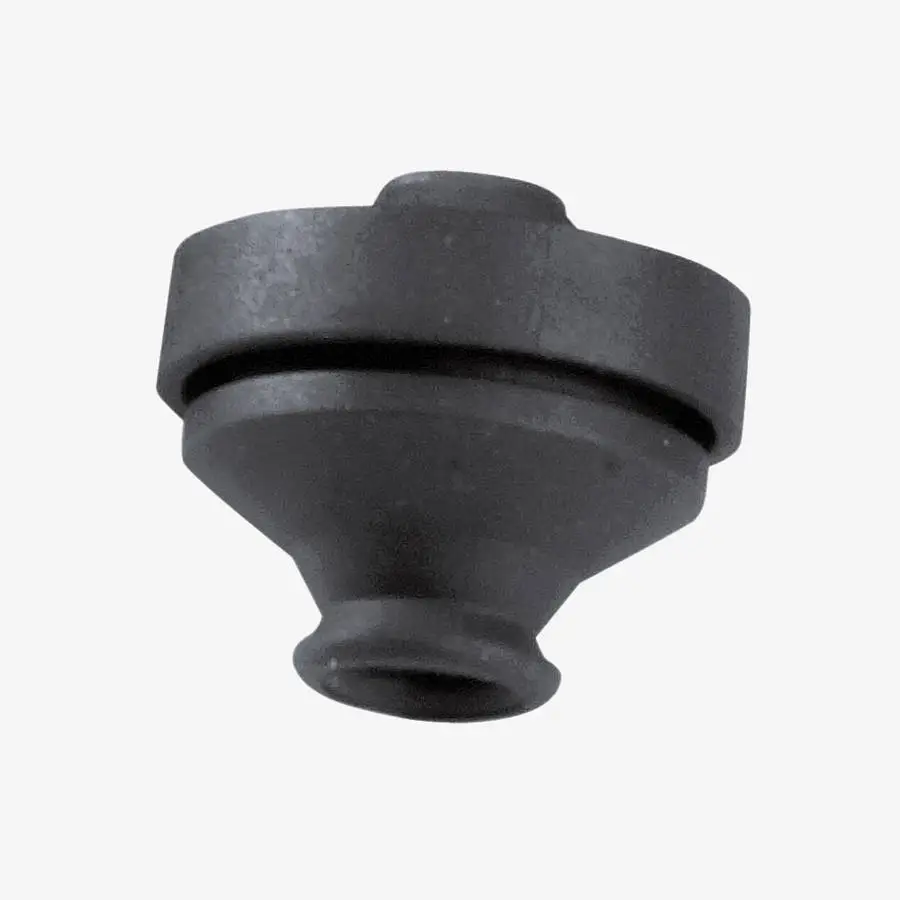

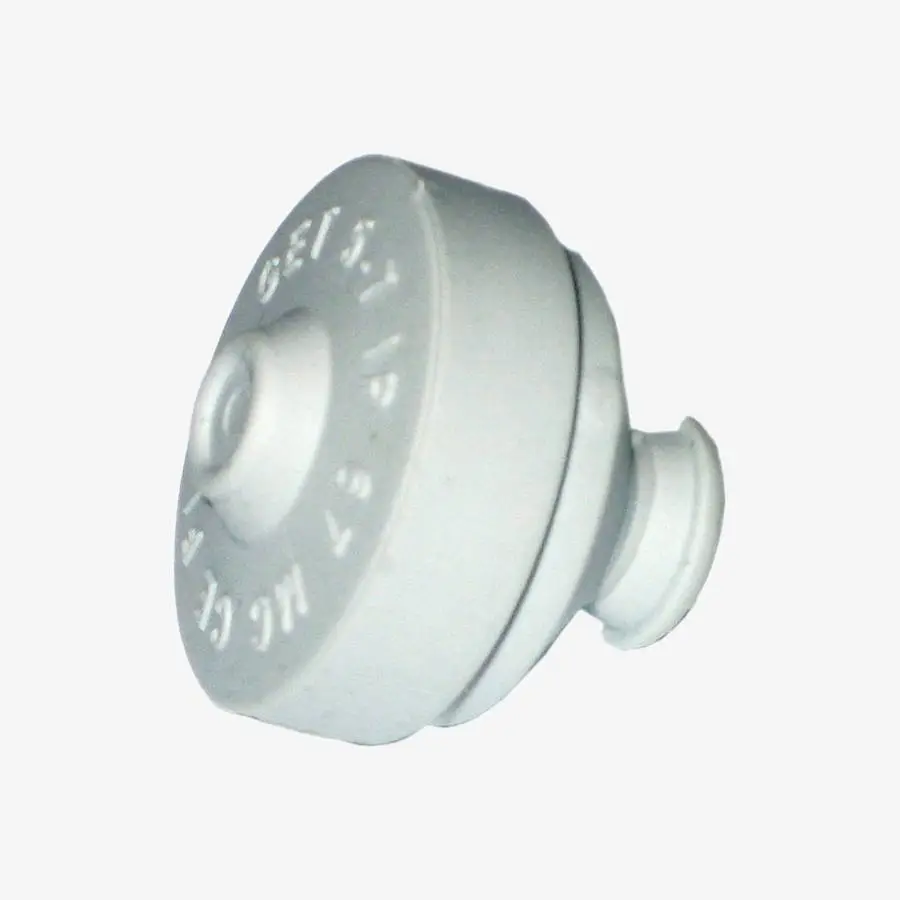

The sealing grommets DNG-M in metric dimensions cover a wide cable range from 3-60mm. They are suitable for material thicknesses of 1.0-5.2mm. The outer side of the DNG-M grommets is closed and they can therefore also be used as plugs. The design enables strain relief by using a cable tie.
To request a product, please click on the corresponding item number in the table.

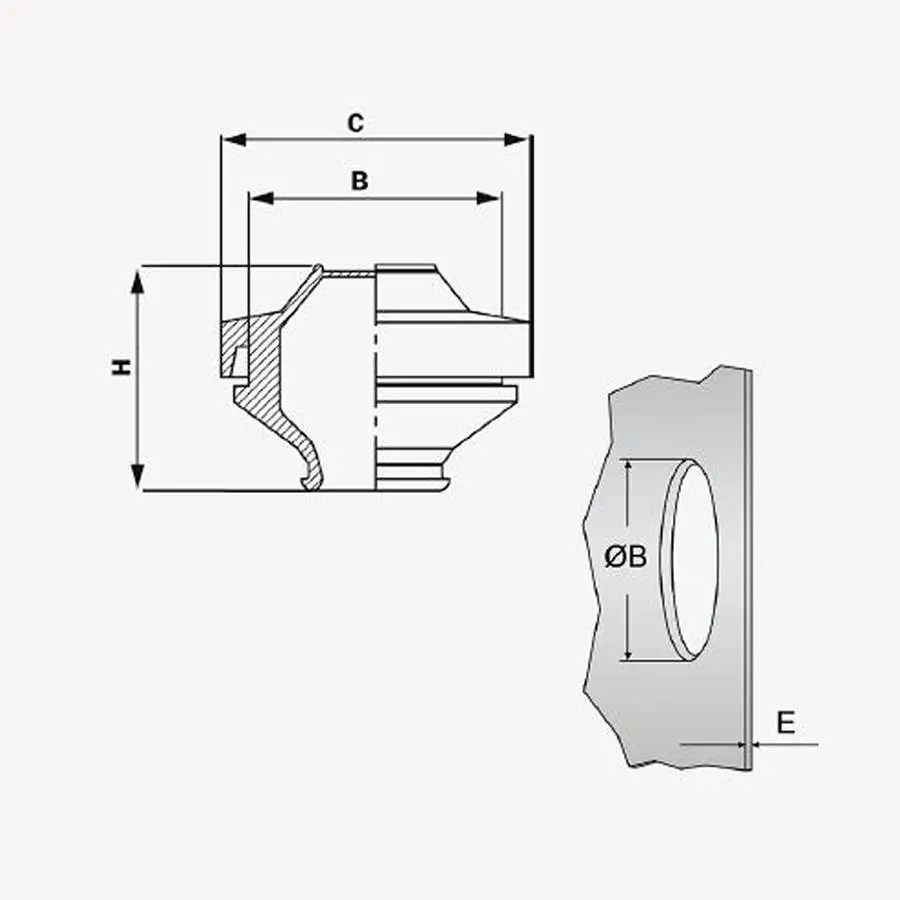

| Type | Part no. black RAL 9005 | Part no. l.gray RAL 7035 | Cable-Ø mm | ØB mm | Wall thickness mm | ØC mm | H mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|
| DNG-M 12 | 52-700 | 52-710 | 3,0 - 5,0 | 12.8 | 1,0 - 5,0 | 20.0 | 20.8 | 100 |
| DNG-M 16 | 52-701 | 52-711 | 5,0 - 7,0 | 16.5 | 1,0 - 5,0 | 24.0 | 22.0 | 100 |
| DNG-M 20 | 52-702 | 52-712 | 7,0 - 10,0 | 20.5 | 1,0 - 5,0 | 28.0 | 24.7 | 100 |
| DNG-M 25 | 52-703 | 52-713 | 10,0 - 14,0 | 27.0 | 1,0 - 5,0 | 33.0 | 25.3 | 100 |
| DNG-M 32 | 52-704 | 52-714 | 14,0 - 20,0 | 33.0 | 1,0 - 5,0 | 39.5 | 29.3 | 100 |
| DNG-M 40 | 52-705 | 52-715 | 20,0 - 26,0 | 40.0 | 1,0 - 5,0 | 47.0 | 32.6 | 100 |
| DNG-M 50 | 52-706 | 52-716 | 26,0 - 35,0 | 49.0 | 1,0 - 5,0 | 58.0 | 40.5 | 50 |
| DNG-M 60 | 52-707 | 52-717 | 30,0 - 45,0 | 60.0 | 1,0 - 5,0 | 70.0 | 60.5 | 50 |
| DNG-M 80 | 52-708 | 52-718 | 40,0 - 60,0 | 79.0 | 1,2 - 5,2 | 90.0 | 81.0 | 25 |
