Stepped and Multiple Grommets
Sealing grommets DMTS

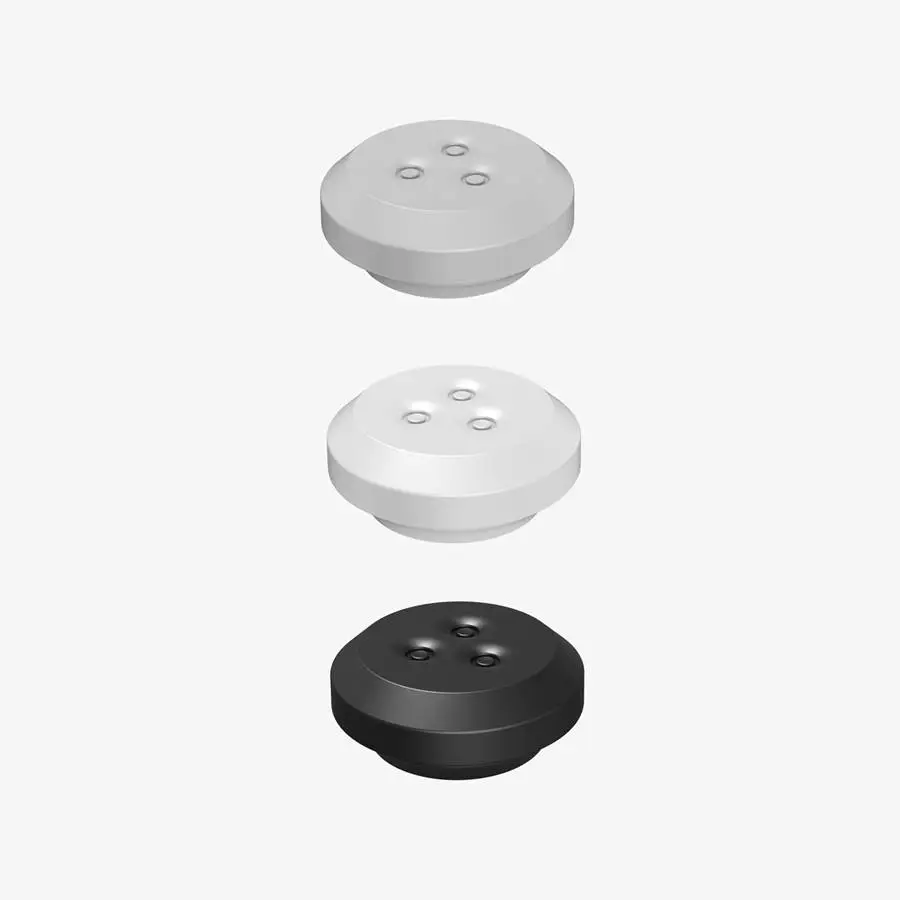

The DMTS grommets impress with their large cable sealing range. For cable entry, you pierce the "push-out" membrane with the cable and therefore always have a round opening. Around the center, the DMTS grommets have a hose-like, elastic section that adapts to the cable and provides an excellent seal, even when the cable is moved like a joystick. This does not affect the high IP67 protection rating.
To request a product, please click on the corresponding item number in the table.
* Depending on the wall thickness in which it is installed
| Type | Part no. l.gray RAL 7035 | Part no. black RAL 9005 | Part no. white RAL 9010 | Cable-Ø mm | ØA mm | Hole-ØB mm | Wall thickness E - mm | ØC mm | H mm | H1 mm | H2 mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMTS-M20 | 52-872 | 52-882 | 52-892 | 3x 4,0 - 7,0 | 3.0 | 20.5 | 0,5 - 3,0 | 27.5 | 11.0 | 4.0 | 6.75 | 50 |
| DMTS-M25 | 52-873 | 52-883 | 52-893 | 3x 4,0 - 9,0 | 3.0 | 25.5 | 0,5 - 3,5 | 32.5 | 11.0 | 4.0 | 6.75 | 50 |
| DMTS-PG 11 | 52-877 | 52-887 | 52-897 | 3x 4,0 - 6,0 | 3.0 | 19.0 | 0,5 - 3,0 | 26.0 | 11.0 | 4.0 | 6.75 | 50 |
| DMTS-PG 16 | 52-878 | 52-888 | 52-898 | 3x 4,0 - 8,0 | 3.0 | 23.0 | 0,5 - 3,5 | 30.0 | 11.0 | 4.0 | 6.75 | 50 |
