Electric Crimper EC 65 + PC 65

Crimp dies for EC/PC 65 non insulated connectors

For non insulated tubular cable lugs, solderless terminals and connectors.

More than 40 standard dies for all common cable connectors and the corresponding protective covers.

Print current page
To request a product, please click on the corresponding item number in the table.
Can't find the right crimp dies? On request, we offer special dies and positioning aids for your contacts.
The crimp dies for EC65 and PC65 are identical. Only different protective covers are required!
TypePart no.Capacity
in mm²		TerminalsProtective-
cover EC65		Part no.
EC 65		Protective-
cover PC65		Part no.
PC 65
EC T014088-7250,14 - 4,0Tubular cable lugsEC PC0488-734PC SC0488-772-04
EC T0599Q88-7290,5 - 10,0Solderless terminalsEC PC0388-733PC SC0388-772-03
EC T1060HEX88-7761,0 - 6,0Tubular cable lugs - hexagonal crimpEC PC06.188-738PC SC06.188-772-61
EC T0580QJ88-7770,5 - 10,0Japanese terminalsEC PC0388-733PC SC0388-772-03
EC T4099E88-7264,0 - 10,0ELPRESS tublar cable lugsEC PC0388-733PC SC0388-772-03
EC T4099N88-7274,0 - 10,0Tubular Cable lugsEC PC0388-733PC SC0388-772-03
EC T4099F88-765NFC 20,0-130,0French norm NFC 20-130EC PC0388-733PC SC0388-772-03
EC T4099P88-7284,0 - 10,0DIN cable lugsEC PC0388-733PC SC0388-772-03
EC T160Q88-73016.0Solderless terminalsEC PC4.188-734-1PC SC4.188-772-41
EC T160QJ88-730-J14.0Japanese terminalsEC PC06.188-738PC SC06.188-772-61
PC T162588-77116,0 - 25,0Tubular cable lugs - PC65 only!PC SC0888-772-08
×

Request this product

Pieces
Datasheet
EC T0140
Type: EC T0140
Art.: 88-725

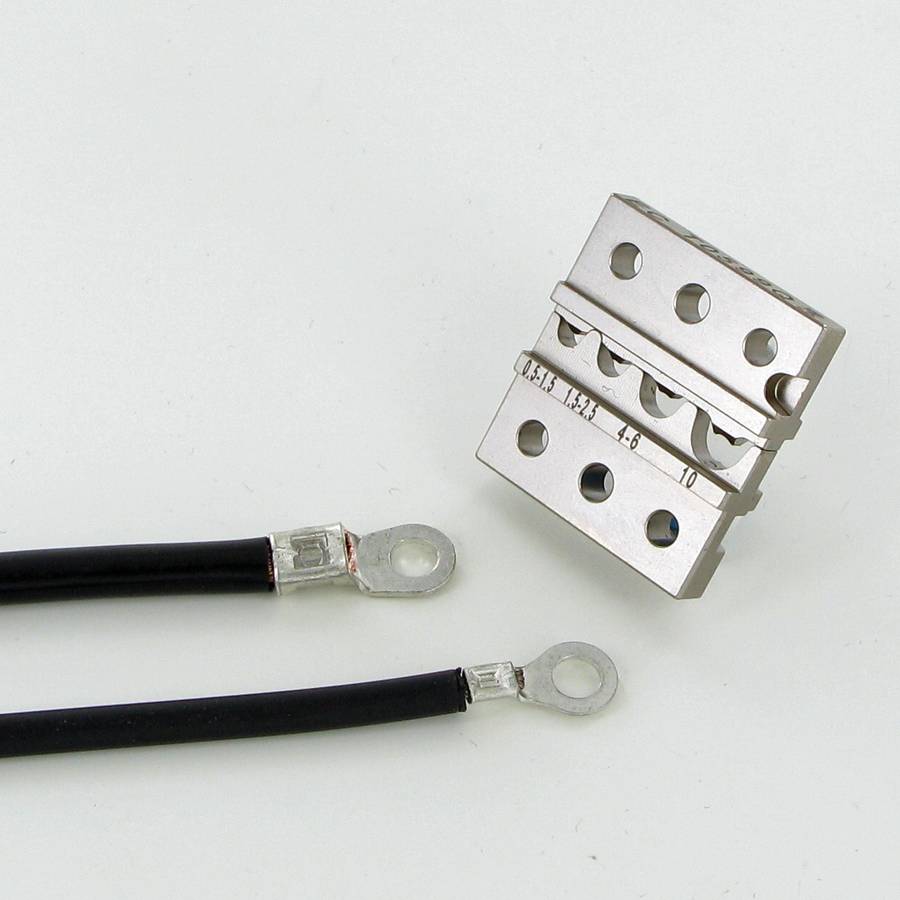

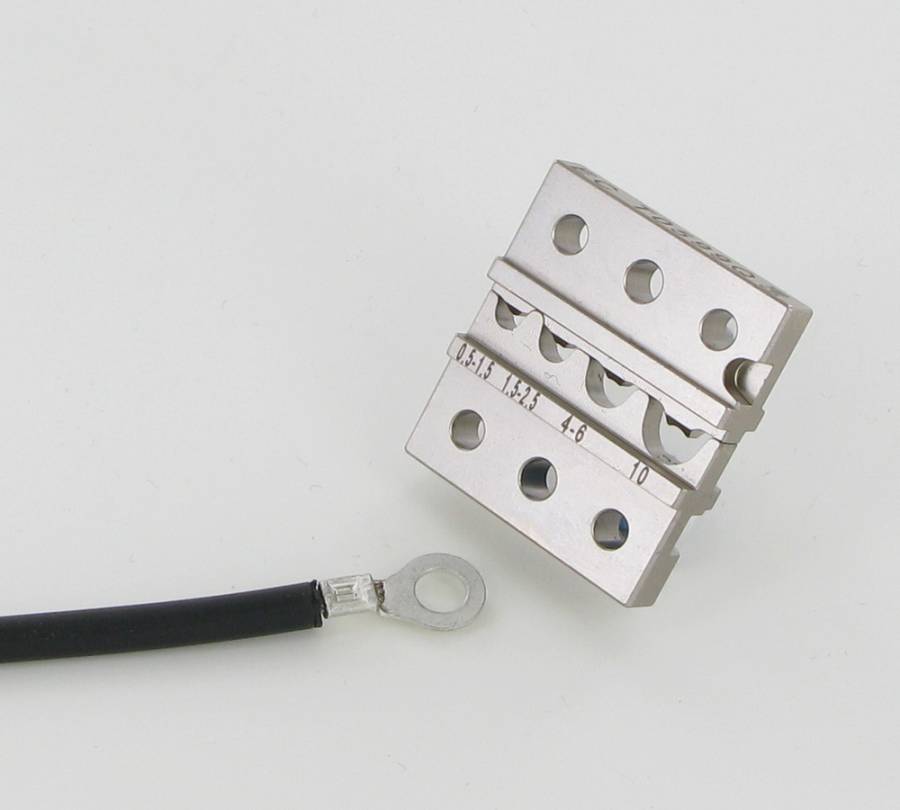

EC T0599Q
Type: EC T0599Q
Art.: 88-729

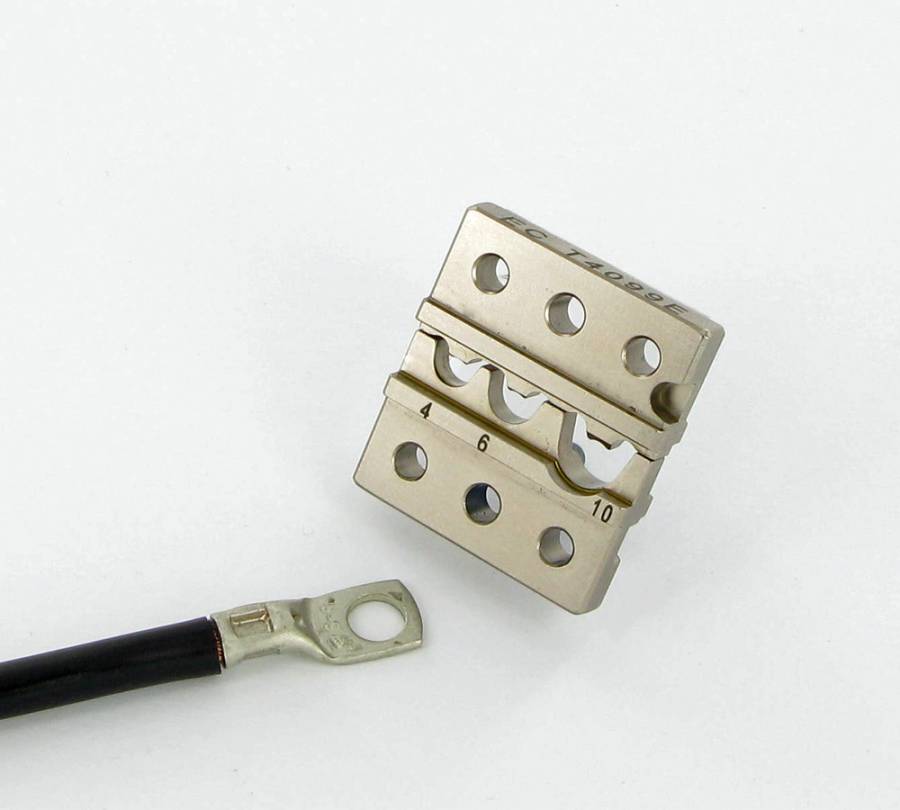

EC T4099E
Type: EC T4099E
Art.: 88-726

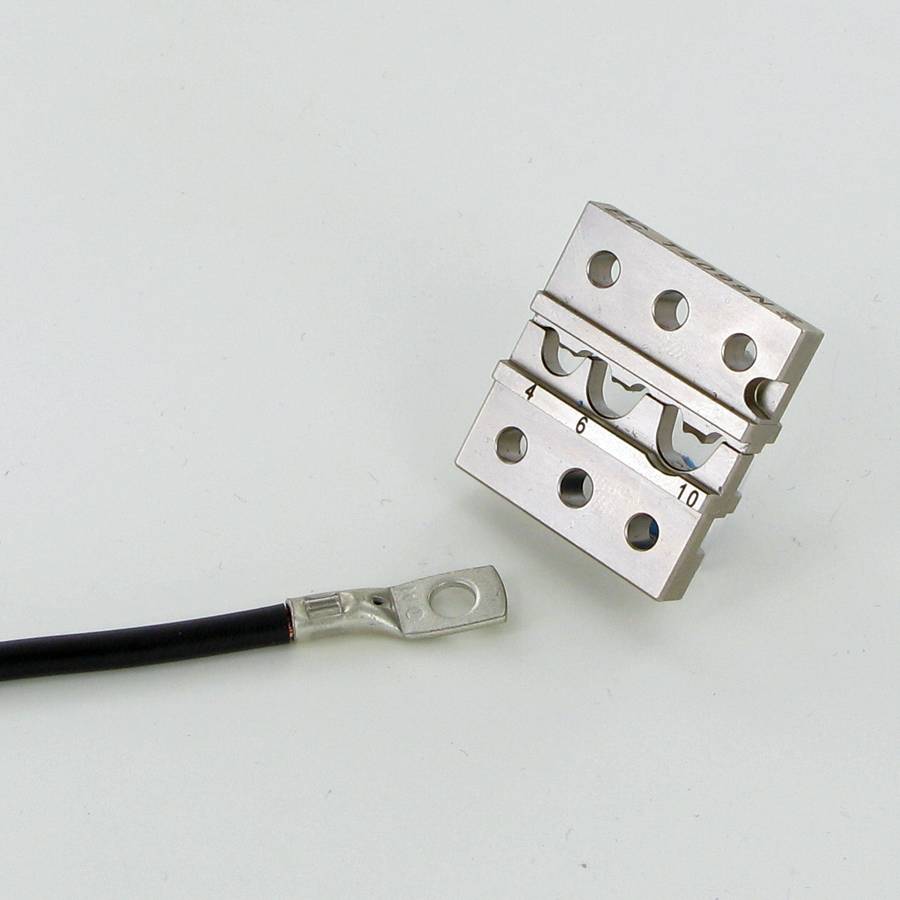

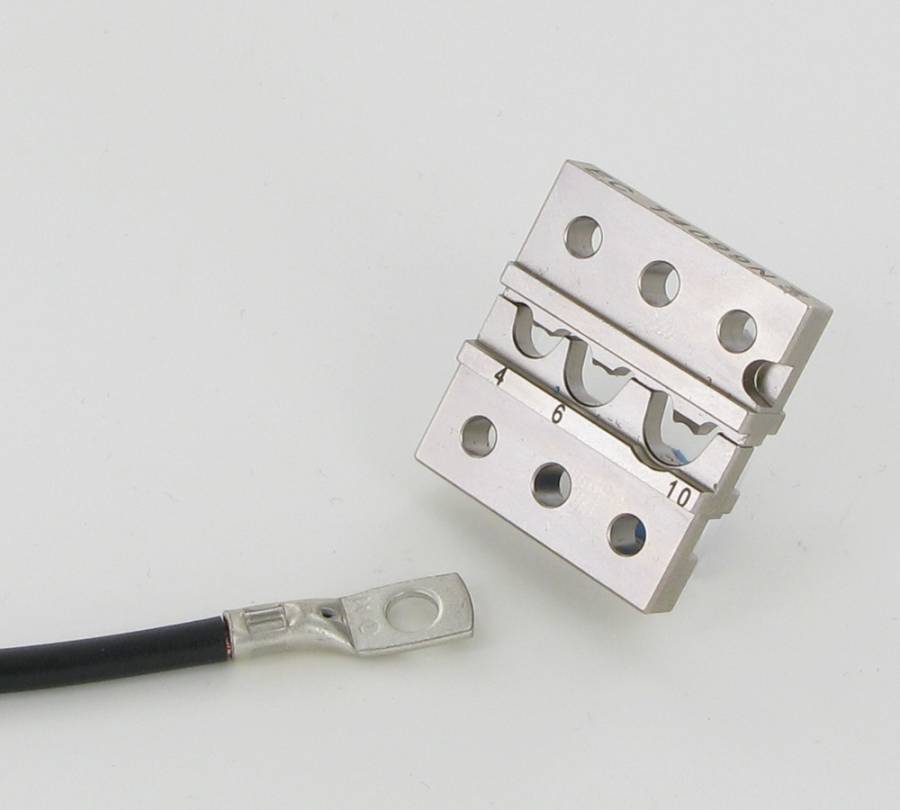

EC T4099N
Type: EC T4099N
Art.: 88-727

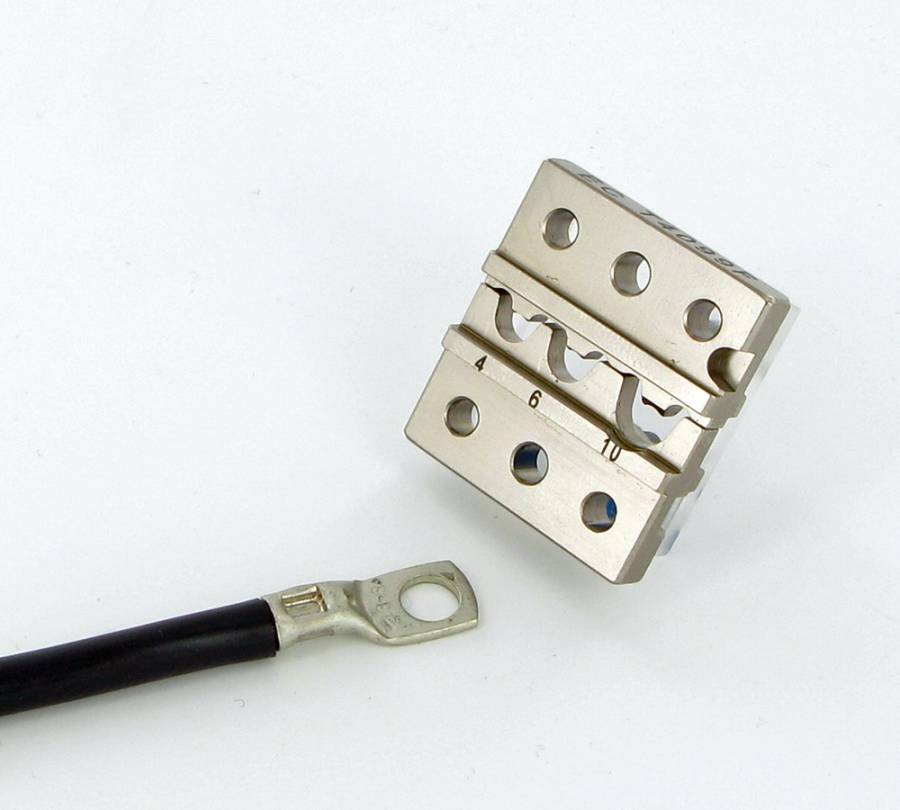

EC T4099F
Type: EC T4099F
Art.: 88-765
EC T4099P
Type: EC T4099P
Art.: 88-728

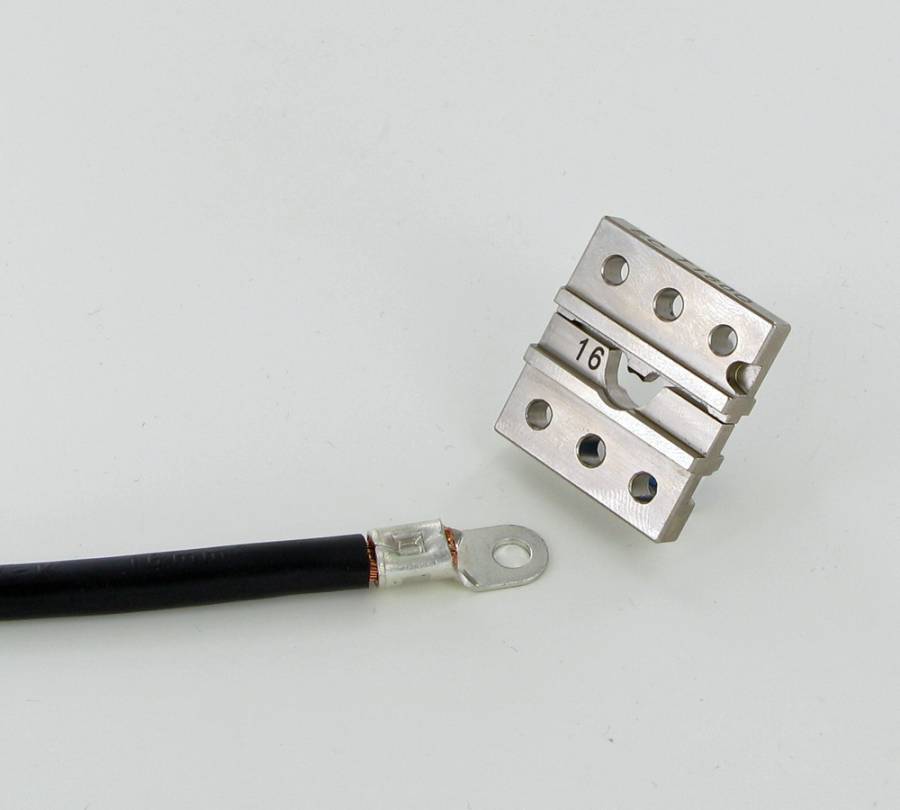

EC T160Q
Type: EC T160Q
Art.: 88-730
