Elektro Crimper EC 65 + PC 65
Crimp Gesenke für EC/PC 65 unisolierte Verbinder
Für unisolierte Rohrkabelschuhe, Quetschkabelschuhe und Verbinder.
Mehr als 40 Standardgesenke für alle gängigen Kabelverbinder und die dazu gehörigen Schutzhauben.
Um ein Produkt anzufragen, klicken Sie bitte auf die entsprechende Artikelnummer in der Tabelle.
Sie finden kein passendes Gesenk? Auf Wunsch bieten wir Sondergesenke und Positionierhilfen für Ihre Kontakte an.
Die Gesenke für EC65 und PC65 sind identisch. Es werden lediglich unterschiedliche Schutzhauben benötigt!
| Typ | Art.-Nr. | Kapazität in mm² | Kontakt | Schutz- haube EC65 | Art.-Nr. EC 65 | Schutz- haube PC65 | Art.-Nr. PC 65 |
|---|---|---|---|---|---|---|---|
| EC T0140 | 88-725 | 0,14 - 4,0 | Tubular cable lugs | EC PC04 | 88-734 | PC SC04 | 88-772-04 |

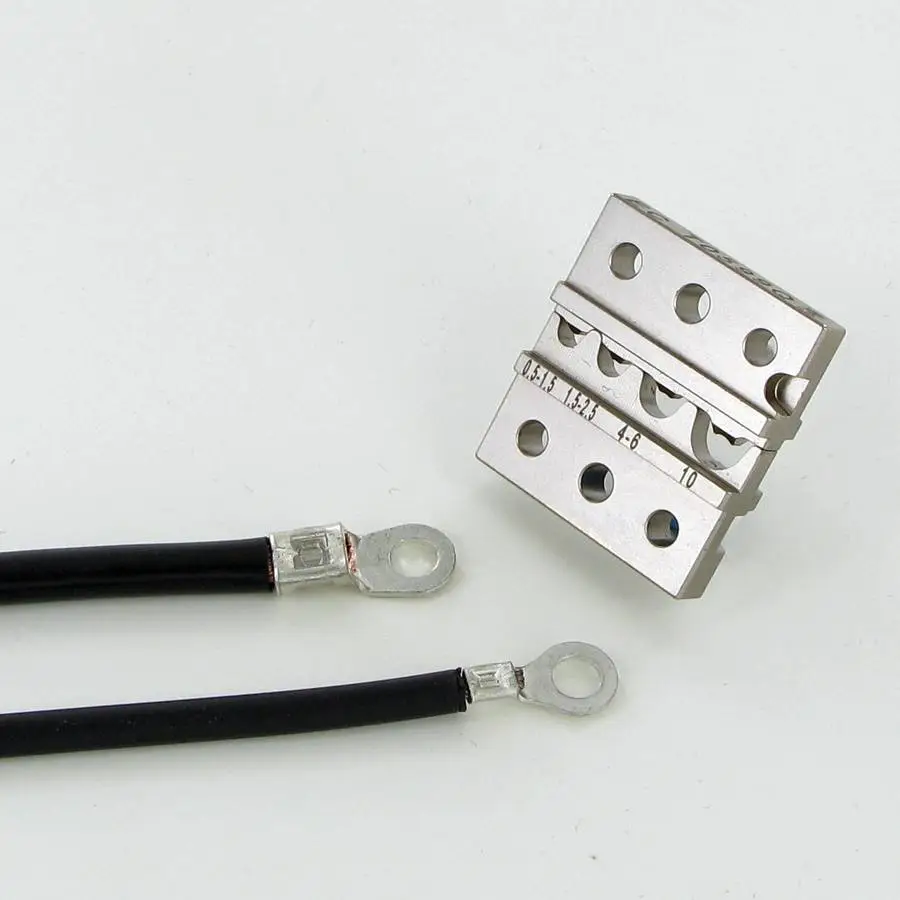

| EC T0599Q | 88-729 | 0,5 - 10,0 | Solderless terminals | EC PC03 | 88-733 | PC SC03 | 88-772-03 |
| EC T1060HEX | 88-776 | 1,0 - 6,0 | Tubular cable lugs - hexagonal crimp | EC PC06.1 | 88-738 | PC SC06.1 | 88-772-61 |
| EC T0580QJ | 88-777 | 0,5 - 10,0 | Japanese terminals | EC PC03 | 88-733 | PC SC03 | 88-772-03 |
| EC T4099E | 88-726 | 4,0 - 10,0 | ELPRESS tublar cable lugs | EC PC03 | 88-733 | PC SC03 | 88-772-03 |

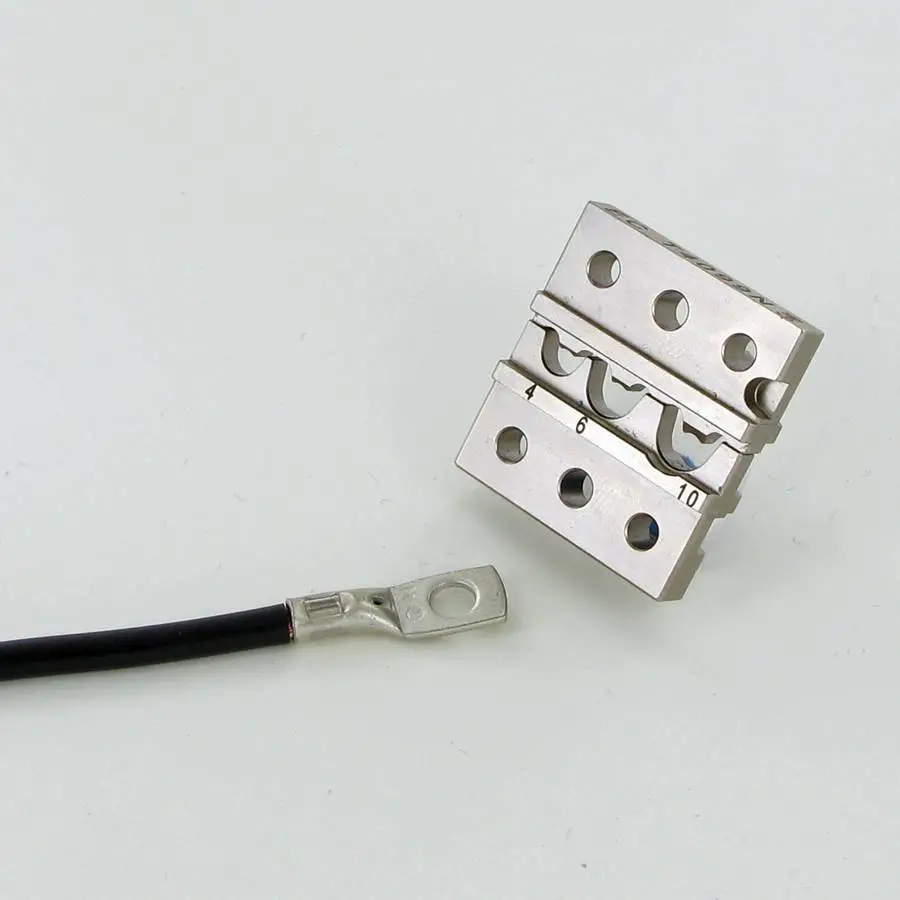

| EC T4099N | 88-727 | 4,0 - 10,0 | Tubular Cable lugs | EC PC03 | 88-733 | PC SC03 | 88-772-03 |
| EC T4099F | 88-765 | NFC 20,0-130,0 | French norm NFC 20-130 | EC PC03 | 88-733 | PC SC03 | 88-772-03 |
| EC T4099P | 88-728 | 4,0 - 10,0 | DIN cable lugs | EC PC03 | 88-733 | PC SC03 | 88-772-03 |
| EC T160Q | 88-730 | 16.0 | Solderless terminals | EC PC4.1 | 88-734-1 | PC SC4.1 | 88-772-41 |
| EC T160QJ | 88-730-J | 14.0 | Japanese terminals | EC PC06.1 | 88-738 | PC SC06.1 | 88-772-61 |
| PC T1625 | 88-771 | 16,0 - 25,0 | Tubular cable lugs - PC65 only! | PC SC08 | 88-772-08 |
