Cable bundle hose SPS-ZIP

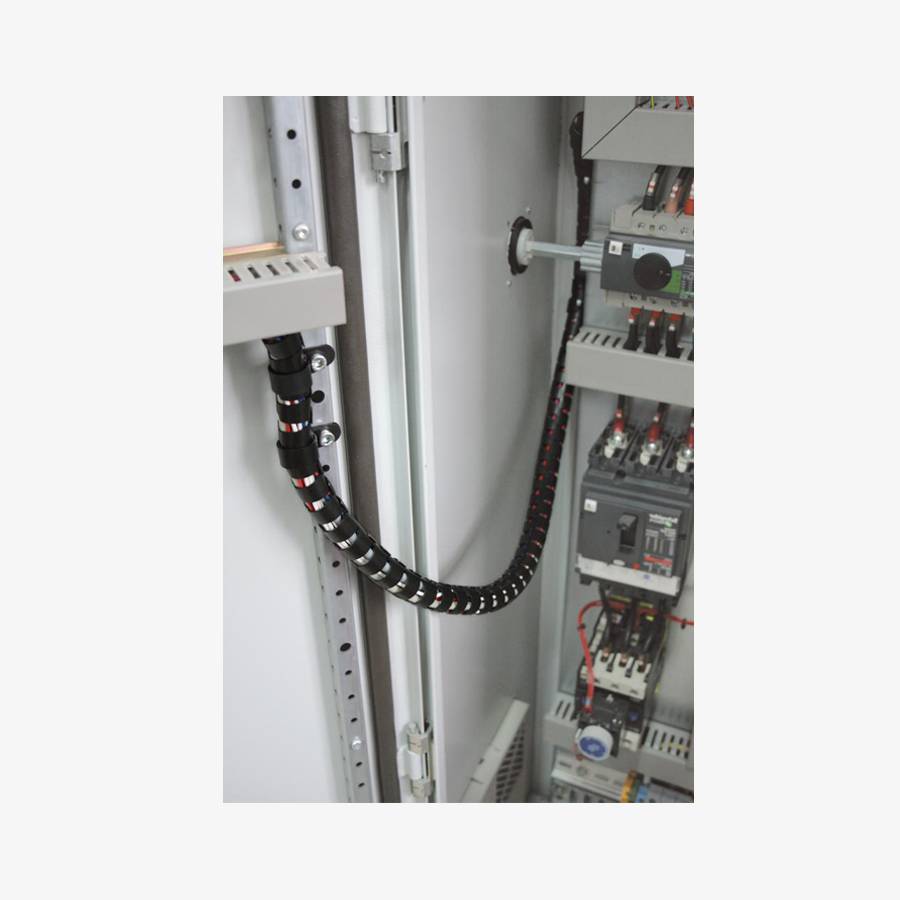

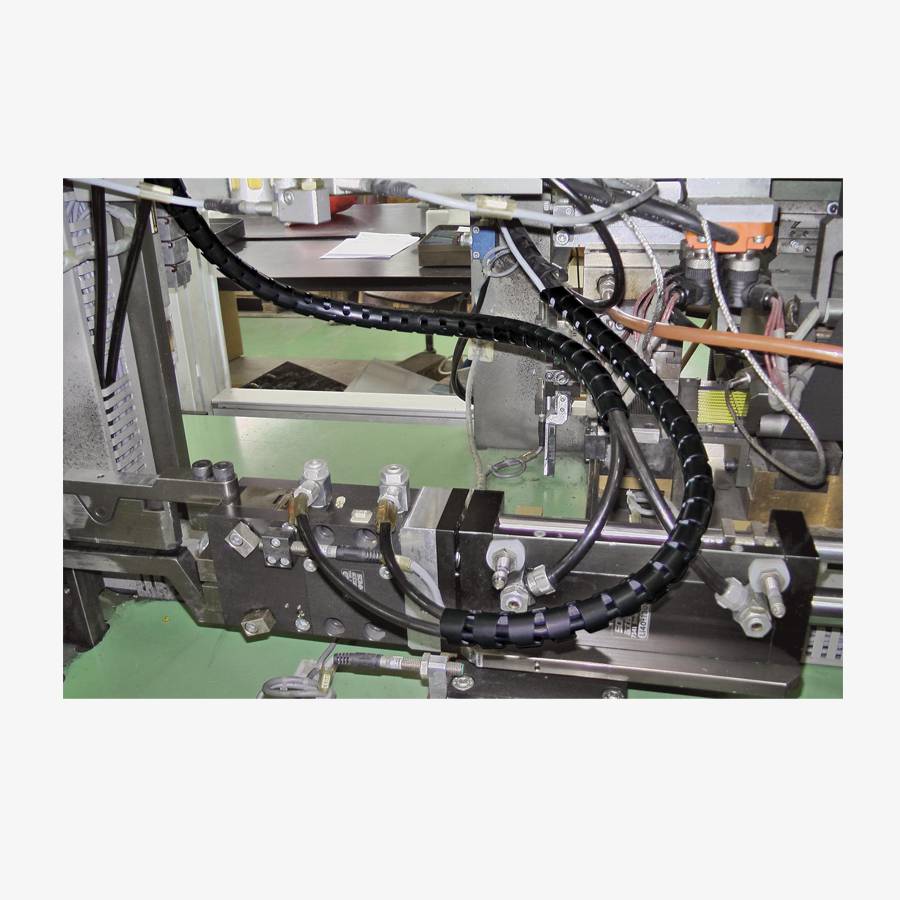

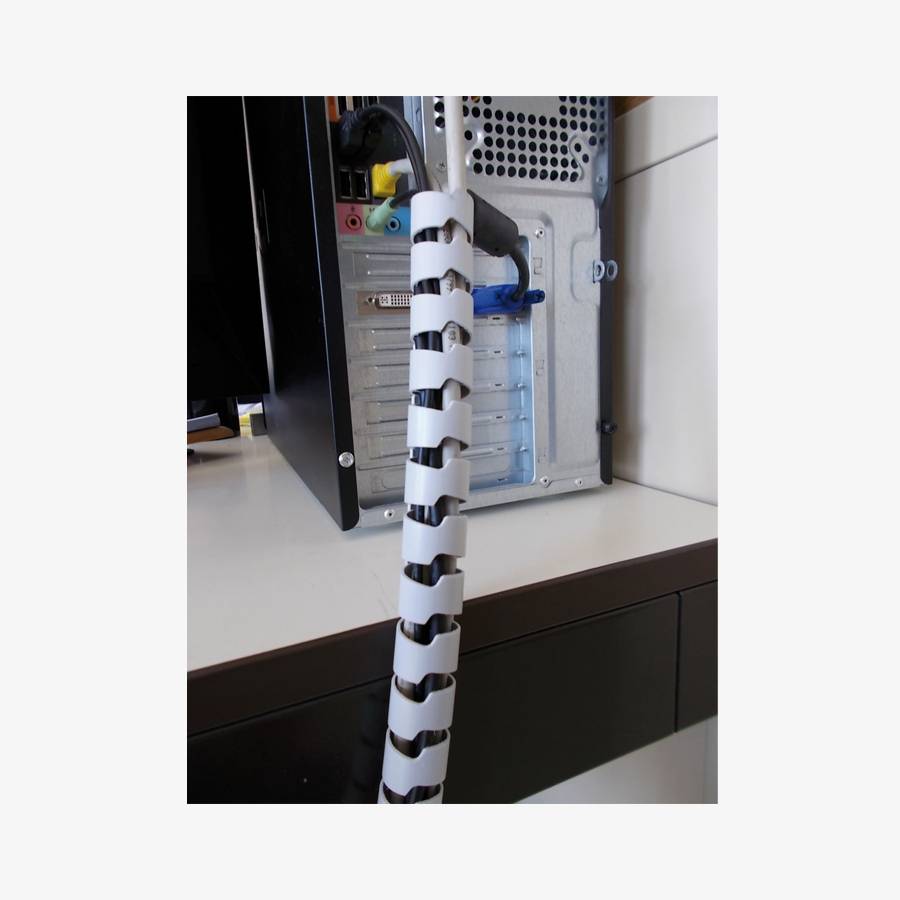

The SPS-Zip is ideal for fixed and mobile electrical installations. Whether in machines, robots with articulated arms, office installations, cabinets or many other applications.

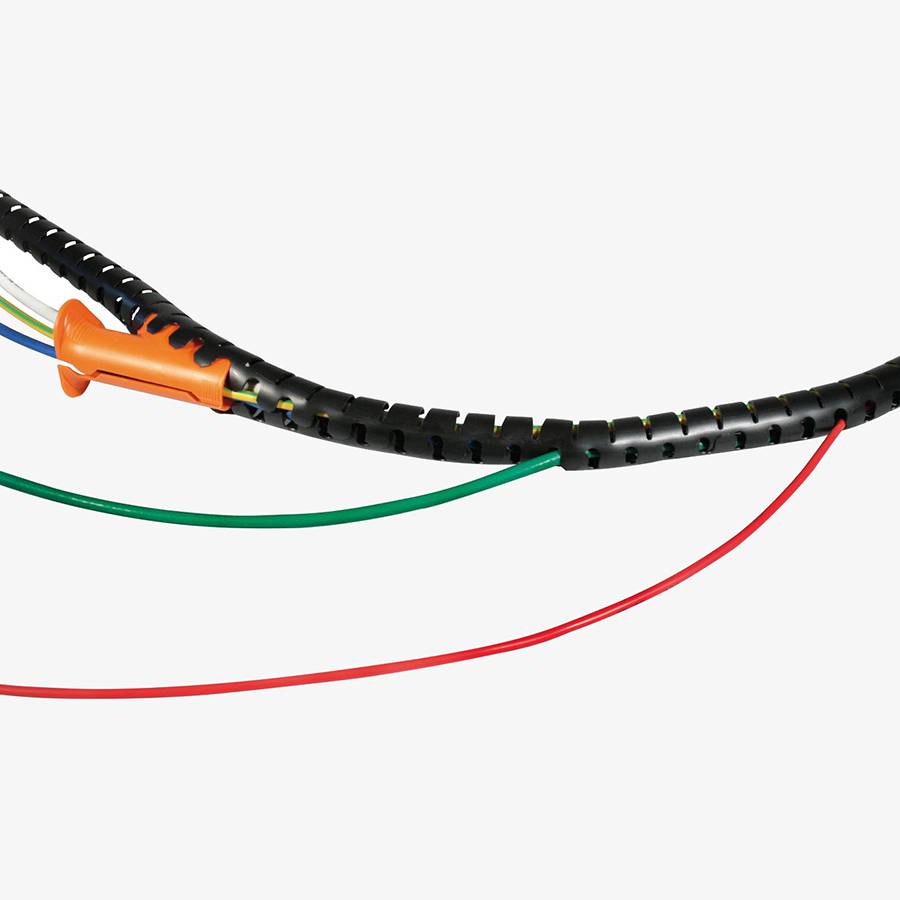

With the SPS-Zip, cables can be easily branched off, cable entanglements are avoided and the risk of accidents is minimised.
The hoses can be easily removed and reused.
The material is resistant to alcohols, grease, mineral oils, heating oil, petrol and UV rays.
To request a product, please click on the corresponding item number in the table.

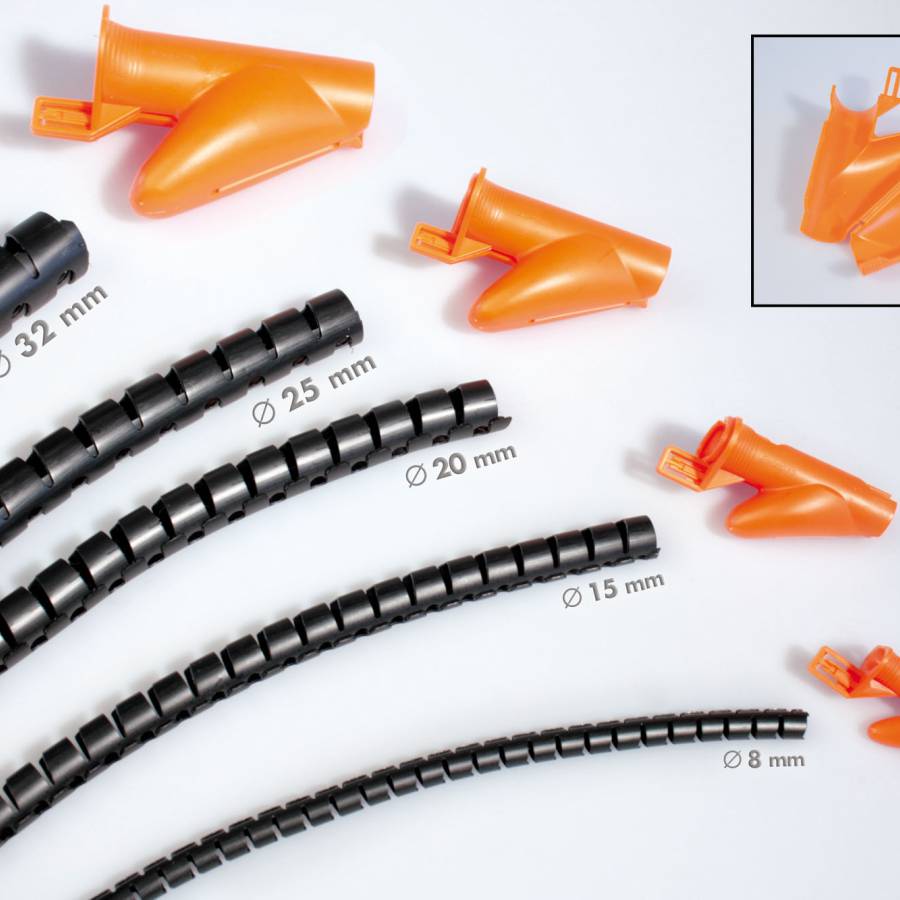

each packaging unit contains an assembly tool. Other separate assembly tools are also available on request.

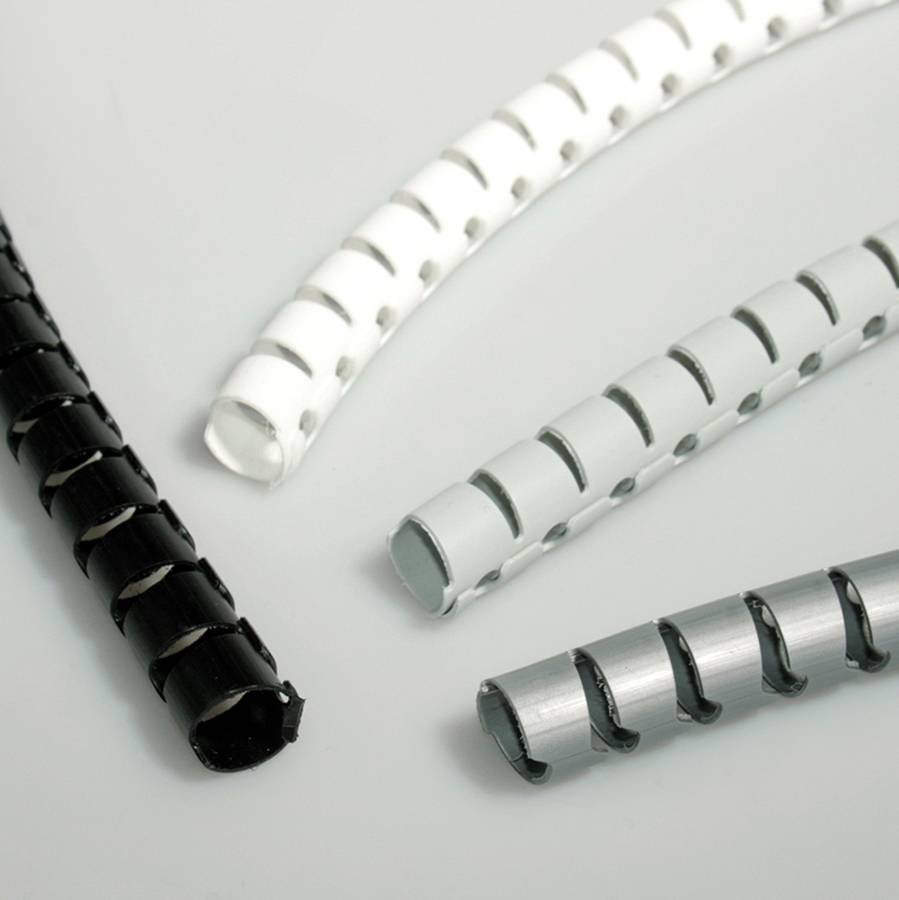

| Type | Part no. black | Part no. white | Part no. l.gray | Part no. silver | Inner-Ø mm | wall-thickness mm | max. bundle-Ø mm | PU meter |
|---|---|---|---|---|---|---|---|---|
| SPS-ZIP 08 | 70-180-10 | 70-180-01 | 70-180-25 | 70-180-97 | 8.0 | 0.8 | 10.0 | 100 |
| SPS-ZIP 15 | 70-181-10 | 70-181-01 | 70-181-25 | 70-181-97 | 15.0 | 0.8 | 16.0 | 50 |
| SPS-ZIP 20 | 70-182-10 | 70-182-01 | 70-182-25 | 70-182-97 | 20.0 | 0.9 | 23.0 | 30 |
| SPS-ZIP 25 | 70-183-10 | 70-183-01 | 70-183-25 | 70-183-97 | 25.0 | 1.0 | 25.0 | 20 |
| SPS-ZIP 32 | 70-184-10 | 70-184-01 | 70-184-25 | 70-184-97 | 32.0 | 1.3 | 32.0 | 15 |
| SPS-ZIP 15 | 70-171-10 | 70-171-01 | 70-171-25 | 70-171-97 | 15.0 | 0.8 | 16.0 | 2 |
| SPS-ZIP 20 | 70-172-10 | 70-172-01 | 70-172-25 | 70-172-97 | 20.0 | 0.9 | 23.0 | 2 |
| SPS-ZIP 25 | 70-173-10 | 70-173-01 | 70-173-25 | 70-173-97 | 25.0 | 1.0 | 25.0 | 2 |
