Spiral tubes SPA, SPP-MDE, S-ESD, S-PTFE

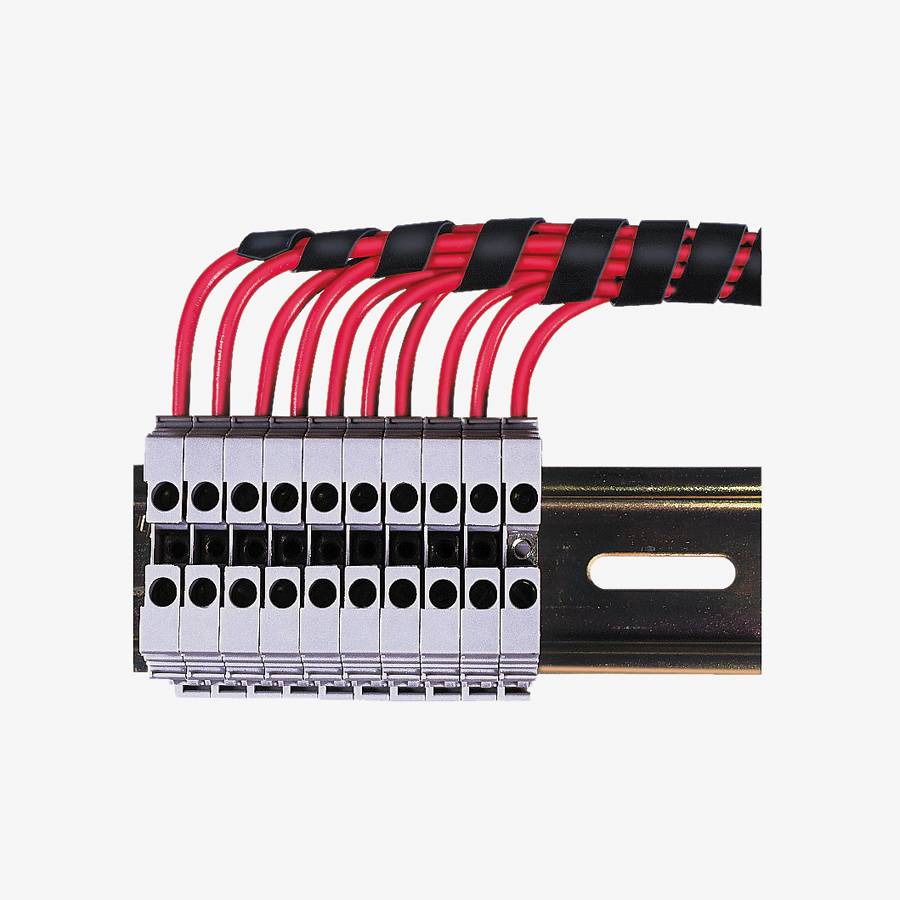

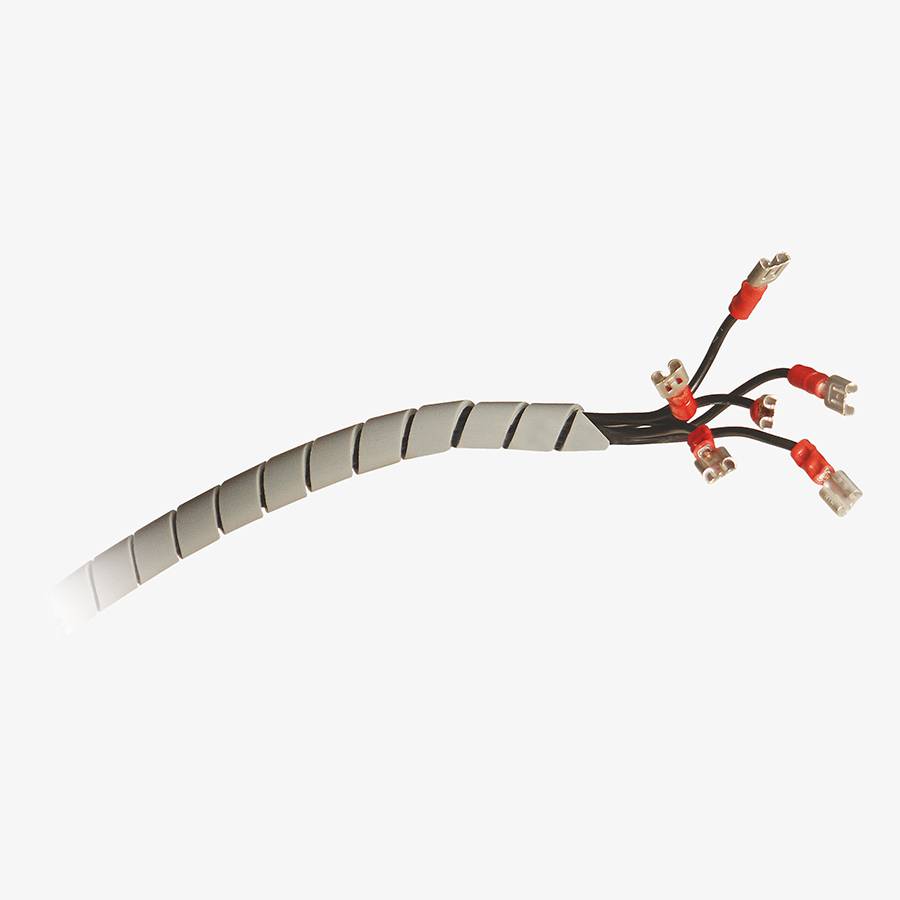

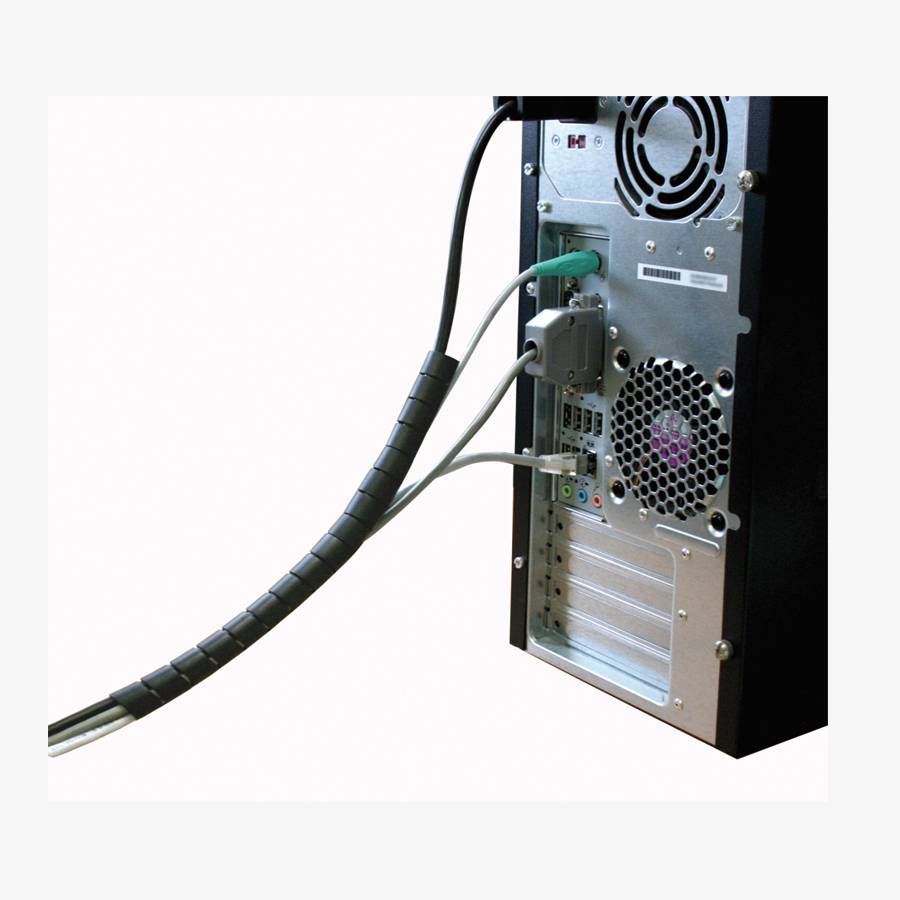

Spiral tubes are used for the flexible safeguard of individual cables or cable bundles. They improve the organisation of cable bundles, provide strain relief and prevent cables from tangling. The spiral structure allows cables to be subsequently wrapped.

Material:

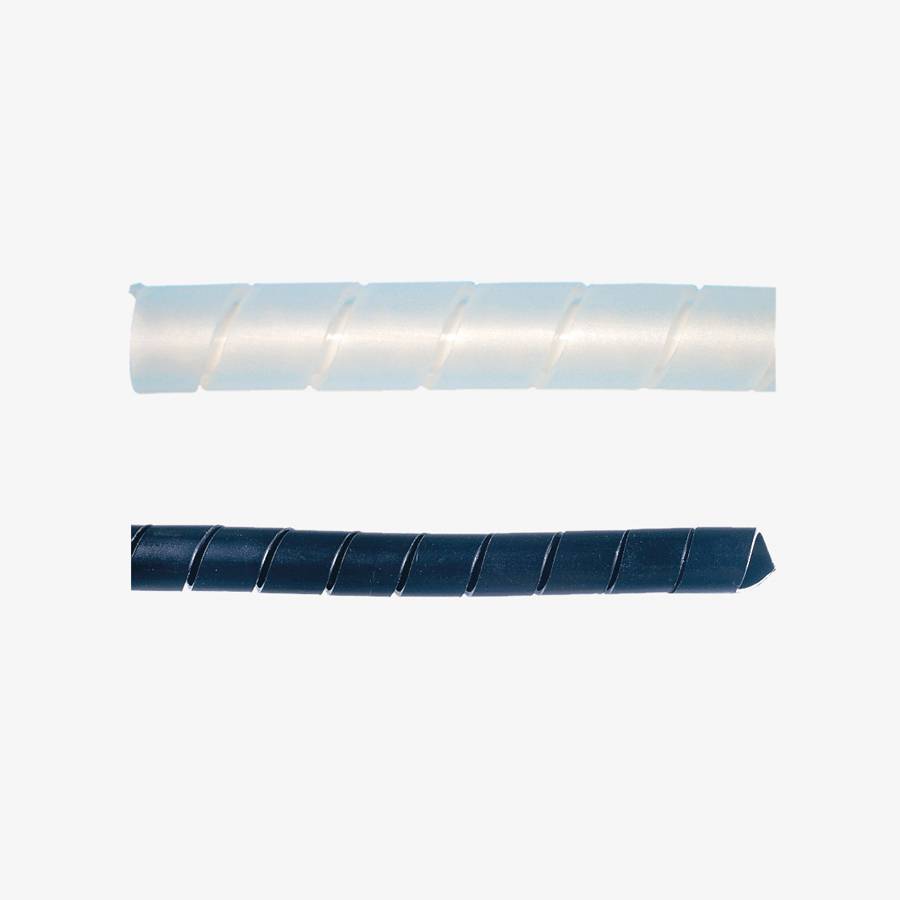

SPA = polyamide (PA), black - weather-resistant, S-PTFE = polytetrafluoroethylene (PTFE), natural - for extreme temperatures, SPP-MDE = polypropylene with metal content, blue metallic - detectable (HACCP), S-ESD = polyolefin, conductive material (ESD), black - antistatic ESD (EPA)

Heat resistance:

SPA -40° bis +120°C, S-PTFE -200° bis +260°C, SPP-MDE -20° bis +70°C, S-ESD -50° bis +60°C

Print current page

To request a product, please click on the corresponding item number in the table.

* Type: S-PTFE - PU 10m

bundling-Ø in mm	outer-Ø in mm	Type: PA black	Part no.	Type: PP blue	Part no.	Type: ESD black	Part no.	Type: PTFE nature	Part no.	PU meter

2,0 - 7,0	3.0	SPA 03	70-160			S-ESD 03	70-145	S-PTFE 03	70-140	50 / 10*
5,0 - 20,0	6.0	SPA 06	70-160	SPP-MDE 06	70-148	S-ESD 06	70-146	S-PTFE 06	70-141	25 / 10*
10,0 - 40,0	12.0	SPA 12	70-160	SPP-MDE 12	70-149	S-ESD 12	70-147			25
