Spiral tubing + cable bundle hoses

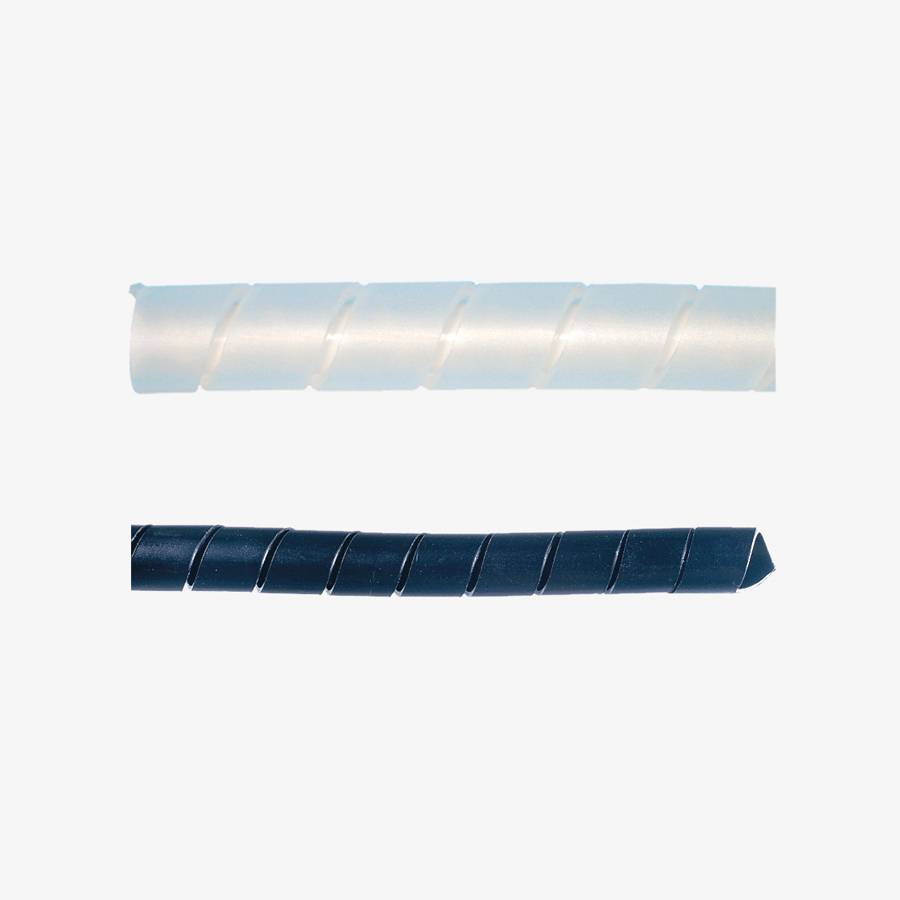

Spiral tube SPE

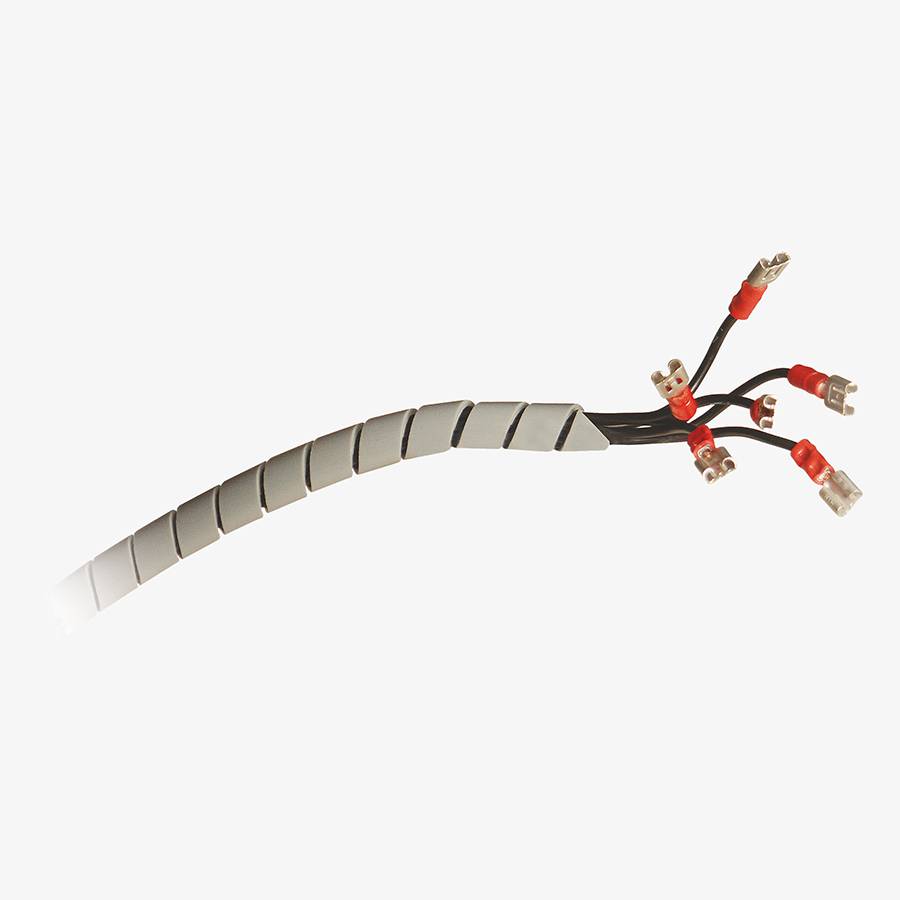

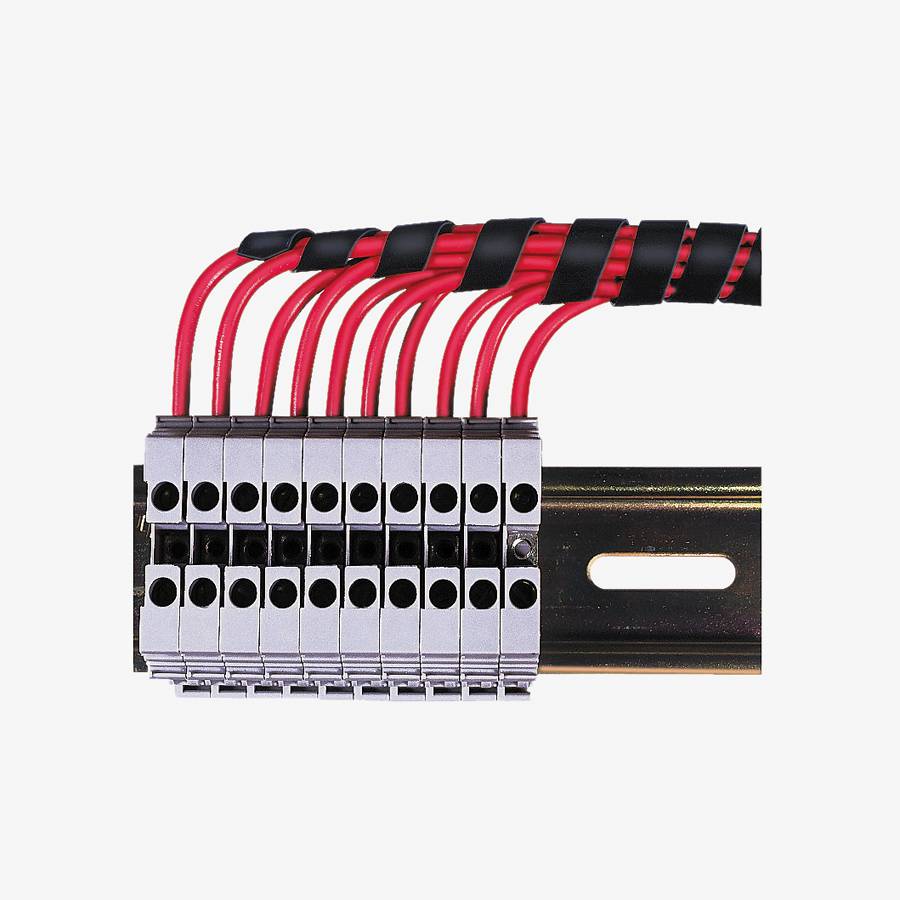

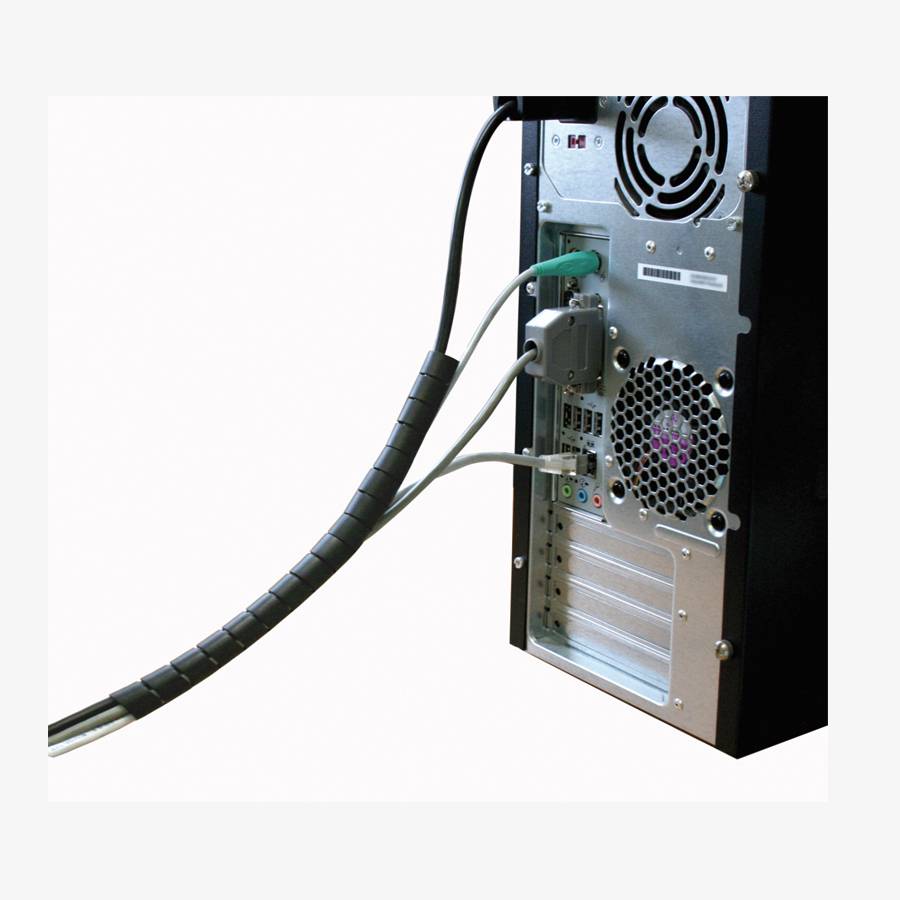

Spiral tubes are used for the flexible safeguard of individual cables or cable bundles to provide additional protection against abrasion and to increase the life-time of the cables. They improve the organisation of cable bundles, provide strain relief and prevent cables from tangling, making it easier to manage and route cables efficiently. The spiral structure allows cables to be subsequently wrapped.

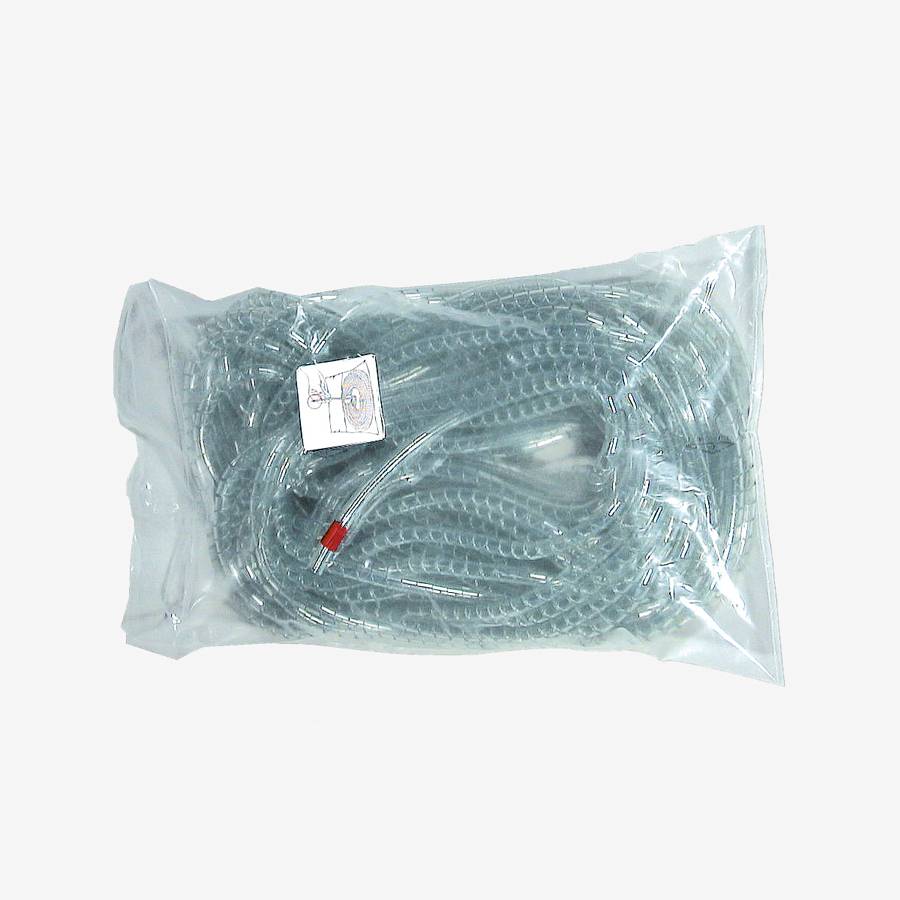

The spiral conduits are packed in special bags so that the beginning of the conduit is always at hand and cannot get tangled.
To request a product, please click on the corresponding item number in the table.

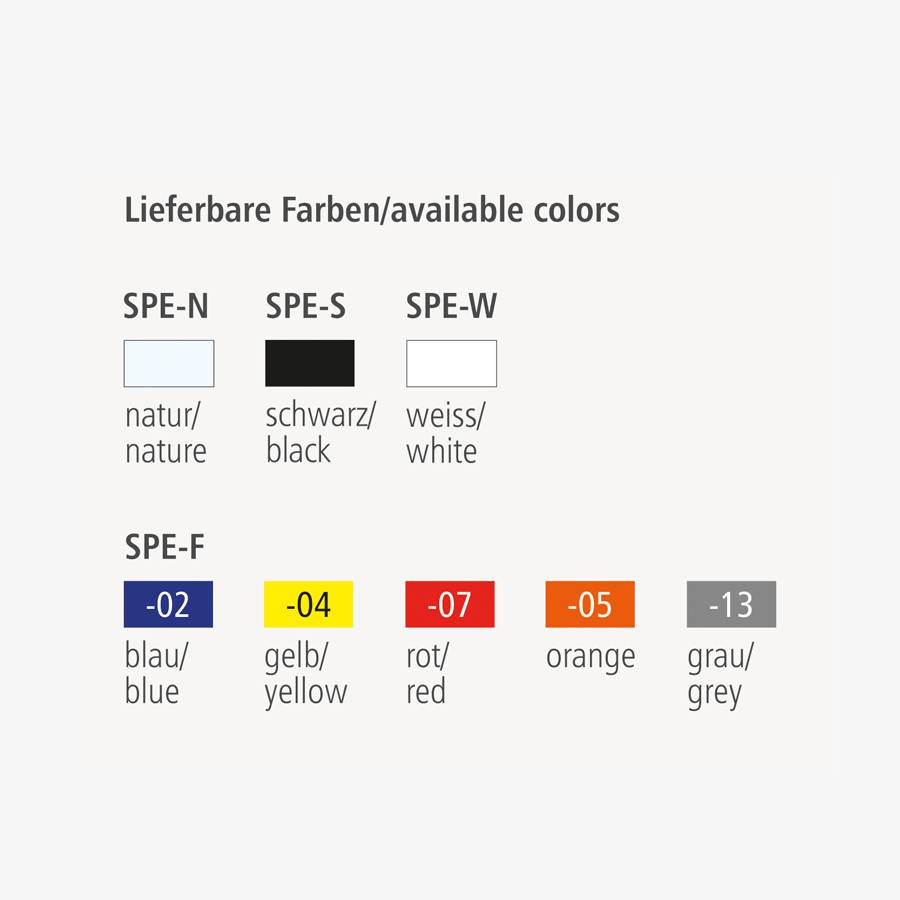

Example: 70-131-04= SPE-F 06 in yellow
Sections available on request!
| bundling-Ø in mm | outer-Ø in mm | wall thickness in mm | Type natural | Part no. natural | Type black | Part no. black | Type white | Part no. white | Type coloured | Part no. coloured | PU meter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1,5 - 7,0 | 3.0 | 0.75 | SPE-N 03 | 70-100 | SPE-S 03 | 70-120 | SPE-W 03 | 70-110 | SPE-F 03 | 70-130-xx | 50 |
| 8,0 - 20,0 | 6.0 | 1.00 | SPE-N 06 | 70-101 | SPE-S 06 | 70-121 | SPE-W 06 | 70-111 | SPE-F 06 | 70-131-xx | 25 |
| 10,0 - 40,0 | 12.0 | 1.50 | SPE-N 12 | 70-102 | SPE-S 12 | 70-122 | SPE-W 12 | 70-112 | SPE-F 12 | 70-132-xx | 25 |
| 20,0 - 70,0 | 17.0 | 1.50 | SPE-N 17 | 70-104 | SPE-S 17 | 70-124 | 25 | ||||
| 25,0 - 100,0 | 22.0 | 1.50 | SPE-N 22 | 70-103 | SPE-S 22 | 70-123 | SPE-W 22 | 70-113 | 25 |
