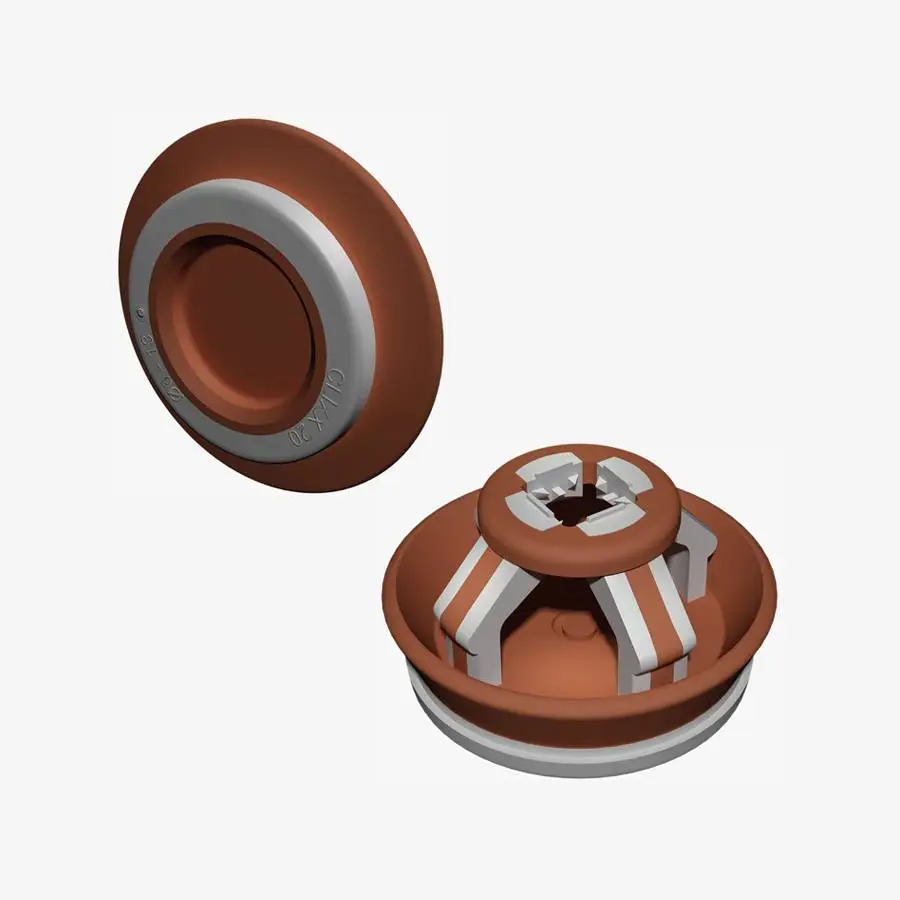

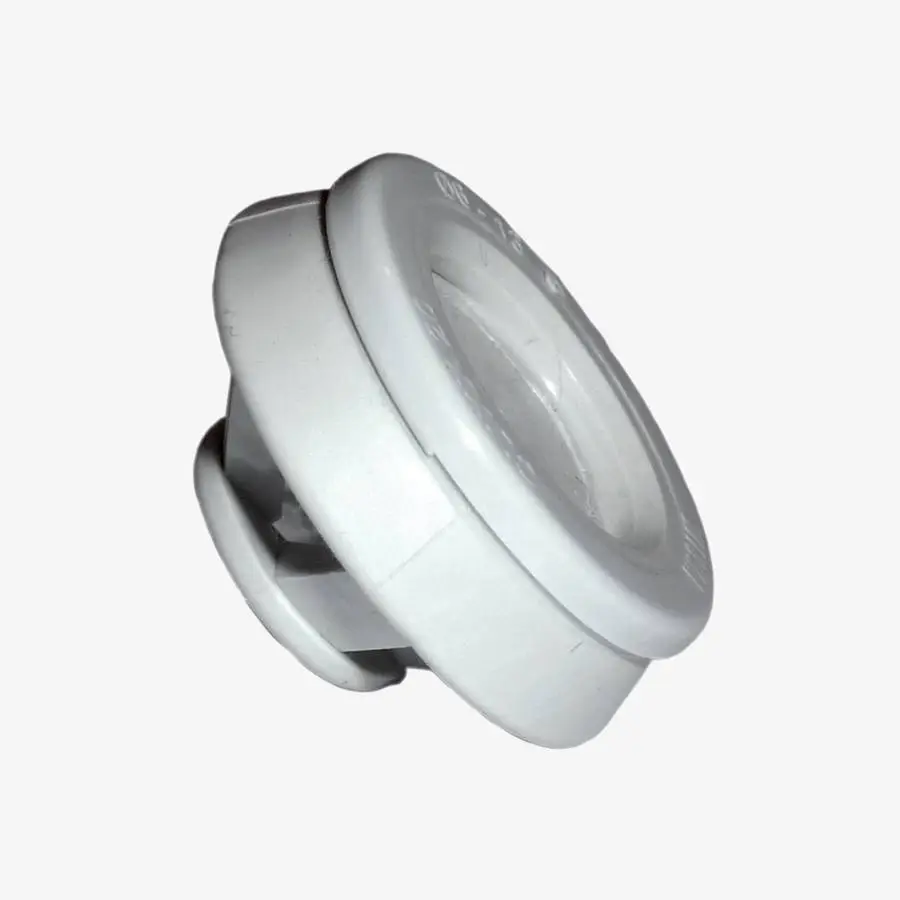

Sealing grommets CLIXX

Easy to click, easy to push the cable through, really tight, really ingenious! Space-saving cable grommet, with strain relief using polypropylene snap-in hooks. Simple one-hand assembling saves time and money. No additional tools or accessories are required.

Material:

Polypropylene, TPE membrane

Color:

black, light gray, white

Heat resistance:

-40 °C up to +65 °C

DIN:

Strain relief according to EN 50262 type A

IP-Rating

IP 66/67

Print current page

To request a product, please click on the corresponding item number in the table.

Type	Part no. l.gray	Part no. black	Part no. white	Cable-Ø A mm	H mm	H1 mm	Hole-ØB mm	Wall thickness mm	PU pcs.

CLIXX M16	55-850	55-855	55-860	4,5 - 10,0	15.0	7.3	16,5 - 16,7	0,8 - 3,5	50
CLIXX M20	55-851	55-856	55-861	6,0 - 13,0	15.0	7.3	20,5 - 20,7	0,8 - 3,5	50
CLIXX M25	55-852	55-857	55-862	9,0 - 17,0	15.0	7.5	25,5 - 25,7	0,8 - 3,5	50
