Sealing grommets
Sealing grommets DG-MS
These grommets have a metric thread and can be screwed on with a locknut or directly. There is no other easier way to insert a cable with IP 66 protection. On the outside, the grommets have a hard and resistant body; on the inside, a thermoplastic elastomer (TPE) ensures that the membrane can be pierced easily. The self-sealing membrane also allows the insertion of flat cables or several cables with a small diameter.
To request a product, please click on the corresponding item number in the table.

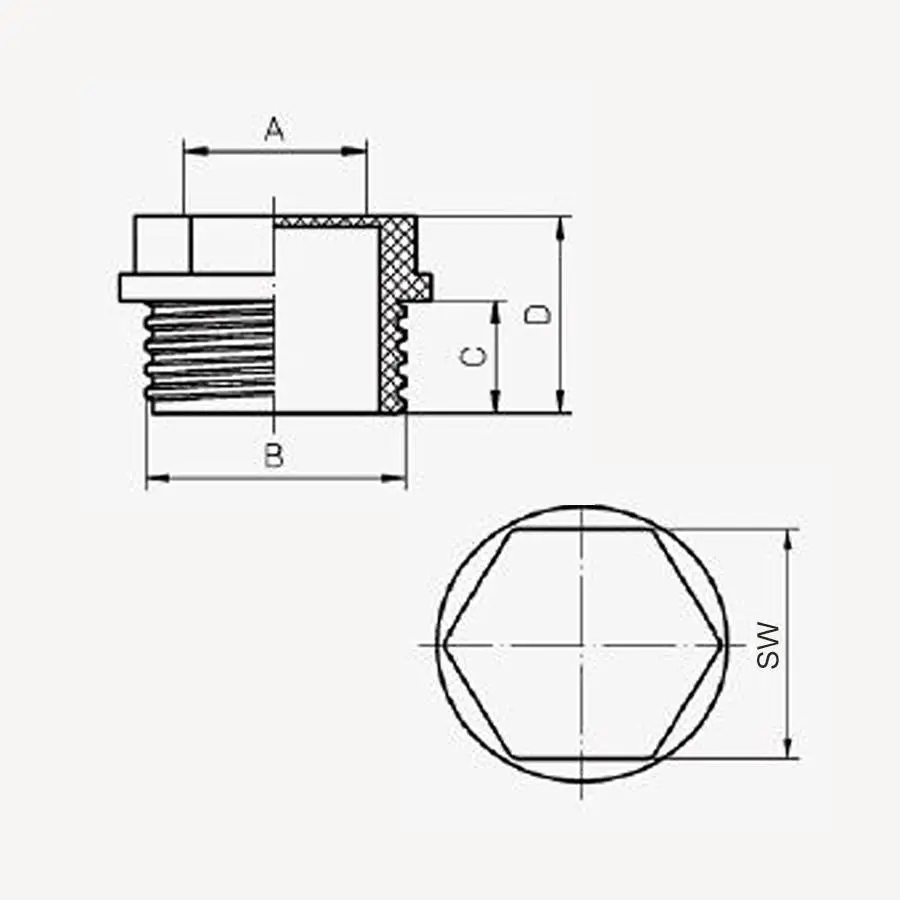

| Type | Part no. | Part no. locknut | Cable-Ø A mm | ØB mm | ØC mm | D mm | SW mm | Hole-Ø mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|
| DG-MS M16 | 55-801 | 77-652 | 1,0 - 9,0 | M16 x 1,5 | 9.0 | 15.0 | 17.0 | 16.5 | 100 |
| DG-MS M20 | 55-802 | 77-653 | 1,0 - 13,0 | M20 x 1,5 | 9.0 | 15.0 | 20.0 | 20.5 | 100 |
| DG-MS M25 | 55-803 | 77-654 | 1,0 - 18,0 | M25 x 1,5 | 9.0 | 15.0 | 24.0 | 25.5 | 100 |
| DG-MS M32 | 55-804 | 77-655 | 1,0 - 25,0 | M32 x 1,5 | 9.0 | 15.0 | 32.0 | 32.5 | 100 |
