Sealing grommets

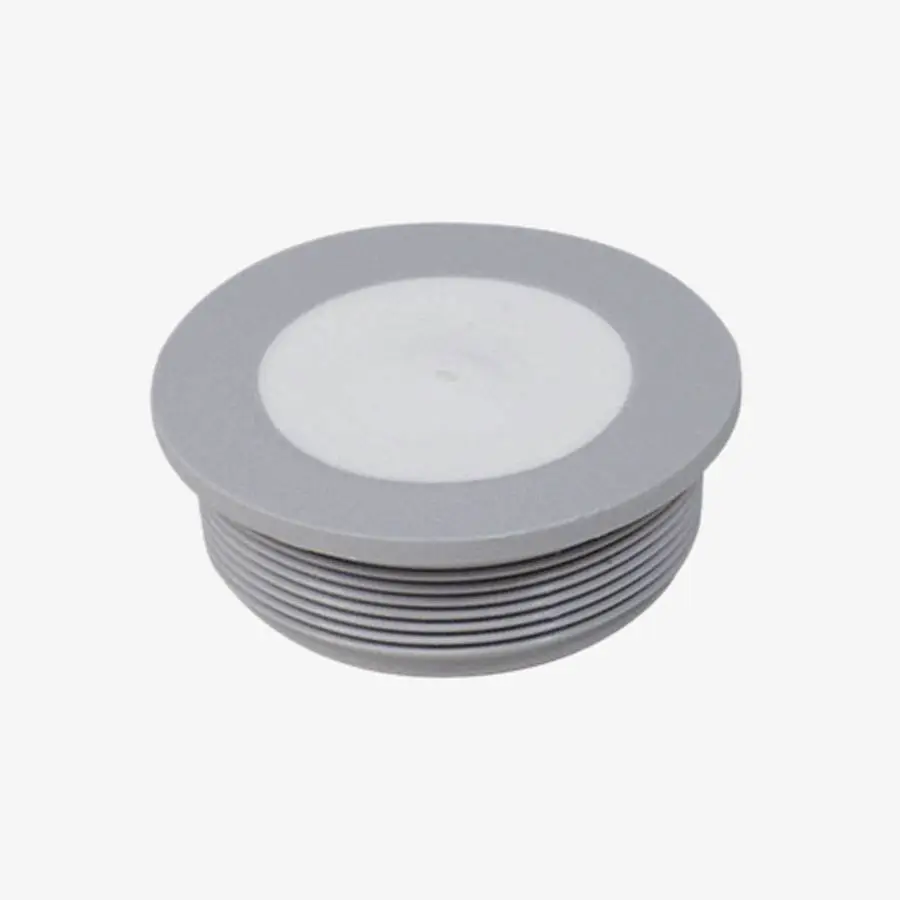

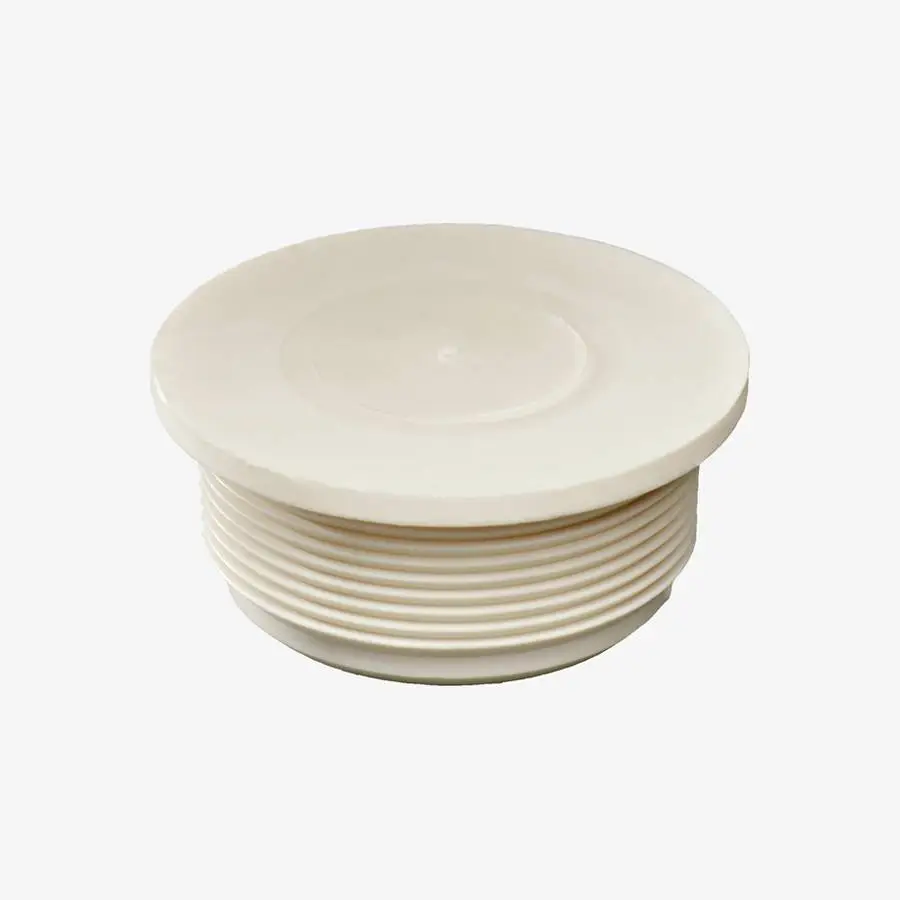

Sealing grommets DG-MT

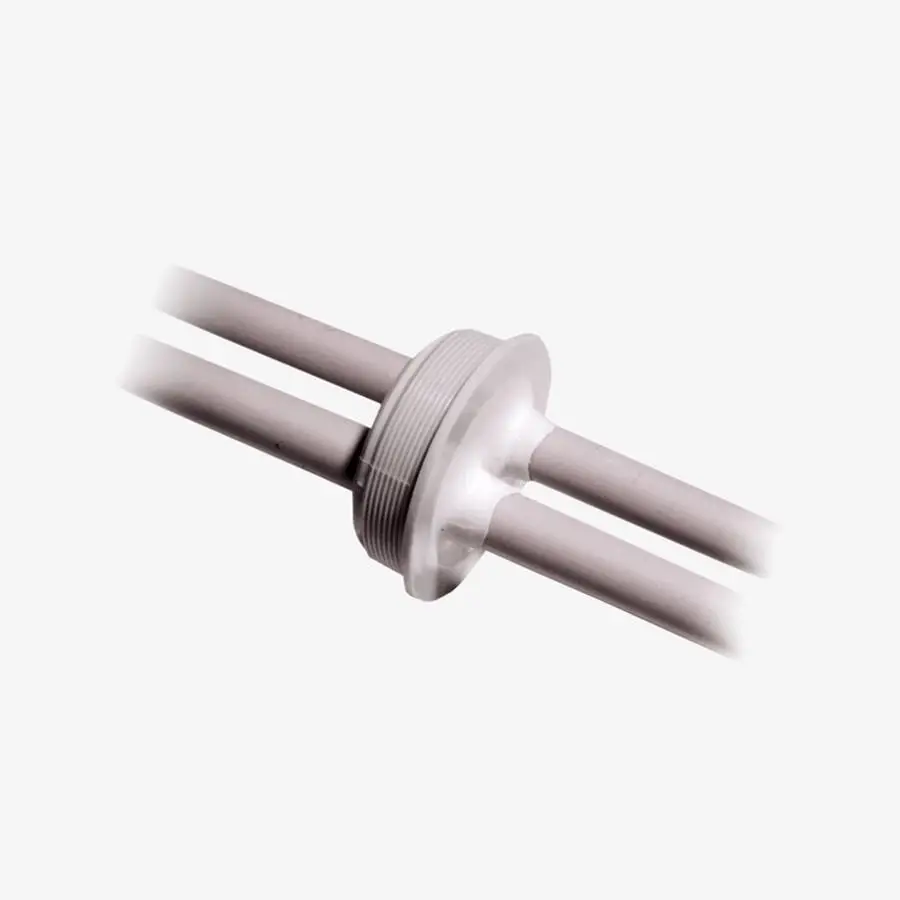

There is no other easier way to insert a cable with IP 66 protection. On the outside, the grommets have a hard and resistant body; on the inside, thermoplastic elastomer (TPE) makes it easy to pierce the membrane. The self-sealing membrane also allows the insertion of flat cables or several cables with a small diameter.
To request a product, please click on the corresponding item number in the table.

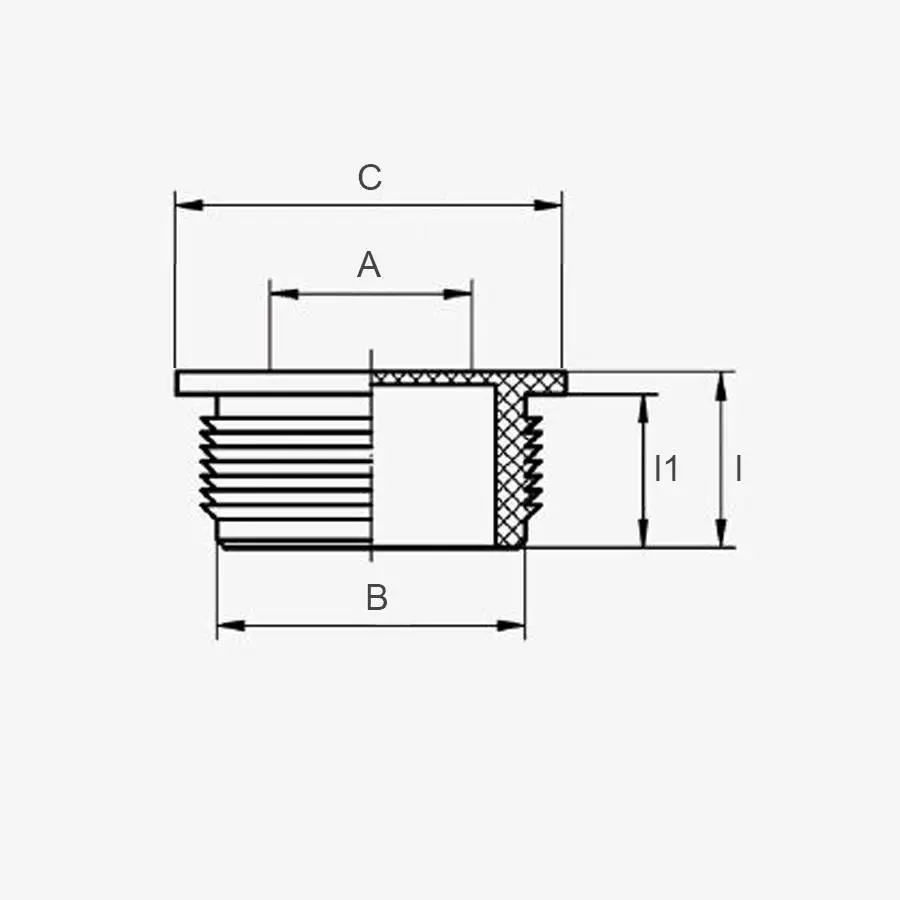

| Type | Part no. l.gray | Part no. white / UL94-V2 | Cable-Ø A mm | ØB mm | ØC mm | l1 mm | l mm | Hole-Ø mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|
| DG-MT M16 | 55-821 | 55-821-f | 1,0 - 9,0 | 16.0 | 21.0 | 9.5 | 11.0 | 16,0 - 17,2 | 100 |
| DG-MT M20 | 55-822 | 55-822-f | 1,0 - 15,0 | 20.0 | 25.0 | 9.5 | 11.0 | 20,0 - 21,2 | 100 |
| DG-MT M25 | 55-823 | 55-823-f | 1,0 - 20,0 | 25.0 | 30.0 | 9.5 | 11.0 | 25,0 - 26,2 | 100 |
| DG-MT M32 | 55-824 | 55-824-f | 1,0 - 25,0 | 32.0 | 37.0 | 9.5 | 11.0 | 32,0 - 33,2 | 100 |

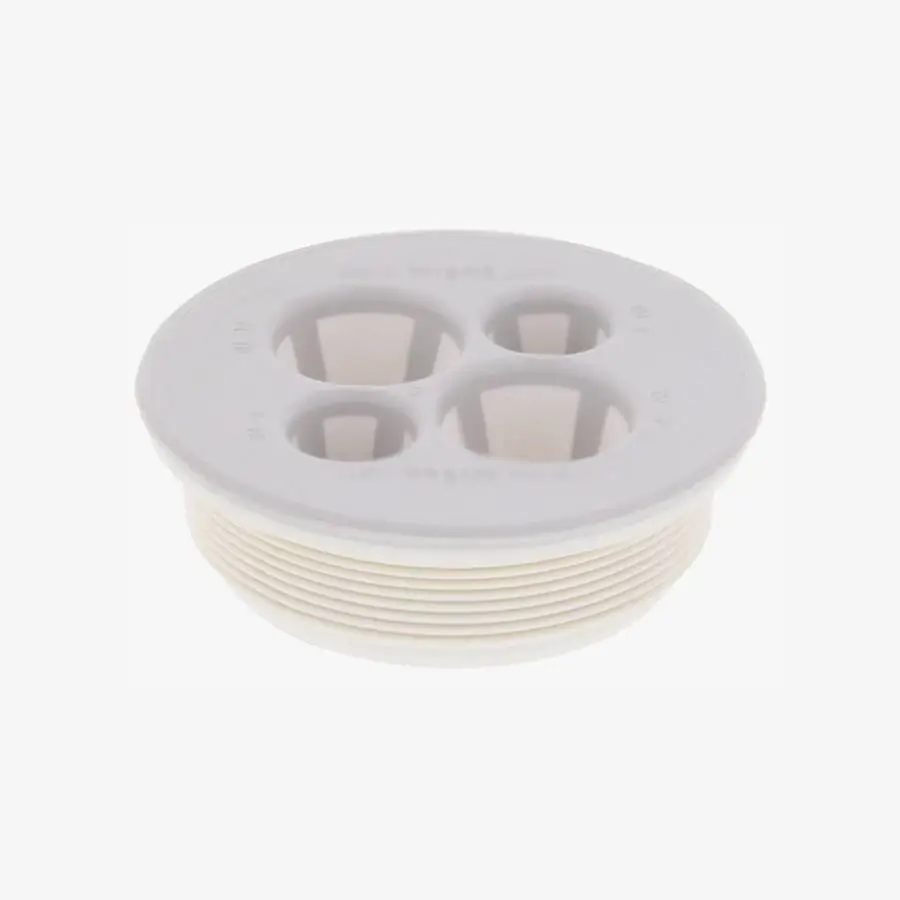

| DG-MTZ M32 | 55-825 | 2x 4-8 / 2x 7-12 | 32.0 | 37.0 | 9.5 | 12.0 | 32,0 - 33,2 | 50 |
