Aderendhülsen

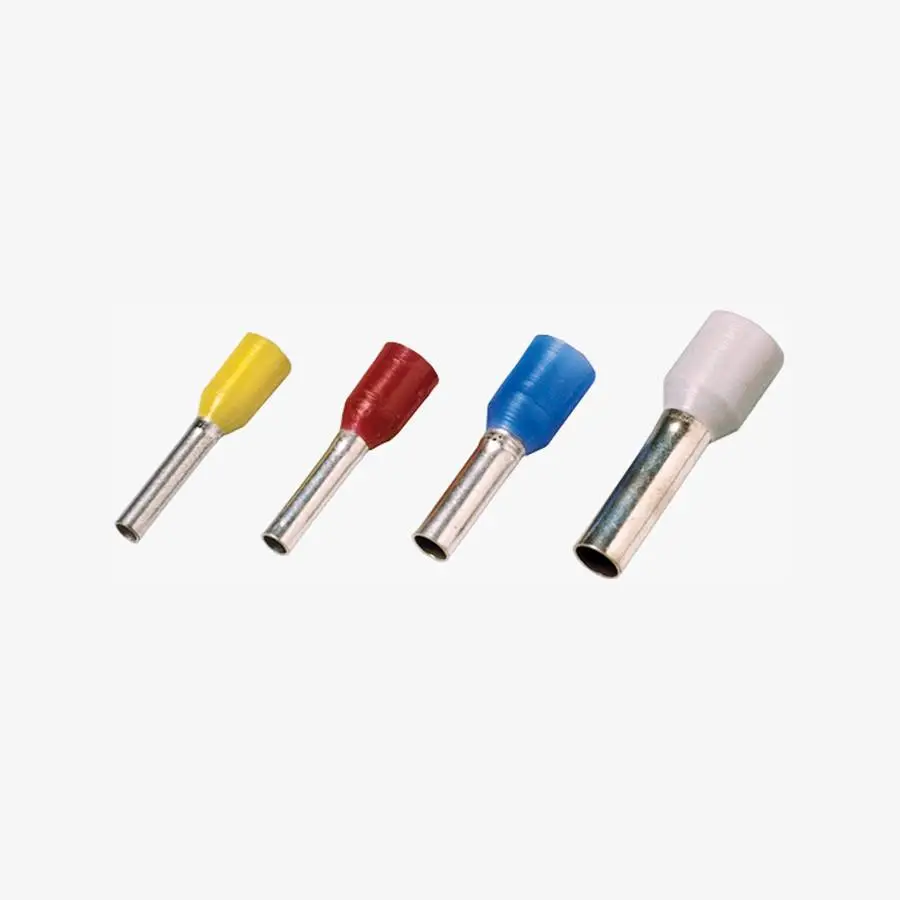

Aderendhülsen isoliert
Für feindrähtige Leiter. Polypropylen-Trichter für spleißfreie Leitereinführung. Made in Germany, UL gelistet.
Um ein Produkt anzufragen, klicken Sie bitte auf die entsprechende Artikelnummer in der Tabelle.

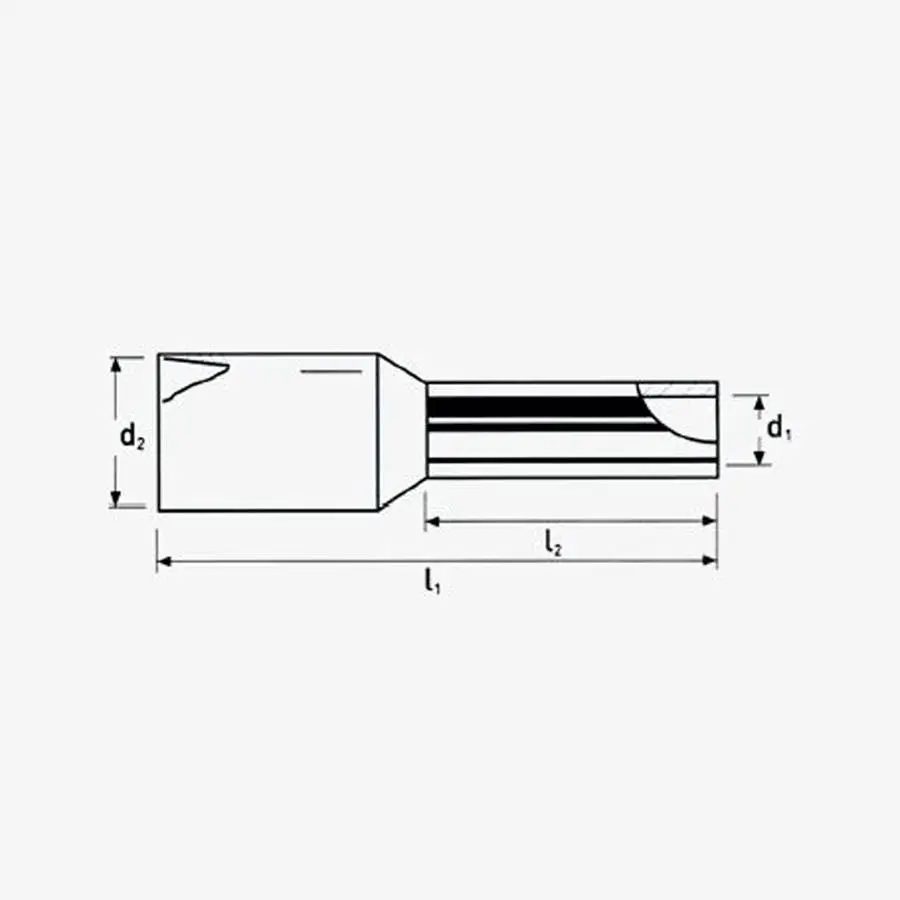

| Querschnitt mm² | Typ | l1 mm | l2 mm | Farbe DIN* | Art.-Nr. | Farbe 1 | Art.-Nr. | Farbe 2 | Art.-Nr. | VE Stück |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.14 | TS 0,14/N | 10.0 | 6.0 | braun | 11-690 | grau | 11-490 | 500 | ||
| 0.14 | TS 0,14/L | 12.0 | 8.0 | braun | 11-691 | grau | 11-491 | 500 | ||
| 0.25 | TS 0,25/N | 10.0 | 6.0 | violett | 11-780 | hellblau | 11-580 | 500 | ||
| 0.25 | TS 0,25/L | 12.0 | 8.0 | violett | 11-781 | hellblau | 11-581 | 500 | ||
| 0.34 | TS 0,34/N | 10.0 | 6.0 | pink | 11-790 | türkies | 11-590 | 500 | ||
| 0.34 | TS 0,34/L | 12.0 | 8.0 | pink | 11-791 | türkies | 11-591 | 500 | ||
| 0.50 | TS 0,50/K | 12.0 | 6.0 | weiß | 11-100 | weiß | 11-100 | orange | 11-530 | 500 |
| 0.50 | TS 0,50/N | 14.0 | 8.0 | weiß | 11-101 | weiß | 11-101 | orange | 11-500 | 500 |
| 0.50 | TS 0,50/HL | 16.0 | 10.0 | weiß | 11-102 | weiß | 11-102 | orange | 11-531 | 500 |
| 0.75 | TS 0,75/K | 12.0 | 6.0 | grau | 11-110 | blau | 11-732 | weiß | 11-532 | 500 |
| 0.75 | TS 0,75/N | 14.0 | 8.0 | grau | 11-111 | blau | 11-701 | weiß | 11-501 | 500 |
| 0.75 | TS 0,75/HL | 16.0 | 10.0 | grau | 11-112 | blau | 11-733 | weiß | 11-533 | 500 |
| 0.75 | TS 0,75/L | 18.0 | 12.0 | grau | 11-113 | blau | 11-734 | weiß | 11-534 | 500 |
| 1.00 | TS 1,00/K | 12 | 6.0 | rot | 11-120 | rot | 11-120 | gelb | 11-535 | 500 |
| 1.00 | TS 1,00/N | 14.0 | 8.0 | rot | 11-121 | rot | 11-121 | gelb | 11-502 | 500 |
| 1.00 | TS 1,00/HL | 16.0 | 10.0 | rot | 11-122 | rot | 11-122 | gelb | 11-536 | 500 |
| 1.00 | TS 1,00/L | 18.0 | 12.0 | rot | 11-123 | rot | 11-123 | gelb | 11-537 | 500 |
| 1.50 | TS 1,50/K | 12.0 | 6.0 | schwarz | 11-129 | schwarz | 11-129 | rot | 11-516 | 500 |
| 1.50 | TS 1,50/N | 14.0 | 8.0 | schwarz | 11-130 | schwarz | 11-130 | rot | 11-503 | 500 |
| 1.50 | TS 1,50/HL | 16.0 | 10.0 | schwarz | 11-131 | schwarz | 11-131 | rot | 11-515 | 500 |
| 1.50 | TS 1,50/Hs | 18.0 | 12.0 | schwarz | 11-132 | schwarz | 11-132 | rot | 11-517 | 500 |
| 1.50 | TS 1,50/L | 24.0 | 18.0 | schwarz | 11-133 | schwarz | 11-133 | rot | 11-538 | 500 |
| 2.50 | TS 2,50/N | 14.0 | 8.0 | blau | 11-140 | grau | 11-704 | blau | 11-140 | 500 |
| 2.50 | TS 2,50/Hs | 16.0 | 10.0 | blau | 11-143 | grau | 11-717 | blau | 11-143 | 500 |
| 2.50 | TS 2,50/HL | 18.0 | 12.0 | blau | 11-141 | grau | 11-716 | blau | 11-141 | 500 |
| 2.50 | TS 2,50/L | 24.0 | 18.0 | blau | 11-142 | grau | 11-739 | blau | 11-142 | 500 |
| 4.00 | TS 4,00/N | 17.0 | 10.0 | grau | 11-150 | orange | 11-705 | grau | 11-150 | 500 |
| 4.00 | TS 4,00/HL | 20.0 | 12.0 | grau | 11-151 | orange | 11-740 | grau | 11-151 | 500 |
| 4.00 | TS 4,00/L | 26.0 | 18.0 | grau | 11-152 | orange | 11-741 | grau | 11-152 | 100 |
| 6.00 | TS 6,00/N | 20.0 | 12.0 | gelb | 11-160 | grün | 11-706 | schwarz | 11-506 | 100 |
| 6.00 | TS 6,00/L | 26.0 | 18.0 | gelb | 11-161 | grün | 11-742 | schwarz | 11-542 | 100 |
| 10.00 | TS 10,00/N | 22.0 | 12.0 | rot | 11-170 | braun | 11-710 | elfenb. | 11-510 | 100 |
| 10.00 | TS 10,00/L | 28.0 | 18.0 | rot | 11-171 | braun | 11-711 | elfenb. | 11-511 | 100 |
| 16.00 | TS 16,00/N | 24.0 | 12.0 | blau | 11-180 | weiß | 11-712 | grün | 11-512 | 100 |
| 16.00 | TS 16,00/L | 28.0 | 18.0 | blau | 11-181 | weiß | 11-713 | grün | 11-513 | 100 |
| 25.00 | TS 25,00/N | 30.0 | 16.0 | gelb | 11-190 | schwarz | 11-745 | braun | 11-545 | 50 |
| 25.00 | TS 25,00/HL | 30.0 | 18.0 | gelb | 11-191 | schwarz | 11-747 | braun | 11-547 | 50 |
| 25.00 | TS 25,00/L | 35.0 | 22.0 | gelb | 11-192 | schwarz | 11-746 | braun | 11-546 | 50 |
| 35.00 | TS 35,00/N | 30.0 | 16.0 | rot | 11-200 | rot | 11-200 | beige | 11-550 | 50 |
| 35.00 | TS 35,00/HL | 30.0 | 18.0 | rot | 11-201 | rot | 11-201 | beige | 11-552 | 50 |
| 35.00 | TS 35,00/L | 39.0 | 25.0 | rot | 11-202 | rot | 11-202 | beige | 11-551 | 50 |
| 50.00 | TS 50,00/N | 36.0 | 20.0 | blau | 11-210 | blau | 11-210 | olive | 11-560 | 50 |
| 50.00 | TS 50,00/L | 40.0 | 25.0 | blau | 11-211 | blau | 11-211 | olive | 11-561 | 50 |
| 70.00 | TS 70,00/N | 37.0 | 21.0 | gelb | 11-570 | gelb | 11-570 | gelb | 11-570 | 25 |
| 95.00 | TS 95,00/N | 44.0 | 25.0 | rot | 11-585 | rot | 11-585 | rot | 11-585 | 25 |
| 120.00 | TS 120,00/N | 48.0 | 47.0 | blau | 11-595 | blau | 11-595 | blau | 11-595 | 25 |
| 150.00 | TS 150,00/N | 58.0 | 32.0 | gelb | 11-600 | gelb | 11-600 | gelb | 11-600 | 25 |
