Membrantüllen
Membrantüllen DG

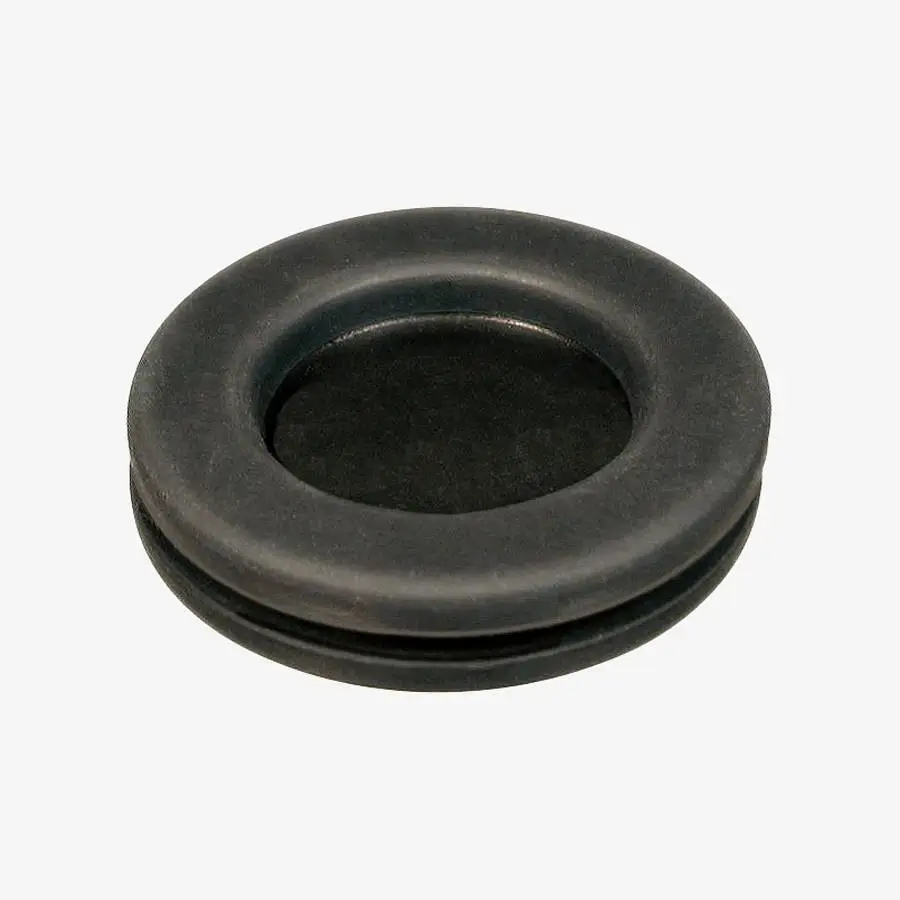

Die Membrantüllen können als Blindstopfen oder als Kabeldurchführung benutzt werden.
Die Serie DG sind aus Polychloroprengummi hergestellt (Neopren/Baypren), welches sehr gute Hitze-, Alterungs-, Ozon-, Fett-, Öl-, Essenzenbeständigkeit, sowie eine Beständigkeit gegen organische Lösungen aufweist.
Um ein Produkt anzufragen, klicken Sie bitte auf die entsprechende Artikelnummer in der Tabelle.

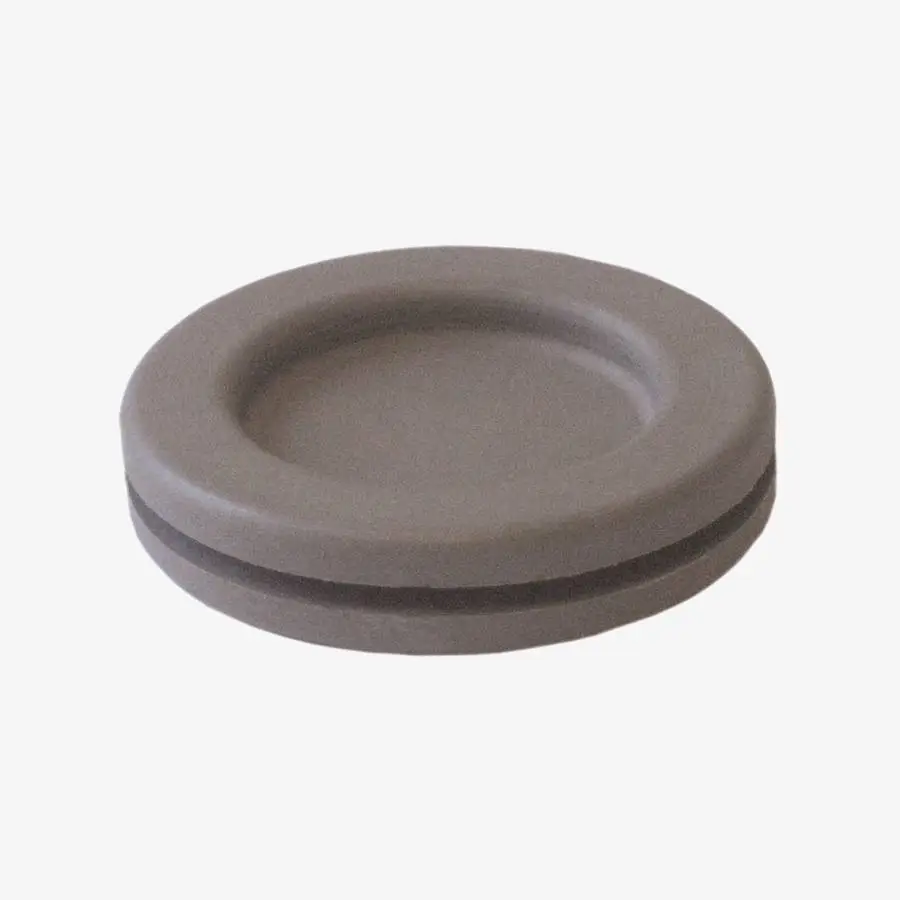

• Andere Materialien wie Silikon, EPDM, Farben und Härtegrade (Shore A) auf Anfrage.
• kreuzgeschlitzte und gelochte Varianten siehe unterhalb der Tabelle

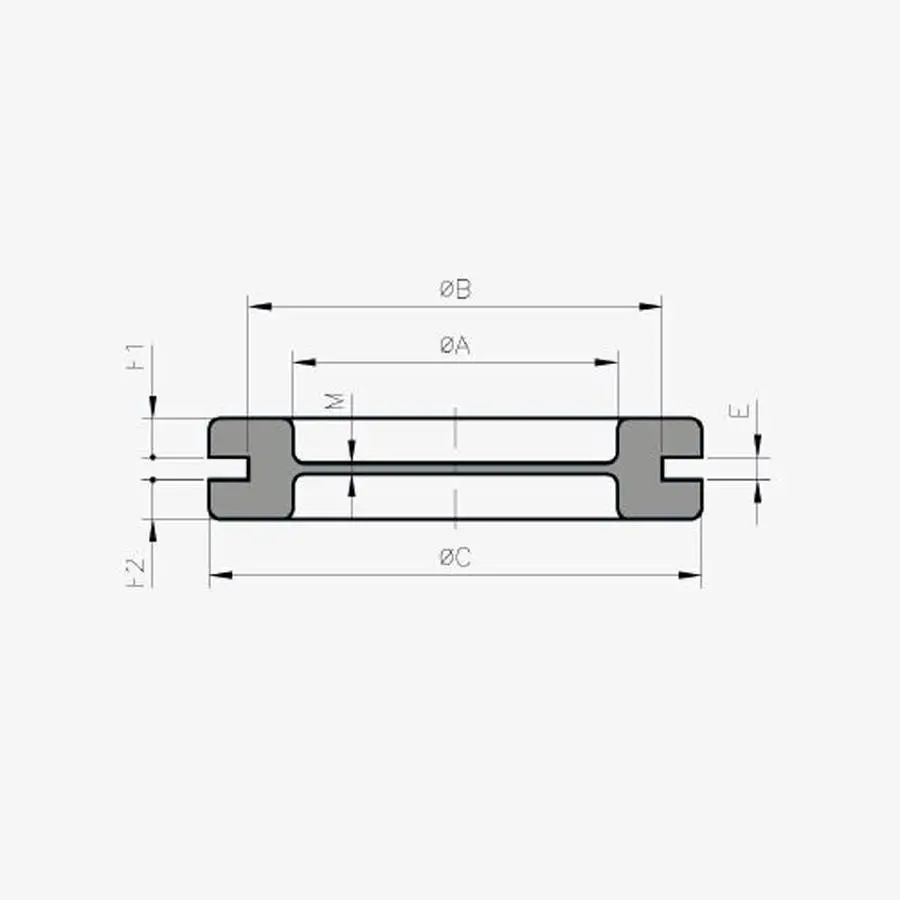

| Typ | Art.-Nr. schwarz | Art.-Nr. grau | ØA mm | ØB mm | ØC mm | E mm | F1 mm | F2 mm | M mm | VE Stück |
|---|---|---|---|---|---|---|---|---|---|---|
| DG PG7 | 55-252 | 9.5 | 13.0 | 17.5 | 1.5 | 3.25 | 3.25 | 1.0 | 100 | |
| DG PG9/E1 | 55-105 | 55-505 | 9.0 | 15.5 | 20.0 | 1.0 | 3.5 | 2.5 | 1.0 | 100 |
| DG PG9 | 55-115 | 55-515 | 9.0 | 15.5 | 20.0 | 2.0 | 2.5 | 2.5 | 1.0 | 100 |
| DG PG11 | 55-125 | 55-525 | 11.0 | 18.5 | 23.0 | 2.0 | 2.5 | 2.5 | 1.0 | 100 |
| DG PG13,5 | 55-135 | 55-535 | 13.5 | 20.5 | 25.0 | 2.0 | 2.5 | 2.5 | 1.0 | 100 |
| DG PG16 | 55-145 | 55-545 | 16.0 | 22.5 | 28.0 | 2.0 | 2.5 | 2.5 | 1.0 | 100 |
| DG PG16/E3 | 55-147 | 16.0 | 22.5 | 27.5 | 3.0 | 2.5 | 2.5 | 2.0 | 100 | |
| DG PG16/E4 | 55-148 | 16.0 | 22.5 | 27.5 | 4.0 | 2.5 | 2.5 | 3.0 | 100 | |
| DG PG21 | 55-155 | 55-555 | 21.0 | 28.0 | 35.0 | 2.0 | 3.0 | 3.0 | 1.0 | 100 |
| DG PG21/E4 | 55-157 | 21.0 | 28.0 | 35.0 | 4.0 | 3.0 | 3.0 | 3.0 | 100 | |
| DG PG29 | 55-165 | 55-565 | 29.0 | 37.0 | 44.0 | 2.0 | 3.5 | 3.5 | 1.0 | 50 |
| DG PG29/E6 | 55-167 | 29.0 | 37.0 | 44.0 | 6.0 | 3.5 | 3.5 | 5.0 | 50 | |
| DG PG36 | 55-175 | 55-575 | 36.0 | 47.0 | 54.0 | 2.5 | 3.8 | 3.8 | 1.0 | 50 |
| DG PG36/E3 | 55-177 | 36.0 | 47.0 | 54.0 | 3.0 | 3.8 | 5.0 | 3.0 | 50 | |
| DG PG48 | 55-185 | 55-585 | 48.0 | 60.0 | 68.0 | 2.5 | 3.8 | 3.8 | 1.0 | 50 |
| DG PG53 | 55-195 | 55-595 | 53.0 | 64.0 | 75.0 | 2.5 | 3.8 | 3.8 | 1.5 | 50 |
| DG PG69 | 55-205 | 55-597 | 69.0 | 79.0 | 90.0 | 2.5 | 3.8 | 3.8 | 1.5 | 50 |
| DG M10 | 55-250 | 5.0 | 10.0 | 15/13 | 1.5 | 3.0 | 1.5 | 0.8 | 100 | |
| DG M16 | 55-124 | 55-524 | 9.0 | 16.0 | 20.0 | 2.0 | 2.5 | 2.5 | 1.0 | 100 |
| DG M20 | 55-134 | 55-534 | 13.5 | 20.0 | 25.0 | 2.0 | 2.5 | 2.5 | 1.0 | 100 |
| DG M25 | 55-154 | 55-554 | 18.5 | 25.0 | 30.5 | 2.0 | 2.5 | 2.5 | 1.0 | 100 |
| DG M32 | 55-164 | 55-564 | 25.0 | 32.0 | 39.0 | 2.0 | 3.0 | 3.0 | 1.0 | 100 |
| DG M40 | 55-174 | 55-574 | 31.0 | 40.0 | 47.0 | 2.5 | 3.8 | 3.8 | 1.0 | 50 |
| DG M50 | 55-184 | 55-584 | 39.0 | 50.0 | 57.0 | 2.5 | 3.8 | 3.8 | 1.0 | 50 |
| DG M63 | 55-194 | 55-594 | 53.0 | 63.0 | 75.0 | 2.5 | 3.8 | 3.8 | 1.0 | 50 |
| DG M68 | 55-198 | 55-598 | 53.0 | 68.0 | 75.0 | 2.5 | 3.8 | 3.8 | 1.5 | 50 |
| DG M75 | 55-204 | 55-599 | 65.0 | 75.0 | 87.0 | 2.5 | 3.8 | 3.8 | 1.0 | 50 |
| DG M90 | 55-206 | 67.0 | 90.0 | 110.0 | 2.4 | 5.3 | 5.3 | 3.0 | 25 |

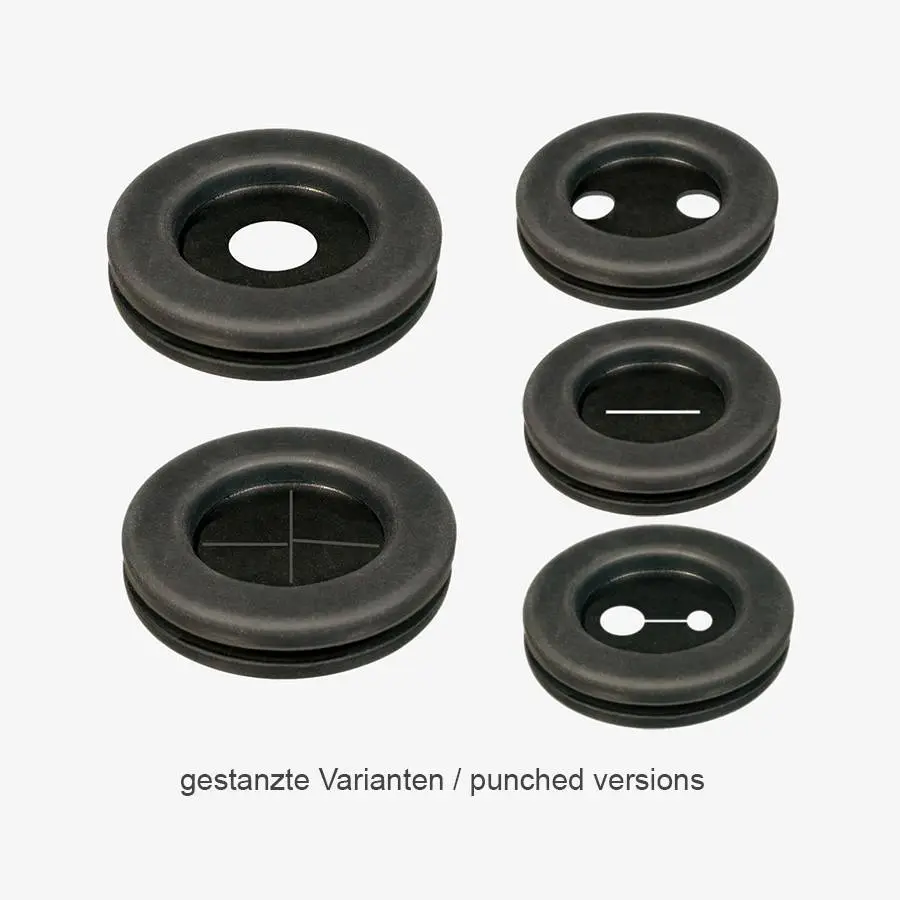

gelocht
perforated with a hole
perforated with a hole
kreutzgeschlitzt
cross-cutted
cross-cutted
gestanzt mit 2-Löchern
perforated with 2 holes
perforated with 2 holes
gestanzt mit Langloch
perforated with a slot hole for flat cables
perforated with a slot hole for flat cables
